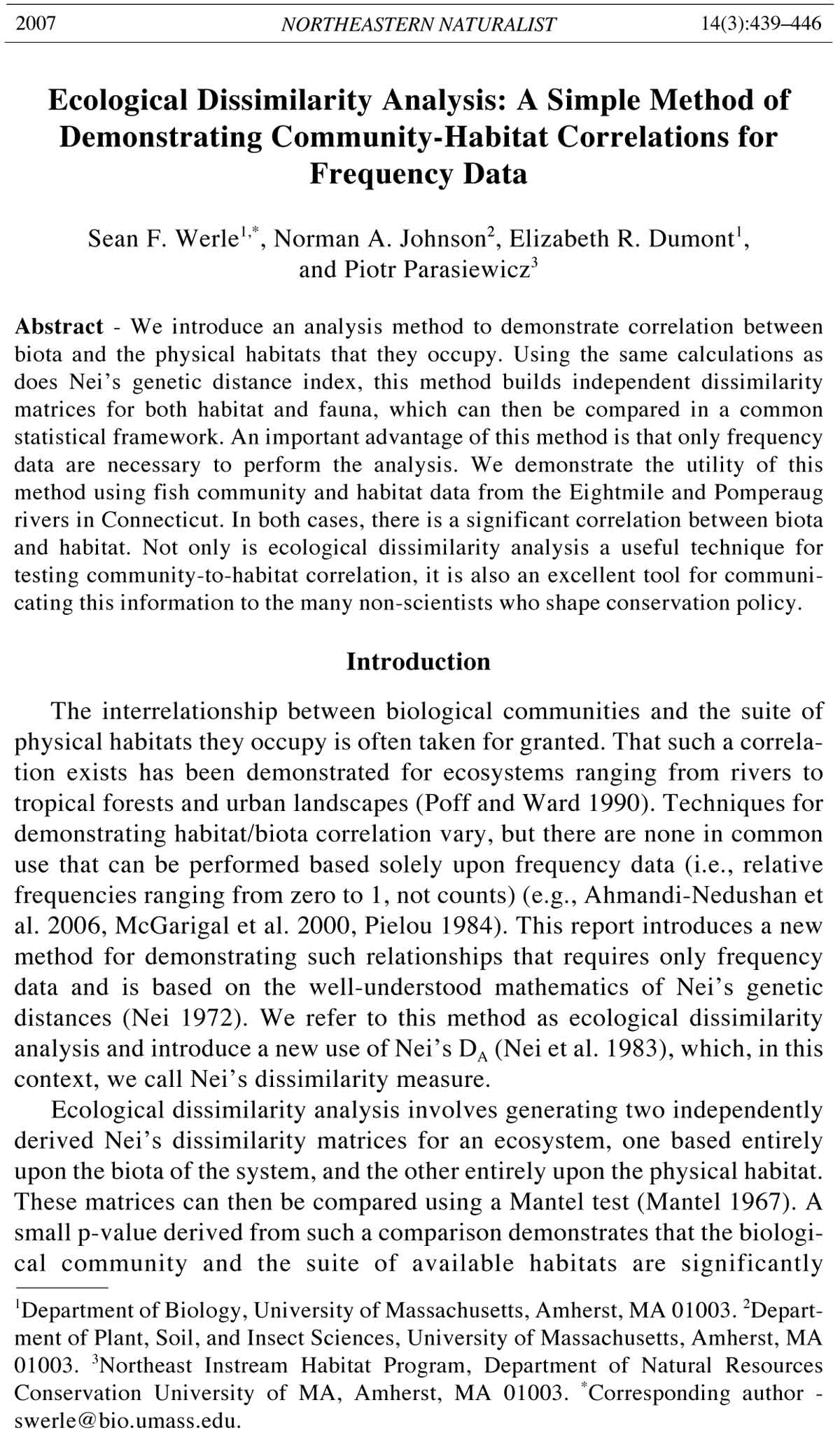

2007 NORTHEASTERN NATURALIST 14(3):439–446
Ecological Dissimilarity Analysis: A Simple Method of
Demonstrating Community-Habitat Correlations for
Frequency Data
Sean F. Werle1,*, Norman A. Johnson2, Elizabeth R. Dumont1,
and Piotr Parasiewicz3
Abstract - We introduce an analysis method to demonstrate correlation between
biota and the physical habitats that they occupy. Using the same calculations as
does Nei’s genetic distance index, this method builds independent dissimilarity
matrices for both habitat and fauna, which can then be compared in a common
statistical framework. An important advantage of this method is that only frequency
data are necessary to perform the analysis. We demonstrate the utility of this
method using fish community and habitat data from the Eightmile and Pomperaug
rivers in Connecticut. In both cases, there is a significant correlation between biota
and habitat. Not only is ecological dissimilarity analysis a useful technique for
testing community-to-habitat correlation, it is also an excellent tool for communicating
this information to the many non-scientists who shape conservation policy.
Introduction
The interrelationship between biological communities and the suite of
physical habitats they occupy is often taken for granted. That such a correlation
exists has been demonstrated for ecosystems ranging from rivers to
tropical forests and urban landscapes (Poff and Ward 1990). Techniques for
demonstrating habitat/biota correlation vary, but there are none in common
use that can be performed based solely upon frequency data (i.e., relative
frequencies ranging from zero to 1, not counts) (e.g., Ahmandi-Nedushan et
al. 2006, McGarigal et al. 2000, Pielou 1984). This report introduces a new
method for demonstrating such relationships that requires only frequency
data and is based on the well-understood mathematics of Nei’s genetic
distances (Nei 1972). We refer to this method as ecological dissimilarity
analysis and introduce a new use of Nei’s DA (Nei et al. 1983), which, in this
context, we call Nei’s dissimilarity measure.
Ecological dissimilarity analysis involves generating two independently
derived Nei’s dissimilarity matrices for an ecosystem, one based entirely
upon the biota of the system, and the other entirely upon the physical habitat.
These matrices can then be compared using a Mantel test (Mantel 1967). A
small p-value derived from such a comparison demonstrates that the biological
community and the suite of available habitats are significantly
1Department of Biology, University of Massachusetts, Amherst, MA 01003. 2Department
of Plant, Soil, and Insect Sciences, University of Massachusetts, Amherst, MA
01003. 3Northeast Instream Habitat Program, Department of Natural Resources
Conservation University of MA, Amherst, MA 01003. *Corresponding author -
swerle@bio.umass.edu.
440 Northeastern Naturalist Vol. 14, No. 3
correlated. Such associations provide an indicator of balance in an ecosystem,
whereas a lack of correlation suggests that an ecosystem is disturbed in
some way that causes a mismatch between the biological community and the
physical habitat template. Used in this way, community-habitat correlations
can be applied to monitor ecosystem recovery or to compare the relative
health of different localities.
The method of ecological dissimilarity analysis we propose is generalizable
across a wide range of biological systems, easy to calculate, and provides
an intuitively satisfying indicator of the relationship between the biota and the
physical habitat that make up the first building blocks of an ecosystem. An
advantage of the method is that it can be calculated for any system for which
frequency data are available, allowing it to be used in meta-analyses of
disparate data sets. Finally, in contrast to more abstract statistical techniques,
the results of ecological dissimilarity analysis can be expressed in a graphic
format that is easily accessible to the general public, government employees,
and legislators who enact conservation policies. To illustrate the utility of this
method, we present analyses of riverine habitat and freshwater fish communities
in two Connecticut rivers, the Eightmile and the Pomperaug. We selected
these particular examples for three reasons: riverine habitat types are relatively
clearly defined, there are rich biotic and abiotic datasets for these rivers
(Parasiewicz et al. 2006, Walden and Parasiewicz 2005), and associations
between biota and habitat are increasingly used to asses the health of rivers
and inform watershed management (for recent examples see: Jansen et al.
2000, Koel 2004, Pegg and McClelland 2004).
Methods
Ecological dissimilarity analysis is accomplished in two steps. First, two
dissimilarity matrices must be constructed: a biotic dissimilarity index for
all pairwise comparisons among multiple sites, and a habitat dissimilarity
index for all pairwise comparisons among the same sites. Second, the correlation
between these matrices is evaluated statistically.
To calculate the between-site dissimilarity matrices, the terminology
used for Nei’s genetic distance (D, and ultimately Nei’s modified genetic
distance [DA]; Nei 1972, Nei et al. 1983) needs to be redefined to put the
computation into an ecological context. We replace the genetic concepts of
locus and allele with the ecological concepts of category and value, respectively.
For biological data, the categories are typically species, although any
level of taxonomic resolution may be used, and the values are reciprocal
frequencies (present and absent). For habitat data, any number of categories
can be defined. The values are then the frequencies of the defined subcategories
within a category. The same approach could also be used for biological
data; for example, frequencies of fish species within a family may be used
rather than using the species themselves as categories.
The following description is modified from Nei’s original papers (Nei
1972, Nei et al. 1983), and the reader should consult these publications to
understand the genetic analog of what we are suggesting here. The following
2007 S.F. Werle, N.A. Johnson, E.R. Dumont, and P. Parasiewicz 441
example applies to fish in rivers, but any system of habitat and biota can be
similarly treated.
Consider two sites X and Y within a river. Let xi and yi represent the
frequencies of the ith fish species at each site respectively. The probability of
randomly choosing the same fish species in two samples from site X is jx = xi
2,
while in site Y this probability is jy = yi
2. The probability of randomly selecting
the same species from site X and from site Y is jxy = xiyi. The normalized
identity (an indicator of the similarity between species frequencies that has no
non-genetic analog) of a given species between sites can be expressed as:
x y
xy
j j j
j
I = .
To generalize this expression across all species, we consider JX, JY, and JXY,
as the arithmetic means of jX, jY, and jXY, respectively, and then the normalized
identity between sites across all species is:
x y
xy
J J
J
I = .
This index I can be used to calculate a dissimilarity measure between sites
(Nei’s original genetic distance), which is defined as D = -loge I. A problem
with this measure is that it is sensitive to rare (low frequency) species and
thus changes with increasing sample size, and so it was later modified to
reduce this sensitivity (Nei et al. 1983). This is called Nei’s modified genetic
distance (DA), which we will refer to here as Nei’s dissimilarity measure
(M. Nei, Pennsylvania State University, University Park, PA, pers. comm.).
The resulting formula is:
(1 )
1
1 1
ij ij
m
i
r
j
A x y
r
D
j
= =
= ,
where r is the number of categories studied (species in the special case of
fish), and mj is the number of possibilities for the jth category. In the case
of species frequencies, there are only 2 possibilities, present or absent, so mj
is always 2 and the frequencies always sum to unity (i.e., a frequency at site
X for species A of 0.89 will have a corresponding frequency for “lack of
species A” equal to 0.11), but when we extend this idea to physical habitat,
mj will be able to take larger values. When this is the case, the species that
were considered for fish are replaced with physical categories for habitat.
One example is hydromorphologic units (HMUs), which can be defined in
various ways. A minimal version is simply pools, riffles, and runs, for which
mj would be equal to 3. Another example is substrate, which could have
several possibilities (sand, small gravel, large gravel, boulders, etc.). Other
categories can be included with 3 “alleles:” absent, present, or abundant. For
our examples, we included canopy shading, woody debris, and large boulders
as “3-allele” categories. In all cases, the sum of the frequencies or
proportions must be unity (i.e., all possibilities are represented).
442 Northeastern Naturalist Vol. 14, No. 3
Between-site Nei’s dissimilarity measure matrices can now easily be
calculated for multiple sites using both biotic community and physical habitat
data. A number of software packages are available to do this; one program
(which we used for the analyses shown here) called DISPAN (Ota 1993) is
freely available and simple to use. In the data input file, one only needs to
substitute habitat categories or species for “loci,” and the possible values for
each category as “alleles.” (DISPAN also requires the “number of genes
sampled,” which isn’t necessary in our context, and so for the data presented
here, we used a constant [40] in the input data file. This value has no effect on
the matrix calculation.) The dissimilarity matrices thus generated are mathematically
realistic, and correlations between them are indicative of a real
correlation between community and habitat. These dissimilarity matrices can
also be used to build Unweighted Pair Group Method with Arithmetic mean
(UPGMA; Sneath and Sokal 1973) trees (phenetic trees) that give a graphical
representation of the correlation or lack thereof between sites (see Figs. 1
and 2). The dissimilarity matrices behind the trees can be compared statistically
using a Mantel test (Mantel 1967), which is commonly used to demonstrate
correlation between distance matrices.
Results (Demonstration of Principle)
The following two examples demonstrate the principle and application of
ecological dissimilarity analysis. These are meta-analyses of data reported
in earlier publications; detailed information surrounding data collection can
be found in the cited reports. Raw data sets from those reports are also
available from P. Parasiewicz upon request.
Figure 1. Independent UPGMA trees based on data from physical habitat (on the left)
and fish community (on the right) from 11 sites in the Eightmile River. Both trees are
based on matrices of Nei’s dissimilarity measures (DA) calculated between sites and
are significantly correlated (Mantel test, p < 0.01). Only the horizontal component of
diagonal lines should be counted in the branch lengths.
2007 S.F. Werle, N.A. Johnson, E.R. Dumont, and P. Parasiewicz 443
Eightmile River
The Eightmile River is a fourth-order tributary of the Connecticut River
that drains a 62-square-mile watershed in southeastern Connecticut. Data
summarizing fish communities and physical habitat from 11 sites in the
Eightmile watershed (Walden and Parasiewicz 2005) were compiled to
construct the biotic and habitat ecological dissimilarity matrices. The fish
matrix was calculated from frequency data for each of the 19 fish species
that were collected from the 11 sites within the Eightmile watershed. Collections
from each site comprised some subset of these 19 species. The habitat
matrix was calculated from 5 physical categories: hydromorphologic unit
(HMU), which had 8 subcategories (pool, sidearm, backwater, glide, riffle,
ruffle, rapid, and run); substrate, also with 8 subcategories (sapropel, pelal,
psammal, akal, microlithal, mesolithal, macrolithal, megalithal [Austrian
Standard ÖNORM 6232 1995]); woody debris; canopy shading; and boulders.
The frequency of these last three habitat variables (woody debris,
canopy shading, and boulders) at each locality was recorded as absent,
present, or abundantly present.
The UPGMA trees built from these two matrices are shown in Figure 1.
The lengths of the branches of these trees are proportional to the degree of
dissimilarity (either biotic or physical) between sites. Diagonally crossed
branches do not represent increased branch length; they simply serve to
visually link crossed branches within a single figure. We used a Mantel test
to determine that the matrices behind these trees are significantly correlated
(p < 0.01; R Development Core Team 2004).
Pomperaug River
The Pomperaug River drains a 90-square-mile watershed in western
Connecticut. Using the same methods cited above for the Eightmile River,
Figure 2. Independent UPGMA trees based on data from physical habitat (on the left)
and fish community (on the right) from 9 sites in the Pomperaug River (site 8 was not
sampled). As above, both trees are based on matrices of Nei’s dissimilarity measures
(DA) calculated between sites and are significantly correlated (Mantel test, p < 0.05).
444 Northeastern Naturalist Vol. 14, No. 3
we computed fish and habitat dissimilarity matrices for data collected from
nine sites in the Pomperaug River watershed (Parasiewicz et al. 2006).
Again we found a significant correlation between the biotic (fish) and
habitat matrices (Mantel test, p < 0.05; Fig. 2).
Discussion
An important goal of environmental science is the development of simple
and intuitive methods of gauging the health status of ecosystems. Such
information is critical to the development and implementation of effective
conservation strategies as well as to public education. Assessing ecosystem
health is a worthy goal, but certainly not an easy one; even defining what is
meant by “health” is often challenging. We suggest that the strength of
correlation between habitat and biota provides an opportunity to obtain an
indicator of ecosystem “health” that is statistically testable. Well-balanced
systems typically contain a variety of species that are associated with different
physical resources as well as a few more broadly distributed habitat
generalists. In these systems, the correlation between habitat and biota will
be strong. In impacted ecosystems, the correlation should be weaker as
empty niches either go unfilled or are taken over by generalists.
The two river ecosystems we analyzed are excellent examples of one
application of the ecological dissimilarity analysis we propose. Both the
Eightmile and Pomperaug rivers are considered to be relatively healthy, but
are recovering from significant historic environmental perturbations. Originally
traversing wooded terrains, the Eighmile and Pomperaug watersheds
were deforested in the 19th century as the region was settled and converted to
farmland. Now both rivers flow mainly through rural new-growth (less than 50 years
old) forest and have recently experienced only minimal anthropogenic
modification. For these and other historically impacted rivers, ecological
dissimilarity analysis provides a method for monitoring recovery.
Although we used river ecosystems as examples, ecological dissimilarity
analysis can be used in any situation that poses questions about associations
between species and habitats. Rather than documenting ecosystem recovery,
the method could be used to evaluate the strength of association between
species and habitats in permanently modified urban landscapes (e.g.,
Sandstrom et al. 2006). Similarly, by sampling sites that represent altered
and unimpacted environments, one could determine whether species-habitat
associations are disrupted by habitat modification (e.g., Bobo et al. 2006).
By surveying in same site(s) repeatedly over time, one could use ecological
dissimilarity analysis to evaluate the strength of association between
changes in species composition and habitat changes following perturbation.
Recent examples of studies in which this may have been of interest include
the recovery of spider assemblages after burning (Brennan et al. 2006) and
changes in bird community structure following conversion of forest to
agriculture (Aratrakorn et al. 2006). Finally, investigations of species-habitat
correlations among sites spread across geographic gradients could be
2007 S.F. Werle, N.A. Johnson, E.R. Dumont, and P. Parasiewicz 445
useful in evaluating the consequences of habitat fragmentation (e.g., Pinkus-
Rendon et al. 2006) or, in rivers, patterns of species turnover from upstream
to downstream (e.g., Bhat 2004).
Correlations between communities and habitats are usually shown using
sophisticated analyses such as principle component analysis (PCA) or
canonical correspondence analysis (CCA). While these analyses are powerful
and fairly easy to perform, they suffer from two limitations: they are
not suitable for analysis of frequency data alone, and they are difficult for
the layperson to understand intuitively. The method of ecological dissimilarity
analysis that we present here overcomes both of these problems.
The first solution is inherent in the method, and the second is solved
because the visual presentation provided by UPGMA trees is something
that most people can intuitively grasp. This is important, because studies
of habitat and biota are often directed toward the goal of ecologically
sound resource management, and decisions about management are almost
never made by scientists alone, but rather by politicians, voters, and
citizens’ groups—people who may be unfamiliar with scientific methods.
For studies where results are intended to inform management decisions, a
simple, intuitive way of describing the health of an ecosystem is a valuable
tool. We suggest that ecological dissimilarity analysis provides such
a tool. The community-habitat trees that are generated by the technique
are both easy for a general audience to understand and are backed by
rigorous statistical testing. From a management perspective, these are
valuable advantages of ecological dissimilarity analysis over other, more
complex methods of correlation.
Acknowledgments
The authors would like to thank the National Park Service and the Eightmile
River Wild and Scenic Study Committee for funding the Eightmile River study and
the Pomperaug River Watershed Coalition and the Connecticut Department of Environmental
Protection (CT-DEP) for funding the Pomperaug River study. We are also
grateful to Professor Masatoshi Nei of Pennsylvania State University for helpful
comments on the manuscript. We also thank the University of MA, Natural History
Collections, for covering page charges for this manuscript.
Literature Cited
Ahmandi-Nedushan, B., A. St.-Hilaire, M. Berube, E. Robichaud, N. Thiemonge,
and B. Bobee. 2006. A review of statistical methods for the evaluation of aquatic
habitat suitability for instream flow assessment. River Research and Applications
22:503–523.
Aratrakorn, S., S. Thunhikorn, and P.F. Donald. 2006. Changes in bird communities
following conversion of lowland forest to oil palm and rubber plantations in
southern Thailand. Bird Conservation International 16:71–82.
Austrian Standard ÖNORM 6232. 1995. Richtlinien für die oekologische
Untersuchung und Bewertung von Fleissgewaessern. P. 38. Oesterreichische
Normungsinstitut, Vienna, Austria.
446 Northeastern Naturalist Vol. 14, No. 3
Bhat, A. 2004. Patterns in the distribution of freshwater fishes in rivers of central
western Ghats, India and their associations with environmental gradients.
Hydrobiologia 529:83–97.
Bobo, K.S., M. Waltert, H. Fermon, J. Njokagbor, and M. Muhlenberg. 2006. From
forest to farmland: Butterfly diversity and habitat associations along a gradient of
forest conversion in southwestern Cameroon. Journal of Insect Conservation
10:29–42.
Brennan, K.E.C., L. Ashby, J.D. Majer, M.L. Moir, and J.M. Koch. 2006. Simplifying
assessment of forest management practices for invertebrates: How effective
are higher taxon and habitat surrogates for spiders following prescribed burning?
Forest Ecology and Management 231:138–154.
Jansen, W., J. Bohmer, B. Kappus, T. Beiter, B. Breitinger, and C. Hock. 2000.
Benthic invertebrate and fish communities as indicators of morphological integrity
in the Enz River (southwest Germany). Hydrobiologia 422:331–342.
Koel, T.M. 2004. Spatial variation in fish species richness of the upper Mississippi
River system. Transactions of the American Fisheries Society 133:984–1003.
Mantel, N. 1967. The detection of disease clustering and a generalised regression
approach. Cancer Research 27:209–220.
McGarigal, K., S. Cushman, and S. Stafford 2000. Multivariate Statistics for Wildlife
and Ecology Research. Springer-verlag, New York, NY.
Nei, M. 1972. Genetic distance between populations. American Naturalist
106:283–292.
Nei, M., F. Tajima, and Y. Tateno. 1983. Accuracy of estimated phylogenetic trees
from molecular data. II. Gene frequency data. Journal of Molecular Evolution
19:153–170.
Ota, T. 1993. DISPAN. Pennsylvania State University, University Park, PA.
Parasiewicz, P., J. Dodge , J. Legros, J. Rogers, and M. Wirth. 2006. Assessment and
instream habitat restoration planning for Pomperaug, Nonnewaug, and
Weekeepeemee rivers in Connecticut. Technical Report for the Pomperaug River
Watershed Coalition, Southbury, CT 06488. 120 pp.
Pegg, M.A., and M.A. McClelland. 2004. Spatial and temporal patterns in fish
communities along the Illinois River. Ecology of Freshwater Fish 13:125–135.
Pielou, E.C. 1984. The Interpretation of Ecological Data: A Primer on Classification
and Ordination. John Wiley and Sons, New York, NY.
Pinkus-Rendon, M.A., J.L. Leon-Cortes, and G. Ibarra-Nunez. 2006. Spider diversity
in a tropical habitat gradient in Chiapas, Mexico. Diversity and Distributions
12:61–69.
Poff, N.L., and J.V. Ward. 1990. The physical habitat template of lotic systems:
Recovery in the context of historical pattern of spatio-temporal heterogeneity.
Environmental Management 14:629–646.
R Development Core Team. 2004. R: A Language and Environment for Statistical
Computing. R Foundation for Statistical Computing, Vienna, Austria.
Sandstrom, U.G., P. Angelstam, and G. Mikusinski. 2006. Ecological diversity of
birds in relation to the structure of urban green space. Landscape and Urban
Planning 77:39–53.
Sneath, P.H.A., and R.R. Sokal 1973. Numerical Taxonomy: The Principles and
Practice of Numerical Classification. W.H. Freeman and Co., San Francisco, CA.
Walden, D.L., and P. Parasiewicz. 2005. Integrative assessment of biological and
hysical attributes of the Eightmile River. Northeast Instream Habitat Program,
Amherst, MA.
