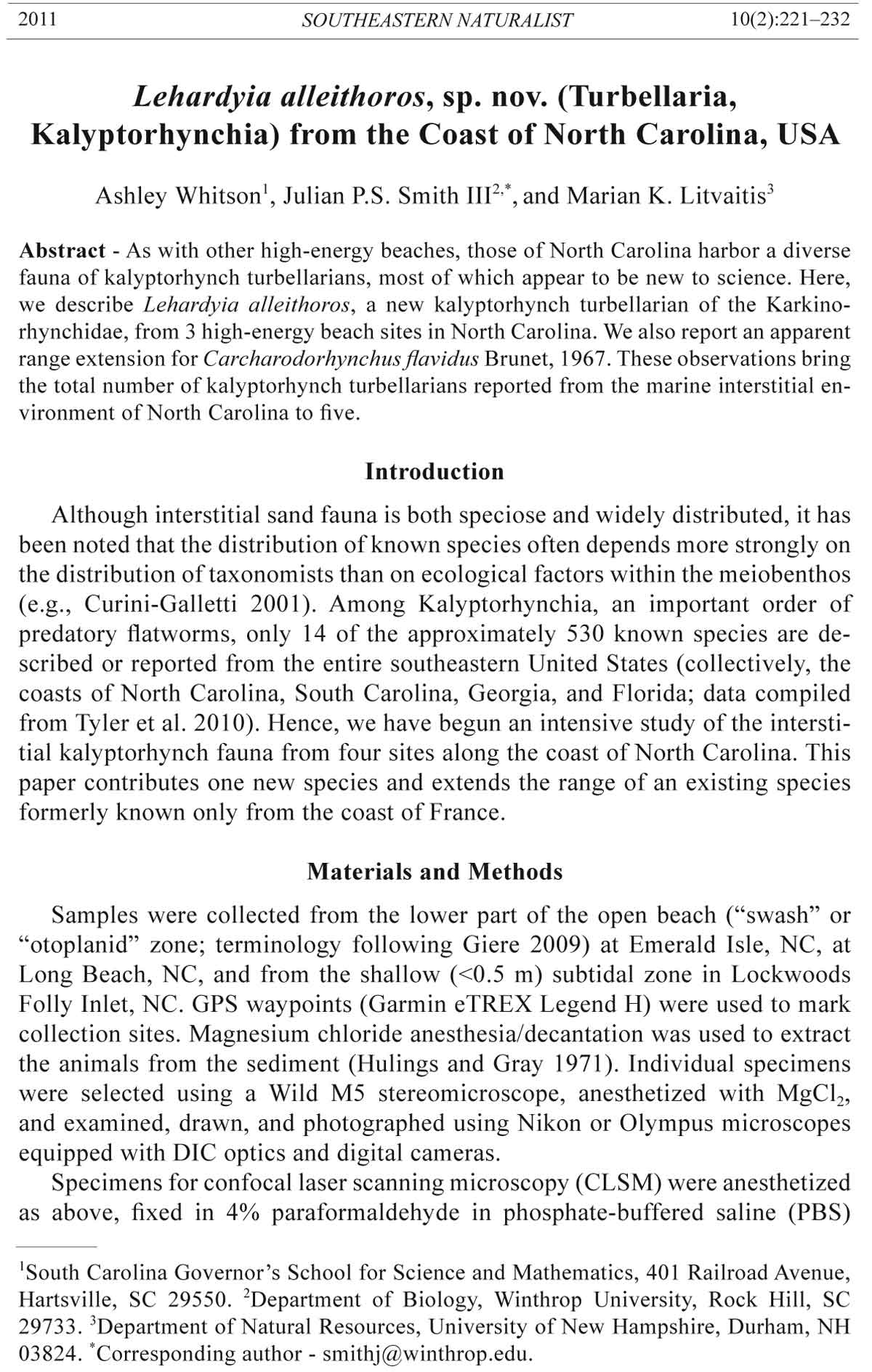

2011 SOUTHEASTERN NATURALIST 10(2):221–232
Lehardyia alleithoros, sp. nov. (Turbellaria,
Kalyptorhynchia) from the Coast of North Carolina, USA
Ashley Whitson1, Julian P.S. Smith III2,*, and Marian K. Litvaitis3
Abstract - As with other high-energy beaches, those of North Carolina harbor a diverse
fauna of kalyptorhynch turbellarians, most of which appear to be new to science. Here,
we describe Lehardyia alleithoros, a new kalyptorhynch turbellarian of the Karkinorhynchidae,
from 3 high-energy beach sites in North Carolina. We also report an apparent
range extension for Carcharodorhynchus flavidus Brunet, 1967. These observations bring
the total number of kalyptorhynch turbellarians reported from the marine interstitial environment
of North Carolina to five.
Introduction
Although interstitial sand fauna is both speciose and widely distributed, it has
been noted that the distribution of known species often depends more strongly on
the distribution of taxonomists than on ecological factors within the meiobenthos
(e.g., Curini-Galletti 2001). Among Kalyptorhynchia, an important order of
predatory flatworms, only 14 of the approximately 530 known species are described
or reported from the entire southeastern United States (collectively, the
coasts of North Carolina, South Carolina, Georgia, and Florida; data compiled
from Tyler et al. 2010). Hence, we have begun an intensive study of the interstitial
kalyptorhynch fauna from four sites along the coast of North Carolina. This
paper contributes one new species and extends the range of an existing species
formerly known only from the coast of France.
Materials and Methods
Samples were collected from the lower part of the open beach (“swash” or
“otoplanid” zone; terminology following Giere 2009) at Emerald Isle, NC, at
Long Beach, NC, and from the shallow (less than 0.5 m) subtidal zone in Lockwoods
Folly Inlet, NC. GPS waypoints (Garmin eTREX Legend H) were used to mark
collection sites. Magnesium chloride anesthesia/decantation was used to extract
the animals from the sediment (Hulings and Gray 1971). Individual specimens
were selected using a Wild M5 stereomicroscope, anesthetized with MgCl2,
and examined, drawn, and photographed using Nikon or Olympus microscopes
equipped with DIC optics and digital cameras.
Specimens for confocal laser scanning microscopy (CLSM) were anesthetized
as above, fixed in 4% paraformaldehyde in phosphate-buffered saline (PBS)
1South Carolina Governor’s School for Science and Mathematics, 401 Railroad Avenue,
Hartsville, SC 29550. 2Department of Biology, Winthrop University, Rock Hill, SC
29733. 3Department of Natural Resources, University of New Hampshire, Durham, NH
03824. *Corresponding author - smithj@winthrop.edu.
222 Southeastern Naturalist Vol. 10, No. 2
with 10% sucrose, rinsed thoroughly in PBS with 0.1% bovine serum albumin,
permeabilized for 1 hour in BSA-2T (PBS, 1% BSA, 0.2% Triton X-100),
rinsed thoroughly as above, and stained overnight in 1:500 diluted Hoechst
33242 and 1:200 diluted Alexa 488/phalloidin (Invitrogen), then mounted in 9:1
Glycerin:10x PBS. Coverslips were supported by double layers of aluminum
foil, and attached to the slide using nail polish. Two specimens were additionally
stained for acetylated tubulin and for mitotic cells, using primary antibodies
diluted 1:200 (anti-Acetylated Tubulin—Sigma; anti-PhosphoH3—Upstate) in
1x PBS, with appropriate secondary antibodies also diluted 1:200 (Alexa568-labeled
Goat anti-rabbit—Invitrogen; Cy5-labeled Donkey anti-mouse—Jackson).
CLSM stacks were collected on an Olympus Fluoview FV1000. Specimens
for serial sectioning were fixed in hot (60 °C) Bouin’s fluid, and embedded,
sectioned, and stained according to Smith and Tyler (1984). Two of the wholemounted
specimens used for CLSM were removed from the slide, dehydrated,
and prepared as permanent whole-mounts in epoxy resin.
A single specimen from our collection site on Bogue Banks, NC (see below)
was preserved in absolute ethanol for sequencing. Total genomic DNA was extracted
according to the protocol supplied with the DNEasy Kit (Qiagen Inc.,
Valencia, CA). PCR conditions followed Litvaitis et al. (1994), and primer sequences
targeting the D1-D2 expansion segment of the 28S rDNA gene can be
found in Sonnenberg et al. (2007). The amplicon was gel-purified and sequenced
in both directions at the University of New Hampshire Hubbard Center for Genome
Studies. Trace files were edited using FinchTV (vers. 1.4; Geospizia Inc.),
and the sequence was deposited in GenBank under Accession No. JF340473.
Digital images were combined where necessary by 2D stitching (Preibisch
et al. 1999); single images of serial sections were assembled into stacks within
FIJI, registered using SIFT (rigid transform), and measured in FIJI. TrakEM2
(Cardona et al. 2010) was used to segment organ positions and generate 3D
reconstructions, which were used to guide the production of drawings. All
images for final plates were contrast- and brightness-adjusted in Adobe Photoshop
(CS5). Except as noted, measurements of L. alleithoros were made on six
specimens (two whole-mounts, two sets of serial sections, and two anesthetized
squeezed living specimens); adhesive papillae were counted only on the two
serially-sectioned specimens; standard deviations are listed after the mean. In the
descriptions below, positions of anatomical structures are given as percentage of
total body length in the format “U#”, where “U0” is the anterior tip and “U100”
is the posterior tip.
Lehardyia alleithoros, n. sp.
Taxonomy. Phylum Platyhelminthes Minot, 1876; Order Kalyptorhynchia
Graff, 1905; Suborder Schizorhynchia Meixner, 1928: Family Karkinorhynchidae
Meixner, 1928; Subfamily Karkinorhynchinae Schilke, 1970; Genus Lehardyia
Karling, 1983; Lehardyia alleithoros sp. nov.
2011 A. Whitson, J.P.S. Smith III, and M.K. Litvaitis 223
Etymology. The specific epithet alleithoros is latinized from the Greek
αλληθωρος (cross-eyed) and refers to the closely spaced pigment-cup eyes that
appear to form an “X” in the anterior end of the living animal.
Type material. Deposited at the National Museum of Natural History (NMNH)
Smithsonian Institution, Washington, DC. Holotype, a whole-mounted specimen
from NC (NMNH 1154870); paratypes, two sectioned specimens and a wholemounted
specimen from NC (NMNH 1154871–1154873) and one whole-mounted
specimen from FL (NMNH 1154874).
Occurrence: Type Locality. Swash zone at low tide on Oak Island, NC, USA,
within 50 m, parallel to the waterline, of the location 33°54'46"N; 78°13'05"W.
Other. Shiny zone at low tide near Emerald Isle on Bogue Banks, NC, USA
(34°38'41"N; 77°5'23"W) and outer beach at Pepper Park, FL, USA (28°50'N;
80°45'W).
Material examined. Eleven specimens examined and photographed alive in
squeeze preparation; eleven specimens examined as whole-mounts by CLSM
(two subsequently prepared as permanent whole-mounts); 9 specimens serially
sectioned and stained; 7 whole-mounted specimens, photographs, and CLSM
stacks of material collected at Pepper Park, FL, by Dr. Rick Hochberg; unpublished
sketch by R.M. Rieger, showing “Karkino augi” from the lower beach at
Bogue Banks, NC, dated 1970.
Description
External anatomy. Under a stereomicroscope using transmitted light, the animal
appeared translucent light brown in color, but was not pigmented except for
a pair of closely-spaced pigment-cup eyes that appeared to form an “X” shape
posterior to the proboscis. The large pharynx and paired adhesive belts were easily
discernable. The animal tapered to a blunt point anteriorly and was broadly
rounded posteriorly. From about the level of the brain to the posterior end, the
body was cylindrical. In the extraction dishes, L. alleithoros was found either
swimming or attached by the posterior adhesive belt along the side of the dish.
Animals used both adhesive belts when crawling and when attempts were made
to dislodge them from the dish with a jet of water from the pipette. One specimen
was observed feeding on a piece of detritus with the pharynx protruded from the
body. The average body length was 1294 ± 249 μm, and the average width was
217 ± 28 μm. (Figs. 1A, 2A, 2C).
Body wall. The entire epidermis of L. alleithoros was ciliated, possessing
intraepithelial nuclei and small rounded epitheliosomes that were slightly eosinophilic
in sectioned material. There were two belts of adhesive pads—one, located
behind the pharynx at U52 (n = 2) with 10 papillae and another, with six to eight
papillae, near the posterior end at U96 (n = 2). The epidermis was underlain by
circular and longitudinal muscles. Crossed-helical diagonal muscles occurred in
the pre-cerebral part of the body (Fig. 2B). Anti-phosH3 staining for mitotic cells
was observed in the testes and in occasional dividing cells underneath the body
wall (data not shown).
224 Southeastern Naturalist Vol. 10, No. 2
2011 A. Whitson, J.P.S. Smith III, and M.K. Litvaitis 225
Proboscis apparatus. Lehardyia alleithoros had a small, split proboscis, opening
at the anterior tip of the body. The proboscis comprised two muscular lobes
(average length in living specimens and wholemounts = 59 ± 7 μm), each armed
with a pair of hooks. Each hook averaged, in living specimens and wholemounts,
31 ± 2 μm, and was armed with a single denticle (Figs. 1B–D). Divaricator
muscles occurred along the outside edge of the proboscis lobes (Fig. 1B). At the
base of the proboscis, a postrostral bulb, surrounded by a weak layer of circular
muscle, contained the lateral glands (Fig. 2B). Paired ventral and lateral proboscis
retractors inserted on the proboscis through the post-rostral bulb and ended
on the ventral and lateral body wall, respectively, at about the same level as the
insertion of the post-cerebral septum. An unpaired dorsal proboscis retractor
arose on either side of the dorsal proboscis divaricator muscle and ran posteriorly
inside the post-rostral bulb, exiting the bulb about one-third along its length. At
the anterior margin of the brain, the dorsal proboscis retractor split, and left and
right branches inserted on the dorsal body wall at about the level of the eyes.
A net-like post-cerebral septum comprising pseudostriated muscle was present
(Fig. 2B). Paired dorso-lateral and ventro-lateral anterior retractor muscles arose
on the lateral body wall just behind the mouth and inserted on the body wall at
the anterior tip (Fig. 2B).
Pharynx. The elongate pharynx, located in the anterior one-half of the body,
averaged 294 ± 23 μm long and 109 ± 23 μm wide, possessed a prominent anterior
glandular (“grasping”) margin, and was located from U20 to U43 (Figs. 1A,
2D). The pharynx was connected by a relatively short pharyngeal cavity to the
mouth, located at U15. The pharyngeal cavity was folded when the animal was
not feeding, everted when the pharynx was protruded from the body, and possessed
stout internal circular and somewhat weaker longitudinal muscles (Fig.
2B). The epithelium lining the pharyngeal cavity was thin and ciliated. The
pharynx was of complex construction, regionated among the distal grasping
fold, the middle, and the proximal portion (Fig. 2E). Muscle layering comprised
outer longitudinal, outer circular, pseudostriated radial muscles (thickest in the
Figure 1 (opposite page). A. Ventral view of live animal, slightly squeezed. Proboscis
(pr), mouth opening (mo), pharynx (ph) with anterior glandular margin (gm), testes (t)
and two belts of adhesive papillae (ad) can be seen. B. Lateral view of anterior end of
preserved animal, showing pigment-cup eye (e), muscular proboscis lobes (pl) and attached
hooks (h). Each “hook” is actually a pair of left and right hooks superimposed on
each other in plane of the photograph. C and D. Camera lucida drawings of the proboscis
hooks in largely lateral view (C) and oblique ventral view (D), from resin-embedded
wholemounts. Dorsal (d) and ventral (v) proboscis lobes are labeled. Anterior end is to
the top right. E. Genital region of mature specimen, heavily squeezed. Muscular penis
with internal tubular stylet (ps) protrudes into common genital atrium (ga), which is surrounded
by a prominent glandular ring (gr) about halfway along its length. Eosinophilic
glands (eg) are located in the parenchyma dorsally to and posterior to the common genital
atrium. Also visible: granular secretions inside copulatory bulb (cb), weakly-ciliated
vagina interna (vi), unpaired germarium (ge) and bursa with foreign sperm (b). Anterior
is to the top.
226 Southeastern Naturalist Vol. 10, No. 2
2011 A. Whitson, J.P.S. Smith III, and M.K. Litvaitis 227
middle), inner circular (thickest in the middle) interspersed with inner longitudinal
(Fig. 2E).
Nervous system. The proboscis pore at the anterior tip was bordered by four
tufts of sensory cilia (Fig 1A). The brain was dorsally located in the anterior half
of the body and was immediately between the proboscis and the pharynx. The
eyes were located within the brain at U10, possessed lens-like spherical aggregations
of photoreceptors, and the pigmented portions of the eyes were extremely
close together (Fig. 1A). Attempts to stain the nervous system immunocytochemically
with anti-acetylated tubulin were unsuccessful, although all body ciliation
was stained strongly with this antibody.
Male reproductive system. The reproductive system was in the posterior half
of the body on the ventral side. The 6 testes, arranged as two bilateral pairs of
3 testes, extended laterally and dorsally behind the pharynx beginning at U52
(Figs. 1A, 2C). In two of the serially sectioned specimens, the three testes on
one side appeared to have degenerated. Fine ducts proceeded from the testes to
form 2 muscular seminal vesicles, located posteriorly and ventrally to the testes
(Figs. 2C, E). The vesicles were always found full of sperm and were surrounded
by helically-arranged broad bands of muscles (Figs. 2C, E, F). The copulatory
Figure 2 (opposite page). A. Habitus, from freehand sketch. B. Partial CLSM stack of the
anterior end, lateral view of specimen rolled slightly to the dorsal side, stained for actin
to show musculature and for DNA to show nuclei. Anterior end to the right. Musculature
around mouth (mo) and pharyngeal cavity (pc) are shown. Note fine striated muscle fibers
making up post-cerebral septum (arrows), striated diagonal musculature in body wall
(dm), fine circular muscles of post-rostral bulb (prb) and dorsolateral (dl) and ventrolateral
(vl) anterior retractor muscles. C. Dorsal reconstruction of whole specimen showing
position of major organs. Note copulatory bulb (cb), and that bursa (b), vagina interna (vi)
and germarium (ge) are embedded in bursal tissue (bt). Other abbreviations as in previous
figures. D. Sagittal section through pharynx; anterior end to the left. Ciliated pharyngeal
cavity (pc) enters from left; pharyngeal lumen (lu) at center. Note regionation of pharynx
(marked by arrows), characterized by changes in the diameter of the inner circular
muscles (icm) and width and spacing of the radial muscle bundles (rm). E. Partial CLSM
stack, slightly oblique ventral view with anterior end to the left. Ventral mid-line toward
the bottom of the figure. Note band-like muscle fibers surrounding seminal vesicles
(sv—right seminal vesicle shown in two places) and copulatory bulb (cb). Genital atrium
(ga) possesses circular muscle in its distal-most region (right-hand line) and longitudinal
muscle alone more proximally (left-hand line). Vagina interna (vi) arises at anterior face
of genital atrium (ga—arrow) and continues posteriorly (lines—ventral-most portion not
in figure), ultimately giving rise to paired muscular canals (arrows) that connect to bursa;
F: Reconstruction of the genital apparatus as viewed from the left side; anterior end to
the left. Bursa (b) not shown covering germarium (ge) for clarity. Note two types of
glands opening into genital atrium (ga): eosinophilic glands (eg) open into the upper part;
basophilic granular glands form a glandular ring (gr) below the opening of the germovitelloduct
(gvd). Note narrowing of vagina interna (vi) as it proceeds posteriorly, where
it gives rise to small vesicle (v) ventrally and to paired muscular canals (ca) that connect
to the bursa dorsally. Ductus spermaticus (dsp) was visible only as a tenuous muscular
connection between the germarium (ge) and the bursa (b) in a single confocal stack.
228 Southeastern Naturalist Vol. 10, No. 2
bulb was elongated, pear-shaped, contained two types of glands whose secretions
filled the region around the ejaculatory duct, and possessed outer circular and inner
longitudinal muscles (Figs. 1E, 2F, 3A). The very short muscular penis was
armed internally with a short “cuticular” stylet in the form of a slightly curved,
laterally-flattened, truncated cone, averaging, in three living specimens, 13.6 ±
1.7 μm long and 14 ± 0.9 μm wide at the base (Figs. 1E, 2F, 3A). The common
genital atrium arose from the gonopore at U67, was underlain by strong circular
muscles along the first one-third of its length, and was otherwise surrounded by
fine longitudinal muscles (Figs. 2E, F). About mid-way along the atrium, a prominent
crown-shaped glandular region occurred; this region possessed basophilic
granular gland cells (Fig. 1E, 2F). Proximally to this glandular region, a small
Figure 3. A. Schematic reconstruction of the penis stylet in L. alleithoros, anterior to left,
showing two schematic cross-sections of the stylet. From serial sections. B: Carcharodorhynchus
cf. flavidus, oblique ventral view of proboscis in a wholemount for confocal
microscopy; camera lucida drawing. Note that proboscis halves are relatively equal in
size, and that denticles on ventral proboscis lobe are only shown completely on one side.
As these denticles are being viewed through the thickness of the lobe, they are less clear
on the other side; the dotted arrow indicates that the denticles also appeared to continue
to just short of the nodus on this side as well (although they could not be individually
counted beyond the point shown). Note the characteristic gap in the proboscis denticles
at the nodus (arrow). C. Carcharodorhynchus cf. flavidus, view of proboscis in squeezed
specimen, anterior to left. A marginal array of denticles occurs along the outer edge of
upper and lower proboscis lobes (pl). Note gap in denticle rows at the junction of the two
proboscis lobes (arrow). D and E. Carcharodorhynchus cf. flavidus, two planes of focus
from the same squeezed specimen, showing and cirrus (ci) and distal part of copulatory
bulb (cb).
2011 A. Whitson, J.P.S. Smith III, and M.K. Litvaitis 229
opening led anteriorly to the vagina interna (Figs. 2C, F). Surrounding the upper
part of and opening into the atrium were eosinophilic gland cells (Figs. 1E, 2F).
Female reproductive system. The vagina interna arose on the anterior face of
the common genital atrium as noted above and widened greatly as it proceeded
posteriorly on the left side of the body (Figs. 2C, E, F). The vagina interna, which
appeared to be sparsely ciliated internally in living material (Fig. 1E), possessed
internal longitudinal and external circular muscles, and ended near the ventral
body wall in a small vesicle with weak musculature that was filled with foreign
sperm (Fig. 2F). At the juncture between the vagina interna and the vesicle, two
short muscular canals led to the bursa (Figs. 2E, F). The bursa varied widely in
size among our specimens. In many specimens, multiple bursa-like vesicles containing
foreign sperm were found throughout the bursal tissue (Fig. 1E). Except
for being embedded in the bursal tissue, these possessed no discernable connection
to the remainder of the female genital system. The single germarium was
embedded in the bursal tissue in the dorsal mid-line, close behind the glandular
region of the common genital atrium (Figs. 1E, 2E, 2F). With the exception of
a single CLSM stack, no sperm duct connecting the bursa to the germarium was
visible in our material. From the germarium, a germo(vitello-?)duct led anteriorly
to open into the common genital atrium through a small pore in the upper
glandular region (Fig. 2F); this region was equipped with a sphincter muscle and
a radiating corona of longitudinally oriented muscles. The vitellaria were located
ventrally on either side of the mid-line from the posterior end of the testes nearly
to the posterior end of the body; no ducts leading from the vitellaria to the germovitelloduct
region described above were discernable in our material.
Discussion
Taxonomic considerations. The recent revision of Karkinorhynchidae by
Karling (1983) requires placement of L. alleithoros in the Karkinorhynchinae
primarily because of the presence of eyes (see below concerning lateral gland
sacs). Generic placement in Leyhardyia is warranted by proboscis hooks with
denticles and a penis armed with a stylet, not a cirrus (Karling 1983). The pharynx
of L. alleithoros is similar in its regionation to that of L. megalopharynx
(L’Hardy 1966), and possesses a glandular grasping margin like that figured for
L. tetragnathus (Ax and Schilke 1971). In addition, the ducts belonging to the
female system are identical in their basic layout to that found in Lehardyia tetragnathus
(Ax and Schilke 1971). However, the possession of six testes located
posterior to the pharynx in L. alleithoros differs from the condition in the two
congeners, and requires a modification of the diagnosis, as follows:
Genus Lehardyia Karling, 1983 (emended): “Two pairs of proboscis hooks with
branches or denticles, male copulatory organ with cuticular stylet. Two, four, or
six testes, located ahead of, beside, or behind the cylindrical pharynx.”
Functional considerations. To date, all known Karkinorhychidae have testes
located in the anterior half of the body, although the testes may be located beside
the pharynx in some species (see discussion in Karling 1983). The testes
in L. alleithoros are not only numerous (six) but located in the posterior half of
230 Southeastern Naturalist Vol. 10, No. 2
the body. It seems possible that this positioning is because of the large relative
size of the pharynx in L. alleithoros (23% of the body length and approximately
50% of the resting body diameter) and its likely eversion during feeding. We
would predict that other karkinorhynchids having a large, eversible pharynx and
a relatively large volume of testicular tissue may show a trend toward posterior
displacement of the testes with respect to the pharynx.
Our species appears to be the only karkinorhynchid in which pseudostriation
of the muscles in the post-cerebral septum has been noted. Although this character
is easily seen with fluorescent labeling, it is easily missed in conventionally
stained sectioned material where the muscles are thin. As summarized elsewhere,
pseudostriation of muscles in flatworms is generally an indicator of increased
contraction velocity (Rieger et al. 1991). The presumed function of the postcerebral
septum is hydrostatic isolation of the anterior tip of the body, allowing
more rapid proboscis eversion.
Of taxonomic concern, our species appears to have the lateral gland sacs incorporated
into a post-rostral bulb, at least by Karling’s (1961) definition, and this
would exclude it from the sub-family Karkinorhynchinae as defined by Karling
(1983). However, the increased anatomical detail obtained by fluorescent phalloidin
staining of muscles combined with CLSM (as already illustrated by Hochberg
2004a, b), suggests that there is much more to be discovered about the specific
muscular arrangements around the internal organs of many kalyptorhynchs. In
the present case, these extremely fine muscles could be missed in living animals
and probably also in serial sections, and it thus remains to be seen just how far
the character “post-rostral bulb” extends in the Kalyptorhynchia. Ecologically,
karkinorhynchid kalyptorhynchs are most probably tactile-ambush predators
with the anterior end of the body specialized for rapid hydrostatic eversion of the
proboscis, and the perhaps concomitant need to eject glandular secretions into or
onto their prey (Karling 1961). The circular muscles around the lateral glands in
this species would certainly provide that capability.
Carcharodorhynchus c.f. flavidus Brunet, 1967
Locality. Lockwoods Folly Inlet, NC. shallow (approx 40 cm) subtidal.
Material examined. Two specimens examined and photographed in squeeze
preparation. Two specimens fixed, fluorescently stained, and mounted as described
above, and studied by LSCM for muscle positions and by interferencecontrast
transmitted-light microscopy for proboscis dentition.
Description. Our specimens appear to fit well within the range of morphologies
described by Brunet (1967), and possess the characteristic “basal gap” in
the proboscis denticles (Figs. 3B, C; see Schilke 1970).The cirrus (Figs. 3D, E)
is identical in structure and, at 19 and 22 μm long, within the lower size range
reported by Brunet for his species. The copulatory bulb, at 89 and 75 μm, is again
within the range reported by Brunet for his specimens. The golden-yellow granules
in the epidermis appear to be flavonoids—they are brilliantly fluorescent
under 405-nm illumination. We were unable (even with confocal microscopy of
2011 A. Whitson, J.P.S. Smith III, and M.K. Litvaitis 231
Alexa-phalloidin-stained specimens) to discern a connection between the bursa
and the germarium; in fact, it appears in our specimens that the entire posterior
end is filled with foreign sperm (see Brunet 1967:149) and perhaps comprises
bursal tissue in which the paired germaria are embedded. In addition to the specimens
described above, we have found at least two other morphological types of
closely similar Carcharodorhynchus in our samples, each of which possesses
brown-to-yellow pigmentation, an elongate-oval copulatory bulb (with three
types of glandular granules arranged in a similar pattern) equipped with a small
(approximately 20-μm-long) tubular twisted cirrus, and an equal-lobed proboscis
measuring 120–250 μm overall. One of these has a proboscis dentition that
is completely different from that in C. flavidus. Given this, and similar (unpublished)
observations by the late R.M. Rieger on Carcharodorhynchus “flavidus”
from Bermuda and the Carolinas coasts, we prefer to refer our species to that of
Brunet and leave the other undescribed species to a much-needed (future) revision
of the Genus Carcharodorhynchus. In short, given these observations and
the range of sizes reported in Brunet (1967), it seems possible that Carcharodorhynchus
flavidus as described by Brunet is actually a species-group. For now, we
would follow Schilke (1970), and suggest that only the species with the characteristic
basal gap in the proboscis dentition be included under this name.
Authors’ Contributions
A. Whitson carried out studies of the living specimens, prepared material for and imaged
all specimens of L. alleithoros for CLSM, made the initial measurements of organ
size and position, executed preliminary reconstruction drawings, and rough-drafted the
manuscript. J.P.S. Smith III prepared and imaged specimens of C. flavidus for CLSM,
prepared serial sections, checked organ positions and sizes using FIJI/TrakEM2, executed
the final reconstruction drawings, and made final edits on the manuscript. M.K. Litvaitis
sequenced material preserved in ethanol. All three authors edited drafts and approved the
final manuscript before submission.
Acknowledgments
The senior author thanks Dr. Stephen Fegley and the University of North Carolina
Institute of Marine Science for making laboratory space available during the summers
of 2009 and 2010. The authors thank Dr. Rick Hochberg (University of Massachusetts-
Lowell) and the estate of the late Dr. R.M. Rieger for sharing previously unpublished
material of L. alleithoros, as well as a considerable volume of live observations concerning
Carcharodorhynchus-species. Our discussion of Carcharodorhynchus cf. flavidus
was considerably improved by the comments of one anonymous reviewer. Funds for
supplies and stipend support for A. Whitson were provided by the South Carolina
Governor’s School for Science and Mathematics. Research support for J.S.P. Smith III
during the 2010–2011 school year was provided by the Molecular Biomedical Research
Initiative (MBRI). This publication was made possible in part by NIH Grant Number
2P20RR016461-10 from the National Center for Research Resources. Its contents are
solely the responsibility of the authors and do not necessarily represent the official views
of the NIH.
232 Southeastern Naturalist Vol. 10, No. 2
Literature Cited
Ax, P., and K. Schilke. 1971. Karkinorhynchus tetragnathus nov. spec., ein Schizorhynchier
mit zweigeteilten Rüsselhaken (Turbellaria, Kalyptorhynchia). Mikrofauna
des Meeresbodens 5:1–10.
Brunet, M. 1967. Turbellariés schizorhynques de la région de Marseille. Sur Carcharodorynchus
subterraneus Meixner et Carcharodorhynchus flavidus nov. sp. Bulletin de
la Societé Zoologique de France 92:143–152.
Cardona, A., S. Saalfeld, S. Preibisch, B. Schmid, A. Cheng, J. Pulokas, P. Tomancak,
and V. Hartenstein. 2010. An integrated micro- and macroarchitectural analysis of
the Drosophila brain by computer-assisted serial section electron microscopy. PLoS
Biology 8(10):e1000502.
Curini-Galletti, M. 2001. The Proseriata. Pp 41—48, In D.T.J. Littlewood and R.A. Bray
(Eds.). Interrelationships of the Platyhelminthes. The Systematics Association Special
Volume Series 60, Taylor and Francis, London, UK. 356 pp.
Giere, O. 2009. Meiobenthology: The Microscopic Motile Fauna of Aquatic Sediments.
Springer-Verlag, Berlin Heidelberg, Germany. 527 pp.
Hochberg, R. 2004a. Smithsoniarhyches, a new genus of interstitial Gnathorhynchidae
(Platyhelminthes: Kalyptorhynchia) from Mosquito Lagoon and Indian River Lagoon,
Florida. Journal of the Marine Biological Association of the UK 84:1143–1149.
Hochberg, R. 2004b. Reproductive anatomy of Prognathorhynchus busheki Ax (Platyhelminthes,
Kalyptorhynchia) revealed by confocal laser scanning microscopy. Meiofauna
Marina 13:29–36.
Hulings, N.C., and J.S. Gray. 1971. A Manual for the study of meiofauna. Smithsonian
Contributions to Zoology Number 78:1–84.
Karling, T.G. 1961. Zur Morphologie, Entstehungsweise und Funktion des Spaltrüssels
der Turbellaria Schizorhynchia. Arkiv för Zoologi 13:253–286.
Karling, T.G. 1983. Structural and systematic studies on Turbellaria Schizorhynchia
(Platyhelminthes). Zoologica Scripta 12:77–89.
L’Hardy, J-P. 1966 Karkinorhynchus megalopharynx n. sp. nouveau Turbellarié Calyptorhynque
de la famille des Karkinorhynchidae. Bulletin de la Societé Zoologique de
France 91(2):179–185.
Litvaitis, M.K., G. Nunn, W.K. Thomas, and T.D. Kocher. 1994. A molecular approach
for the identification of meiofaunal turbellarians (Platyhelminthes, Turbellaria). Marine
Biology 120:437–442.
Preibisch, S., S. Saalfeld, and P. Tomancak. 2009. Globally optimal stitching of tiled 3D
microscopic image acquisitions. Bioinformatics 25(11):1463–1465.
Rieger, R.M., S. Tyler, J.P.S. Smith III, and G.E. Rieger. 1991. Platyhelminthes: Turbellaria.
Pp. 7—140, In F.W. Harrison and B.J. Bogitsh (Eds.). Microscopic Anatomy of
Invertebrates. Vol. 3. Wiley-Liss, New York, NY. 347 pp.
Schilke, K. 1970. Kalyptorhynchia (Turbellaria) aus dem Eulitoral der deutschen Nordseeküste.
Helgoländer wissenschaftliche Meeresuntersuchungen 21:143–265.
Smith, J.P.S., and S. Tyler. 1984. Serial sectioning and staining of resin-embedded material
for light microscopy: Recommended procedures for micrometazoans. Mikroskopie
41:259–270.
Sonnenberg, R., A.W. Nolte, and D. Tautz. 2007. An evaluation of LSU D1-D2 sequences
for their use in species identification. Frontiers in Zoology 4:6 (16 February 2007).
Tyler S., S. Schilling, M. Hooge, and L.F. Bush (Comp.) 2010. Turbellarian taxonomic
database. Version 1.6. Available online at http://turbellaria.umaine.edu. Accessed 20
July 2010.
