Limulus polyphemus (Atlantic Horseshoe Crab) Habitats in
a Small Estuary and the Adjacent Inner Continental Shelf:
Linkages Across Mid-Atlantic Bight Seascapes
Kenneth W. Able, Paola C. López-Duarte, Thomas M. Grothues, Linda Barry, Rosemarie Petrecca, Jaymie Fredricks, Chandler Navara, and Anya Hanson
Northeastern Naturalist, Volume 26, Issue 2 (2019): 287–304
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
287

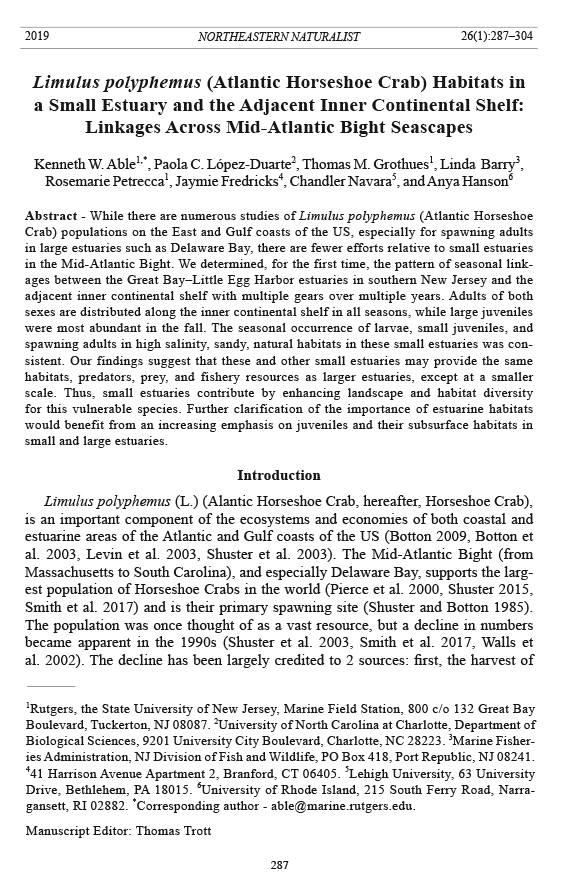

2019 NORTHEASTERN NATURALIST 26(1):287–304
Limulus polyphemus (Atlantic Horseshoe Crab) Habitats in
a Small Estuary and the Adjacent Inner Continental Shelf:
Linkages Across Mid-Atlantic Bight Seascapes
Kenneth W. Able1,*, Paola C. López-Duarte2, Thomas M. Grothues1, Linda Barry3,
Rosemarie Petrecca1, Jaymie Fredricks4, Chandler Navara5, and Anya Hanson6
Abstract - While there are numerous studies of Limulus polyphemus (Atlantic Horseshoe
Crab) populations on the East and Gulf coasts of the US, especially for spawning adults
in large estuaries such as Delaware Bay, there are fewer efforts relative to small estuaries
in the Mid-Atlantic Bight. We determined, for the first time, the pattern of seasonal linkages
between the Great Bay–Little Egg Harbor estuaries in southern New Jersey and the
adjacent inner continental shelf with multiple gears over multiple years. Adults of both
sexes are distributed along the inner continental shelf in all seasons, while large juveniles
were most abundant in the fall. The seasonal occurrence of larvae, small juveniles, and
spawning adults in high salinity, sandy, natural habitats in these small estuaries was consistent.
Our findings suggest that these and other small estuaries may provide the same
habitats, predators, prey, and fishery resources as larger estuaries, except at a smaller
scale. Thus, small estuaries contribute by enhancing landscape and habitat diversity
for this vulnerable species. Further clarification of the importance of estuarine habitats
would benefit from an increasing emphasis on juveniles and their subsurface habitats in
small and large estuaries.
Introduction
Limulus polyphemus (L.) (Alantic Horseshoe Crab, hereafter, Horseshoe Crab),
is an important component of the ecosystems and economies of both coastal and
estuarine areas of the Atlantic and Gulf coasts of the US (Botton 2009, Botton et
al. 2003, Levin et al. 2003, Shuster et al. 2003). The Mid-Atlantic Bight (from
Massachusetts to South Carolina), and especially Delaware Bay, supports the largest
population of Horseshoe Crabs in the world (Pierce et al. 2000, Shuster 2015,
Smith et al. 2017) and is their primary spawning site (Shuster and Botton 1985).
The population was once thought of as a vast resource, but a decline in numbers
became apparent in the 1990s (Shuster et al. 2003, Smith et al. 2017, Walls et
al. 2002). The decline has been largely credited to 2 sources: first, the harvest of
1Rutgers, the State University of New Jersey, Marine Field Station, 800 c/o 132 Great Bay
Boulevard, Tuckerton, NJ 08087. 2University of North Carolina at Charlotte, Department of
Biological Sciences, 9201 University City Boulevard, Charlotte, NC 28223. 3Marine Fisheries
Administration, NJ Division of Fish and Wildlife, PO Box 418, Port Republic, NJ 08241.
441 Harrison Avenue Apartment 2, Branford, CT 06405. 5Lehigh University, 63 University
Drive, Bethlehem, PA 18015. 6University of Rhode Island, 215 South Ferry Road, Narragansett,
RI 02882. *Corresponding author - able@marine.rutgers.edu.
Manuscript Editor: Thomas Trott
Northeastern Naturalist
288
K.W. Able, et al.
2019 Vol. 26, No. 1
Horseshoe Crabs for fertilizer (late 1800s–early 1900s), and after some recovery, a
second decline in the 1990s, when the species was harvested as bait for commercial
Anguilla rostrata Lesuer (American Eel) and Busycon spp. (conch or whelk) fisheries
(Berkson and Shuster 1999), and for use in the biomedical industry (Anderson
et al. 2013, Atlantic States Marine Fisheries Commission 2013, Levin et al. 2003).
In the last decade, the landings from both of these sources have stabilized at a
lower level (Atlantic States Marine Fisheries Commission 2013), but the species
has been listed as “vulnerable” by the IUCN Red List (http://www.iucnredlist.org/
details/11987/0). A recent genetic evaluation throughout the Horshoe Crab’s range
indicates that there are 5 distinct subunits, 1 of which is the Mid-Atlantic Bight
(King et al. 2005, 2015). This interpretation is supported by other meta-analyses
(Smith et al. 2009b); thus, we place our studies in New Jersey in context relative to
the Mid-Atlantic Bight population.
Most of what we know about the Mid-Atlantic Bight population has focused on
adults in the ocean and in Delaware Bay (Botton 2009, Botton and Haskin 1984,
Botton and Ropes 1987). Adults migrate from the ocean (Swan 2005) into the estuary
in late spring, where females lay eggs on sandy estuarine beaches in the early
summer. Following external fertilization, egg development is estimated at 2–4
weeks (Botton et al. 2010, Sekiguchi et al. 1988). These eggs have a high nutritional
value and serve as a primary dietary component for shorebirds migrating during this
time (Shuster 1982), fishes (Nemerson 2001, Nemerson and Able 2004), and other
species (Burton et al. 2009).
We have a fairly thorough understanding of Horseshoe Crab habitat use and
reproduction in Delaware Bay, but have a less comprehensive understanding of the
role of habitats in smaller estuaries in the population status of this species, particularly
for juveniles (Botton 2009). The exceptions include in the Gulf of Mexico,
where the juveniles occur in sandy locations in the intertidal zone and subadults are
found at the seaward limit of the same zone (Rudloe 1981); and in a Massachusetts
estuary, where juveniles are inactive and buried in intertidal sand in winter and are
more active on low tides in the summer (Meury and Gibson 1990). A few studies
suggest that juveniles migrate to undefined deeper waters as they grow (Botton et
al. 2003, Burton et al. 2009, Rudloe 1981). One primary reason for this lack of
understanding of juvenile habitat use is their burial behavior (Rudloe 1979, 1980;
Vosatka 1970), which makes them less available to most conventional sampling
gears (Burton et al. 2009, Carmichael et al. 2003). The post-settlement juvenile
stage is relatively long and requires an estimated 9 y for males and 10 y for females
to achieve sexual maturity; Horseshoe Crabs have a maximum life span of 17–19 y
(Botton and Ropes 1988, Sekiguchi et al. 1988, Swan 2005).
The purpose of this paper is to summarize, from recent studies over years to
decades, the occurrence, abundance, and habitat use of larval, juvenile, and adult
life-history stages in a small estuary in New Jersey and the linkages with the adjacent
Atlantic Ocean inner continental shelf.
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
289
Materials and Methods
Study site
Two adjacent estuaries make up the estuarine portion of the study area within
central–southern New Jersey on the east coast of the US (Fig. 1). The Great Bay–
Mullica River estuary is a shallow (less than 2 m), salt marsh-fringed, drowned river valley
(Fig. 1). Watershed protection makes it one of the least impacted systems in the
northeastern US (Good and Good 1984, Kennish 2004). Water temperature regimes
follow temperate seasonal patterns within the Mid-Atlantic Bight (<0 °C in
winter to >30 °C in summer), and salinity corresponds to an upriver gradient from
polyhaline regions near Little Egg Inlet to the freshwater–saltwater interface near
Lower Bank, ~30 km upstream. The Mullica River–Great Bay rarely approaches
the low dissolved oxygen levels of hypoxic estuaries (less than 4 mg/L). This estuary is
dominated by sandy sediments in the lower portion and finer sediments in the upper
portion (Kennish 2004). The adjacent Little Egg Harbor estuary is a lagoon-type
barrier-island estuary of similar depths (less than 2 m at mean low water) and a narrow,
Figure 1. Horseshoe Crab study sites in the Great Bay–Mullica River estuary and the adjacent
inner continental shelf. Occurrence of adult Horseshoe Crabs during 1988–2015 from
the ocean to tidal freshwaters in the Mullica River–Great Bay estuary based on otter-trawl
samples (circles) in July and September. Symbols in inset indicate the type of sampling
conducted: push netting (■), plankton sampling (♦), and locatio n of RUMFS ().
Northeastern Naturalist
290
K.W. Able, et al.
2019 Vol. 26, No. 1
semi-diurnal tidal range (less than 0.5–1 m), but fresh water input is limited to small creeks,
and watershed development and human alterations are more extensive than for Mullica
River–Great Bay (Kennish 2004).
The adjacent New Jersey inner continental shelf is characteristic of a passive
margin, sloping gently to 100 m depth over ~80 km. The temperature of these and
other Mid-Atlantic Bight shelf waters varies from approximately 1 °C to 26 °C, and
salinity varies from 28 to 33, with tides and seasons controlling much of the variation
(Chang et al. 2002, Steves et al. 1999). Nearshore habitats are less stable than
those offshore, in terms of both temperature and salinity (Bowman and Wunderlich
1977, Steves et al. 1999).
Sampling location and effort
Based on collections of over 33,000 individuals, we sampled larvae, juveniles,
and adults (measured as prosomal width; PW) with multiple gears (Table 1) across
inner shelf and estuarine locations (Figs. 1, 2). We determined seasonal distributions
Figure 2. Sampling strata (upper left, depth contours of 9 m, 18 m, and 27 m) and seasonal
distribution and abundance (expressed as number of individuals per minute of trawl tow for
each sampling period) of Horseshoe Crabs on the New Jersey inner shelf, obtained from
NJDEP otter trawl surveys (1988–2015). The star in the upper left indicates the location of
Great Bay sampling sites in Figure 1.
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
291
Table 1. Sampling effort by location and gear for Horseshoe Crab larvae, juveniles, and adults in the Great Bay–Little Egg Harbor estuaries and the adjacent
inner continental shelf (ocean) off the coast of New Jersey. Sources include RUMFS = Rutgers University Marine Field Station, and NJDEP = New Jersey
Department of Environmental Protection. See Figure 1 for estuarine sampling locations. See Figure 2 for ocean sampling areas.
Water # of # of Life-history
Location/Habitat Sampling gear depth (m) Year Months stations indiv. stage(s) Source
Inner Continental Shelf
Ocean along coast of NJ Otter trawl (less than 27 m, 2.0–36.0 1988–2015 February, April 186 31,219 Juveniles, NJDEP
6.4-mm bag liner) June, August, October adults
Ocean at Beach Haven Ridge Beam trawl (2 m, 2.0–19.0 1991–1993, All 43 135 Juveniles, RUMFS
to Little Egg Inlet 3.0-mm mesh) 1999–2001 adults
Ocean along Little Egg Inlet, Seine (330 m x 1.8 m, 0.0–2.0 2004–2006 May–October 9 23 Adults RUMFS
Great Bay, Little Egg Harbor 6-mm mesh in wings,
2-mm bag)
Estuary
Little Sheepshead Creek Plankton net (1 m, 3.0–4.0 2005–2014 All 9 1304 Larvae RUMFS
1-mm mesh)
Great Bay–Little Egg Harbor Push net (1 m2, 0.0–2.0 2010–2011 May–September 6 101 Juveniles RUMFS
3-mm mesh)
Great Bay–Little Egg Harbor Beam trawl 0.6–5.0 1992–1996 All 50 91 Juveniles, RUMFS
(3.0-mm mesh) adults
Great Bay–Little Egg Harbor Gear comparison (seine 1.0–5.0 1991 May–October 25 33 Juveniles, RUMFS
beam, otter trawls) adults
Great Bay Minnow trap 0.25–2.0 1990–2015 All 1 2 Juveniles RUMFS
(6.4-mm mesh)
Great Bay, Mullica River Seine (6.1 m, 0.3–1.5 1990–1991, All 16 3 Juveniles, RUMFS
4-mm mesh) 2012–2015 adults
Great Bay Pop net (5-m x 5-m 1.0–2.0 1995–1996 All 1 5 Juveniles, RUMFS
multi-mesh) adults
Great Bay, Little Egg Harbor, Otter trawl (4.9 m, 0.6–5.0 1988–2015 All 46 119 Adults RUMFS
Mullica River 6.0-mm mesh)
Great Bay, Mullica River Multi–mesh gill net 0.0–2.5 2001–2002 June–November 5 1 Adults RUMFS
Northeastern Naturalist
292
K.W. Able, et al.
2019 Vol. 26, No. 1
for juveniles and male and female adults on the continental shelf along the coast
from New Jersey Department of Environmental Protection daytime bottom-trawl
surveys from 1988 to 2015, over an area of ~4660 km2 (Fig. 2; Byrne 1994). This
area was divided into 15 strata spanning 5–27 m with cross-shelf boundaries at
~9 m, 18 m, and 27 m depth (Fig. 2). Sampling sites within each stratum were randomly
chosen during each sampling period. Each sample consisted of a ~20-min
otter-trawl tow during daylight (Table 1). Since 1999, mature males were identified
following Shuster and Sekiguchi (2003) and Smith et al. (2009a) based on presence
of monodactylus pedipalps. For the purposes of this paper, we assumed that
individuals >180 mm PW without monodactylus pedipalps were maturing or adult
females. At smaller sizes, we could not distinguish the sexes and considered those
without monodactylus pedipalps as immature females or males. This assumption
might have resulted in the misclassification of a small number of female juveniles
as adults (see Smith et al. 2009a).
Other individuals were obtained via a long-term, daylight otter-trawl program
from a variety of stations/habitats located throughout the Mullica River–Great Bay–
Inner Continental Shelf corridor (Table 1, Fig. 1; see Szedlmayer and Able 1996,
Vasslides et al. 2011 for further details). We sampled other individuals with anchored
multi-mesh gills nets (15 m x 2.4 m with 5 panels of 5 mesh sizes [2.5-cm, 3.8-cm,
5.1-cm, 6.4-cm, and 7.6-cm box] and 91 m x 2.4 m with 6 panels of 3 mesh sizes [1.3-
cm, 1.9-cm, and 2.5-cm box]) in the Mullica River-Great Bay estuary (see Able and
Fahay 2010 for additional details). We set gill nets during the day, at biweekly intervals,
in the spring, summer, and fall in upper creek, creek mouth, and nearshore bay
habitats; each set was for ~60 min. In an attempt to discern the seasonal occurrence
of larvae, we sampled weekly on night flood-tides with plankton nets and flow meters
suspended in Little Sheepshead Creek behind Little Egg Inlet in southern New
Jersey; we expressed abundance as number per 1000 m3 (Table 1, Fig. 1), with an approach
identical to that presented in Able et al. (2017). For the purposes of this paper,
we defined larvae as trilobite-stage individuals of 3 mm PW. We employed push nets
(Tinsley et al. 1989) in intertidal and shallow subtidal habitats to sample in the estuary
(Fig. 1 inset) for small juveniles (unsexed).
Telemetry
During 2009, we fitted 3 adult female (240–260 mm PW) and 3 adult male
Horseshoe Crabs (190–210 mm PW) with Lotek CAFT-11-2 (92-day life) or CAFT-
11-3 (229-day life) acoustic tags in a PVC sleeve glued with marine-grade moldable
epoxy to a cleaned and sanded spot on the dorsal surface of the prosoma. We
collected all of these adults along a spawning beach in Little Sheepshead Creek
(Fig. 1, inset) on 11 June (n = 4) and 24 June (n = 2) of 2004; crabs were tagged and
held in captivity 24–48 h to allow the epoxy to cure prior to release at the capture
site. An array of 12 moored WHS_1000 hydrophones provided real-time monitoring
of movement through the inlet to the inner continental shelf and adjacent
estuaries and also to oligohaline or freshwater regions of the system (Grothues et
al. 2005). Our weekly mobile tracking efforts, using the techniques of Sackett et
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
293
al. (2008), covered the entire estuarine system and parts of adjacent estuaries and
Little Egg Inlet through June and July.
During 2017, we fitted 5 male (PW = 200–230 mm) and 5 female (PW = 280–300
mm) Horseshoe Crabs with Lotek MM series (MM-M-11_28) transmitters (5-s interval,
90-day life) using a Velcro saddle fastened with thick formula cyanoacrylate to
the cleaned carapace and transmitter. We collected the first 9 crabs in a single trawltow
along a sandy beach off of the Fish Factory, and the last in Little Sheepshead
Creek (Fig. 1). An array of 2 moored hydrophones monitored Shooting (adjacent
to RUMFS) and Newmans (adjacent to the Fish Factory) thorofares. Fixed hydrophone
batteries expired 25 August, and we recovered units in November. Weekly or
subweekly mobile tracking occurred through August and into September.
Results
Seasonal distribution and reproductive phenology
Seasonal samples, stratified by depth along the inner continental shelf off New
Jersey from 1988 to 2015, showed distinct patterns for adult male (>140 mm PW)
and female abundance, but were much less clear for the less abundant juveniles.
We detected juveniles in all strata from the northern to the southern limits of the
sampling area (Fig. 2). There was a pronounced seasonality for adult males and
females (Fig. 3). We collected relatively few individuals in the winter (January).
From April to August, males and females were widely distributed over most
depth strata; however, they were most abundant in the inshore strata. By October,
males and females were most abundant in the inshore and midshore depth strata.
Juveniles were scarce; their occurrence was largely limited to October and then
primarily in the inshore depth strata (Fig. 3), with the smallest juveniles in these
samples >80 mm PW (Fig. 4).
The occurrence of adults in the estuary in March through June (Fig. 4) is consistent
with egg laying on sandy beaches in the Great Bay–Little Egg Harbor estuaries
(K.W. Able, pers. observ.). A lag time for egg hatching corresponds with the consistent
occurrence of the larvae (3 mm) in year-round plankton samples during the
2004–2015 period inside Little Egg Inlet at Little Sheepshead Creek from May
through September, with the highest values in July, when water temperatures were
at their seasonal peak. Our findings indicate that adults continued to occur in the
estuary into September, but some adults had migrated back into the ocean based on
greater catches there at that time (Fig. 4).
Habitat use in the estuary
Horseshoe Crabs found in the estuary measured from 3 mm, for the planktonic
larvae, to larger juveniles of up to 17–114 mm PW and adults up to 350 mm PW
(Fig. 4). The size varied with sampling gear, with juveniles less than ~114–180 mm
PW seldom collected in the estuary, while individuals of that size were frequently
captured in most months by the surveys on the inner shelf, especially in October
(Fig. 4). Perhaps the occurrence of smaller individuals on the inner shelf is part of
a movement of juveniles from the estuary to offshore as they increase in size. We
Northeastern Naturalist
294
K.W. Able, et al.
2019 Vol. 26, No. 1
collected all juveniles and adults in the estuary in the lower portion, which is dominated
by higher salinities and sandy substrates. We most frequently collected the
post-settlement juveniles on the Little Egg Harbor side of Long Beach Island near
Holgate in a natural area that is protected as part of the Forsythe National Wildlife
Refuge (Fig. 1, inset). In this location, we found post-settlement juveniles moving
over or buried in an intertidal–shallow subtidal sandy bottom along a series of
coves found at prior storm-overwash points. Other areas with sandy substrates on
the mainland side (mouth of Little Sheepshead Creek) and large sand bar inside the
inlet (Anchoring Island) had no individuals.
Temporal and spatial use of the acoustically tracked adults varied substantially.
Tagged Horseshoe Crabs utilized creeks, navigable channels (especially along
emergent escarpments), and shallow open-bay habitat. There was no apparent difference
between males and females in these patterns. Linear ranging distances were
from 0.29 km to 0.83 km per week, but our range estimates could be biased by the
period of time over which we detected an individual by mobile tracking because
Figure 3. Horseshoe Crab abundance, expressed as catch per unit effort (catch per minute
towed), by season and depth strata (across depth contours of less than 9 m [inshore], 18 m
[midshore], and 27 m [offshore] from NJDEP otter-trawl surveys [1999–2015]; Fig. 1) for
male, female, and juvenile Horeshoe Crabs. The notch displays the 95% confidence interval
around the median, the box represents the interquartile range (IQR) or 50% of the data, and
the circle is the mean.
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
295
Figure 4. Monthly length frequencies (1988–2015) of Horseshoe Crabs across multiple
gears in the inner continental shelf to estuary sampling area (Table 1). Larvae were collected
with plankton nets; Inner Continental Shelf samples are from NJDEP otter-trawl surveys,
and Estuary samples are a combination of RUMFS otter-trawls for larger animals, push-net
surveys for juveniles, and others. Note the differences in the y-axis for each month.
Northeastern Naturalist
296
K.W. Able, et al.
2019 Vol. 26, No. 1
movement was punctuated with quiescent periods of up to a month that included
burial (as confirmed by diving).
Egress from estuary
Egress from the estuary to the inner continental shelf occurs at 2 stages in the
Horseshoe Crabs life cycle in this small estuary. After a presumed long period of
residence in the estuary, the juveniles, at sizes of less than 180 mm PW (Fig. 4), migrate
onto the inner shelf. For many individuals, this movement occurs prior to achieving
the size associated with sexual maturity. The smallest individuals detected on the
inner shelf in our sampling were ~80 mm PW (Fig. 4). We detected individuals of
this size in several months when extensive sampling occurred. The timing of egress
for adults is likely in late summer or fall (September or October), based on the reduced
number of adults collected in the estuary by the latter month (Fig. 4).
Seasonal timing of egress from the estuary onto the inner shelf by acoustically
tagged adults overlapped with that shown by captures during trawling on the inner
shelf (Fig. 2). The last detection on the hydrophones of the 2009 fixed array
occurred between 19 June and 21 July 2004, but we subsequently detected 2 individuals
by mobile tracking until 31 July 2004, when that effort ended. One of these
tagged individuals had moved into the adjacent estuary (Little Egg Harbor); another
remained well inside Great Bay near the tagging location, and we did not detect it
passing inlet hydrophones, possibly because the tag had expired before it finally left
the estuary. Another individual detected leaving the estuarine hydrophone array on
June 26 remained just inside the inlet until 8 July, as detected by mobile tracking.
In 2017, most individuals dispersed from the tagging/release site within 1
week, but 3 individuals remained within range of the loggers until August. Mobile
searches of the bay showed that the tagged individuals were moving towards the
inlet, and the last detection was of an individual in the inlet. However, during dives
to recover the loggers on 11 November, we found 2 untagged adult Horseshoe Crabs
in the vicinity of the loggers (1 each).
Discussion
Limitations of the study
Aspects of our understanding of the linkages between the estuary and the inner
continental shelf for Horseshoe Crabs are likely compromised by the species’
unavailability to many sampling approaches. This lack of detectability is, in part,
due to burial as well as their seasonal migrations between these areas (Swan 2005).
Of these, burial presents a general sampling problem (Able 1999, Able and Fahay
2010) given the ability to bury during their entire lives (Estes et al. 2015, Hata
and Berkson 2003, Lockwood 1870, Meury and Gibson 1990, Vosatka 1970). The
inclination of juveniles to bury may vary with tide (Meury and Gibson 1990, Rudloe
1981), day–night cycle, and season; thus, the behavior limits our understanding
of this life-history stage, and perhaps of the adults as well due to an inadequate understanding
of sampling efficiency (Cadrin et al. 2016, Jones 2011). Burial behavior
also affects the ability to detect acoustically tagged individuals, and further, the
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
297
ability to decode audible transmitters. In the case of moored logging hydrophones,
an undecodable transmitter effects the study the same as total detection failure
(Grothues et al. 2012). In the case of mobile tracking, a transmitter that is audible
but cannot be decoded can at least be mapped and its identity interpreted based on
movement on earlier or subsequent days. That was the case for 1 individual that we
tracked as it was intermittently buried or crawling while crossing over a shoal and
into Little Egg Inlet. These situations lead to extremely low signal-detectability.
Further, the inability to confidently identify juvenile females, a complex issue at
best (Smith et al. 2009a), limited our ability to follow their movements from the
estuary to the inner continental shelf.
Linkages between estuary and the inner continental shelf
Our findings demonstrate that some populations of Horseshoe Crabs in the
Middle Atlantic Bight, including those from the Great Bay–Little Egg Harbor
estuaries, are linked, but the annual and seasonal patterns of estuarine–inner
shelf movements are influenced by size/age at maturity and their long lives. We
assume, based on indirect evidence, that Horseshoe Crabs live for 17–19 y (Botton
and Ropes 1988, Sekiguchi et al. 1988, Swan 2005). This relatively long
age-duration is supported by tag–recapture studies in which numerous adults
were recaptured 9–10 years after tagging in the Mid-Atlantic Bight (Mattei et al.
2011, Swan 2005). If Horseshoe Crabs make their terminal molt in 9–11 y (Shuster
1950), then the duration of the juvenile stage may be relatively long, up to 9
y (males) or 10 y (females) (Sekiguchi et al. 1988) or slightly longer (Smith et
al. 2009a). However, it is important to remember that aging based entirely on a
size–age relationship could be erroneous because Horseshoe Crab instar duration
can vary between the laboratory and the field (Botton and Ropes 1988, Kawahara
1982, Sekiguchi et al. 1988, Smith et al. 2009a).
Based on cumulative length frequencies in the study area, most individuals less than 100
mm are found in estuaries, and, at larger sizes, they are found on the inner continental
shelf. This pattern is consistent with the general pattern that the larger juveniles
migrate offshore and mature on the inner shelf. Smith et al. (2009a) cautioned that
these patterns may be more complex, especially between different sexes and ages.
The inshore–offshore linkages observed in this study are supported by an extensive
tag–recapture study in the Mid-Atlantic Bight (Swan 2005). In that study, some
adults had moved from spawning sites in Delaware Bay to areas on the continental
shelf, mostly south of the bay but also to the north, over varying periods of time.
Typically, these Horseshoe Crabs occurred 3.2–12.8 km from the shoreline, with the
furthest at 48 km from shore (Swan 2005). Conversely, some individuals tagged on
the inner continental shelf off Ocean City, MD, moved into Delaware Bay (n = 48).
These inshore–offshore migrations are not surprising because they are also typical
for fishes in the extreme, seasonally varying temperatures of the Mid-Atlantic Bight
(Able and Fahay 2010, Able et al. 2014).
The seasonal inshore–offshore migratory patterns that are evident for Horseshoe
Crabs in the Mid-Atlantic Bight based on our sampling in the estuary and inner
continental shelf, and others (Botton and Ropes 1987), and our interpretation of
Northeastern Naturalist
298
K.W. Able, et al.
2019 Vol. 26, No. 1
tracking in this study are apparently not the case in the Gulf of Mexico (Rudloe 1980),
the vicinity of Cape Cod (James-Pirri 2010, James-Pirri et al. 2005), or the Gulf of
Maine (Moore and Perrin 2007, Schaller et al. 2010, Watson et al. 2009), where the
adults apparently overwinter within estuaries, just in slightly deeper waters.
The apparently greater abundance of Horseshoe Crabs in the southern and northern
extremes of the New Jersey coast (Fig. 1) is likely due to proximity to estuarine
spawning sites in large bays such as Raritan Bay/New York Harbor and particularly
Delaware Bay (Botton and Haskin 1984, Botton and Ropes 1987, Shuster 1982,
Smith et al. 2009b). The latter supports the largest spawning population documented
for the species (Hata and Berkson 2003, Shuster and Botton 1985, Smith
et al. 2010), as is evident from tag–recapture studies (Swan 2005). The consistent
occurrence of Horseshoe Crabs along the rest of the coast, based on this and related
studies (Botton and Haskin 1984, Botton and Ropes 1987), implies that migration
inshore to and spawning in estuaries all along the coast may be common, as our data
indicates for the Great Bay–Little Egg Harbor estuaries.
Habitat use in the estuary
Horseshoe Crabs in the Mid-Atlantic Bight may spend numerous years in estuaries
as juveniles, yet we know relatively little about their patterns of habitat use
because their habit of burying in the substrate often precludes them from frequent
capture. Thus, these estuarine “nurseries” deserve the attention often afforded to
fish, shrimp, etc. (Beck et al. 2001, Dahlgren et al. 2006, Nagelkerken et al. 2015)
due to the economic and ecological importance of Horseshoe Crabs. Further, if we
assume that Horseshoe Crabs live at least 11–19 ys (Botton and Ropes 1988), then
they are resident in estuaries for at least one third of their lifespan and intermittently
as long as they continue to reproduce. Thus, estuaries are essential habitat
across all life-history stages.
The frequent occurrence of Horseshoe Crab larvae at our long-term plankton
sampling site over most of the years sampled verifies that spawning occurs in this
small estuary. These larvae are likely from this estuary because larval dispersal is
limited (Botton and Loveland 2003) and egg deposition has been observed over
many years in several sandy beaches, including one 10–20 m from the plankton
collecting site. These nighttime collections may be optimal because the larvae are
more active at night when they migrate into the water column (Cheng et al. 2015,
Ehlinger and Tankersley 2006, Rudloe 1979).
Despite the common occurrence of larvae, the juveniles are infrequently captured.
In this study, the juveniles were most abundant on natural, sandy, intertidal
beaches on the bay side of barrier islands. This occurrence on sandy substrates and
sand flats is consistent with observations in Delaware Bay (Botton and Loveland
2003, Botton et al. 2003), the Gulf of Mexico (Rudloe 1981), and in the vicinity of
Cape Cod (Meury and Gibson 1990).
The distribution into deeper, subtidal estuarine waters increases with size of
juveniles in some populations (Rudloe 1981, Shuster 1982). However, deeper subtidal
habitats are seldom sampled effectively. An exception was sampling with a
suction dredge at depths of 1–4 m in Delaware Bay, which found juveniles (peaks
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
299
of 12.5-mm, 17-mm, and 24-mm carapace width) in the fall (Burton et al. 2009).
Our efforts in the Great Bay–Little Egg Harbor estuaries found juveniles most
consistently in the intertidal zone. In addition, extensive sampling (n = 600 grab
samples) over 3 y (2012–2014) throughout subtidal areas (1–14 m) of Barnegat
Bay, including Little Egg Harbor, collected only 2 juvenile Horseshoe Crabs (G.
Taghon, Rutgers University, New Brunswick, NJ, pers. comm.).
The collection of relatively few juveniles collected in this small estuary is likely
due to 2 factors. First, as previously indicated, burial behavior prevents effective
sampling. Second, the population size may be small relative to an estuary like Delaware
Bay. The Delaware Bay population might be larger because Delaware Bay is
larger and has numerous sandy beaches for spawning and very large sand flats with
numerous troughs that provide nursery habitat for juveniles, thus supporting large
population sizes (Botton and Loveland 2003, Botton et al. 2003). The same kind of
nursery habitat, extensive tidal flats, is also available in a frequently studied area
in the Gulf of Mexico near Turkey Point near Carrabelle, FL (Rudloe 1980, 1981).
Similar sand flats are also evident in the sandy substrates in the vicinity of Cape
Cod (Carmichael et al. 2003). Other species of horseshoe crabs, such as Tachypleus
tridentatus, also use sandy intertidal habitats as juveniles (Almendral and Schoppe
2005, Hsieh and Chen 2009, Hu et al. 2009, Shuster and Sekiguchi 2009).
In summary, despite the potentially reduced population sizes in the Great
Bay–Little Egg Harbor estuaries, these and other small estuaries may contribute
significantly by providing additional landscape and habitat diversity for all lifehistory
stages of Horseshoe Crabs. In addition, Horseshoe Crabs also contribute
to estuarine food webs in small estuaries all along the coast in the Mid-Atlantic
Bight (Millard et al. 2015, Nemerson 2001) and the fisheries that depend on them
(Millard et al. 2015). This same pattern occurs for fishes in other small estuaries
(Able and Fahay 2010, Cardoso et al. 2011). In addition, the natural shorelines in
the study area, with little or no human alteration such as shoreline armoring, suggests
that these nearly natural habitats may provide spawning and nursery habitats
for Horseshoe Crabs into the future even as sea levels continue to rise (Loveland
and Botton 2015).
Acknowledgments
We appreciate the assistance of Rutgers University Marine Field Station and NJ Department
of Environmental Protection Bureau of Fish and Wildlife personnel in many sampling
programs over many years. In addition, special thanks to Dan Gibson for insightful discussions
on life history and ecology and comments on an earlier draft, Jason Morson and Stacy
VanMorter for data development, and Gary Taghon for sharing grab-sample data from Barnegat
Bay.
Literature Cited
Able, K.W. 1999. Measures of juvenile fish habitat quality: Examples from a National
Estuarine Research Reserve. Pp. 134–147, In L.R. Benaka (Ed.) Fish Habitat: Essential
Fish Habitat and Rehabilitation. American Fisheries Society, Symposium 22. Bethesda,
MD. 400 pp.
Northeastern Naturalist
300
K.W. Able, et al.
2019 Vol. 26, No. 1
Able, K.W., and M.P. Fahay. 2010. Ecology of Estuarine Fishes: Temperate Waters of the
Western North Atlantic. Johns Hopkins University Press, Baltimore, MD. 566 pp.
Able, K.W., T.M. Grothues, J.T. Turnure, M.A. Malone, and G.A. Henkes. 2014. Dynamics
of residency and egress in selected estuarine fishes: Evidence from acoustic telemetry.
Environmental Biology of Fishes. 97(1):91–102.
Able, K.W., J.L. Valenti, and T.M. Grothues. 2017. Fish larval supply to and within a lagoonal
estuary: Multiple sources for Barnegat Bay, New Jersey. Environmental Biology
of Fishes 100:663–683. DOI:10.1007/s10641-017-0595-0.
Almendral, M.A., and S. Schoppe. 2005. Population structure of Tachypleus tridentatus
(Chelicerata: Merostomata) at a nursery beach in Puerto Princesa City, Palawan, Philippines.
Journal of Natural History 39:2319–2329.
Anderson, R.L., W.H. Watson III, and C.C. Chabot. 2013. Sublethal behavioral and physiological
effects of the biomedical bleeding process on the American Horseshoe Crab,
Limulus polyphemus. The Biological Bulletin 225:137–151.
Atlantic States Marine Fisheries Commission. 2013. Horseshoe Crab Stock Assessment
update. Arlington, VA. 68 pp.
Beck, M.W., K.L. Heck Jr., K.W. Able, D.L. Childers, D.G. Eggleston, B.M. Gillanders, B.
Halpern, C.G. Hays, K. Hoshino, T.J. Minello, R.J. Orth, P.F. Sheridan, and M.P. Weinstein.
2001. The identification, conservation, and management of estuarine and marine
nurseries for fish and invertebrates. BioScience 51(8):633–641.
Berkson, J., and C.N. Shuster Jr. 1999. The Horseshoe Crab: The battle for a true multipleuse
resource. Fisheries 24:6–12.
Botton, M.L. 2009. The ecological importance of Horseshoe Crabs in estuarine and coastal
communities: A review and speculative summary. Pp. 45–63, In J.T. Tanacredi, M.L.
Botton, and D.R. Smith (Eds.). Biology and Conservation of Horseshoe Crabs. Springer,
New York, NY. 662 pp.
Botton, M.L., and H.H. Haskin. 1984. Distribution and feeding of the Horseshoe Crab, Limulus
polyphemus, on the continental shelf off New Jersey. Fishery Bulletin 82(2):383–389.
Botton, M.L., and R.E. Loveland. 2003. Abundance and dispersal potential of Horseshoe
Crab (Limulus polyphemus) larvae in the Delaware Estuary. Estuaries 26(6):1472–1479.
Botton, M.L., and J.W. Ropes. 1987. Populations of Horseshoe Crabs, (Limulus polyphemus),
on the northwestern Atlantic continental shelf. Fishery Bulletin 85(4):805–812.
Botton, M.L., and J.W. Ropes. 1988. An indirect method for estimating longevity of the
Horseshoe Crab (Limulus polyphemus) based on epifaunal Slipper Shells (Crepidula
fornicata). Journal of Shellfish Research 7(3):407–412.
Botton, M.L., R.E. Loveland, and A. Tiwari. 2003. Distribution, abundance, and survivorship
of young-of-the-year in a commercially exploited population of Horseshoe Crabs,
Limulus polyphemus. Marine Ecology Progress Series 265:175–184.
Botton, M.L., R.E. Loveland, and R.A. Tankersley. 2010. Developmental ecology of the
American Horseshoe Crab, Limulus polyphemus. Current Zoology 56(5):550–562.
Bowman, M.J., and L.D. Wunderlich. 1977. Hydrographic properties. MESA New York
Bight Atlas Monograph, Volume 1. New York Sea Grant Institute, Albany, NY. 78 pp.
Burton, W.H., F.S. Kelley, and E.A. Franks. 2009. Distribution of juvenile Horseshoe Crabs
in subtidal habitats of Delaware Bay using a suction-dredge sampling device. Pp.
285−293, In J.T. Tanacredi, M.L. Botton, and D.R. Smith (Eds.). Biology and Conservation
of Horseshoe Crabs. Springer, New York, NY. 662 pp.
Byrne, D. 1994. Stock assessment of New Jersey’s nearshore recreational fisheries resources.
Pp. 36-42, In T. Berger (Ed.) Proceedings of the workshop on the collection and use
of trawl survey data for fisheries management, 15–17 August Charleston, SC. Atlantic
States Marine Fisheries Commission, Washington, DC. 192 pp.
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
301
Cadrin, S.X., G.R. Celles, and D. Reid. 2016. Informing fishery assessment and management
with field observations of selectivity and efficiency. Fisheries Research 184:9–17.
Cardoso, I., S. França, M.P. Pais, S. Henriques, L. Cancela da Fonseca, and H.N. Cabral.
2011. Fish assemblages of small estuaries of the Portuguese coast: A functional approach.
Estuarine, Coastal, and Shelf Science 93:40–46.
Carmichael, R.H., D. Rutecki, and I. Valiela. 2003. Abundance and population structure of
the Atlantic Horseshoe Crab, Limulus polyphemus, in Pleasant Bay, Cape Cod. Marine
Ecology Progress Series 246:225–239.
Chang, G.C., T.D. Dickey, O.M. Schofield, A.D. Weidemann, E Boss, W.S. Pegau, M.A.
Moline, and S.M. Glenn. 2002. Nearshore physical processes and bio-optical properties
in the New York Bight. Journal of Geophysical Research 107(C9):31–33.
Cheng, H., C.C. Chabot, and W.H. Watson III. 2015. The life-history cycle of Limulus
polyphemus in the Great Bay estuary, New Hampshire, USA. Pp. 237–253, In R.H.
Carmichael, M.L. Botton, P.K.S. Shin, and S.G. Cheung (Eds.). Changing Global Perspectives
on Horseshoe Crab Biology, Conservation, and Management. Springer, New
York, NY. 599 pp.
Dahlgren, C.P., G.T. Kellison, A.J. Adams, B.M. Gillanders, M.S. Kendall, C.A. Layman,
J.A. Ley, I. Nagelkerken, and J.E. Serafy. 2006. Marine nurseries and effective juvenile
habitats: Concepts and applications. Marine Ecology Progress Series 312:291–295.
Ehlinger, G.S., and R.A. Tankersley. 2006. Endogenous rhythms and entrainment cues of
larval activity in the Horseshoe Crab Limulus polyphemus. Journal of Experimental Marine
Biology and Ecology 337:205–214.
Estes, M.G., Jr., R.H. Carmichael, P.D.M. Macdonald, A.J. Brady, and J. McFadyen. 2015.
Molts reveal life-history patterns for juvenile American Horseshoe Crabs in fringe
habitats. Pp. 255–278, In R.H. Carmichael, M.L. Botton, P.K.S. Shin, and S.G. Cheung
(Eds.). Changing Global Perspectives on Horseshoe Crab Biology, Conservation, and
Management. Springer, New York, NY. 599 pp.
Good, R.E., and N.F. Good. 1984. The Pinelands National Reserve: An ecosystem approach
to management. Bioscience 34(3):169–173.
Grothues, T.M., K.W. Able, J. McDonnell, and M. Sisak. 2005. An estuarine observatory
for real-time telemetry of migrant macrofauna: Design, performance, and constraints.
Limnology and Oceanography Methods 3:275–289.
Hata, D., and J. Berkson. 2003. Abundance of Horseshoe Crabs (Limulus polyphemus) in the
Delaware Bay area. Fishery Bulletin 101(4):933–938.
Hsieh, H-.L. and C-.P. Chen. 2009. Conservation program for the Asian Horseshoe Crab,
Tachypleus tridentatus, in Taiwan: Characterizing the microhabitat of nursery grounds
and restoring spawning grounds. Pp. 417–438, In J.T. Tanacredi, M.L. Botton, and D.R.
Smith (Eds.). Biology and Conservation of Horseshoe Crabs. Springer, New York, NY.
662 pp.
Hu, M., Y. Want, Y. Chen, S.-G. Cheung, P.K.S. Shin, and Q. Li. 2009. Summer distribution
and abundance of juvenile Chinese Horseshoe Crabs, Tachypleus tridentatus, along an
intertidal zone in southern China. Aquatic Biology 7:107–112.
James-Pirri, M-.J. 2010. Seasonal movement of the American Horseshoe Crab, Limulus
Polyphemus, in a semi-enclosed bay on Cape Cod, Massachusetts (USA), as determined
by acoustic telemetry. Current Zoology 56(5):575–586.
James-Pirri, M.J., K. Tuxbury, S. Marino, and S. Koch. 2005. Spawning densities, egg
densities, size structure, and movement patterns of spawning Horseshoe Crabs, Limulus
polyphemus, within four coastal embayments on Cape Cod, Massachusetts. Estuaries
28(2):296–313.
Northeastern Naturalist
302
K.W. Able, et al.
2019 Vol. 26, No. 1
Jones, J.P.G. 2011. Monitoring species abundance and distribution at the landscape scale.
Journal of Applied Ecology 48(1):9–13.
Kawahara, D. 1982. Investigations on ecology of Horseshoe Crab larvae. Aquabiology
4(5):380–382.
Kennish, M. J. 2004. Jacques Cousteau National Estuarine Research Reserve. Pp. 59–118,
In M. J. Kennish (Ed.). Estuarine Research, Monitoring, and Resource Protection. CRC
Press, New York, NY. 297 pp.
King, T.L., M.S. Eackles, and A.P. Spidle. 2005. Regional differentiation and sex-based
dispersal among populations of the Horseshoe Crab Limulus polyphemus. Transactions
of the American Fisheries Society 134:441–465.
King, T.L., M.S. Eackles, A.W. Aunins, H.J. Brockmann, E. Hallerman, and B.L. Brown.
2015. Conservation genetics of the American Horseshoe Crab (Limulus polyphemus):
Allelic diversity, zones of genetic discontinuity, and regional differentiation. Pp. 65–96,
In R.H. Carmichael, M.L. Botton, P.K.S. Shin, and S.G. Cheung (Eds.). Changing Global
Perspectives on Horseshoe Crab Biology, Conservation and Management. Springer,
New York, NY. 599 pp.
Levin, J.H., D. Hochstein, and T.J. Novitsky. 2003. Clotting cells and Limulus amebocyte
lysate: An amazing analytical tool. Pp. 310–340, In C.N. Shuster Jr., R.B. Barlow, and
H.J. Brockmann (Eds.). The American Horseshoe Crab. Harvard University Press, Cambridge,
MA. 427 pp.
Lockwood, S. 1870. The Horsefoot Crab. American Naturalist 4(5):257–274.
Loveland, R.E., and M.L. Botton. 2015. Sea-level rise in Delaware Bay, USA: Adaptations
of spawning Horseshoe Crabs (Limulus polyphemus) to the glacial past, and the rapidly
changing shoreline of the bay. Pp.41–63, In R.H. Carmichael, M.L. Botton, P.K.S. Shin,
and S.G. Cheung (Eds.). Changing Global Perspectives on Horseshoe Crab Biology,
Conservation and Management. Springer, New York, NY. 599 pp.
Mattei, J.H., M.A. Beekey, H.R. Potter, C.S. Bond, A.R. Woronik, and J.A. Roberts. 2011.
Estimation of short-term tag-induced mortality in Horseshoe Crabs, Limulus polyphemus.
Transactions of the American Fisheries Society 140:954–958.
Meury, T.W., and D.G. Gibson III. 1990. Force generation in juvenile Limulus polyphemus:
Effects on mobility in the intertidal environment. Bulletin of Marine Science
47(2):536–545.
Millard, M.J., J.A. Sweka, C.P. McGowan, and D.R. Smith. 2015. Assessment and management
of North American Horseshoe Crab populations, with emphasis on a multispecies
framework for Delaware Bay, USA populations. Pp. 407–431, In R.H. Carmichael, M.L.
Botton, P.K.S. Shin, and S.G. Cheung (Eds.). Changing Global Perspectives on Horseshoe
Crab Biology, Conservation and Management. Springer, New York, NY. 599 pp.
Moore, S., and S. Perrin. 2007. Seasonal movement and resource-use patterns of resident
Horseshoe Crab (Limulus polyphemus) populations in a Maine, USA, estuary. Estuaries
and Coasts 30(6):1016–1026.
Nagelkerken, I., M. Sheaves, R. Baker, and R.M. Connolly. 2015. The seascape nursery: A
novel spatial approach to identify and manage nurseries for coastal marine fauna. Fish
and Fisheries 16:362–371.
Nemerson, D.M. 2001. Trophic dynamics and habitat ecology of the dominant fish of Delaware
Bay (USA) marsh creeks. Ph.D. Dissertation. Rutgers University, New Brunswick,
NJ. 232 pp.
Nemerson, D.M., and K.W. Able. 2004. Spatial patterns in diet and distribution of juveniles
of four fish species in Delaware Bay marsh creeks: Factors influencing fish abundance.
Marine Ecology Progress Series 276:249–262.
Northeastern Naturalist Vol. 26, No. 1
K.W. Able, et al.
2019
303
Pierce, J.C., G. Tan, and P.M. Gaffney. 2000. Delaware Bay and Chesapeake Bay populations
of the Horseshoe Crab, Limulus Polyphemus, are genetically distinct. Estuaries
23(5):690–698.
Rudloe, A. 1979. Locomotor and light responses of larvae of the Horseshoe Crab, Limulus
polyphemus (L.). Biological Bulletin 157:494–505.
Rudloe, A. 1980. The breeding behavior and patterns of movement of Horseshoe Crabs,
Limulus polyphemus, in the vicinity of breeding beaches in Apalachee Bay, Florida.
Estuaries 3:177−183.
Rudloe, A. 1981. Aspects of the biology of juvenile Horseshoe Crabs, Limulus polyphemus.
Bulletin of Marine Science 32:125–133.
Sackett, D.K., K.W. Able, and T.M. Grothues. 2008. Habitat dynamics of Summer Flounder,
Paralichthys dentatus, based on multiple approaches with acoustic telemetry. Marine
Ecology Progress Series 364:199–212.
Schaller, S.Y., C.C. Chabot, and W.H. Watson III. 2010. Seasonal movements of American
Horseshoe Crabs, Limulus polyphemus in the Great Bay Estuary, New Hampshire
(USA). Current Zoology 56(5):587–598.
Sekiguchi, K., H. Seshimo, and H. Sugita. 1988. Post-embryonic development of the Horseshoe
Crab. Biological Bulletin 174:337–345.
Shuster, C.N., Jr. 1950. Observations on the natural history of the American horseshoe
crab, Limulus polyphemus. Third report investigations of methods of improving the
shellfish resources of Massachusetts. Woods Hole Oceanographic Institution, Control
No. 564:18–23. Woods Hole, MA.
Shuster, C.N., Jr. 1982. A pictorial review of the natural history and ecology of the Horseshoe
Crab Limulus polyphemus, with reference to other Limulidae. Pp. 1–52, In J. Bonaventura,
C. Bonaventura, J., and S. Tesh (Eds.). Physiology and Biology of Horseshoe
Crabs. Alan R. Liss, New York, NY. 316 pp.
Shuster, C.N., Jr. 2015. The Delaware Bay area, USA: A unique habitat of the American
Horseshoe Crab, Limulus polyphemus. Pp. 15–39, In R.H. Carmichael, M.L. Botton,
P.K.S. Shin, and S.G. Cheung (Eds.). Changing Global Perspectives on Horseshoe Crab
Biology, Conservation, and Management. Springer, New York, NY. 599 pp.
Shuster, C.N., Jr., and M.L. Botton. 1985. A contribution to the population of Horseshoe
Crabs, Limulus polyphemus (L.), in Delaware Bay. Estuaries 8:363–372.
Shuster, C.N., Jr., and K. Sekiguchi. 2003. Growing up takes about ten years and eighteen
stages. Pp. 103–132, In C.N. Shuster, Jr., R.B. Barlow, and H.J. Brockmann (Eds.). The
American Horseshoe Crab. Harvard University Press, Cambridge, MA. 472 pp.
Shuster, C.N., Jr., and K. Sekiguchi. 2009. Basic habitat requirements of the extant species
of horseshoe crabs (Limulacea). Pp. 115–130, In J.T. Tanacredi, M.L. Botton, and D.R.
Smith (Eds.). Biology and Conservation of Horseshoe Crabs. Springer, New York, NY.
662 pp.
Shuster, C.N. Jr., R.B. Barlow, and H.J. Brockmann. 2003. The American Horseshoe Crab.
Harvard University Press, Cambridge, MA. 427 pp.
Smith, D.R., M.R. Mandt, and P.D.M. Macdonald. 2009a. Proximate causes of sexual size
dimorphism in Horseshoe Crabs (Limulus polyphemus) of the Delaware Bay. Journal of
Shellfish Research 28(2):405–417.
Smith, D.R., M.J. Millard, and R.H. Carmichael. 2009b. Comparative status and assessment
of Limulus polyphemus with emphasis on the New England and Delaware Bay populations.
Pp. 361–386, In J.T. Tanacredi, M.L. Botton, and D.R. Smith (Eds.). Biology and
Conservation of Horseshoe Crabs. Springer, New York, NY. 662 pp.
Northeastern Naturalist
304
K.W. Able, et al.
2019 Vol. 26, No. 1
Smith, D.R., L.J. Brousseau, M.T. Mandt, and M.J. Millard. 2010. Age- and sex-specific
timing, frequency, and spatial distribution of Horseshoe Crab spawning in Delaware Bay:
Insights from a large-scale radio telemetry array. Current Zoology 56(5):563–574.
Smith, D.R., H.J. Brockmann, M.A. Beekey, T.L. King, M.J. Millard, and J. Zaldívar-Rae.
2017. Conservation status of the American Horseshoe Crab (Limulus polyphemus): A
regional assessment. Reviews in Fish Biology and Fisheries 27:135–175.
Steves, B.P., R.K. Cowen, and M.H. Malchoff. 1999. Settlement and nursery habitats
for demersal fishes on the continental shelf of the New York Bight. Fisheries Bulletin
98:167–188.
Swan, B.L. 2005. Migrations of adult Horseshoe Crabs, Limulus polyphemus, in the Middle
Atlantic Bight: A 17-year tagging study. Estuaries 28(1):28–40.
Szedlmayer, S.T., and K.W. Able. 1996. Patterns of seasonal availability and habitat
use by fishes and decapod crustaceans in a southern New Jersey estuary. Estuaries
19(3):697–707.
Tinsley, V.R., L.A. Nielsen, and D.H. Wahl. 1989. Pushnet sampling as a supplement to seine
sampling in rivers. Fisheries Research 7:201–206.
Vasslides, J.M., J.L. Rackovan, J.L. Toth, R. Hagan, and K.W. Able. 2011. Metadata manual
for fish and environmental records at the Rutgers University Marine Field Station. Rutgers
University Institute of Marine and Coastal Sciences, New Brunswick, NJ. 170 pp.
Vosatka, E.D. 1970. Observations on the swimming, righting, and burrowing movements
of young Horseshoe Crabs, Limulus polyphemus. The Ohio Journal of Science
70(5):276–283.
Walls, E.A., J.M. Berkson, and S.A. Smith. 2002. The Horseshoe Crab, Limulus polyphemus:
200 million years of existence, 100 years of study. Reviews in Fisheries Science
10:39–73.
Watson, W.H., III, S.Y. Schaller, and C.C. Chabot. 2009. The relationship between smalland
large-scale movements of Horseshoe Crabs in the Great Bay Estuary and Limulus
behavior in the laboratory. Pp. 131–147, In J.T. Tanacredi, M.L. Botton, and D.R. Smith
(Eds.). Biology and Conservation of Horseshoe Crabs. Springer, New York, NY. 662 pp.
