Species Identification of Vagrant Empidonax Flycatchers
in Northeastern North America via Non-invasive DNA
Sequencing
Nathan R. Goldberg and Nicholas A. Mason
Northeastern Naturalist, Volume 24, Issue 4 (2017): 499–504
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist Vol. 24, No. 4
N.R. Goldberg and N.A. Mason
2017
499

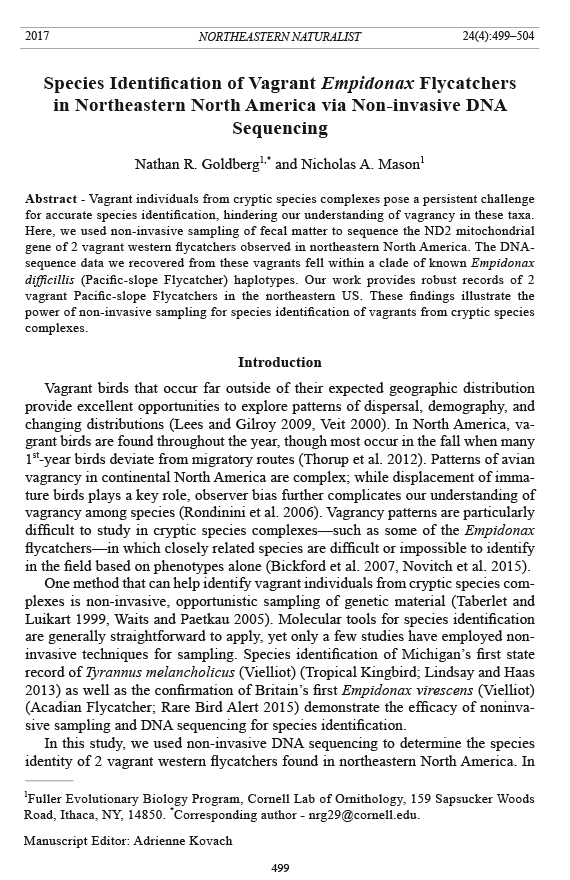

2017 NORTHEASTERN NATURALIST 24(4):499–504
Species Identification of Vagrant Empidonax Flycatchers
in Northeastern North America via Non-invasive DNA
Sequencing
Nathan R. Goldberg1,* and Nicholas A. Mason1
Abstract - Vagrant individuals from cryptic species complexes pose a persistent challenge
for accurate species identification, hindering our understanding of vagrancy in these taxa.
Here, we used non-invasive sampling of fecal matter to sequence the ND2 mitochondrial
gene of 2 vagrant western flycatchers observed in northeastern North America. The DNAsequence
data we recovered from these vagrants fell within a clade of known Empidonax
difficillis (Pacific-slope Flycatcher) haplotypes. Our work provides robust records of 2
vagrant Pacific-slope Flycatchers in the northeastern US. These findings illustrate the
power of non-invasive sampling for species identification of vagrants from cryptic species
complexes.
Introduction
Vagrant birds that occur far outside of their expected geographic distribution
provide excellent opportunities to explore patterns of dispersal, demography, and
changing distributions (Lees and Gilroy 2009, Veit 2000). In North America, vagrant
birds are found throughout the year, though most occur in the fall when many
1st-year birds deviate from migratory routes (Thorup et al. 2012). Patterns of avian
vagrancy in continental North America are complex; while displacement of immature
birds plays a key role, observer bias further complicates our understanding of
vagrancy among species (Rondinini et al. 2006). Vagrancy patterns are particularly
difficult to study in cryptic species complexes—such as some of the Empidonax
flycatchers—in which closely related species are difficult or impossible to identify
in the field based on phenotypes alone (Bickford et al. 2007, No vitch et al. 2015).
One method that can help identify vagrant individuals from cryptic species complexes
is non-invasive, opportunistic sampling of genetic material (Taberlet and
Luikart 1999, Waits and Paetkau 2005). Molecular tools for species identification
are generally straightforward to apply, yet only a few studies have employed noninvasive
techniques for sampling. Species identification of Michigan’s first state
record of Tyrannus melancholicus (Vielliot) (Tropical Kingbird; Lindsay and Haas
2013) as well as the confirmation of Britain’s first Empidonax virescens (Vielliot)
(Acadian Flycatcher; Rare Bird Alert 2015) demonstrate the efficacy of noninvasive
sampling and DNA sequencing for species identification.
In this study, we used non-invasive DNA sequencing to determine the species
identity of 2 vagrant western flycatchers found in northeastern North America. In
1Fuller Evolutionary Biology Program, Cornell Lab of Ornithology, 159 Sapsucker Woods
Road, Ithaca, NY, 14850. *Corresponding author - nrg29@cornell.edu.
Manuscript Editor: Adrienne Kovach
Northeastern Naturalist
500
N.R. Goldberg and N.A. Mason
2017 Vol. 24, No. 4
both cases, these flycatchers were discovered by birders in public locations where
traditional collecting of a whole specimen would have been difficult. Identifying
western flycatchers to species level is difficult in the field: E. difficilis Baird (Pacific-
slope Flycatcher) and E. occidentalis Nelson (Cordilleran Flycatcher) can only
be confidently identified by vocalizations, morphological measurements of birds in
the hand, or DNA (Rush et al. 2009). Consequently, individuals from this cryptic
species complex found far from their native ranges are rarely identified with confidence;
instead, they are typically recorded simply as “western flycatchers”. Prior
to this study, there have been 2 records of Pacific-slope Flycatchers, no records of
Cordilleran Flycatcher, and 10 records of western flycatchers in northeastern North
America (Fig. 1). These species identifications were based on vocal and morphological
observations of live birds, and were subsequently vetted by elected reviewers
that maintain regional checklists of bird species in each state.
Methods
On 22 November 2015, N. Goldberg observed a western flycatcher in Central
Park, New York City, NY, which defecated while under observation. Goldberg opportunistically
collected the excretion on a leaf. J. Hough, New Haven, CT, pers.
comm.) found a western flycatcher on 22 December 2015 in a schoolyard in Branford,
CT, and similarly collected a fecal sample. Both samples were subsequently
stored at -20 °C until processing. In addition to fecal samples, a colleague opportunistically
recorded the vocalizations of the Central Park bird in Central Park, NY
Figure 1. (A) Occurrence records (dots) of Pacific-slope and “Western” flycatchers (Empidonax
sp.) for eastern North America taken from eBird.org overlaid on range maps taken
from BirdLife International (BirdLife International and NatureServe 2015). Shaded areas
correspond to Pacific-slope Flycatcher range, Cordilleran Flycatcher range, and areas of
overlap between the species. Localities of vagrant individuals are shown with hatched
circles. Plates are reproduced courtesy of Lynx Edicions. (B) Photograph of heretofore unidentified
vagrant individual from New York City’s Central Park (Photo © Jay McGowan).
(C) Fecal sample collected from vagrant individual in Central P ark (Photo © Alex Lees).
Northeastern Naturalist Vol. 24, No. 4
N.R. Goldberg and N.A. Mason
2017
501
(J. McGowan, Cornell Lab of Ornithology, Ithaca, NY, pers. comm.), which we
compared to vocalizations of known Pacific-slope and Cordilleran Flycatchers to
complement our genetic analysis.
For the DNA analysis, we extracted genomic DNA from the fecal sample with
a QIAamp DNA Stool Kit (Qiagen, Valencia, CA). Prior to digestion, we homogenized
each sample in 300 μL of Buffer ASL with a TissueRuptor (Qiagen,
Valencia, CA). Following homogenization, we added the remaining 1.3 mL Buffer
ASL for a total volume of 1.6 mL, added 20 μL 1M DTT and 20 μL Proteinase K,
and digested the samples on a rotating column overnight in an incubator set to 56
°C. These protocol modifications yielded consistently usable amounts of DNA for
downstream Sanger sequencing (>1 ng total yield).
For comparison, we downloaded existing ND2 sequences from 37 Pacificslope
Flycatcher and 14 Cordilleran Flycatcher individuals from continental North
America (Rush et al. 2009). We aligned all sequences using ClustalW (Thompson
et al. 1994) with default settings in Geneious v6.1.6 (Kearse et al. 2012). We designed
a primer pair from the consensus sequence of the multi-species alignment to
target a 302-nucleotide region of ND2, which corresponds to positions L5176 (5'
AGCTCTAGGAGGGTGAATAGG 3') and H5414 (5' CGAGCGATAGAAGAGCAAGTATAA
3') in the Gallus gallus domesticus L. (Domestic Chicken) mtDNA
genome (GenBank X52392; Desjardins and Morais 1990). This region included 3
single-nucleotide polymorphisms that differentiate the Pacific-slope Flycatcher and
the Cordilleran Flycatcher (Rush et al. 2009). We amplified the target region using
Q5 High-fidelity DNA Polymerase (New England BioLabs, Ipswich, MA) with ~1
ng of template DNA. We denatured the DNA for 30 sec at 98 °C, performed 30
PCR cycles with 98 °C denaturation for 5 sec, 58 °C annealing for 20 sec, 72 °C
elongation for 25 sec, and a final elongation step at 72 °C for 2 min. We performed
an ExoSap PCR product clean-up using Exonuclease I (10 units/μL) and Shrimp
Alkaline Phosphase (1 unit/μL) and sequenced the resulting fragments on an ABI
3730xl automatic DNA sequencer (Applied Biosystems, Foster City, CA).
Upon receiving the raw sequencing output, we examined chromatograms in
Geneious and created a consensus sequence for each unique product by comparing
the forward or reverse reads. We trimmed the alignment to a 272-bp region with no
missing data. These edited sequences (GenBank Accession Numbers KX808581
and KX808582) were then compared to the 51 preexisting ND2 sequences of Empidonax
flycatchers from Rush et al. (2009). We constructed a haplotype network
based on uncorrected pairwise DNA sequence distances under an infinite sites
model, using the pegas package (Paradis et al. 2004) in R (R Co re Team 2016).
Results and Discussion
We found 12 unique haplotypes for the ND2 coding region among the 53 Empidonax
flycatchers examined in this study (Fig. 2). The maximum uncorrected genetic
distance among haplotypes was 1.8%, and a minimum of 2 mutations separated
haplotypes of Pacific-slope Flycatcher and Cordilleran Flycatcher generated by
previous studies (Rush et al. 2009). These 2 species are reciprocally monophyletic
Northeastern Naturalist
502
N.R. Goldberg and N.A. Mason
2017 Vol. 24, No. 4
in mtDNA. The haplotypes representing the 2 fecal samples of vagrant Empidonax
sequenced in this study are embedded within the existing Pacific-slope Flycatcher
haplotypes and are divergent from Cordilleran Flycatcher.
We also compared the recording made in Central Park to existing recordings
of Pacific-slope and Cordilleran Flycatchers (Fig. 3). Qualitatively, the recorded
call note matches known Pacific-slope Flycatcher vocalizations. This similarity is
apparent in the distinctive upwards inflection found during the last third of the note
Figure 2. Haplotype network
indicating sequence similarity
between the New York City vagrant
(red), Connecticut vagrant,
Pacific-slope Flycatchers, and
Cordilleran Flycatchers. Circle
sizes are proportional to the
number of individuals with each
haplotype. Small black dots represent
hypothetical haplotypes
that were not sampled in this
study.
Figure 3. (A) Sonogram of a breeding Pacific-slope Flycatcher ), (B) sonogram of the Central
Park vagrant western flycatcher (Empidonax sp.), and (C) sonogram of a breeding Cordilleran
Flycatcher. Recordings are courtesy of Macaulay Library (ML 7600, ML 29916831,
ML 87920, from left to right).
Northeastern Naturalist Vol. 24, No. 4
N.R. Goldberg and N.A. Mason
2017
503
(between ~4.5–7.0 kHz). Furthermore, the call note from the vagrant individual is
1 continuous vocalization, which is characteristic of the Pacific-slope Flycatcher,
rather than a 2-part call commonly given by Cordilleran Flycatc her.
The mitochondrial-gene sequences that we obtained from fecal samples of the
2 vagrant Empidonax flycatchers suggest that both individuals are Pacific-slope
Flycatchers rather than Cordilleran Flycatchers. We note, however, that mitochondrial-
sequence data alone are limited in their power for species identification in
certain instances: introgression associated with hybridization and mitochondrial
sweeps can preclude accurate identification without nuclear-sequence data (Moritz
and Cicero 2004, Toews and Brelsford 2012). In the case of Empidonax flycatchers
in North America, hybrid individuals occurring in the Pacific-slope Flycatcher x
Cordilleran Flycatcher contact zone in southwestern Canada all possess mitochondrial
Pacific-slope Flycatcher haplotypes (Rush et al. 2009). Therefore, there is a
small chance that the individuals included in this study may be hybrids or backcrosses
from this contact zone rather than pure Pacific-slope Flycatchers (Rush et
al. 2009). For the vagrant individual that occurred in New York City, the recorded
vocalization is more similar to the Pacific-slope than Cordilleran Flycatcher, which
corroborates our species identification based on mtDNA.
The large number of historical “western” flycatcher records in northeastern
North America reflects our inability to confidently identify species in this complex
based on field-observations alone. Further observations and sampling of vagrants
will help clarify the relative frequency of Pacific-slope Flycatchers and Cordilleran
Flycatchers as vagrants. In addition to providing reliable occurrence data and
deepening our understanding of vagrant records in northeastern North America,
our study highlights the broader utility of non-invasive, molecular methods toward
species-level identification of vagrants from cryptic species co mplexes.
Acknowledgments
We thank B. Butcher for assistance in optimizing the fecal DNA extraction protocol and
other help in the lab. J. Hough and S. Broker provided fecal samples of the Connecticut
vagrant individual. We are grateful to A. Lees for discussion of vagrancy and providing the
photograph of the fecal sample. J. McGowan recorded the Central Park vagrant and helped
generate the figure to compare vocalizations. I. Lovette provided valuable feedback on an
earlier version of this manuscript and general support to N.R. Goldberg and N.A. Mason
Thanks to the Macaulay Library for providing recordings. Finally, we appreciate the Tracy
Family for financial support to allow N.R. Goldber g to carry out this project.
Literature Cited
Bickford, D., D.J. Lohman, N.S. Sodhi, P.K.L. Ng, R. Meier, K. Winker, K. Ingram, and I.
Das. 2007. Cryptic species as a window on diversity and conservation. Trends in Ecology
and Evolution 22:148–155.
Desjardins, P., and R. Morais. 1990. Sequence and gene organization of the Chicken mitochondrial
genome: A novel gene order in higher vertebrates. Journal of Molecular
Biology 212:599–634.
Northeastern Naturalist
504
N.R. Goldberg and N.A. Mason
2017 Vol. 24, No. 4
Kearse, M., R. Moir, A. Wilson, S. Stones-Havas, M. Cheung, S. Sturrock, S. Buxton, A.
Cooper, S. Markowitz, C. Duran, T. Thierer, B. Ashton, P. Meintjes, and A. Drummond.
2012. Geneious Basic: An integrated and extendable desktop software platform for the
organization and analysis of sequence data. Bioinformatics 28:164 7–1649.
Lees, A.C., and J. J. Gilroy. 2009. Vagrancy mechanisms in passerines and near passerines.
Pp. 1–23, In Rare birds, Where and When: An Analysis of Status and Distribution in
Britian and Ireland. Volume 1: Sandgrouse to New World Orioles. R. Slack (Ed.). Rare
Bird Books, York, UK. 500 pp.
Lindsay, A.R., and S. Haas. 2013. DNA from feces and museum specimens confirms a first
state-record bird. Occasional Papers of the Museum of Zoology University of Michigan
742:1–10.
Moritz, C., and C. Cicero. 2004. DNA barcoding: Promise and pitfalls. PLoS Biology
2:e354–3.
Novitch, N.R., M. Westberg, and R.M. Zink. 2015. Migration of Alder Flycatchers (Empidonax
alnorum) and Willow Flycatchers (Empidonax traillii) through the Tuxtla Mountains,
Veracruz, Mexico, and the identification of migrant flycatchers in collections.
Wilson Journal of Ornithology 127:142–145.
Paradis, E., J. Claude, and K. Strimmer. 2004. ape: Analyses of phylogenetics and evolution
in R language. Bioinformatics 20:289–290.
R Core Team. 2016. R: A language and environment for statistical computing. R Foundation
for Statistical Computing, Vienna, Austria. Available online at https://www.r-project.
org/. Accessed 26 July 2016.
Rare Bird Alert. 2015. Finders-in-the-field: Acadian Flycatcher, Dungeness, Kent, September
2015. Available online at http://www.rarebirdalert.co.uk/v2/Content/Finders_
in_the_Field_Acadian_Flycatcher_Dungeness_Kent_September_2015.aspx?s_
id=1073328238. 26 July 2016.
Rondinini, C., K.A. Wilson, L. Boitani, H. Grantham, and H.P. Possingham. 2006. Tradeoffs
of different types of species occurrence data for use in systematic conservation planning.
Ecology Letters 9:1136–1145.
Rush, A.C., R.J. Cannings, and D.R. Irwin. 2009. Analysis of multilocus DNA reveals hybridization
in a contact zone between Empidonax flycatchers. Journal of Avian Biology
40:614–624.
Taberlet, P., and G. Luikart. 1999. Non-invasive genetic sampling and individual identification.
Biological Journal of the Linnean Society 68:41–55.
Thompson, J.D., D.G. Higgins, and T.J. Gibson. 1994. CLUSTAL W: Improving the
sensitivity of progressive multiple-sequence alignment through sequence weighting,
position-specific gap penalties, and weight-matrix choice. Nucleic Acids Research
22:4673–4680.
Thorup, K., T.E. Ortvad, R.A. Holland, J. Rabøl, M.W. Kristensen, and M. Wikelski. 2012.
Orientation of vagrant birds on the Faroe Islands in the Atlantic Ocean. Journal of Ornithology
153:1261–1265.
Toews, D.P.L., and A. Brelsford. 2012. The biogeography of mitochondrial and nuclear
discordance in animals. Molecular Ecology 21:3907–3930.
Waits, L.P., and D. Paetkau. 2005. Noninvasive genetic sampling tools for wildlife biologists:
A review of applications and recommendations for accurate data collection. Journal
of Wildlife Management 69:1419–1433.
Veit, R. 2000. Vagrants as the expanding fringe of a growing population. Auk 117:242–245.
