Northeastern Naturalist Vol. 22, No. 3
C.T. Philbrick, P.K.B. Philbrick, and B.M. Lester
2015
643

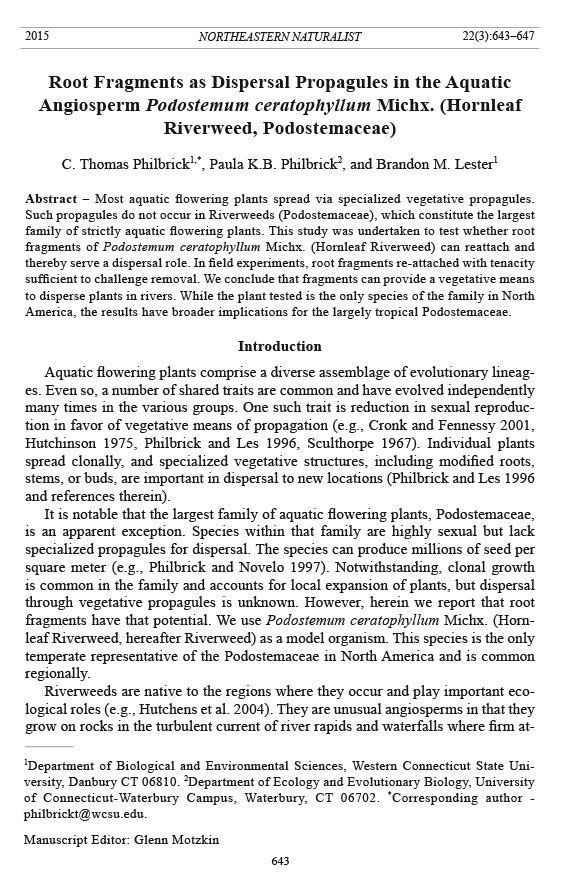

2015 NORTHEASTERN NATURALIST 22(3):643–647
Root Fragments as Dispersal Propagules in the Aquatic
Angiosperm Podostemum ceratophyllum Michx. (Hornleaf
Riverweed, Podostemaceae)
C. Thomas Philbrick1,*, Paula K.B. Philbrick2, and Brandon M. Lester1
Abstract – Most aquatic flowering plants spread via specialized vegetative propagules.
Such propagules do not occur in Riverweeds (Podostemaceae), which constitute the largest
family of strictly aquatic flowering plants. This study was undertaken to test whether root
fragments of Podostemum ceratophyllum Michx. (Hornleaf Riverweed) can reattach and
thereby serve a dispersal role. In field experiments, root fragments re-attached with tenacity
sufficient to challenge removal. We conclude that fragments can provide a vegetative means
to disperse plants in rivers. While the plant tested is the only species of the family in North
America, the results have broader implications for the lar gely tropical Podostemaceae.
Introduction
Aquatic flowering plants comprise a diverse assemblage of evolutionary lineages.
Even so, a number of shared traits are common and have evolved independently
many times in the various groups. One such trait is reduction in sexual reproduction
in favor of vegetative means of propagation (e.g., Cronk and Fennessy 2001,
Hutchinson 1975, Philbrick and Les 1996, Sculthorpe 1967). Individual plants
spread clonally, and specialized vegetative structures, including modified roots,
stems, or buds, are important in dispersal to new locations (Philbrick and Les 1996
and references therein).
It is notable that the largest family of aquatic flowering plants, Podostemaceae,
is an apparent exception. Species within that family are highly sexual but lack
specialized propagules for dispersal. The species can produce millions of seed per
square meter (e.g., Philbrick and Novelo 1997). Notwithstanding, clonal growth
is common in the family and accounts for local expansion of plants, but dispersal
through vegetative propagules is unknown. However, herein we report that root
fragments have that potential. We use Podostemum ceratophyllum Michx. (Hornleaf
Riverweed, hereafter Riverweed) as a model organism. This species is the only
temperate representative of the Podostemaceae in North America and is common
regionally.
Riverweeds are native to the regions where they occur and play important ecological
roles (e.g., Hutchens et al. 2004). They are unusual angiosperms in that they
grow on rocks in the turbulent current of river rapids and waterfalls where firm at-
1Department of Biological and Environmental Sciences, Western Connecticut State University,
Danbury CT 06810. 2Department of Ecology and Evolutionary Biology, University
of Connecticut-Waterbury Campus, Waterbury, CT 06702. *Corresponding author -
philbrickt@wcsu.edu.
Manuscript Editor: Glenn Motzkin
Northeastern Naturalist
644
C.T. Philbrick, P.K.B. Philbrick, and B.M. Lester
2015 Vol. 22, No. 3
tachment is crucial (e.g., Philbrick and Novelo 2004). Roots grow prostrate across
the rock surface, with stems arising from them. These plants attach tenaciously—
holdfasts on the underside of roots and the base of upright stems achieve such firm
attachment that plants are best removed by scraping between the rock and holdfast
with a knife. Riverweed’s biology is closely tied to seasonality in the water level.
Plant growth occurs when the water level is high and plants are inundated (Philbrick
and Novelo 2004) and flowering occurs as water levels drop, and plants are exposed.
Seed production is high for most species, but little is known about the effective seed
dispersal range and recruitment rates (Philbrick and Novelo 200 4).
The current study is an elaboration of research conducted by Hammond (1936),
who reported the ability of roots, stems, and leaves of Rivereweed to regenerate after
they had been removed from rocks and placed in petri dishes or on wire screens
sprayed with water. Hammond’s studies, however, did not address whether vegetative
structures could reattach to the substratum during the process of regeneration.
Our focus was on roots because they play a central role in plant attachment. The
purpose of this study was to assess whether detached root fragments can reattach
in the natural habitat. If they could, then fragments have the potential to serve as
propagules of dispersal and gene flow.
Field Site Description
We conducted our field studies in the Pootatuck River, about 200 m downstream
of the Church Hill Road bridge, Newtown, CT (41.421225°N, 73.283358°W, 80 m
amsl). At this location, the river bottom is covered with granite stones and outcrops,
and Riverweed is abundant.
Methods
On 15 June 2013, we gathered 5 rocks with extensive growth of Riverweed from
the river. We collected and cut 15 linear roots into 4-cm lengths and removed all
shoots and leaves. The roots were out of the water for 30–45 minutes.
We built 5 brick-tile assemblies to secure the root fragments. A red fired brick (19
cm x 9.5 cm x 4.5 cm) served as a platform for each. We drilled 2 pairs of 7-mm-diameter
holes on each brick and used hydraulic cement (UGL Drylok Fast Plug©, United
Gilsonite Laboratories, Scranton, PA) to secure a threaded 8.9-cm stainless steel bolt
(6.25 mm diameter) in each hole. We employed 15 cm x 2.5 cm x 1.5 cm granite or
porcelain tiles as substrata for root attachment. Next, we drilled two 7-mm holes in
Plexiglas® strips (12 cm x 1.5 cm x 0.6 cm) so that they could be placed on the tiles
with the bolts projecting through the holes.
We transferred the root fragments to the brick–tile assemblies as follows. First,
we placed a granite tile on the brick parallel to the long axis and equidistant between
the pair of bolts at each end and laid down fifteen 4-cm root fragments along the
tile perpendicular to its long axis. We put a porcelain tile on top of the root fragments,
aligned 1 Plexiglass® strip onto each pair of bolts, and affixed it in place with
hexagonal nuts. We tightened the nuts against the Plexiglass strip to hold the root
Northeastern Naturalist Vol. 22, No. 3
C.T. Philbrick, P.K.B. Philbrick, and B.M. Lester
2015
645
fragments in place. We returned the brick–tile–root assemblies to the river a few
meters downstream from where the original rocks with plants had been removed
and lodged them between rocks with about 3 dm of water flowing o ver them.
We recovered the brick–tile–root assemblies from the river on 28 July 2013,
removed the tiles, and collected data. For each root fragment that remained, we
noted: the substratum type to which the fragment attached (granite, porcelain, red
brick); total root-fragment length; and number of holdfasts per cm of root length.
For comparison, we selected 5 rocks upon which plants were naturally growing and
assayed fifteen 3–6-cm-long roots from each for the same 3 variables measured on
the experimental root fragments.
Results
Of the 75 root fragments initially placed in the brick–tile assemblies, 41 reattached.
The remaining 34 root fragments washed away. The number of root
fragments that attached to granite or porcelain tiles on each brick ranged from 0–5
and 0–14, respectively. Some roots also attached to the brick and/or a stainless steel
bolt. There was considerable variation among the number of roots that attached to
the substrate types, but at least some fragments attached to each. The original design
was confounded by the varying number of roots that had washed away, which
discounted any meaningful statistical comparison. Therefore, we present only combined
results.
The root fragments that attached to our experimental substrates all grew over the
6-week period. New growth ranged from 1–7 cm (mean = 2.9, SD =13.2), and most
bore shoots and leaves. The number of holdfasts per cm of root length ranged from
0.4–16 (mean = 3.3, SD = 2.8) for roots attached to tiles. The number of holdfasts
per cm of root on naturally growing plants ranged from 1.4–16 (mean = 5.4, SD =
3.6). Roots growing on naturally occurring rocks had more holdfasts per cm of root
length than those growing on tiles (2-sample t-test; P > 0.05).
Discussion
Riverweed root fragments can reattach to substrates. Over half of the root fragments
used in the study did so during the 6-week experiment. Notably, naturally
growing plants attached to rock with more holdfasts per cm of root than our experimental
fragments. This result is not surprising because they were physically held in
place and had more time to grow. That our experimental fragments attached to tile,
in addition to brick and adjacent rock, requiring that they be scrapped off with a
knife for assay, demonstrated that they had securely attached in swift current. Hammond
(1936) was the first to show that fragments of Riverweed can regenerate; we
demonstrated that root fragments can become re-established on several substrates.
Our results lend support to the hypothesis that root fragments serve as dispersal
propagules in Riverweed.
Did the conditions of the study reflect what happens in nature? We propose that
the conditions under which our study was done represent an applicable model of
Northeastern Naturalist
646
C.T. Philbrick, P.K.B. Philbrick, and B.M. Lester
2015 Vol. 22, No. 3
natural phenomena. Hand removal of root fragments from rocks and lodging them
between solid surfaces mimics what likely happens naturally in river rapids. Riverrapids
are characterized by haphazard arrangement of rocks of varying sizes and
shapes, resulting in numerous spaces between rocks where debris becomes trapped.
In addition, water currents are strong and water levels periodically rise and fall.
When the latter happens, plants die back and fragments are washed away. Such
evidence, albeit circumstantial, lends support to the idea that vegetative fragments
of Riverweed are released into the water current. Empirical support for this idea
is not yet available. There would certainly be logistic challenges associated with
documenting such stochastic events as the dispersal of plant fragments, especially
in river-rapid habitats.
Results from our simple experiment have implications for understanding the
biology of tropical riverweeds. Most aquatic angiosperms produce vegetative structures
(e.g., buds, stems, roots) specialized for dispersal and establishment of new
individuals (Philbrick and Les 1996 and references therein). For members of the
Podostemaceae, the lack of such specialized structures has supported the contention
that vegetative propagules play no role in dispersal. In fact, our results support the
hypothesis that root fragments are specialized enough to serve a dispersal role. The
strategic elements of such a scenario are present. Whether this mechanism happens
in nature, and to what degree, remains to be assessed.
The only riverweed in temperate regions of the Americas is Hornleaf Riverweed;
the other ~135 species are tropical (Philbrick et al. 2010). The temperate species
serves as an appropriate model organism to investigate a range of biological issues
that are equally applicable to its tropical relatives. Herein we provide the first evidence
that root fragments have the potential to serve as propagules of dispersal and
re-establishment. Given that the closest relatives of Horned Riverweed occur in the
tropics (Philbrick and Novelo 2004), this phenomenon is likely applicable to tropical
species as well. The role of fragments in plant dispersal within tropical rivers
has implications for understanding the spread of species.
Acknowledgments
This study was supported by National Science Foundation Grant (DEB-0444589) and
Connecticut State University-AAUP research grants to C.T.P.
Literature Cited
Cronk, J.K., and M.S. Fennessy. 2001. Wetland Plants: Biology and Ecology. Lewis Publishers,
Boca Raton, LA. 482 pp.
Hammond, B.L. 1936. Regeneration of Podostemum ceratophyllum. Botanical Gazette
97:834–845.
Hutchens, J.J., J. Bruce, and E.D. Ramaniszyn. 2004. Role of Podostemum ceratophyllum
Michx. in structuring benthic macroinvertebrate assemblages in a southern Appalachian
river. Journal of the North American Benthological Society 23:713–727.
Hutchinson, G.E. 1975. A Treatise on Limnology. Vol. 3: Limnological botany. John Wiley
and Sons, New York, NY. 660 pp.
Northeastern Naturalist Vol. 22, No. 3
C.T. Philbrick, P.K.B. Philbrick, and B.M. Lester
2015
647
Philbrick, C.T., and D.H. Les. 1996. Evolution of aquatic angiosperm reproductive systems.
Bioscience 46:813–826.
Philbrick, C.T., and A. Novelo R. 1997. Ovule number, seed number, and seed size in
Mexican and North American species of Podostemaceae. Aquatic Botany 57:183–200.
Philbrick, C.T., and A. Novelo R. 2004. Monograph of Podostemum (Podostemaceae).
Systematic Botany Monographs 70:1–106.
Philbrick, C.T., C.P. Bove, and H.I. Stevens. 2010. Endemism in Neotropical Podostemaceae.
Annals of the Missouri Botanical Garden 97:425–456.
Sculthorpe, C.D. 1967. The Biology of Aquatic Vascular Plants. St. Martin’s Press, New
York, NY. 610 pp.
