Identification of Shark Teeth (Elasmobranchii: Lamnidae)
from a Historic Fishing Station on Smuttynose Island,
Maine, Using Computed Tomography Imaging
Joshua K. Moyer, Nathan D. Hamilton, Robin Hadlock Seeley, Mark L. Riccio, and William E. Bemis
Northeastern Naturalist, Volume 22, Issue 3 (2015): 585–597
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist Vol. 22, No. 3
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015
585

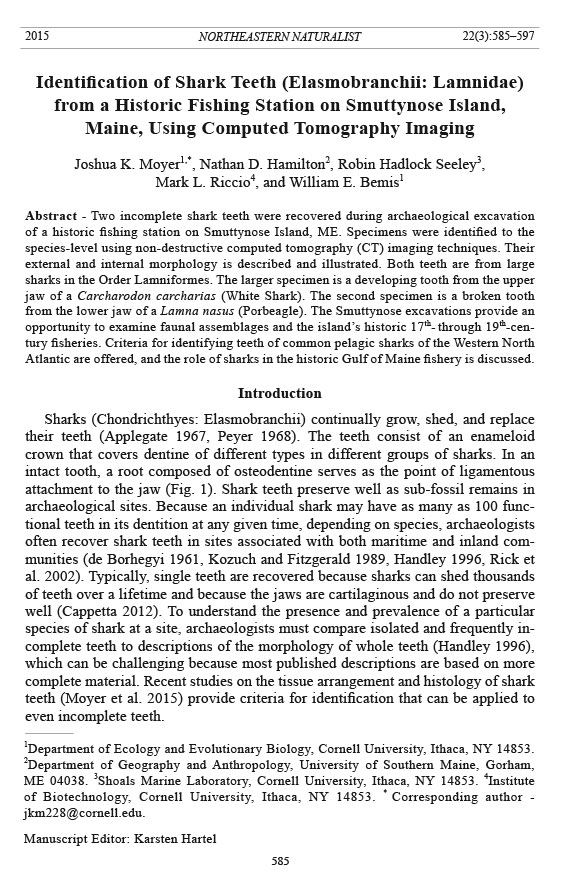

2015 NORTHEASTERN NATURALIST 22(3):585–597
Identification of Shark Teeth (Elasmobranchii: Lamnidae)
from a Historic Fishing Station on Smuttynose Island,
Maine, Using Computed Tomography Imaging
Joshua K. Moyer1,*, Nathan D. Hamilton2, Robin Hadlock Seeley3,
Mark L. Riccio4, and William E. Bemis1
Abstract - Two incomplete shark teeth were recovered during archaeological excavation
of a historic fishing station on Smuttynose Island, ME. Specimens were identified to the
species-level using non-destructive computed tomography (CT) imaging techniques. Their
external and internal morphology is described and illustrated. Both teeth are from large
sharks in the Order Lamniformes. The larger specimen is a developing tooth from the upper
jaw of a Carcharodon carcharias (White Shark). The second specimen is a broken tooth
from the lower jaw of a Lamna nasus (Porbeagle). The Smuttynose excavations provide an
opportunity to examine faunal assemblages and the island’s historic 17th- through 19th-century
fisheries. Criteria for identifying teeth of common pelagic sharks of the Western North
Atlantic are offered, and the role of sharks in the historic Gulf of Maine fishery is discussed.
Introduction
Sharks (Chondrichthyes: Elasmobranchii) continually grow, shed, and replace
their teeth (Applegate 1967, Peyer 1968). The teeth consist of an enameloid
crown that covers dentine of different types in different groups of sharks. In an
intact tooth, a root composed of osteodentine serves as the point of ligamentous
attachment to the jaw (Fig. 1). Shark teeth preserve well as sub-fossil remains in
archaeological sites. Because an individual shark may have as many as 100 functional
teeth in its dentition at any given time, depending on species, archaeologists
often recover shark teeth in sites associated with both maritime and inland communities
(de Borhegyi 1961, Kozuch and Fitzgerald 1989, Handley 1996, Rick et
al. 2002). Typically, single teeth are recovered because sharks can shed thousands
of teeth over a lifetime and because the jaws are cartilaginous and do not preserve
well (Cappetta 2012). To understand the presence and prevalence of a particular
species of shark at a site, archaeologists must compare isolated and frequently incomplete
teeth to descriptions of the morphology of whole teeth (Handley 1996),
which can be challenging because most published descriptions are based on more
complete material. Recent studies on the tissue arrangement and histology of shark
teeth (Moyer et al. 2015) provide criteria for identification that can be applied to
even incomplete teeth.
1Department of Ecology and Evolutionary Biology, Cornell University, Ithaca, NY 14853.
2Department of Geography and Anthropology, University of Southern Maine, Gorham,
ME 04038. 3Shoals Marine Laboratory, Cornell University, Ithaca, NY 14853. 4Institute
of Biotechnology, Cornell University, Ithaca, NY 14853. * Corresponding author -
jkm228@cornell.edu.
Manuscript Editor: Karsten Hartel
Northeastern Naturalist
586
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015 Vol. 22, No. 3
In some cases, shark teeth are found in archaeological sites not as byproducts
of a society’s livelihood (i.e., fisheries) but as sought-after materials used to make
ornaments or weapons with direct cultural significance (Drew et al. 2013, Leavesley
2007). In such instances, shark teeth offer insight to a community’s use of marine
resources and the symbolism those resources take on. For the thorough analysis
of such artifacts, it is necessary to identify the teeth to species. Identified teeth
may be used to infer the symbolic importance of the artifact. For example, a tooth
belonging to a large, predatory species may indicate that a collaborative effort or
extensive planning was utilized to land such a large and potentially dangerous animal
(Leavesley 2007).
In the course of 5 seasons of archaeological excavations on the Isles of Shoals,
two partial shark teeth were recovered on Smuttynose Island, 1 of 9 islands in the
Isles of Shoals in the Gulf of Maine. Here, we demonstrate how nondestructive
computed tomography (CT) imaging techniques and current fisheries data can be
used to identify these specimens
Field-Site Description
The Isles of Shoals Archipelago consists of 9 rocky islands in the Gulf of Maine
approximately 6 miles east of Rye, NH. The central islands—Appledore, Malaga,
Smuttynose, Cedar, and Star—are shown in Figure 2. The islands straddle the borders
of Maine and New Hampshire and were first utilized as hunting and fishing
grounds by Native Americans during no fewer than 6 occupations spanning 6000 to
1000 B.P. (Robinson 2012).
Figure. 1. General morphology of teeth of (A) Carcharodon carcharias (White Shark ) and
(B) Lamna nasus (Porbeagle). Scale bar = 5 mm.
Northeastern Naturalist Vol. 22, No. 3
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015
587
Figure. 2. Map of the central islands of the Isles of Shoals Archipelago showing locations,
including the excavation site, for recovery of USM 9000 and USM 71. Bathymetry and
place names based on NOAA ENCTM Chart US5NH02M (Portsmouth Harbor–Cape Neddick
to Isles of Shoals). Inset shows general location of the Isles of Shoals Archipelago in
the southern Gulf of Maine. Detailed view of the site is provided in Figure 3.
Northeastern Naturalist
588
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015 Vol. 22, No. 3
Figure. 3. Plan showing excavated test pits and units (red boxes) and adjacent historic and
existing buildings on the southwest corner of Smuttynose Island. Locations of 2 recovered
teeth and 3 vertebrae of lamniform sharks are indicated.
Northeastern Naturalist Vol. 22, No. 3
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015
589
By 1623, Europeans had established a foothold on the Isles of Shoals (Nichols and
Nichols 2008, Robinson 2012). Profitable seasonal fishing settlements developed on
the islands, taking advantage of the abundance of Gadus morhua L. (Atlantic Cod),
which was valued as a dried product in markets throughout southern Europe. Large
quantities of Melanogrammus aeglefinus (L.) (Haddock) were also landed at the Isles
of Shoals, but were primarily used as food locally and not as commonly shipped to
European markets. Although Atlantic Cod, Haddock, and other gadid fishes were the
most-common species targeted in the 17th to 19th centuries, they were not the only
species landed in the Shoals Archipelago. For example, there is photographic evidence
showing that into the late 19th century, large sharks, such as Prionace glauca
(L.) (Blue Shark), were also caught and processed (Robinson 2012:114). In 1858,
Boston doctor Henry Bowditch wrote to his wife describing “bodies of immense
sharks that have been killed” and discarded from the beach in Haley’s Cove on Smuttynose
Island (Robinson 2012). We have been able to find few other records of the
sizes and species of sharks landed in or around the Isles of Shoals.
The Isles of Shoals has been listed in the National Register of Historic Places
since 1974 (Fig. 2). The excavation site is on Smuttynose Island and is located ad -
jacent to several 18th- to 20th-century foundations and existing structures (Fig. 3),
which are inventoried by the Maine Historic Preservation Commission (MHPC).
MHPC numbers for some key features of the site are indicated in Figure 3, including
ME 226-120, which is the site of a historic wharf, and ME 226-118, which is the
site of a warehouse associated with fish processing. ME 226-114 is the foundation
of the 19th-century Oceanic Hotel, and ME 226-117 is the foundation of the Hontvet
House. ME 226-123 is the site of the Fish House. The Smuttynose excavations
made from 2008 through 2013 sampled 68 m2 (indicated by red boxes in Fig. 3) of
a site total of 2200 m2. The focus of the excavations was the low terrace landform
directly adjacent to the protected Haley’s Cove. In this area of the site, deep (80–90
cm) stratified deposits from the 17th century were identified and excavated. Intensive
fishing activities in the 17th century related to a fish-processing station there
yielded large numbers of remains of Altantic Cod and Haddock as well as other
marine vertebrates.
Methods
Institutional abbreviations
In this report we use the following institutional abbreviations: AMNH = American
Museum of Natural History, New York, NY; CUMV = Cornell University Museum of
Vertebrates, Ithaca, NY; MCZ = Museum of Comparative Zoology, Harvard, Cambridge,
MA; and USM = University of Southern Maine, Gorham, ME.
Specimens recovered
Two incomplete shark teeth were recovered (Fig. 4). The larger, USM 9000, was
recovered in summer 2011. It has worn serrations on the medial and distal edges
of the crown. The base of its enameloid crown is missing, as is the entire root (Fig.
4A; compare to intact tooth in Fig. 1). It was recovered from unit 153R20 (a unit is
Northeastern Naturalist
590
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015 Vol. 22, No. 3
1 m2) at level 3 (20–30 cm deep). This level is firmly dated in the 17th to early 18th
century based on associated anthropogenic materials, including pipe stems, coins,
and ceramics (Robinson 2012; these materials are cataloged at the University of
Southern Maine). This part of the site is associated with the early fishing station
and fish-processing area. The smaller of the two teeth, USM 71, was recovered in
summer 2008 from test pit (TP) 2-4 (test pits are 50 cm2) at level 4 (40–50 cm deep)
near the Haley House. This area of the site consists of fill taken from the beach in
Haley’s Cove for reconstruction of a lawn in about 1870. USM 71 does not exhibit
serrations on either edge of its crown. A small section of osteodentine associated
with the root is present at the base of the crown, but most of the root is missing.
Three isolated vertebrae from species of lamniform sharks yet to be determined
(USM 8238, 13237.8, 13300) were also recovered in the Smuttynose excavation.
These came from different units and were not associated with the 2 tooth specimens
(Table 1, Fig. 3).
Imaging methods
We photographed the teeth using an Olympus DP70 digital camera and software
with an Olympus SZX12 stereomicroscope. Teeth were scanned in an Xradia Versa
XRM-500 nano-CT scanner in the Biotechnology Resource Center Multiscale Imaging
Facility at Cornell University. USM 9000 was scanned at 33.6-μm resolution,
and USM 71 was scanned at 17.4-μm resolution. Slice files represented by stacks
of .tiff image files were generated via the scanner output. 2-D and 3-D digital
reconstructions of each tooth were produced using OsirixTM Digital Imaging and
Communication in Medicine (DICOM) software (version 4.0 64-bit edition; Rosset
et al. 2004) on Apple Macintosh computers running OSX 10.8.5. In our 3-D reconstructions,
tissue density is represented by color gradients, adjusted using standard
and customized color look-up tables (CLUT). Dense tissues are represented by
lighter shades (typically white or yellow in our reconstructions) and less-dense
tissues by darker shades (typically red in our reconstructions). To view internal
anatomy, we digitally dissected, or sectioned, 3-D reconstructions within OsirixTM.
Results
USM 9000 measures 23 mm wide x 31 mm high, indicating that it came from
a large predatory shark. Both sides of the crown are serrated. Three-dimensional
digital reconstructions of USM 9000 generated by CT scanning confirm that the
Table 1. Lamniform shark remains recovered from Smuttynose Islan d.
Test pit or Year
Specimen number unit number Level (cm) recovered
USM 71 (tooth) TP 2-4 40–50 2008
USM 8238 (unidentified lamniform vertebra) 99R89 20–30 2011
USM 9000 (tooth) 153R20 20–30 2011
USM 13237.8 (unidentified lamniform vertebra) 161R17 10–20 2013
USM 13300 (unidentified lamniform vertebra) 161R18 20–30 2013
Northeastern Naturalist Vol. 22, No. 3
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015
591
serrations are formed by folding of enameloid tissue and are not superficial damage
or postmortem markings (Fig. 5A, B). Large predatory sharks common to the
Gulf of Maine that have prominently serrated teeth include Carcharhinus obscurus
Figure. 4. Light micrographs of tooth specimens: (A) labial view of the partial crown of
USM 9000 and (B) labial view of the intact crown of USM 71. Scale bars = 1 cm.
Figure. 5. CT generated models of USM 9000: (A) labial view of 3-D model rendered from
CT scan of USM 9000, (B) lingual view of 3-D model rendered from CT scan of USM 9000,
and (C) labial view of tooth, sectioned to show interior of crown. Scale bars = 1 cm.
Figure. 6. CT generated models of USM 71: (A) labial view of 3-D model rendered from
CT scan of USM 71, (B) lingual view of 3-D model rendered from CT scan of USM 71, and
(C) lingual view of tooth sectioned to show interior of crown. Scale bars = 1 cm.
Northeastern Naturalist
592
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015 Vol. 22, No. 3
(Lesueur) (Dusky Shark), Carcharhinus longimanus (Poey) (Oceanic Whitetip
Shark), Prionace gluaca (L.) (Blue Shark), and Carcharodon carcharias (L.)
(White Shark). The Dusky Shark, Oceanic Whitetip Shark, and Blue Shark are carcharhinids,
and their teeth have an orthodont histotype, meaning that a pulp cavity
is retained in fully developed teeth. CT scanning and digital sectioning of USM
9000 reveals that it has an osteodont histotype, in which the crown lacks a pulp cavity
and is filled by osteodentine (Fig. 5C). Osteodentine within the crown is of low
density, indicating incomplete mineralization. The size, serrations, and histotype
indicate that USM 9000 is the tooth of a White Shark. Enough of the tooth crown
is intact in USM 9000 to be able to discern its lingual (facing inside the mouth) and
labial (facing outside the mouth) surfaces. In teeth of Carcharodon, lingual tooth
surfaces tend to be slightly convex. This is the case in USM 9000. We confirmed
identification by comparison to museum specimens of Carcharodon carcharias
MCZ 153575 and AMNH 53095 as well as several specimens in the Gordon Hubbell
collection (Gainesville, FL).
USM 71 is a partially intact tooth with a crown height of 14 mm. It lacks serrations.
There is no indication of lateral cusplets in this specimen (for location of
lateral cusplets in an intact tooth, see Fig. 1). USM 71 lacks pronounced inclination
toward either its mesial or distal side. Such inclination is typical of the teeth of
extant mako sharks, Isurus oxyrinchus Rafinesque (Shortfin Mako) and I. paucus
Guitart (Longfin Mako), so the absence of inclination in USM 71 suggests that it
is not from a species of Isurus. Also, mako shark teeth have a prominent cutting
surface, known as the distal heel, that is not present in USM 71. CT scanning and
digital reconstructions allow detailed study of the external morphology of the
crown (Fig. 6A, B). Digital sectioning of USM 71 reveals an osteodont histotype
(Fig. 6C). This rules out the possibility that it is from the lower jaw of a carcharhinid
shark, which also often exhibit pointed, non-serrated tooth morphologies.
The tooth is worn, and no root is present. USM 71 lacks the lateral cusplets found
on either side of the long central cusp in intact teeth of Lamna nasus (Bonnaterre)
(Porbeagle). A thick layer of enameloid tissue visible in the virtually sectioned
tooth extends to the broken base of the crown (Fig. 6C). This is the position where
the lateral cusplets would have been in life, so we interpret that the absence of cusps
in USM 71 is due to postmortem wear. Comparison of USM 71 to a 2.6-m total
length (TL) specimen of Porbeagle (CUMV 98002) suggests that it is a tooth from
the lower jaw near the mandibular symphysis. We based this determination on the
small indentation visible on the labial surface of USM 71 and the corresponding
indentations present only on teeth of the lower jaw in CUMV 98002.
The 3 vertebrae recovered from the Smuttynose excavations are positively
identified as from lamniform sharks based on overall morphology but cannot be
classified with certainty to species. Two of the 3 isolated vertebrae (USM 13237.8,
13300) were recovered from sites adjacent to the pit from which the White Shark
tooth was recovered (Fig. 3, Table 1). There is no evidence that these vertebrae
came from the same individual specimen. The third vertebra (USM 8238) was recovered
from a pit excavated in the lawn (Table 1).
Northeastern Naturalist Vol. 22, No. 3
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015
593
Discussion
The identification of specimens USM 9000 as a tooth of White Shark and USM
71 as a tooth of Porbeagle agrees with the known ranges of both species (Bigelow
and Schroeder 1948, 1953; Compagno 1984; Castro 2011; Ebert et al. 2013; Natanson
and Skomal 2015; Skomal et al. 2012). White Shark is most abundant in New
England during summer months (Curtis et al. 2014). Porbeagle and White Shark
belong to the family Lamnidae, which includes a total of 5 extant species.
While we cannot know for certain whether either of these teeth represent specimens
caught in the 17th- or 18th-century fisheries, there is suggestive evidence that
the White Shark tooth did not simply wash ashore on Smuttynose Island. First, the
small beach (Fig. 3) is in an isolated cove. Second, the White Shark specimen is a
developing tooth. Such teeth are more fragile than are fully formed teeth, and thus
would not be expected to remain intact if transported by water any significant distance.
Finally, the recovery location of this specimen was in an excavation near the
site of the historic fishing station, above the level of the beach and in association
with otoliths, vertebrae, and other evidence of the active fishi ng community.
The width of the crown of White Shark tooth USM 9000 suggests that it most
likely came from the upper jaw. Moyer et al. (2015) observed in developing teeth of
the White Shark that osteodentine filling the inside of the crown is less dense than it
is in fully developed teeth owing to the tissue’s incomplete mineralization. The lowdensity
osteodentine core of USM 9000 suggests that this was a developing tooth
rather than a functional tooth. Therefore, we can refine the identification of USM
9000 as a developing upper jaw tooth of a White Shark. By identifying its lingual
and labial surfaces and measuring the height of the crown on its more complete side,
we can estimate the minimum size of this shark. In particular, for the White Shark,
Randall (1973) found a strong correlation between crown height of the largest upper
jaw teeth and TL. Mollet et al. (1996) confirm a correlation between tooth size and
TL in White Sharks. Based on Randall’s (1973) correlation, USM 9000 came from
a shark ≥ 3 m TL, which would have weighed at least 200 kg. Using the method
of Mollet et al. (1996) in which tooth height represents a percentage of TL, USM
9000 came from a shark of almost 4 m TL. If the root had been intact we could
have made a more specific estimate of tooth position within the jaw, which would
have yielded a more precise TL. Much larger specimens of Carcharodon are known
including an authoritative record of 5.9 m TL for a specimen in the Gordon Hubbell
collection. Still, assuming that this specimen represents an individual landed by the
fishing community, by any measure, a 3- to 4-m White Shark would have been an
impressive catch.
The Porbeagle tooth, USM 71 bears a superficial resemblance to the worn crown
of a tooth from the lower jaw of a Blue Shark. However, the osteodont histotype of
USM 71, made visible by virtual sectioning of a digital reconstruction, allows us
to rule out the possibility that it is from a Blue Shark. Based on our comparison of
USM 71 to CUMV 98002 and regressions provided by Chavez et al. (2012), USM
71 came from a specimen of Porbeagle ≥ 2.6 m TL. Based on Castro (2011), we
conclude this would have been a very large specimen of a Porbeagle for the Western
Northeastern Naturalist
594
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015 Vol. 22, No. 3
North Atlantic, although larger specimens are known from the Eastern North Atlantic.
Figure 7 shows 2 intact lower jaw teeth in Porbeagle specimen CUMV 98002
and the location of characteristic lateral cusplets relative to the central cusp.
Figure. 7. Photograph of an anterior lower jaw tooth and replacement tooth of Lamna nasus
(Porbeagle) specimen CUMV 98002. The forward-most tooth has worn lateral cusplets. The
replacement tooth behind it has intact lateral cusplets. The dashed line represents approximate
point of breakage in USM 71.
Northeastern Naturalist Vol. 22, No. 3
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015
595
In their earliest stages of development, shark teeth are composed of a hollow
crown made only of enameloid (Moyer et al. 2015, Peyer 1968). Therefore, a hollow
tooth crown might be recovered from an excavation. Sediment filling such a
crown could cause it to resemble an osteodont tooth, but high-resolution CT scanning
would allow easy determination of histotype, which provides essential clues
for identification.
The chronological integrity and breadth of the Smuttynose site offers a unique
opportunity to learn about historic fisheries and fish processing (Hamilton et al.
2012, Robinson 2012). Sharks undoubtedly played a role in these fisheries, but
based on the 2 shark teeth recovered so far, we can only speculate about this. For
example, sharks may have been caught routinely, but because their teeth have value
as curiosities, they may not have been discarded with other fish wastes. The location
of the White Shark tooth (USM 9000) in levels associated with the 17th-century fishprocessing
station suggests that it probably came from an animal that was processed
there. The fact that it is a developing tooth supports this interpretation because an incomplete
tooth is unlikely to have been a trade item (typically, if any part of a White
Shark was retained for trade, then it was either an isolated, completely developed
functional tooth or the entire jaw with its teeth intact). The Porbeagle tooth (USM
71) was found in a disturbed area and was probably introduced there as part of the
lawn-reconstruction project in about 1870 (Fig. 3, Table 1). Material used for lawn
reconstruction came from the beach in Haley’s Cove. It is possible that the Porbeagle
tooth may have washed ashore in Haley’s Cove, but this seems unlikely because
this is such a constricted beach with limited direct access to the open ocean. It is
impossible to know how long the isolated Porbeagle tooth may have been in those
beach materials before its relocation to the lawn site.
Of the 3 isolated lamniform vertebrae, 2 were found adjacent to the White Shark
tooth in an undisturbed area. The third vertebra is from a pit in the lawn, which, like
the pit from which the Porbeagle tooth was recovered, may have been filled with material
from the beach. Together, the presence of teeth and vertebrae in the Smuttynose
excavations suggests that lamniforms were occasionally landed and processed.
Preliminary analyses of otoliths and premaxillae reveal Atlantic Cod and Haddock
as the primary fisheries resources landed and processed at Smuttynose Island
in the 17th and 18th centuries (Hamilton et al. 2012). These historic fisheries used
longlines and nets to catch gadid fishes much smaller than lamnid sharks. Historic
fishing tackle recovered from the site (Robinson 2012) does not include sufficiently
large hooks to effectively fish for such large species.
Recovery and identification of teeth from large pelagic sharks from sites associated
with the historic cod fishery is uncommon, but there are many records of
Lamnidae and other members of Lamniformes from pre-contact sites in New England.
For example, Handley (1996) summarized 13 sites in southern New England
in which shark remains were found. Lamniform remains occurred in 11 of the 13
sites, and 9 of these were teeth and the other 2 were isolated lamniform vertebral
centra. Handley (1996) did not provide photographs to support his proposed identifications
to species level. In our experience, it can be difficult to identify shark
Northeastern Naturalist
596
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015 Vol. 22, No. 3
teeth to the species level based only on external morphology. Another consideration
is that there are overlapping common names for some species of sharks and many
outdated generic names. For example, Handley (1996) refers to White Shark by the
name Odontaspis taurus, a name that was once common in the literature but is no
longer the valid name for the species. These reservations aside, it is intriguing that
so many of the southern New England sites produced lamniform remains, and that
teeth of the White Shark and Shortfin Mako are associated with pre-contact burial
sites (Handley 1996), suggesting that they may have had ceremonial importance.
Acknowledgments
We thank Fred von Stein for assisting in CT scanning, Lisa Natanson for providing material
for comparative studies, and Karsten Hartel and Andy Williston for access to specimens
at the MCZ and sharing their thoughts on elasmobranchs of the Gulf of Maine. Gordon Hubbell
kindly hosted J.K. Moyer for a visit to his collection in July 2013. We thank students
and other trainees who excavated the site in programs based at Shoals Marine Laboratory
under the direction of N.D. Hamilton and R. Hadlock Seeley. Funding for aspects of this
research came from Shoals Marine Laboratory and the Tontogany Creek Fund. Andrea Cerruti
assisted in manuscript preparation.
Literature Cited
Applegate, S.P. 1967. A survey of shark hard parts. Pp. 37–67, In P.W. Gilbert, R.F.
Mathewson, and D.P. Rall (Eds.). Sharks, Skates, and Rays. The Johns Hopkins Press,
Baltimore, MD. 640 pp.
Bigelow, H.B., and W.C. Schroeder. 1948. Sharks. Pp. 59–546. In A.E. Parr and Y.H. Olsen
(Eds.). Fishes of the Western North Atlantic. Part One: Lancelets, Cyclostomes, Sharks.
Sears Foundation for Marine Research, Yale University, New Haven, CT. 576 pp.
Bigelow, H.B., and W.C. Schroeder. 1953. Fishes of the Gulf of Maine (Vol. 53). US Government
Printing Office, Washington, DC.
Cappetta, H. 2012. Handbook of Paleoichthyology: Chondrichthyes. Mesozoic and Cenozoic
Elasmobranchii: Teeth, Vol. 3E. In H.-P. Schultze (Ed.). Pfeil, Munich, Germany.
512 pp.
Castro, J.I. 2011. The Sharks of North America. Oxford University Press, New York, NY.
613 pp.
Chavez, S., S. Zufan, S.H. Kim, and K. Shimada. 2012. Tooth sizes as a proxy for estimating
body lengths in the Porbeagle Shark, Lamna nasus. Journal of Fossil Research 45:1–5.
Compagno, L.J.V. 1984. Sharks of the World. An Annotated and Illustrated Catalogue of
Shark Species Known to Date, Part 1: Hexanchiformes to Lamniformes. FAO Species
Catalogue. Food and Agriculture Organization of the United Nations, Rome, Italy. 249 pp.
Curtis, T.H., C.T. McCandless, J.K. Carlson, G.B. Skomal, N.E. Kohler, L.J. Natanson,
G.H. Burgess, J.J. Hoey, and H.L. Pratt Jr. 2014. Seasonal distribution and historic
trends in abundance of White Sharks, Carcharodon carcharias, in the Western North
Atlantic Ocean. PLoS ONE 9(6):e99240. doi:10.1371/journal.pone.0099240
de Borhegyi, S.F. 1961. Shark teeth, stingray spines, and shark fishing in ancient Mexico
and Central America. Southwestern Journal of Anthropology 17:273–296.
Drew, J., C. Philipp, and M.W. Westneat. 2013. Shark-tooth weapons from the 19th century
reflect shifting baselines in Central Pacific predator assemblies. PLoS ONE 8:e59855.
Pp. 1–7.
Northeastern Naturalist Vol. 22, No. 3
J.K. Moyer, N.D. Hamilton, R. Hadlock Seeley, M.L. Riccio, and W.E. Bemis
2015
597
Ebert, D.A., S. Fowler, and L. Compagno. 2013. Sharks of the World: A Fully Illustrated
Guide. Wild Nature Press, Plympton St. Maurice, Plymouth, UK. 528 pp.
Hamilton, N.D., R. Hadlock Seeley, and K.A. Otterson. 2012. Maritime Resource Utilization
at the Isles of Shoals, Western Gulf of Maine. Poster presented at 77th Annual meeting
of the Society for American Archaeology. April 18-22, 2012. Memphis, TN.
Handley, B.M. 1996. Role of the shark in southern New England prehistory: Deity or dinner.
Bulletin of the Massachusetts Archaeological Society 57:27–34.
Kozuch, L., and C. Fitzgerald. 1989. A guide to identifying shark centra from southeastern
archaeological sites. Southeastern Archaeology 8:146–157.
Leavesley, M.G. 2007. A shark-tooth ornament from Pleistocene Sahul. Antiquity
81:308–315.
Mollet, H.F., G.M. Cailliet, A.P. Klimley, D.A. Ebert, A.D. Testi, and L.J.V. Compagno.
1996. A review of length validation methods and protocols to measure large White
Sharks. Pp. 91–108, In A.P. Klimley and D.G. Ainley (Eds.). Great White Sharks: The
Biology of Carcharodon carcharias. Academic Press, San Diego, CA. 517 pp.
Moyer, J.K., M.L. Riccio, and W.E. Bemis. 2015. Development and microstructure of tooth
histotypes in the Blue Shark, Prionace glauca (Carcharhiniformes: Carcharhinidae) and
the Great White Shark, Carcharodon carcharias (Lamniformes: Lamnidae). Journal of
Morphology 276:797–817. Available online at doi:10.1002/jmor.20380.
Natanson, L.J., and G.B. Skomal. 2015. Age and growth of the White Shark, Carcharodon
carcharias, in the western North Atlantic Ocean. Marine and Freshwater Research
66:387–398.
Nichols, W.F., and V.C. Nichols. 2008. The land-use history, flora, and natural communities
of the Isles of Shoals, Rye, New Hampshire, and Kittery, Maine. Rhodora
110(943):245–295.
Peyer, B. 1968. Comparative Odontology. University of Chicago Press, Chicago, IL.
458 pp.
Randall, J.E. 1973. Size of the Great White Shark (Carcharodon). Science 181:169–170.
Rick, T.C., J.M. Erlandson, M.A. Glassow, and M.L. Moss. 2002. Evaluating the economic
significance of sharks, skates, and rays (Elasmobranchs) in prehistoric economies. Journal
of Archaeological Science 29:111–122.
Robinson, D. 2012. Under the Isles of Shoals. Portsmouth Marine Society, Portsmouth,
NH. 176 pp.
Rosset, A., L. Spadola, and O. Ratib. 2004. OsiriX: An open-source software for navigating
in multidimensional DICOM images. Journal of Digital Imaging 17 :205–216.
Skomal G.B., J. Chisholm, and S.J. Correia. 2012. Implications of increasing pinniped
populations on the diet and abundance of white sharks off the coast of Massachusetts.
Pp. 405–417, In M.L. Domeier (Ed.). Global Perspectives on the Biology and Life History
of the White Shark. CRC Press, Boca Raton, FL. 567 pp.
