Comparison of Macroinvertebrate Diversity and Community Structure among Perennial and Non-Perennial Headwater Streams
Anna N. Santos and Robert D. Stevenson

Northeastern Naturalist, Volume 18, Issue 1 (2011): 7–26

Full-text pdf (Accessible only to subscribers.To subscribe click here.)



Access Journal Content

Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.



Current Issue: Vol. 30 (3)
NENA 30(3)

Check out NENA's latest Monograph:

Monograph 22
NENA monograph 22

All Regular Issues

Monographs

Special Issues



submit



subscribe



JSTOR logoClarivate logoWeb of science logoBioOne logo EbscoHOST logoProQuest logo

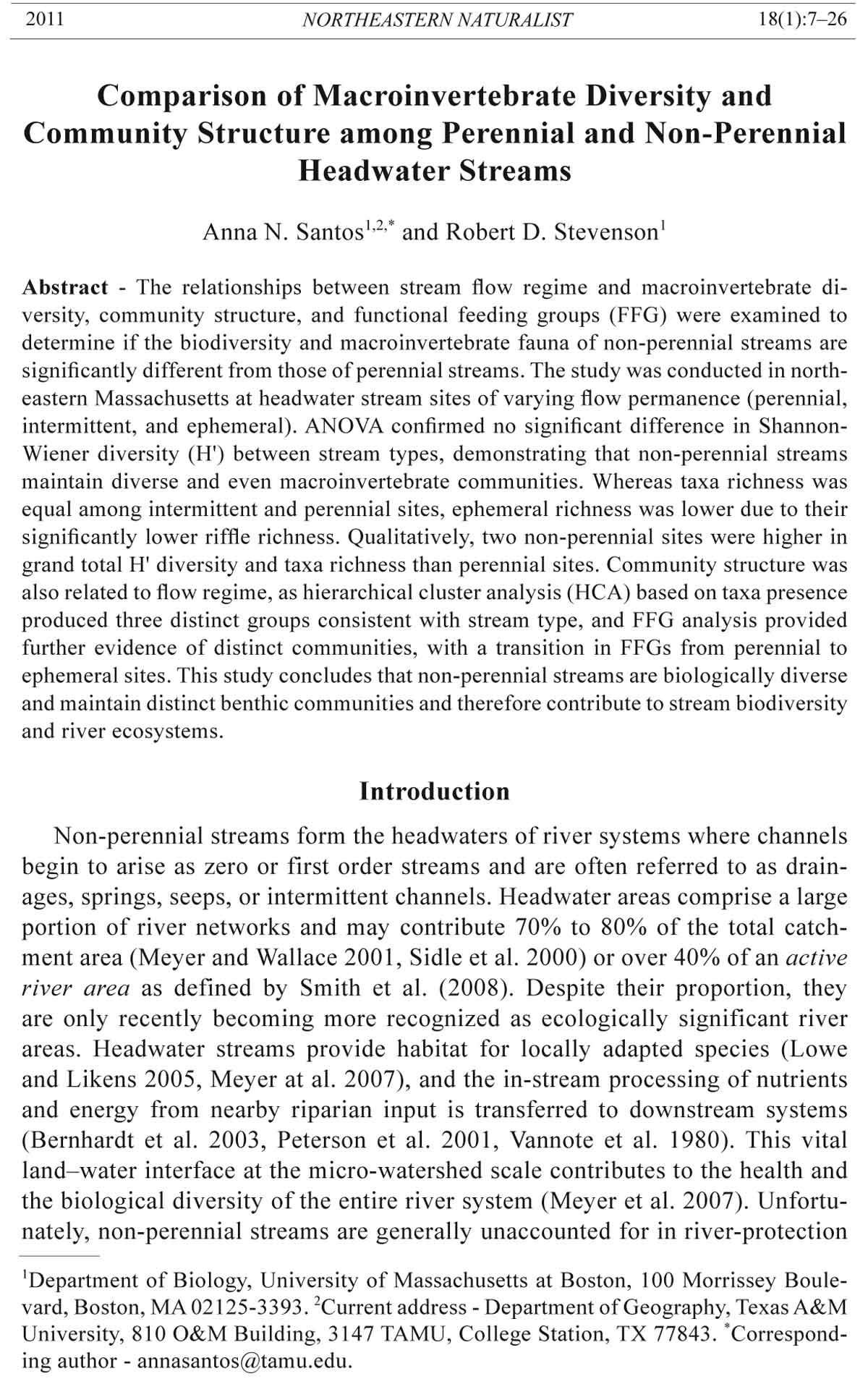

2011 NORTHEASTERN NATURALIST 18(1):7–26 Comparison of Macroinvertebrate Diversity and Community Structure among Perennial and Non-Perennial Headwater Streams Anna N. Santos1,2,* and Robert D. Stevenson1 Abstract - The relationships between stream flow regime and macroinvertebrate diversity, community structure, and functional feeding groups (FFG) were examined to determine if the biodiversity and macroinvertebrate fauna of non-perennial streams are significantly different from those of perennial streams. The study was conducted in northeastern Massachusetts at headwater stream sites of varying flow permanence (perennial, intermittent, and ephemeral). ANOVA confirmed no significant difference in Shannon- Wiener diversity (H') between stream types, demonstrating that non-perennial streams maintain diverse and even macroinvertebrate communities. Whereas taxa richness was equal among intermittent and perennial sites, ephemeral richness was lower due to their significantly lower riffle richness. Qualitatively, two non-perennial sites were higher in grand total H' diversity and taxa richness than perennial sites. Community structure was also related to flow regime, as hierarchical cluster analysis (HCA) based on taxa presence produced three distinct groups consistent with stream type, and FFG analysis provided further evidence of distinct communities, with a transition in FFGs from perennial to ephemeral sites. This study concludes that non-perennial streams are biologically diverse and maintain distinct benthic communities and therefore contribute to stream biodiversity and river ecosystems. Introduction Non-perennial streams form the headwaters of river systems where channels begin to arise as zero or first order streams and are often referred to as drainages, springs, seeps, or intermittent channels. Headwater areas comprise a large portion of river networks and may contribute 70% to 80% of the total catchment area (Meyer and Wallace 2001, Sidle et al. 2000) or over 40% of an active river area as defined by Smith et al. (2008). Despite their proportion, they are only recently becoming more recognized as ecologically significant river areas. Headwater streams provide habitat for locally adapted species (Lowe and Likens 2005, Meyer at al. 2007), and the in-stream processing of nutrients and energy from nearby riparian input is transferred to downstream systems (Bernhardt et al. 2003, Peterson et al. 2001, Vannote et al. 1980). This vital land–water interface at the micro-watershed scale contributes to the health and the biological diversity of the entire river system (Meyer et al. 2007). Unfortunately, non-perennial streams are generally unaccounted for in river-protection 1Department of Biology, University of Massachusetts at Boston, 100 Morrissey Boulevard, Boston, MA 02125-3393. 2Current address - Department of Geography, Texas A&M University, 810 O&M Building, 3147 TAMU, College Station, TX 77843. *Corresponding author - annasantos@tamu.edu. 8 Northeastern Naturalist Vol. 18, No. 1 legislation, contributing to the poor management of headwater areas (Bond and Cottingham 2008, Gomi et al. 2002). Naturally formed non-perennial streams are common in temperate forests of the eastern US (Kirby et al. 1983) and other biogeographic areas where decreased precipitation and increased evaporation in summer causes surface flow to cease. Stream flow also varies annually in response to precipitation events, and this temporal variability may reduce or halt surface flow of perennial streams during low-precipitation years, while high amounts of precipitation may cause continuous flow of intermittent streams. The frequency, timing, and duration of no-flow or low-flow periods have been criteria for defining stream type (Fritz and Dodds 2005, Gomi et al. 2002), and in the northeastern US, intermittent streams may be defined by flow patterns in which they cease flow in summer (Ward 1992) for three to four months during normal precipitation years. A third category of streams that is less popularly examined is generally termed “ephemeral”. Ephemeral streams are typically defined as streams that maintain surface flow during spring thaw and rainfall events and for a short duration thereafter, and is further defined by the United States Army Corps of Engineers (2002) as being above the water table. However, criteria for ephemeral streams are ambiguous since in some studies they have been defined as flowing for only several days (Dieterich and Anderson 2000), whereas others make the demarcation at up to 4 to 5 months of flow (Gomi et al. 2002). There is also a classification disparity between intermittent streams that flow for more than eight but fewer than 12 full months out of the year and ephemeral streams that are said to flow for five or fewer months of the year. To avoid confusion with idiom by applying a different term to streams that flow for fewer than eight months and more than five, the term ephemeral was used in this study for sites that flow for fewer than eight months. This a priori classification of non-perennial sites is not only based on commonly used terminology, but also on summer flow characteristics similarly applied by Bonada et al. (2007), with intermittent streams having isolated pools during summer and ephemeral streams having stream-bed drying during summer that persists for longer periods. Due to their small size and to difficulty with map resolution, both intermittent and ephemeral streams have been typically excluded from topographic maps and USGS hydrography data (MassGIS 2010), designating them as obsolete in watershed management activities (Fritz et al. 2006, Gomi et al. 2002, Meyer and Wallace 2001). Historically, the headwaters of watersheds largely comprised of non-perennial streams (Fritz et al. 2006) have been the least studied of aquatic systems (Ward 1992). Recent findings suggest that intermittent streams contribute to the biodiversity of river systems (Gomi et al. 2002, Meyer at al. 2007), and past studies have demonstrated that the macroinvertebrate community assemblage (Boulton and Lake 1992, Delucchi 1988, Feminella 1996, Williams 1996) and primary production (Hill and Gardner 1987) of intermittent and perennial streams are similar. 2011 A.N. Santos and R.D. Stevenson 9 Unlike perennial streams, however, intermittent streams are inhabited by unique organisms specifically adapted to drying conditions. Behavioral adaptations include burrowing into the hyporheic zone or migrating to wet areas, while physiological adaptations include diapause or life cycles that favor spring emergence (Boulton 1989, Delucchi 1988, Ladle and Bass 1981, Poff and Ward 1989, Williams and Hynes 1977, Wright et al.1984). Earlier investigations of non-perennial streams typically explored synergies between macroinvertebrate richness and biotic assemblage of perennial and intermittent streams (Vinson and Hawkins 1998), whereas few studies have examined the diversity of ephemeral streams. To determine if the biodiversity and community structure of non-perennial streams are significantly different from those of perennial streams, this study examined the relationships between flow regime and macroinvertebrate diversity, community structure, and functional feeding groups (FFG) of perennial, intermittent, and ephemeral stream sites. It was predicted that the macroinvertebrate diversity of intermittent and perennial sites would be comparable, whereas ephemeral sites would have much lower diversity because of their extended noflow period, which may wipe out taxa and result in a meager benthic community (Gomi et al. 2002). It was also predicted that non-perennial sites (both intermittent and ephemeral) would maintain a slightly different community structure and FFGs with adapted species. Methods Study site selection This study focused on eight stream sites within six streams in eastern Massachusetts, three of which were not present in Massachusetts Office of Geographic and Environmental Information (MassGIS) hydrography data of March 2010 (see Fig. 1). The streams are headwaters of the Fish Brook subwatershed (drainage area of approximately 47 km2) of the Ipswich River located in Boxford (Essex County), MA. The Ipswich River flows into Plum Island Sound in the town of Ipswich located on the North Shore. Although the Ipswich River has been recognized for its rich diversity, it is considered one of the most threatened rivers in the United States due to water withdrawal (American Rivers 2003, Zarriello and Ries 2000). The stream sites were chosen for representation of varying stream flow permanence as was documented in other investigations (Beugly and Pyron 2010, Boulton and Lake 1992, Brönmark et al. 1984, Closs and Lake 1994, Delucchi 1988, Feminella 1996, Bonada et al. 2007). The stream sites are within a 1-km2 area (Fig. 1) and are low gradient, swampy tributaries that are relatively undisturbed and located in eastern deciduous forest dominated by Tsuga canadensis (L.) Carrière (Eastern Hemlock) and Acer rubum L. (Red Maple), with at least 75% shade cover at all sites. The sites were monitored (direct observation; MA DEP 2008) weekly during summer for three years (2001–2003) prior to the study period for determination of a priori patterns in flow permanence. The 8 sites were categorized as perennial (constant flow), intermittent (up to 4 months of no flow), 10 Northeastern Naturalist Vol. 18, No. 1 and ephemeral (4 or more months of no flow), based on summer observations and normal precipitation for the region. Stream sites 1, 2, and 3 are perennial; sites 4, 5, and 6 are intermittent; and sites 7 and 8 are ephemeral according to a priori flow patterns. The selected sites are ideal for examining the relationships between macroinvertebrate diversity and flow regime since they are within the same drainage network within a 1-km2 area of stream reaches and share similar water chemistry but vary in stream morphology and flow permanence. Figure 1. Stream study sites. 2011 A.N. Santos and R.D. Stevenson 11 Macroinvertebrate sampling and abiotic assessment Macroinvertebrate sampling was conducted and abiotic measurements were taken within a designated 5-m stretch x wetted width area of the particular stream site for each sampling event. Macroinvertebrate sampling was conducted over 3 seasons (summer, autumn, and spring) as recommended by Minshall et al. (1985) for an accurate representation of stream macroinvertebrate population. Twentyfour sampling events took place: 8 sites over 3 seasons. Six samples were taken from 3 riffles and 3 pools in each of the stream sites, for a total of 48 samples per season and 144 total samples (8 sites x 2 microhabitats x 3 replicates x 3 seasons). Samples were taken in July (in that month, ephemeral site riffles had enough water to allow for macroinvertebrate sampling but were too shallow for measuring flow) and September of 2004, and April 2005 following sampling protocol of the US Environmental Protection Agency’s Rapid Assessment Procedures (Barbour et al. 1999). A D-frame net with 500-μm mesh was placed on the bottom of the streambed facing upstream and an area of substrate (roughly 0.10 m2) in front of the net was kicked-up (disturbed) for approximately 15 seconds. Organisms were removed from the net and from rocks located within the sampling area, and were hand picked from a plastic tub in the field for a minimum of 20 minutes per sample, which permitted removal of all individuals in this study. Specimens were placed in 80% ethanol and identified to genus in the lab using a 50x dissecting microscope and macroinvertebrate identification keys (Merritt and Cummins 1996, Peckarsky et al. 1990, Wiggins 1996). Stream flow, pH, and water temperature were also measured during every sampling event (twenty-four times over three seasons). Stream flow and water discharge was calculated using the USGS cross sectional area method, and because most of the streams were very shallow, the float method was used for measuring flow. Water pH and temperature were measured using an Oakton pH meter. Biotic indices Two measures of biotic diversity of streams were assessed: taxa richness and Shannon-Wiener index of diversity (H'). Taxa richness is the total number of taxa (genera in this study) found and is a measure of overall diversity, while the H' measures taxa richness and evenness. Abundance, which equaled the total number of individuals sampled from each site, was also measured. The major FFG using Mandaville’s (2002) categorization were analyzed to detect differences in macroinvertebrate feeding community between streams types. The five major feeding groups are collector-filterers, collector-gatherers, predators, scrapers, and shredders. The proportions of individuals from each group were calculated for each site. Statistical analyses Statistical analyses were conducted using SPSS (version 14.0/ 2005, SPSS Inc., Chicago, IL). Hierarchical cluster analysis (HCA) derived from similarity (Pearson’s correlation) and dissimilarity (Euclidean distance) matrices was 12 Northeastern Naturalist Vol. 18, No. 1 applied to detect differences in macroinvertebrate community structure based on presence-absence data of taxa at stream sites. To test the hypothesis of equal means of the biotic indices between stream type, parametric general linear model (GLM) univariate analysis of variance (UNIANOVA) tests were used. Multivariate GLM was used to examine the differences between FFGs of clusters derived from HCA analysis. Post hoc tests of pairwise comparisons based on estimated marginal means with Bonferroni corrections for P values were performed to examine main effects for all dependent variables of UNIANOVA (taxa richness, H') and for multivaraite GLM FFGs. Results Stream type and abiotic properties Average stream discharge increased with stream width (average wetted width) in a log linear relationship (Fig. 2). Linear regression showed three distinct groupings: perennial (sites 1–3), intermittent (sites 4–6), and ephemeral (sites 7–8) based on flow regime, and was consistent with a priori classification. Higher than normal precipitation (DCR 2005) prevailed during the study, and in the summer of 2004, the intermittent sites maintained low flow while the ephemeral sites were reduced to a series of wet puddles; in previous summers, the ephemeral Figure 2. Stream water discharge versus wetted width, showing a log linear relationship, and three categories of stream types with site numbers shown. 2011 A.N. Santos and R.D. Stevenson 13 stream beds were dry. The eight sites’ water pH and temperature were comparable; pH ranged from slightly acidic to neutral (6.25–7.01), with a mean of 6.56 (SD = 0.186), and temperature ranged from 10.3 to 25.4 °C (Table 1), within normal seasonal fluctuation of temperate forest streams. The ephemeral streams maintained lower overall temperatures. Macroinvertebrate sampling A total of 1802 individuals in 12 macroinvertebrate orders, 41 families, and 61 genera were found at all sites and included in this study. Two families of dipterans (Chironomidae and Simuliidae) were also found but excluded from all analyses because high biomass in streams along with patchiness in occurrence and disproportionate densities can distort diversity analyses (Huryn and Wallace 2000). The most abundant orders found were Trichoptera, Plecoptera, Coleoptera, and Amphipoda, with perennial and intermittent sites dominated by Trichoptera and ephemeral sites equally dominated by Trichoptera and Plecoptera. The abundance (# of individuals sampled) ranged from 82 to 447 and was not correlated with taxa richness, since intermittent sites had the highest total richness but lower abundances (Table 2). Total taxa richness (accumulated richness and diversity) ranged from 15–25 for perennial streams, 19–27 for intermittent, and 15–24 for ephemeral. Means of seasonal taxa richness Table 1. Means and standard deviation (SD) of temperature, pH, wetted width, depth, calculated velocity, and discharge of stream sites. P = perennial, I = intermittent, and E = ephemeral. Velocity Discharge Site Type Temp (ºC) pH Width (cm) Depth (cm) (cm/s) (m3/s) 1 P 17.1 (5.8) 6.56 (0.11) 769 (111.2) 33 (14.3) 25.5 (14.6) 0.759 (0.6) 2 P 16.1 (5.6) 6.37 (0.05) 543 (2.1) 36 (17.0) 47.5 (22.6) 1.030 (0.5) 3 P 18.3 (6.2) 6.55 (0.05) 392 (31.4) 31 (1.6) 14.9 (5.6) 0.185 (0.1) 4 I 16.8 (6.1) 6.46 (0.20) 105 (24.4) 10 (3.6) 18.8 (2.9) 0.022 (0.01) 5 I 16.3 (4.4) 6.50 (0.27) 106 (106) 7 (1.9) 35.0 (7.9) 0.028 (0.01) 6 I 14.1 (2.4) 6.69 (0.13) 100 (49.0) 10 (4.3) 17.2 (4.5) 0.021 (0.02) 7 E 14.1 (3.7) 6.53 (0.04) 54 (2.1) 4 (3.9) 5.02 (3.3) 0.002 (0.00) 8 E 14.2 (3.3) 6.86 (0.14) 101 (49.5) 5 (4.9) 7.63 (0.5) 0.006 (0.00) Table 2. Stream site grand total abundance taxa richness and H' diversity with standard deviations (SD). Total richness and diversity Seasonal means Site Type Abundance Taxa richness H' diversity Taxa richness H' diversity 1 Perennial 271 25 0.98 (0.04) 14 (2.6) 0.85 (0.10) 2 Perennial 447 22 0.86 (0.04) 15 (2.9) 0.78 (0.05) 3 Perennial 301 15 0.78 (0.05) 10 (1.4) 0.71 (0.05) 4 Intermittent 154 25 1.08 (0.04) 14 (2.1) 0.87 (0.12) 5 Intermittent 264 19 0.97 (0.05) 11 (2.5) 0.82 (0.05) 6 Intermittent 124 27 1.11 (0.03) 12 (2.1) 0.89 (0.13) 7 Ephemeral 159 24 1.16 (0.04) 10 (2.6) 0.83 (0.09) 8 Ephemeral 82 15 0.89 (0.04) 7 (3.3) 0.63 (0.19) 14 Northeastern Naturalist Vol. 18, No. 1 ranged from 10–15 for perennial streams, 11–14 for intermittent, and 7–10 for ephemeral (Table 2, Fig. 3). Stream type and biotic indices The stream types did not differ in H' (P = 0.430), and there were no effects of type, season, or type-season interactions. However, ANOVA confirmed a relationship between taxa richness and flow regime (P = 0.032) and yielded significant results (Table 3, Fig. 3). From pairwise comparison, ephemeral sites had signifi- cantly lower richness (x̅ = 8.7, SE = 1.19) than perennial (x̅ = 13, SE = 0.972) and intermittent (x̅ = 12, SE = 0.972) (P < 0.05), while intermittent site richness was not significantly different from perennial (P = 0.635). From pairwise comparison of riffle and pool analysis, intermittent and perennial site richness were the same (P = 1.000), whereas the lower taxa richness of ephemeral sites was due to their reduced riffle richness (P = 0.003) (Table 3, Fig. 3). Pool richness, however, was not significantly different between stream types (P = 0.637). Furthermore, there was no effect of season or type-season interactions on taxa richness or between stream-type pools and riffles (P > 0.05). Finally, there was no association between taxa richness and stream area, but abundance did increase with stream area (P = 0.029) (Table 2). Figure 3. Seasonal taxa richness and H' diversity of stream types (mean ± 1 SE). Seasonal riffle and pool taxa richness of stream types (mean ± 1 SE). Riffle richness was signifi- cantly lower in ephemeral streams (P = 0.005). 2011 A.N. Santos and R.D. Stevenson 15 Cluster analysis and site composition Hierarchical cluster analysis (HCA) produced three main groups distinguishable from one another based on taxa presence at stream sites. Analyses using ordinal data (actual abundances) were similar to binary results but did not yield as clear a resolution; therefore, binary results are presented here. HCA produced two low-scale clusters (Fig. 4): cluster one is composed of sites 1–5, while cluster two is composed of sites 6–8. At a finer resolution, the first cluster consists of stream sites 1–3, which are all perennial sites. The second cluster is of sites 4 and 5 (intermittent). The third cluster is composed of sites 6, 7, and 8, with 6 being an intermittent site and 7 and 8 being ephemeral. Qualitative analysis of cluster composition resulted in contrasting levels of common taxa and taxa dominance among stream types. Cluster one had 9 exclusive genera, cluster two had 8, and cluster three had 17 (Fig. 5). All three clusters shared common taxa ranging from 5–7, not including ubiquitous taxa, while there were only 9 ubiquitous taxa across all three clusters. Taxa dominance (the proportions of the four most dominant genera) between stream type is as follows: perennial sites had the highest taxa dominance (78%), with a community comprised of Chimarra (36.9%), Hydropsyche (19.5%), Stenelmis (12.3%), Table 3. ANOVA results of effects of stream type, season, and type-season interactions on: taxa richness and H', and taxa richness of riffles and pools. GLM results of FFG analysis showing HCA grouping and stream type. For Bonferroni probabilities *P < 0.05, ** P < 0.005. F P Taxa richness Type 4.347 0.032* Season 0.562 0.581 Type * season 2.411 0.095 H' Type 1.876 0.187 Season 2.022 0.167 Type * season 0.356 0.836 Taxa richness of riffles and pools Type Pool 0.465 0.637 Riffle 8.835 0.003** Season Pool 0.814 0.462 Riffle 1.057 0.372 Type * Season Pool 2.192 0.119 Riffle 2.316 0.105 Functional feeding groups (FFG) HCA grouping Collector-filterers (c-f) 28.25 0.002** Collector-gatherers (c-g) 0.13 0.884 Predators (prd) 1.92 0.240 Scrapers (scr) 3.57 0.109 Shredders (shr) 33.77 0.001** A priori stream type Collector-filterers (c-f) 8.88 0.023* Collector-gatherers (c-g) 0.70 0.540 Predators (prd) 1.24 0.366 Scrapers (scr) 1.03 0.423 Shredders (shr) 3.22 0.126 16 Northeastern Naturalist Vol. 18, No. 1 Figure 5. Exclusive, shared, and ubiquitous taxa (genera) of stream types based on cluster analyses of taxa presence. From a priori classification, cluster one is perennial, cluster two consists of intermittent sites 4 and 5, and cluster three consists of ephemeral sites 7 and 8 and intermittent site 6. Figure 4. Hierarchical cluster analysis dendrogram using average linkage between groups (Pearson correlation) showing 2 low-resolution groups and 3 high-resolution groups, based on taxa presence at stream sites. 2011 A.N. Santos and R.D. Stevenson 17 and Gammarus (9.3%); intermittent site dominants were Diplectrona (14.0%), Psilotreta (14.0%), Prostoia (12.0%), and Hydrospyche (10.2%), totaling 50.2% of the community composition; and ephemeral site taxa dominance was lowest with Gammarus (11.2%), Prostoia (10.8%), Planorbula (10.4%), and Ironoquia (9.5%), totaling 41.9%. Functional feeding groups Functional feeding group analysis resulted in a clear transition in functional feeding groups consistent with a priori classification of stream type and HCA (Fig. 6). From multivariate analysis, major differences were found between the proportions of collector-filterers (c-f) and shredders (shr) (Table 3) of HCA-produced clusters. Perennial sites were dominated by collector-filterers (x̅ = 60%, SE = 0.052), significantly higher (P = 0.002) than intermittent (x̅ = 31%, SE = 0.064) and ephemeral (x̅ = 2%, SE= 0.052) sites. The composition shifted in intermittent sites as they maintained a relatively even number of collector-filterers and collector-gatherers and other groups, but the number of scrapers was highest in intermittent sites (x̅ = 33%, SE = 0.080). Ephemeral sites had a significantly higher (P = 0.001) number of shredders (x̅ = 45%, SE = 0.134), followed by relatively equal numbers of predators and collector-gatherers, few scrapers, and almost no collector-filterers (2%). Figure 6. Functional feeding group (FFG) composition of stream types (a priori) classifi- cation and HCA clusters. c-f = collector-filterers, c-g = collector-gatherers, prd = predators, scr = scrapers, and shr = shredders. Significant differences between c-f and shr of clusters (P = 0.002, P = 0.001) and c-f of perennial sites (P = 0.023) is shown. 18 Northeastern Naturalist Vol. 18, No. 1 Discussion Macroinvertebrate diversity and richness of non-perennial streams Our results indicate that non-perennial streams are as biologically diverse, if not more so, than perennial streams. The macroinvertebrate diversity (H') between perennial, intermittent, and ephemeral sites were analogous, and qualitatively, two unmapped non-perennial streams had the highest grand total taxa richness and highest grand total H' of all stream sites (Table 2). This finding implies that the biodiversity of non-perennial streams may be underestimated because of lack of sampling and their absence from maps (Meyer et al. 2007). An investigation of unmapped non-perennial streams by Stout and Wallace (2003) and long-term research conducted by the Coweeta Hydrologic Lab in South Carolina (1985–2000) revealed significant richness of insect taxa in these streams. Similarly, Dieterich and Anderson (2000) discovered that nonperennial streams had 20% greater species richness than perennial streams and reported two intermittent streams with a higher number of taxa than a nearby perennial one. The high richness and evenness of non-perennial streams, which was found in this and other studies, may be due to their ebb and flow, which creates “local habitat variability that favors certain traits” as stated by Bonada et al. (2007). This environmental variability is favorable to adapted benthic fauna, but may be inhospitable to many lotic fauna and thus supports a more even community (Lake 2000). This result is also evident qualitatively in this study, since perennial sites had high taxa dominance compared to intermittent and ephemeral. Although the non-perennial sites showed high evenness compared to perennial sites, a correlation was confirmed between richness and flow regime consistent with other studies in which increased richness was related to increased flow duration (Closs and Lake 1994, Feminella 1996). These studies, however, did not include ephemeral sites, and further analysis in this study from pairwise comparison revealed that intermittent site richness was not different from perennial site richness, whereas ephemeral sites had significantly lower richness. Bonada et al. (2007) also included ephemeral sites in their study and found no difference in richness of permanent and intermittent sites while ephemeral was lower. The inclusion of ephemeral sites created a broader category of flow regime, thereby facilitating better detection of variation in richness and likely was the reason these results are different from previous studies that focused only on intermittent and perennial streams (Vinson and Hawkins 1998). The lower richness of ephemeral streams is likely due to the extended no-flow periods that can eliminate taxa (Gomi et al. 2002) or drive them into hyporheic areas of the streambed (Boulton 1989, Williams and Hynes 1977) just before drying. Taxa richness has been found to be correlated with riffle permanence (Feminella 1996), and in this study, pairwise comparison confirmed this relationship since it was the significantly lower richness of ephemeral riffles that was the factor contributing to the overall lower richness of ephemeral sites. The extremely low flow of ephemeral sites minimized the formation of riffles, and it can be deduced that the 2011 A.N. Santos and R.D. Stevenson 19 fauna of the ephemeral sites were concentrated in pools because pool richness was not significantly different between stream type and these fauna contributed to the overall richness and diversity of these sites. The influence of flow regime on benthic fauna is also evident at the other extreme, since periods of excessive flow and spring floods can propel them downstream (Boulton and Lake 1992, Lake 2000) and significantly reduce richness. The increase in discharge of perennial streams by almost 60% from fall measures may have temporarily reduced richness of the perennial sites in the spring, but not to the extent that it reduced the long-term overall richness of these sites. due to recolonization of fauna. Community structure of non-perennial streams Another substantial outcome of this study was the finding of distinct community structures and FFGs of perennial, intermittent, and ephemeral sites. The HCA model based on taxa presence-absence data produced uniform results consistent with the log linear relationship between flow regime and stream type as shown in Fig. 2. Despite the proximity of the sites and ability of freshwater macroinvertebrates to rapidly colonize and disperse via drift, migration, and adult flying (Boulton and Lake 1992, Brönmark et al. 1984, Delucchi 1989) the differences in community assemblage were discernable, contrary to the findings of other investigations. Beugly and Pyron (2010) found no difference in macroinvertebrate community assemblage between perennial and seasonal (non-perennial) sites; however, their study focused on agricultural headwater stream sites that had been channelized or converted to drainage ditches, thereby reducing the habitat heterogeneity of the streams. High faunal similarity between intermittent and perennial streams was also found by Feminella (1996) when comparing macroinvertebrate assemblage with flow permanence, but again, that finding was attributed to the presence of riffles. Delucchi (1988) found less difference in benthic community structure between riffles of non-perennial and perennial sites than between nearby pools and riffles, because riffles and pools tend to be inhabited by different benthic fauna (McCulloch 1986, Scullion et al. 2006), dependent upon their habitat and food preferences. As previously mentioned, the inclusion of ephemeral sites which had low riffle occurrence reasonably affected the results of this study since these sites had significantly higher numbers of shredders compared to perennial or intermittent sites. The feeding strategy of stream organisms, according to Merritt and Cummins (1996), is a result of long-term temporal adaptation to environmental conditions and is indicative of the significant role of macroinvertebrates in river systems from headwaters to larger channels. Functional feeding group composition analysis provided further evidence of divergent macroinvertebrate communities in streams of varying flow regime. The transition in FFGs is consistent with the finding that temperate headwater streams are typically dominated by shredders, while higher order stream reaches are dominated by collectors (Cummins et al. 1989, Vannote et al. 1980, Wiggins and Mackay 1978). Perennial sites were dominated by collector-filterers, whose numbers decreased in intermittent sites 20 Northeastern Naturalist Vol. 18, No. 1 and were almost non-existent in ephemeral sites. Intermittent sites consisted of more scrapers than the other sites and had a more even composition of feeding groups, while ephemeral sites were composed predominantly of shredders. There were also a higher number of predators, including Odonata, at ephemeral sites, which may be attributed to faunal congregation at pools prior to streambed drying (Lytle and Poff 2004), as was found by Boulton and Lake (1992). The linkage of headwater streams and riparian input of organic material that produce unique biological processes is demonstrated here by the different feeding-community structures of macroinvertebrates in these non-perennial headwater streams (Gomi et al. 2002, Lowe and Likens 2005). A glance at life in non-perennial streams Although it was predicted that ephemeral sites would have lower richness and diversity in this study because of seemingly adverse physical conditions, they proved to have greater diversity and higher evenness in community structure than expected. This result is consistent with Fritz and Dodds’ (2005) findings of reduced taxonomic richness related to harshness or unfavorable stream conditions while evenness was not affected. It appears that while many taxa are wiped out from the extended period of no flow, the taxa that did remain were adapted to the prolonged lack of flow and contributed to high evenness; an ephemeral site in this study had the highest grand total H' (1.16), and overall H' was not significantly different between stream types as previously mentioned. The lower overall temperature of the ephemeral sites suggests groundwater upwelling, which is common in spring-fed streams (Hauer and Hill 1996). They harbored a community typical of spring-fed streams, including Tipula sp. (cranefly), Limnephilus sp. (northern caddisfly), Glossosoma sp. (saddle-case caddisfly), Rhyacophila sp. (primitive caddisfly), and Nemoura sp. (spring stonefly) (Ward 1992) among others, some of which were not found at the other stream sites. The presence of several early instar and well-developed Odonata species in these tiny streams suggest that these ephemeral sites may not only provide refuge for early instar individuals, where they are safe from floods and fish predators (Pritchard 1996), but are also occupied by multi-year taxa. Stout and Wallace (2003) also found multi-year taxa in intermittent streams, which supports the theory of species adaptation to these dynamic habitats. Non-perennial streams are prime habitat for unique insect fauna (Meyer at al. 2007). One such Odonata species, which was previously on the Massachusetts Natural Heritage and Endangered Species Program (NHESP) watch-list, is Cordulegaster obliqua Say (Arrowhead Spiketail), which was found exclusively in non-perennial streams (intermittent and ephemeral) in this study and in previous years of preliminary sampling. While most dragonflies’ life spans can range from 6 months to 3 years depending upon the species, the larval stage of the Arrowhead Spiketail is longer, similar to its congener Cordulegaster boltonii Donovan (Golden-ringed Dragonfly) which has a larval stage of 2–5 years dependent upon 2011 A.N. Santos and R.D. Stevenson 21 environmental conditions (Ferreras-Romero and Corbet 1999). Long immature life phases of Odonata are typically associated with cool and/or harsh conditions that promote seasonal diapause or delayed development. Ranging in size from 6–27 mm, a total of nineteen individuals of the Arrowhead Spiketail were found strictly in non-perennial sites, while its congener Cordulegaster maculata Selys (Twin-spotted Spiketail) was found only in perennial sites. The elusive Arrowhead Spiketail clearly inhabits intermittent streams, but the question of whether or not they are obligate non-perennial stream dwellers remains unknown. Threats to non-perennial streams and conservation implications Freshwater systems are among the most biodiverse and threatened ecosystems in the world (Allan and Flecker 1993, Master et al. 1998, Saunders et al. 2002). In particular, the aquatic biota of headwater streams are among the most imperiled species, as small streams are more sensitive to disturbance and anthropogenic impacts than larger streams and often they have been heavily altered (Gomi et al. 2002, Lowe and Likens 2005, Meyer and Wallace 2001, Meyer et al. 2007). Landsacpe alterations including deforestation, urbanization, and water withdrawal have been the main threats to lotic habitats, and still continue to degrade water quality and habitat (Meyer and Wallace 2001, Naiman et al. 1995, Richter et al. 1997). In Massachusetts (MA), non-perennial streams, despite their contribution to stream biodiversity, have been more vulnerable than their perennial counterparts. Historically, they have been explicitly excluded in stream protective regulations such as the MA Rivers Protection Act (St. 1996, c. Chapter 258; MA DEP 1996) and the Wetlands Protection Act 1997 (M.G.L. c. 131, § 40; MA DEP 1997). Models were also developed to distinguish perennial from non-perennial streams for the purpose of prioritizing protective status (Bent and Archfield 2002. These outdated regulations and models either stated that streams must maintain perennial flow to be explicitly protected as lotic waters or that intermittent streams could be designated as perennial if perennial macroinvertebrate species were found in them. The latter criteria completely disregarded the fauna unique to non-perennial streams. More recently, however, the MA Department of Environmental Protection (DEP) has appropriately addressed the disparities relative to stream flow criteria, and the Wetlands Protection Act Regulation 310 CMR 10.00 (2009) states, in defining streams, “… such a body of running water which does not flow throughout the year (i.e., which is intermittent) is a stream except for that portion upgradient of all bogs, swamps, wet meadows, and marshes.” This advancement is greatly warranted and shows progress in headwater stream management that has historically been criticized as outdated (Gomi et al. 2002) and failed to recognize the ecological significance of streams (Allan and Flecker 1993). Improved environmental management and regulations that recognize non-perennial streams is advantageous, and perhaps even necessary, for headwater systems and their inhabitants to adapt to climate change. It has been projected that climate change effects may alter macroinvertebrate 22 Northeastern Naturalist Vol. 18, No. 1 assemblage and reduce species richness in headwater streams (Durance and Ormerod 2007), and severe weather and increased precipitation is predicted for temperate regions due to climate change (IPCC 2007), which will further alter hydrologic regimes. A more holistic approach is necessary to successfully manage and conserve river ecosystems and biodiversity in their entirety. Implications for future studies This study underestimates the true biodiversity of non-perennial streams since it not only excluded two families of Dipterans from analysis, but also excluded sampling of hyporheic zones and sampling of organisms such as amphibians, bryophytes, diatoms, and nematodes, among others. Most taxa were identified only to genera due to time constraints, and the study does not determine if there are obligate species of non-perennial streams, a research question we highly recommend pursuing in future studies. Non-perennial streams should be further explored within and across drainage basins, with more sampling replicates and analyses at the species level for finer resolution. Notwithstanding these limitations, the study was rigorous since sampling effort was rigorous and consistent and, as previously mentioned, all stream sites are within the same drainage network, minimizing differences in most abiotic conditions while maximizing dispersal of aquatic fauna. Finally and more importantly, ephemeral sites were included in this study, allowing for a more comprehensive comparison of the streams, in contrast to most other studies to date, which focused only on perennial and intermittent streams. Conclusion This study demonstrated key points that support the significance of non-perennial streams. First, it confirmed that non-perennial streams are just as biodiverse, if not more so, than perennial streams. Second, it verified that non-perennial streams maintain distinct biological communities with adapted species. Finally, it stipulated that non-perennial streams should be recognized under environmental legislation for stream protection as they do contribute to the biological diversity and ecological function of river ecosystems. Acknowledgments Gratitude is given to Robert Chen and the Watershed Integrated Sciences Partnership (WISP) Program funded by NSF (DGE-0231638, DGE-0538445) at the University of Massachusetts at Boston (UMASS Boston) for financial support during the study. This study was also supported in part by NSF grant DBI-0416835. Special thanks to Betsy Colburn of Harvard Forest, John Ebersole and Richard Kesseli of UMASS Boston, and Fred SaintOurs for their comments and review, and support and enthusiasm for this study. Literature Cited Allan, J.D., and A.S. Flecker. 1993. Biodiversity conservation in running waters. BioScience 43:32–43. 2011 A.N. Santos and R.D. Stevenson 23 American Rivers. 2003. America’s most endangered rivers of 2003. Available online at http://www.americanrivers.org/site/PageServer?pagename=AMR_content_d5c8. Accessed 1 February 2010. Barbour, M., T.J. Gerritsen, B.D. Snyder, and J.B. Stribling. 1999. Rapid Bioassessment Protocols for Use in Streams and Wadeable Rivers, Second Edition. US Environmental Protection Agency, Office of Water. Washington, DC. EPA 841-B-99-002. Bent, G.C., and S.A. Archfield. 2002. A Logistic regression equation for estimating the probability of a stream flowing perennially in Massachusetts. Water-Resources Investigations Report 02-4043. US Geological Survey, Northborough, MA. Bernhardt, E., G.E. Likens, R.O. Hall, D.C. Buso, S.G. Fisher, T.M. Burton, J.L. Meyer, W.H. McDowell, M.S. Mayer, W.B. Bowden, S.E.G. Findlay, K.H. Macneale, R.S. Stelzer, and W.H. Lowe. 2003. Can’t see the forest for the stream? In-stream processing and terrestrial nitrogen exports. Bioscience 55:219–230. Beugly, J., and M. Pyron. 2010. Variation in fish and macroinvertebrate assemblages among seasonal and perennial headwater streams. American Midland Naturalist 163:2–13. Bonada, N., M. Rieradevall, and N. Prat. 2007. Macroinvertebrate community structure and biological traits related to flow permanence in a Mediterranean river network. Hydrobiologia 589:91–106. Available online at DOI 10.1007/s10750-007-0723-5. Bond, N.R., and P. Cottingham. 2008. Ecology and hydrology of non-perennial streams: Implications for sustainable water management. eWater Technical Report. eWater Cooperative Research Centre, Canberra, Australia. Available online at http://ewatercrc. com.au/reports/ Bond_Cottingham-2008-Non-perennial_mStreams.pdf. Accessed 1 February 2010. Boulton, A.J. 1989. Over-summering refuges of aquatic macroinvertebrates in two intermittent streams in central Victoria. Transactions, Royal Society of South Australia 113:23–34. Boulton, A.J. 2003. Parallels and contrasts in the effects of drought on stream macroinvertebrate assemblages. Freshwater Biology 48:1173–1185. Boulton, A.J., and P.S. Lake. 1992. The ecology of intermittent streams in Victoria, Australia. III. Temporal changes in faunal composition. Freshwater Biology 27:123–138. Brönmark, C., J. Herrmann, B. Malmquist, C. Otto, and P. Sjöström. 1984. Animal community structure as a function of stream size. Hydrobiologia 112:73–79. Closs, G.P., and P.S. Lake. 1994. Spatial and temporal variation in the structure of an intermittent stream food web. Ecological Monographs 64(1):1–21. Cummins, K.W., A. Margaret, D.M. Gates, J.B Perry, and W.B. Taliaferro. 1989. Shredders and Riparian Vegetation. Bioscience 39(1):24–30. Delucchi, C.M. 1988. Comparison of community structure among streams with different temporal flow regimes. Canadian Journal of Zoology 66:579–586. Delucchi, C.M. 1989. Movement patterns of invertebrates in non-perennial and permanent streams. Oecologia 78:199–207. Dieterich, M., and N.H. Anderson. 2000. The invertebrate fauna of summer-dry streams in western Oregon. Archiv für Hydrobiologie 147:273–295. Durance, I., and S.J. Ormerod. 2007. Climate change effects on upland stream macroinvertebrates over a 25-year period. Global Change Biology 13:942–957. Feminella, J.W. 1996. Comparison of benthic macroinvertebrate assemblages in small streams along a gradient of flow permanence. Journal of the North American Benthological Society 15(4):651–669. 24 Northeastern Naturalist Vol. 18, No. 1 Ferreras-Romero, M., and P.S. Corbet. 1999. The life cycle of Cordulegaster boltonii (Donovan, 1807) (Odonata: Cordulegastridae) in the Sierra Morena Mountains (southern Spain). Hydrobiologia 409:39–48. Fritz, K.M., and W.K. Dodds. 2005. Harshness: Characterization of intermittent stream habitats over space and time. Marine and Freshwater Research 56:13–23. Fritz, K.M., B.R. Johnson, and D.M. Walters. 2006. Field Operations manual for assessing the hydrologic permanence and ecological condition of headwater streams. US Environmental Protection Agency, Office of Research and Development, Washington, DC. EPA/600/ R-06/126. Gomi, T., R.C. Sidle, and J.S. Richardson. 2002. Understanding processes and downstream linkages of headwater systems. Bioscience 52:905–916. Hauer, F.R., and W.R. Hill. 1996. Temperature, Light, and Oxygen. Pp. 93–108, In F.R. Hauer and G.A Lamberti (Eds.). Methods in Stream Ecology. Academic Press, San Diego, CA. Hill, B.H., and T.J. Gardner. 1987. Benthic metabolism in a perennial and intermittent Texas prairie stream. Southwestern Naturalist 32(3):305–311. Huryn, A.D., and J.B. Wallace. 2000. Life history and production of stream insects. Annual Review of Entomology 45:83–110. Intergovernmental Panel on Climate Change (IPCC). 2007. Climate Change 2007: The Physical Science Basis. Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change. Cambridge University Press, Cambridge, UK. Kirby, J.M., J.R. Webster, and E.F. Benfield. 1983. The role of shredders in detrital dynamics of permanent and non-perennial streams. Pp. 425–435, In T.D. Fontane and S.M. Bartell (Eds.). Dynamics of Lotic Systems. Ann Arbor Scientific Publications, Ann Arbor, MI. Ladle, M., and J.A.B. Bass. 1981. The ecology of a small chalk stream and its responses to drying during drought conditions. Archiv für Hydrobiologie 90(4):443-466. Lake, P.S. 2000. Disturbance, patchiness, and diversity in streams. Journal of the North American Benthological Society 19(4):573–592. Lowe, C.G., and G.E. Likens. 2005. Moving headwater streams to the head of the class. BioScience 55:196–197. Lytle, D.A., and N.L. Poff. 2004. Adaptation to natural flow regimes. Trends in Ecology and Evolution 19(2):94–100. Mandaville, S.M. 2002. Benthic macroinvertebrates in freshwaters-taxa tolerance values, metrics, and protocols. (Project H-1) Soil and Water Conservation Society of Metro Halifax, Halifax, NS, Canada. Massachusetts Department of Conservation and Recreation (DCR). 2005. Water Resources Data Collection and Analysis Program. Massachusetts Monthly Precipitation Composite Estimates 2004–2005. Available online at http://www.mass.gov/dcr/watersupply/ rainfall/archive.htm. Accessed 10 June 2010. Massachusetts Department of Environmental Protection (MA DEP). 1996. Rivers Protection Act 1996, Chapter 258. Available online at http://www.mass.gov/dep/water/laws/ regulati.htm#wl. Accessed 10 June 2010. MA DEP. 1997. Wetlands Protection Act 1997, (M.G.L. c. 131, § 40). Available online at http://www.mass.gov/dep/water/laws/ch131s40.pdf. Accessed 10 June 2010. MA DEP. 2009. The Wetlands Protection Act Regulations, 310 CMR 10.00, preface appendices - June 2009. Available online at http://www.mass.gov/dep/service/ regulations/310cmr10b.pdf. Accessed 10 June 2010. 2011 A.N. Santos and R.D. Stevenson 25 Massachusetts Office of Geographic and Environmental (MassGIS). 2010. Information database, MassDEP Hydrography (1:25,000) (USGS/MGIS)-March 2010. Available online at http://www.mass.gov/mgis/laylist.htm. Accessed 9 June 2010. Master, L.L., S.R. Flack, and B.A. Stein (Eds.). 1998. Rivers of Life: Critical Watersheds For Protecting Freshwater Biodiversity. The Nature Conservancy, Arlington, VA. McCulloch, D.L. 1986. Benthic macroinvertebrate distributions in the riffle-pool communities of two east Texas streams. Hydrobiologia 135:61–70. Merritt, R.W., and K.W. Cummins. 1996. An Introduction to the Aquatic Insects of North America, Third Edition. Kendal/Hunt Publishing Company Dubuque, IA. Meyer, J.L., D.L. Strayer, J.B Wallace., S.L Eggert., G.S. Helfman, and N.E. Leonard. 2007. The Contribution of headwater streams to biodiversity in river networks. Journal of the American Water Resources Association 43(1):86–103. Meyer, J.L., and J.B. Wallace. 2001. Lost linkages and lotic ecology: Rediscovering small streams. Pp. 295–317, In M.C. Press, N.J. Huntly, and S. Levin (Eds.). Ecology: Achievement and Challenge. Blackwell Publishing, Oxford, UK. Minshall, G.W., R.C. Peterson Jr., and C.F. Nimz. 1985. Species richness in streams of different size from the same drainage basin. American Naturalist 125:16–38. Naiman, R.J., J.J. Magnuson, D.M. McKnight, and J.A. Stanford. 1995. The Freshwater Imperative. Island Press, Washington, DC. Peckarsky, B.L., P. Fraissinet, M.A. Penton, and D.J. Conklin, Jr. 1990. Freshwater Macroinvertebrates of Northeastern North America. Cornell University Press, Ithaca, NY. Peterson, B.J., W.M. Wollheim, P.J. Mulholland, J.R. Webster, J.R. Meyer, J.L. Tank, E. Marti, W.B. Bowden, H.M. Valett, A.E. Hershey, W.H. McDowell, W.K. Dodds, S.K. Hamilton, S. Gregory, and D.D. Morrall. 2001. Control of nitrogen export from watersheds by headwater streams. Science 292:86–90. Poff, N.L., and J.V. Ward. 1989. Implications of stream flow variability and predictability for lotic community structure: A regional analysis of stream flow patterns. Canadian Journal of Fisheries and Aquatic Sciences 46:1805–1818. Pritchard, G. 1996. The life history of a tropical dragonfly, Cora marina (Odonata: Polythoridae), in Guanacaste, Costa Rica. Journal of Tropical Ecology 12(4):573–581. Richter, B.D., D.P. Braun, M.A. Mendelson, and L.L. Master. 1997. Threats to imperiled freshwater fauna. Conservation Biology 11(5):1081–1093. Saunders, D.L., J.J. Meeuwig, and A.C.J. Vincent. 2002. Freshwater protected areas: Strategies for conservation. Conservation Biology 16(1):30–41. Scullion, J.C., A. Parish, N. Morgan, and R.W. Edwards. 2006. Comparison of benthic macroinvertebrate fauna and substratum composition in riffles and pools in the impounded River Elan and the unregulated River Wye, mid-Wales. Freshwater Biology 12(6):579–595. Sidle, R.C., Y. Tsuboyama, S. Noguchi, I. Hosoda, M. Fujieda, and T. Shimizu. 2000. Streamflow generation in steep headwaters: A linked hydro-geomorphic paradigm. Hydrological Processes 14:369–385. Smith, M.P., R. Schiff, A. Olivero, and J.G. MacBroom. 2008. The active river area: A conservation framework for protecting rivers and streams. The Nature Conservancy, Boston, MA. Stout, B., and J.B. Wallace. 2003. A survey of eight aquatic insect orders associated with small headwater streams subject to valley fills from mountaintop mining. Available online at http://www.epa.gov/region3/mtntop/pdf/Appendices/Appendix%20D%20 Aquatic/ StoutWallaceMacroinvertebrate.pdf. Accessed 1 February 2010. 26 Northeastern Naturalist Vol. 18, No. 1 United States Army Corps of Engineers. 2002. Text of 2002 nationwide permit definitions. Available online at http://www.usace.army.mil/CECW/ Documents/cecwo/reg/ nwp/2002 nwps_def.pdf. Accessed 1 February 2010. Vannote, R.L., G.W. Minshall, K.W. Cummins, J.R. Sedeli, and C.E. Cushing. 1980. The river-continuum concept. Canadian Journal of Fisheries and Aquatic Sciences 37:130–137. Vinson, M.R., and C.P. Hawkins. 1998. Biodiversity of stream insects: Variation at local, basin, and regional scales. Annual Review of Entomology 43:271–293. Ward, J.V. 1992. Aquatic Insect Ecology 1. Biology and Habitat. John Wiley and Sons, New York, NY. Wiggins, G.B. 1996. Larvae of the North American Caddisfly Genera, Second Edition. University of Toronto Press, Toronto, ON, Canada. Wiggins, G.B., and R.J. Mackay. 1978. Some relationships between systematics and trophic ecology in nearctic aquatic insects, with special reference to Trichoptera. Ecology 59(6):1211–1220. Williams, D.D. 1996. Environmental constraints in non-perennial fresh waters and their consequences for the insect fauna. Journal of the North American Benthological Society 15:634–650. Williams, D.D., and H.B.N. Hynes. 1977. The ecology of non-perennial streams II. General remarks on non-perennial streams. International Review of Hydrobiology 62(1):53–61. Wright, J.F., P.D. Hiley, D.A. Cooling, A.C. Cameron, M.E. Wingham, and A.D. Berrie. 1984. The invertebrate fauna of a small chalk stream in Berkshire England, and the effect of intermittent flow. Archiv für Hydrobiologie 99(2):176–199. Zarriello, P.J., and K.G. Ries. 2000. A precipitation-runoff model for analysis of the effects of water withdrawals on stream flow, Ipswich River basin, Massachusetts. US Geological Survey Water Resources Investigative Report 00-4029. Northborough, MA.
