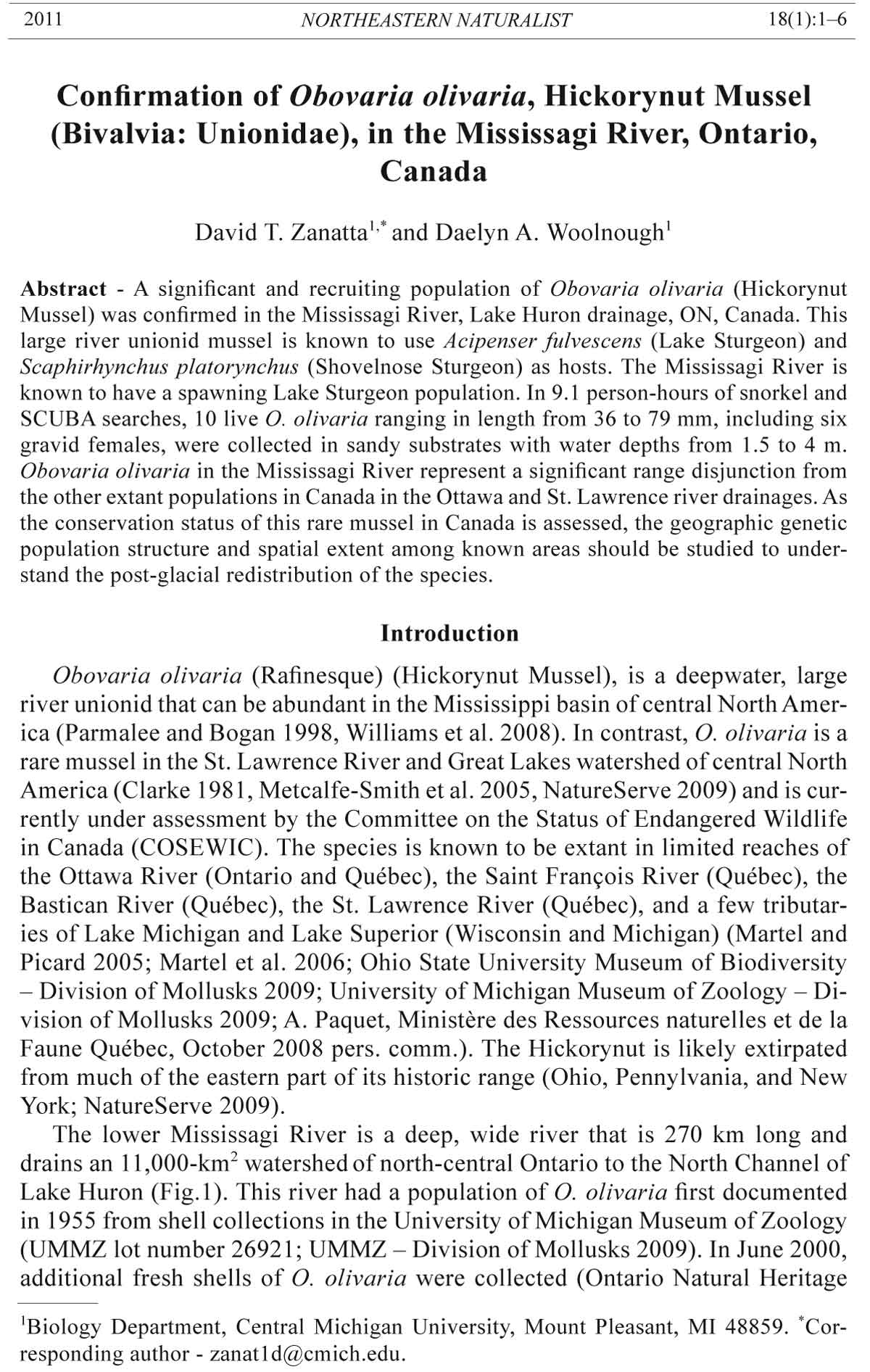

2011 NORTHEASTERN NATURALIST 18(1):1–6
Confirmation of Obovaria olivaria, Hickorynut Mussel
(Bivalvia: Unionidae), in the Mississagi River, Ontario,
Canada
David T. Zanatta1,* and Daelyn A. Woolnough1
Abstract - A significant and recruiting population of Obovaria olivaria (Hickorynut
Mussel) was confirmed in the Mississagi River, Lake Huron drainage, ON, Canada. This
large river unionid mussel is known to use Acipenser fulvescens (Lake Sturgeon) and
Scaphirhynchus platorynchus (Shovelnose Sturgeon) as hosts. The Mississagi River is
known to have a spawning Lake Sturgeon population. In 9.1 person-hours of snorkel and
SCUBA searches, 10 live O. olivaria ranging in length from 36 to 79 mm, including six
gravid females, were collected in sandy substrates with water depths from 1.5 to 4 m.
Obovaria olivaria in the Mississagi River represent a significant range disjunction from
the other extant populations in Canada in the Ottawa and St. Lawrence river drainages. As
the conservation status of this rare mussel in Canada is assessed, the geographic genetic
population structure and spatial extent among known areas should be studied to understand
the post-glacial redistribution of the species.
Introduction
Obovaria olivaria (Rafinesque) (Hickorynut Mussel), is a deepwater, large
river unionid that can be abundant in the Mississippi basin of central North America
(Parmalee and Bogan 1998, Williams et al. 2008). In contrast, O. olivaria is a
rare mussel in the St. Lawrence River and Great Lakes watershed of central North
America (Clarke 1981, Metcalfe-Smith et al. 2005, NatureServe 2009) and is currently
under assessment by the Committee on the Status of Endangered Wildlife
in Canada (COSEWIC). The species is known to be extant in limited reaches of
the Ottawa River (Ontario and Québec), the Saint François River (Québec), the
Bastican River (Québec), the St. Lawrence River (Québec), and a few tributaries
of Lake Michigan and Lake Superior (Wisconsin and Michigan) (Martel and
Picard 2005; Martel et al. 2006; Ohio State University Museum of Biodiversity
– Division of Mollusks 2009; University of Michigan Museum of Zoology – Division
of Mollusks 2009; A. Paquet, Ministère des Ressources naturelles et de la
Faune Québec, October 2008 pers. comm.). The Hickorynut is likely extirpated
from much of the eastern part of its historic range (Ohio, Pennylvania, and New
York; NatureServe 2009).
The lower Mississagi River is a deep, wide river that is 270 km long and
drains an 11,000-km2 watershed of north-central Ontario to the North Channel of
Lake Huron (Fig.1). This river had a population of O. olivaria first documented
in 1955 from shell collections in the University of Michigan Museum of Zoology
(UMMZ lot number 26921; UMMZ – Division of Mollusks 2009). In June 2000,
additional fresh shells of O. olivaria were collected (Ontario Natural Heritage
1Biology Department, Central Michigan University, Mount Pleasant, MI 48859. *Corresponding
author - zanat1d@cmich.edu.
2 Northeastern Naturalist Vol. 18, No. 1
Information Centre, collection number 23493), with their identities confirmed by
one of the authors (D. Zanatta).
The Mississagi River continues to be a spawning river for the most likely (laboratory
confirmed) host for O. olivaria in the Great Lakes-St. Lawrence, Acipenser
fulvescens (Rafinesque) (Lake Sturgeon) (Brady et al. 2004, COSEWIC 2006).
Lake Sturgeon has not been confirmed as a host in the Great Lakes-St. Lawrence
populations, only for Mississippi River populations (Brady et al. 2004). Obovaria
olivaria is also known to use Scaphirhynchus platorynchus (Rafinesque)
(Shovelnose Sturgeon) as a host (Coker et al. 1921), but this fish species is not
found in the Great Lakes drainage (Scott and Crossman 1973). Unionid mussels
are obligate parasites on fish, and the host fish must be in close proximity to a
unionid population in order for a mussel to complete its life cycle (Williams et al.
2008). In order to fully assess the conservation status of O. olivaria in Canada,
due to recent shells being found, a survey of the Mississagi River was deemed
necessary to confirm the presence of this rare mussel.
Methods
SCUBA and snorkel surveys were conducted in September 2009. The initial site
at MacIvor Falls (MR-FA; Fig. 1) was selected based on the historical records of
O. olivaria. Additional sites were selected based on ease of access (boat ramps and
Figure 1. Map of the Mississagi River, ON, Canada showing sites surveyed and where
live animals and shells of Obovaria olivaria were collected. Other unionid species were
found at all sites surveyed. Filled circles with an ‘X’ indicate the presence of live O. olivaria
(MR-FA, MR-17), filled circles indicate shells of O. olivaria (MR-IB), open circles
indicate that O. olivaria were not collected (MR-BC, MR-PP), and the black triangle
marks the location of Red Rock dam.
2011 D.T. Zanatta and D.A. Woolnough 3
roadside parks) and appearance of suitable habitat at increasing distances from the
historical site. The size, depth, and high flow of this large river made exact standardization
of survey methods and effort difficult. Five sites were visually surveyed for
at least one person-hour (Table 1), with a total survey effort of 9.1 person-hours.
Water in the Mississagi was clear to slightly tea-colored. Substrates at all sites were
dominated by sand and boulder.
Results
Five unionid species were collected alive in the following descending order
of abundance: Elliptio complanata (Lightfoot) (Eastern Elliptio), Lampsilis siliquoidea
(Barnes) (Fatmucket), O. olivaria, Lampsilis cardium (Rafinesque) (Plain
Pocketbook), and Pyganodon grandis (Say) (Giant Floater). A shell of Ligumia
recta (Lamarck) (Black Sandshell) was also collected, but none was found alive.
Unionids were found at all sites surveyed, with E. complanata representing >95%
of the total mussel community; this common species was found to be extremely
abundant (estimate >10 m-2) over large areas of the river bottom. Obovaria olivaria
was less than 1% of the total unionid community. Spent (dead) voucher shells of
O. olivaria have been submitted to the University of Michigan Museum of Zoology
(UMMZ catalogue numbers 302229 and 302230).
Living O. olivaria (Fig. 2) were found at two of five sites surveyed on the river.
A total of ten live animals were collected. The animals were found in sand substrates
in 1.5 to 4 m of water. Five live animals were found in an eddy immediately
Table 1. Location, site description, and search effort in surveys of Obovaria olivaria in the Mississagi
River, ON. Sites are listed downstream to upstream.
Site O. olivaria
name* Latitude Longitude Effort collected Unionid distribution
MR-BC 46.17594°N 83.01686°W Snorkel: 1.5 p-h None Unionids abundant in
shallows.
MR-FA 46.19983°N 83.02632°W SCUBA: 0.67 p-h, 5 live Unionids abundant, but
Snorkel: 2.5 p-h patchily distributed.
MR-17 46.20682°N 83.02533°W SCUBA: 0.67 p-h, 5 live Unionids abundant among
Snorkel: 1.5 p-h rocks at bottom of high
way embankment. O.
olivaria found in sand.
MR-PP 46.21421°N 83.09935°W SCUBA: 0.25 p-h, None Unionids absent from
Snorkel: 1.0 p-h shifting sand in right
(North bank) ¾ of river.
Fairly abundant in flow
refuge on left (South
bank) ¼ of river.
MR-IB 46.27308°N 83.22652°W SCUBA: 1.0 p-h Shell (old) Unionids were abundant on
left (South) bank of river.
*MR-BC: End of Boom Camp Road, 4 km West of Blind River near river mouth. Snorkel searches
in shallows only (many boom logs making SCUBA hazardous). MR-FA: Immediately downstream
of MacIvor Falls in eddy. Maximum depth = 2.5 m. MR-17: Area searched between Trans-Canada
Highway embankment and islands. Maximum depth = 3 m. MR-PP: at Trans-Canada Highway
picnic park. Maximum depth = 4 m. MR-IB: Village of Iron Bridge, downstream of boat launch.
Maximum depth = 4 m.
4 Northeastern Naturalist Vol. 18, No. 1
downstream of MacIvor Falls (MR-FA; Table 1 and Fig. 1), and an additional five
live animals were collected approximately 1 km upstream of the falls (MR-17;
Table 1 and Fig. 1). An old half-valve of O. olivaria was collected near the village
of Iron Bridge, 20 km upstream from the river mouth and delta into Lake Huron
(MR-IB; Table 1 and Fig. 1). The size range of the mussels was from 36 to 79 mm
in length. The presence of small, young individuals is indicative of recent recruitment.
Six of the ten live mussels collected were gravid females (brooding glochidia
in their gills); O. olivaria are not sexually dimorphic, so the remaining four individuals
were either non-gravid females or males. This finding is encouraging, as
the Mississagi population is evidently still capable of completing its life cycle,
should its host continue to be present for glochidia to parasitize.
Discussion
Obovaria olivaria remains extant in the Mississagi River with a viable, apparently
reproducing population. Although only ten specimens were collected,
this population likely numbers in the thousands of individuals, as only a small
portion of the available habitat was surveyed (≈23,000 m2, less than 1% of the habitat
in the 20-km reach surveyed). This population may have historically extended
from the river mouth to the Red Rock dam (≈40 km) upstream (a barrier to their
presumed Lake Sturgeon host; Fig. 1). Evidence collected in this survey found
live animals over a 1-km reach, with an extant population possibly extending
over a 20-km reach. The shell at MR-IB indicates that this is a historic reach
where this animal occurred. Additional search effort could potentially recover
Figure 2. Live Obovaria olivaria (Hickorynut) from the Mississagi River, Ontario (length
= 59 mm).
2011 D.T. Zanatta and D.A. Woolnough 5
live animals from site MR-IB. Additional surveys of this river and other known
Lake Sturgeon rivers in the region (e.g., Goulais River, Garden River, Thessalon
River, Serpent River, Spanish River, and French River/Lake Nippissing)
will be required in the future to determine if O. olivaria exists in other as-yetundocumented
locations.
The newly confirmed extant population of O. olivaria in the Mississagi River
represents a highly disjunct population from the remaining locations known to
exist in the Ottawa and St. Lawrence rivers. Historically, there were populations
of O. olivaria in the Detroit (Schloesser et al. 2006), Niagara (Strayer and Jirtka
1997), and Grand (ON, Metcalfe-Smith et al. 2000) rivers, as well as high-order
(large river) tributaries of Lake Michigan (Fox River WI, Grand River MI,
Menominee River MI/WI, Wolf River WI) and Lake Superior (Bad River, WI)
(Ohio State University Museum of Biological Diversity - Division of Mollusks
2009, University of Michigan Museum of Zoology - Division of Mollusks 2009).
No other records of O. olivaria are known from elsewhere in the Lake Huron
drainage (US or Canada). The status of these populations is either extirpated
or unknown. Of those that were lost, it was likely a result of declines in water
quality, dreissenid mussel infestation, construction of impoundments, and loss or
declines of the Lake Sturgeon host (Strayer et al. 2004). Thus, the presence of an
extant population in the Lake Huron drainage has important implications for determining
the conservation status of O. olivaria in the Great Lakes-St. Lawrence
region—substantially increasing its current range.
The presence of this apparently disjunct population of O. olivaria in the
Mississagi River is also interesting biogeographically. It raises the question
of post-glacial origin for the O. olivaria populations in the Great Lakes region
(Graf 2002, Graf and Underhill 1997): recolonization via the Wabash-Maumee
River spillway, the Chicago-Illinois River spillway, the St. Croix River-Lake
Superior spillway, or a combination? A few historical records of O. olivaria are
known from several American tributaries of Lake Michigan and Lake Superior
(listed above); to verify these records and assess the status of the populations,
these localities need to be resurveyed. Ultimately, in order to properly manage
and protect this rare mussel in the Great Lakes and St. Lawrence region, additional
surveys of large rivers with known Lake Sturgeon populations and further
research on the phylogeography of this unionid are needed.
Acknowledgments
Funding for this study came from Environment Canada through the Committee on the
Status of Endangered Wildlife in Canada. Assistance in the field surveys was from Central
Michigan University undergraduates A. Harris and E. Prochaska. This note received
constructive comments and suggestions from two anonymous reviewers. The Ontario
Ministry of Natural Resources approved the Scientific Collection Permits for this study
(permit # 1051456).
Literature Cited
Brady, T., M.C. Hove, C. Nelson, R. Gordon, D.J. Hornbach, and A. Kapuscinski. 2004.
Suitable host fish species determined for Hickorynut and Pink Heelsplitter. Ellipsaria
6:15–16.
6 Northeastern Naturalist Vol. 18, No. 1
Clarke, A.H. 1981. The Freshwater Molluscs of Canada. National Museum of Natural
Sciences/National Museums of Canada, Ottawa, ON, Canada.
Coker, R.E., A.F. Shira, H.W. Clark, and A.D. Howard. 1921. Natural history and propagation
of fresh-water mussels. Bulletin of the Bureau of Fisheries 37:77-181.
Committee on the Status of Endangered Wildlife in Canada (COSEWIC). 2006. COSEWIC
assessment and update status report on the Lake Sturgeon, Acipenser fulvescens,
in Canada. Ottawa, ON, Canada. xi + 107 pp.
Graf, D.L. 2002. Historical biogeography and late glacial origin of the freshwater pearly
mussel (Bivalvia: Unionidae) faunas of Lake Erie, North America. Occasional Papers
on Mollusks, The Department of Mollusks, Museum of Comparative Zoology, Harvard
University, Cambridge, MA 6:175–211.
Graf, D.L., and J.C. Underhill. 1997. The western Lake Superior freshwater mussel
(Bivalvia: Unionidae) community and its origin. Occasional Papers on Mollusks,
The Department of Mollusks, Museum of Comparative Zoology, Harvard University,
Cambridge, MA 5:409–417.
Martel, A.L., and I. Picard. 2005. The Hickorynut Mussel, Obovaria olivaria, a deepwater
unionid under scrutiny in Canadian rivers. Tentacle 13:2–3.
Martel, A.L., I. Picard, N. Binnie, B. Sawchuk, J. Madill, and F. Schueler. 2006. The rare
Olive Hickorynut Mussel, Obovaria olivaria, in the Ottawa River, eastern Canada.
Tentacle 14:31–32.
Metcalfe-Smith, J.L., A. MacKenzie, I. Carmichael, and D.J. McGoldrick. 2005. Photo
Field Guide to the Freshwater Mussels of Ontario. St. Thomas Field Naturalist Club
Inc., St. Thomas, ON, Canada.
Metcalfe-Smith, J.L., G.L. Mackie, J. Di Maio, and S.K. Staton. 2000. Changes over time
in the diversity and distribution of freshwater mussels (Unionidae) in the Grand River,
southwestern Ontario. Journal of Great Lakes Research 26:445–459.
NatureServe. 2009. NatureServe Explorer: An online encyclopedia of life [web application].
Version 7.1. NatureServe, Arlington, Virginia. Available online at http://www.
natureserve.org/explorer. Accessed 26 April 2010.
Ohio State University Museum of Biological Diversity - Division of Mollusks. 2009.
Unionoid mussel database. Available online at http://www.biosci.ohio-state.
edu/~molluscs/OSUM2/biv_base4.html. Accessed 20 October 2009.
Parmalee, P.W., and A.E. Bogan. 1998. The Freshwater Mussels of Tennessee. The University
of Tennessee Press, Knoxville, TN.
Schloesser, D.W., J.L. Metcalfe-Smith, W.P. Kovalak, G.D. Longton, and R.D. Smithee.
2006. Extirpation of freshwater mussels (Bivalvia: Unionidae) following the invasion
of Dreissenid mussels in an interconnecting river of the Laurentian Great Lakes.
American Midland Naturalist 155:307–320.
Scott, W.B., and E.J. Crossman. 1973. Freshwater fishes of Canada, Bulletin 184 of the
Fisheries Resources Board of Canada. Galt House Publications, Ltd., Oakville, ON,
Canada. 966 pp.
Strayer, D.L., J.A. Downing, W.R. Haag, T.L. King, J.B. Layzer, T.J. Newton, and S.J.
Nichols. 2004. Changing perspectives on pearly mussels, North America's most imperiled
animals. BioScience 54:429–439.
Strayer, D.L., and K.J. Jirtka. 1997. The pearly mussels of New York State. New York
State Museum Memoir 26:xiii-113 + 27 plates.
University of Michigan Museum of Zoology - Division of Mollusks. 2009. Unionoid
mussel database. Available online at http://www.ummz.umich.edu/mollusks/databases/
ummz_search.html. Accessed 20 October 2009.
Williams, J.D., A.E. Bogan, and J.T. Garner. 2008. Freshwater mussels of Alabama and
the Mobile Basin in Georgia, Mississippi, and Tennessee. University of Alabama
Press, Tuscaloosa, AL.
