Notes on the Unusual Megalopae of the Ghost Crab Ocypode quadrata and Related Species (Decapoda: Brachyura: Ocypodidae)
John J. McDermott

Northeastern Naturalist, Volume 16, Issue 4 (2009): 637–646

Full-text pdf (Accessible only to subscribers.To subscribe click here.)



Access Journal Content

Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.



Current Issue: Vol. 30 (3)
NENA 30(3)

Check out NENA's latest Monograph:

Monograph 22
NENA monograph 22

All Regular Issues

Monographs

Special Issues



submit



subscribe



JSTOR logoClarivate logoWeb of science logoBioOne logo EbscoHOST logoProQuest logo

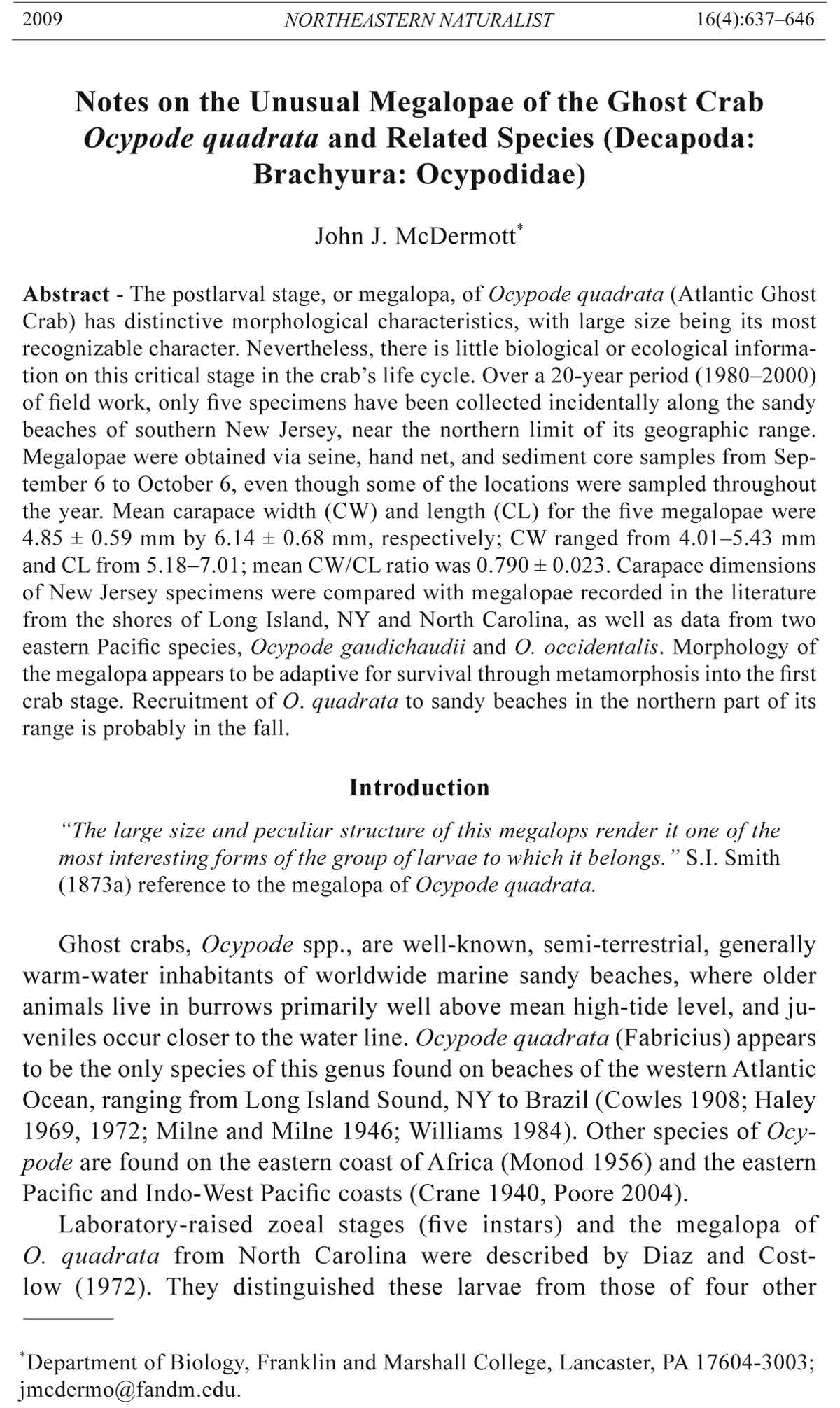

2009 NORTHEASTERN NATURALIST 16(4):637–646 Notes on the Unusual Megalopae of the Ghost Crab Ocypode quadrata and Related Species (Decapoda: Brachyura: Ocypodidae) John J. McDermott* Abstract - The postlarval stage, or megalopa, of Ocypode quadrata (Atlantic Ghost Crab) has distinctive morphological characteristics, with large size being its most recognizable character. Nevertheless, there is little biological or ecological information on this critical stage in the crab’s life cycle. Over a 20-year period (1980–2000) of field work, only five specimens have been collected incidentally along the sandy beaches of southern New Jersey, near the northern limit of its geographic range. Megalopae were obtained via seine, hand net, and sediment core samples from September 6 to October 6, even though some of the locations were sampled throughout the year. Mean carapace width (CW) and length (CL) for the five megalopae were 4.85 ± 0.59 mm by 6.14 ± 0.68 mm, respectively; CW ranged from 4.01–5.43 mm and CL from 5.18–7.01; mean CW/CL ratio was 0.790 ± 0.023. Carapace dimensions of New Jersey specimens were compared with megalopae recorded in the literature from the shores of Long Island, NY and North Carolina, as well as data from two eastern Pacific species, Ocypode gaudichaudii and O. occidentalis. Morphology of the megalopa appears to be adaptive for survival through metamorphosis into the first crab stage. Recruitment of O. quadrata to sandy beaches in the northern part of its range is probably in the fall. Introduction “The large size and peculiar structure of this megalops render it one of the most interesting forms of the group of larvae to which it belongs.” S.I. Smith (1873a) reference to the megalopa of Ocypode quadrata. Ghost crabs, Ocypode spp., are well-known, semi-terrestrial, generally warm-water inhabitants of worldwide marine sandy beaches, where older animals live in burrows primarily well above mean high-tide level, and juveniles occur closer to the water line. Ocypode quadrata (Fabricius) appears to be the only species of this genus found on beaches of the western Atlantic Ocean, ranging from Long Island Sound, NY to Brazil (Cowles 1908; Haley 1969, 1972; Milne and Milne 1946; Williams 1984). Other species of Ocypode are found on the eastern coast of Africa (Monod 1956) and the eastern Pacific and Indo-West Pacific coasts (Crane 1940, Poore 2004). Laboratory-raised zoeal stages (five instars) and the megalopa of O. quadrata from North Carolina were described by Diaz and Costlow (1972). They distinguished these larvae from those of four other *Department of Biology, Franklin and Marshall College, Lancaster, PA 17604-3003; jmcdermo@fandm.edu. 638 Northeastern Naturalist Vol. 16, No. 4 species, O. cordimanus Desmarest, O. gaudichaudii (Milne Edwards and Lucas), O. occidentalis Stimpson, and O. platytarsis (Milne Edwards). Although complete zoeal series were not known for the latter four species, the gross morphological characteristics of their distinctive, large megalopae were very similar to those of O. quadrata. Little biological information is available for the Ocypode megalopa, considered by Hines (1986) to be among the largest of all known brachyurans (Fig. 1). However, the megalopae of the vent crab Bythograea thermydron Williams are larger (Williams 1980). Few megalopae of O. quadrata have been reported from the planktonic zone or at the surf-beach interface where metamorphosis into the first crab stage takes place (Say 1817; Smith 1873a, b; but see Smith 1880). They are easily recognized in plankton samples, sieved sediment, or in seine samples because of their extraordinary size, globose body, large blue eyes and often white or mottled coloration. Thomas Say (1817), confused as to the nature of preserved museum specimens of the O. quadrata megalopae, described them (without illustrations) as adult crabs new to science. The megalopa was named Monolepis inermis (genus: one scale, which refers to caudal lamellae on each side of the telson; species: unarmed or defenseless). Smith (1873a, b) recognized the megalopae he collected in 1870 on Fire Island beach (south shore of Long Island) as those of O. quadrata, the largest of which was 5.6 mm by 6.4 mm in CW Figure 1. Photograph of a living megalopa of O. quadrata, antero-dorsal view, collected 2007 from a sandy beach in Fort Macon State Park, NC, courtesy of Park Ranger Randy Newman. Specimen not measured, but was approximately 5 mm wide (R. Newman, pers. comm.). 2009 J.J. McDermott 639 and CL, respectively. He did not give the dimensions of any other specimens. Megalopae of O. quadrata were apparently much less numerous than the justmetamorphosed first-crab stages in the same location. The latter were 6.1 to 6.5 mm CW and 5.6 to 6.0 mm CL (width now greater than length). Smith (1873a, b) described the basic morphological characters of the megalopa (without illustrations) as follows: large eyes; carapace convex above, deep body, posterior broader, no dorsal spine; front sharply deflexed, with long medial tooth; sides of body impressed to receive the first three pairs of walking legs; small last pair of legs folded to fit into grooves on the latero-posterior sides of the carapace. He further described the first crab, also without illustrations, as follows: carapace broader than long and convex; front broader than in the megalopa; margin of the orbit inclined obliquely backward; posterior pair of walking legs proportionately smaller than in the adult. Megalopae of O. quadrata were found initially on the shore of Long Island by Smith (1873a, b) in August, and by the middle of September, they were particularly common. Later Smith (1880) reported that “… a great number of the megalops have been taken in Vineyard Sound by V.N. Edwards, and, early in September, 1875, I took some specimens swimming at the surface in the same region,” but no size data were provided. A specimen kept alive for “some days”, burrowed in sand and produced a partial molt. Presently there is not much published information on the role of the megalopae in the natural history and recruitment of the ghost crab to its sandy beach habitat. Crane (1940) described and illustrated the megalopae of O. quadrata and those of the eastern Pacific species O. gaudichaudii and O. occidentalis. Her drawings of O. quadrata correspond in basic morphology to illustrations of Diaz and Costlow (1972) for laboratory-raised specimens. Diaz and Costlow (1972) showed that megalopae of the eastern Pacific species and those of two Indo-West Pacific species (Raja Bai Naidu 1951, 1954) were very similar, concluding that the Ocypode megalopa was a distinctly unique brachyuran larval stage. The purpose of this paper is to provide information on the occurrence and carapace dimensions of Ocypode quadrata megalopae collected over a 20-year period (1980–2000) from sandy beaches on the southern coast of New Jersey. These data will be compared with those from the literature on the same and other species within the same subfamily (Ocypodinae), and the adaptive morphological and behavioral features of these brachyuran megalopae will be discussed. Methods Data on ghost crab megalopae were obtained during organized yearlong ecological studies of the sandy beach surf zone, primarily in early fall, on the Cape May peninsula (McDermott 1983, 2001). Using a beach seine 640 Northeastern Naturalist Vol. 16, No. 4 (15 x 1.5 m; 6.5-mm mesh), a sediment corer, and a hand net, specimens were collected from Stone Harbor and Hereford Inlet on the east shore of the peninsula, and Delaware Bay on the west shore. Mean surface water temperature was 21.9 ± 1.3 °C, similar to fall temperatures measured over many years. All specimens, except one, were preserved in 10% seawater formalin and stored in 70% ethanol. All were measured (CW x CL) by ocular micrometer to 0.01 mm, and CW/CL ratios were determined. Results Only five megalopae of Ocypode quadrata were collected during a 20- year span (Table 1). All were found in the months of September and October. Two were collected in a seine on an exposed sandy beach at Stone Harbor, another in a sediment core sample from the same beach, one with a hand net in sand inside of Hereford Inlet, and one from a sandy beach in Delaware Bay. One early crab stage was collected in a seine haul on the Stone Harbor beach during the same time period. Mean carapace measurements and the mean CW/CL ratio for the five megalopae are given in Table 1. Ranges in CW and CL were 4.01–5.43 mm and 5.18–7.01 mm, respectively. All larvae had the morphological characteristics described by Crane (1940) and Diaz and Costlow (1972) for O. quadrata. A megalopa collected 7 September 1999 at Stone Harbor, maintained in the laboratory with periodic feeding of Artemia nauplii, died after 34 days without molting. An early crab stage (possibly a first crab) collected 9 September 1994 was 7.52 mm CW and 6.68 mm CL with a 1.13 CW/CL ratio. Discussion Morphometric comparisons A comparison of carapace width and length measurements of Ocypode quadrata with data from the literature (Table 2) shows that the CW/CL ratio for the one cultured specimen taken from the drawing of Diaz and Table 1. Carapace dimensions and mean width/length ratios for megalopae of Ocypode quadrata (Atlantic Ghost Crab) collected on sandy beaches in New Jersey. Megalopa Date of Collection Carapace number* collection site** Width (mm) Length (mm) W/L ratio 1 6 Sep 1980 DB 5.30 6.48 0.82 2 19 Sep 1981 HI 5.01 6.18 0.81 3 13 Sep 1985 SH 4.01 5.18 0.77 4 7 Sep 1999 SH 5.43 7.01 0.78 5 6 Oct 2000 SH 4.51 5.85 0.77 Mean ± SD 4.85 ± 0.59 6.14 ± 0.69 0.790 ± 0.023 * Listed chronologically. ** DB = Delaware Bay, HI = Hereford Inlet, SH = Stone Harbor. 2009 J.J. McDermott 641 Costlow (1972) corresponds to the mean value for the five megalopae from New Jersey, but not those of Smith (1873a, b) and Crane (1940). Carapace dimensions for the two eastern Pacific species of Ocypode (Table 2) show that CL is also greater than CW, but the ratios appear slightly higher than for those of O. quadrata. Smith (1873a) reported that the largest specimen of O. quadrata from Fire Island beach, NY was 5.6 mm CW by 9.4 mm CL for a ratio of 0.596. Smith (1873b) recorded the largest megalopa from Fire Island as 5.6 by 6.4 mm. As his two papers were nearly identical except for the 9.4 mm value, most likely a measurement or typographical error was involved. Carapace measurements of the small juvenile Ocypode quadrata from New Jersey implied that at metamorphosis (or shortly thereafter) the carapace width became the greater dimension as is also the case in the adult (Williams 1984). However, it is possible that this crab was not the first crab instar. On Fire Island beach, Smith (1973a, b) measured the carapace of the smallest crabs, which ranged from 6.1 to 6.5 mm CW by 5.6 to 6.0 mm CL (number of crabs measured not given). Thus, my specimen (7.52 x 6.68 mm) was most likely a second instar. In contrast, Haley (1972) measured what he considered to be a first crab instar from a summer brood of O. quadrata specimens along the middle Texas coast at a CW of 7 mm in October. However, Haley measured only one of these first crabs, and unless megalopae of O. quadrata are larger in this southern part of their range, the 7-mm CW individual may also represent a second instar. Alternatively, 7 mm CW could have been the upper CW limit of firststage crabs at his field site. Hines (1986) sought correlations between larval patterns and life-history characteristics among seven families of brachyurans, which included the Ocypodidae. In his analysis, megalopa size (CW) was positively correlated Table 2. Carapace dimensions and mean width/length ratios, determined by other authors, for the megalopae of Ocypode quadrata and two species within the same genus from the eastern Pacific. Carapace No. of Width Length Species specimens (mm) (mm) W/L ratio References O. quadrata* 1 5.6 6.4 0.88 Smith (1873a, b) 3** 4.9 5.9 0.83 Crane (1940) 1 5.9 7.4 0.79 Diaz and Costlow (1972)*** O. gaudichaudii 1† 4.7 5.6 0.85 Crane (1940) 5**†† 4.6 5.3 0.87 Crane (1940) O. occidentalis 1††† 4.3 5.0 0.86 Crane (1940) *all specimens from northwestern Atlantic Ocean, United States. **size ranges given from which “mean values” were determined. ***measurements from their line drawing, Figure 9. †specimen from Costa Rica. ††specimens from Colombia. †††specimen from Mexico. 642 Northeastern Naturalist Vol. 16, No. 4 with adult crab size only if data for the unusually large megalopae of three species of Ocypode species were eliminated from the other crab species, i.e., Uca spp., within the Ocypodidae. Natural history of the megalopae Say (1817) collected “several specimens” of the megalopae of Ocypode quadrata on the eastern sandy shore of Maryland. Deposited on the beach as the tide receded, they burrowed into the sand, protecting them from sun and minimizing water loss, presumably prior to metamorphosis. Smith (1873a, b) collected megalopae in late August at Fire Island beach. He observed “many more young crab instars” that had metamorphosed from megalopae. He conjectured that molting as soon as possible would tend to minimize mortality in a terrestrial environment. Smith further noted that the megalopae of late August were only half the size of those collected in the middle of September, suggesting that the disparity in size might be due to multiple broods during the reproductive season. The present data from New Jersey beaches and those of Smith for the beaches of Long Island suggest that early fall may be the usual period for recruitment O. quadrata in this section of the Atlantic coast. Crane (1940) studied the morphology of megalopal stages of three species of Ocypode. She concluded that the obese megalopae of Ocypode had a thicker exoskeleton than megalopae of other brachyuran species. This feature and the curious behavior of folding their five pairs of legs close to the cephalothorax (Fig. 2) where grooves accommodate these folded legs (Crane 1940, Diaz and Costlow 1972), led Crane to see these as adaptive characteristics to coming ashore in the turbulent surf zone of sandy beaches. With legs folded, the animal becomes semispherical and compact (Fig. 2b), preventing legs from injury as it is rolled by the surf onto the beach. The thick exoskeleton would give added protection to the delicate internal organs, and the capacity of the megalopa to burrow at least superficially into the sand would serve to minimize water loss. Once on shore, it would seem imperative that megalopae transform as soon as possible into the semi-terrestrially adapted first-crab stage with its functional walking legs and feeding appendages. Are the megalopae of ghost crabs that are deposited on the shore competent to metamorphose, i.e., have they reached the developmental stage, as megalopae, necessary for a successful molt? Diaz and Costlow (1972) showed that the time for development of the megalopa in the laboratory was a minimum of 34 days following hatching as first zoeae. Their megalopae, however, failed to metamorphose into first crabs. Possible chemical or physical cues to induce metamorphosis were not considered by Diaz and Costlow. Therefore, the length of time required for the megalopa to reach competency is not known. Presumably, megalopae are tossed onto less favorable shore locations than the preferred sandy beaches. Can competent megalopae of Ocypode 2009 J.J. McDermott 643 Figure 2. Line drawings of the megalopa of Ocypode quadrata by Crane (1940) from a preserved museum specimen (USNM No. 10995) collected off Woods Hole, MA in 1885. A. lateral view with folded legs and anterior spine of carapace on left projecting ventrally; length of carapace = 6.4 mm. B. ventral view showing chelipeds and pereopods folded inward under the body. Permission to reproduce Crane’s image courtesy of the Wildlife Conservation Society. 644 Northeastern Naturalist Vol. 16, No. 4 postpone metamorphosis after landing in such unfavorable locations? Will they reenter the water column to be carried elsewhere to metamorphose? I have not been able to find any information on delayed metamorphosis in Ocypode. The fact that one of the megalopae collected in New Jersey was able to postpone metamorphosis for 34 days indicates that such a process is possible and may be adaptive. Certainly, the adaptive nature of delayed metamorphosis has been demonstrated for many crustaceans and other major invertebrate groups (Bishop et al. 2006, Butman 1987, Pechenik 1990). Do megalopae have some mechanism for remaining planktonic in order to minimize being swept ashore before competency? Chemical or physical environmental cues on sandy beaches that might control metamorphosis should be considered (Steinberg et al. 2007, 2008). There is much to learn about the enigmatic, bug-eyed megalopa of Ocypode and its critical role in the recruitment of new generations to sandy beaches. Metamorphic data are needed on the size range of this larval stage in relation to its metamorphosis into the first crab. How do megalopae manage to return from a planktonic existence to populate sandy beaches? Are the unusually large eyes of megalopae of particular importance in this navigation? How do they stay out of the surf zone until they are competent to molt into first crabs? More intense field studies and laboratory observation of cultured larvae are needed to answer these and other questions dealing with the natural history of ghost crabs. Acknowledgments I thank the following for checking their crustacean collections for megalopae of Ocypode quadrata: J. Dineen, Smithsonian Marine Station, Fort Pierce, fl; A.H. Hines, Smithsonian Environmental Research Center, Edgewater, MD; and D.M. Knott, Southeast Regional Taxonomic Center Marine Resources Research Institute, Charleston, SC. D.M. Knott also provided me with a photo of an O. quadrata megalopa, which was taken by R. Newman, a park ranger at Macon State Park, NC. Critical reviews of an early draft of this paper by J. Dineen and D.M. Knott were most helpful, as were the comments on the manuscript by two anonymous reviewers. I appreciate discussions with W.S. Johnson, Goucher College, Towsen, MD, concerning his zooplankton studies along the mid-Atlantic coast. J. Norenburg and C. Walter, Smithsonian Institution, Washington, DC, were helpful in retrieving information from files of the US National Museum, and J.T. Thompson, Franklin and Marshall College, provided technical assistance. Franklin and Marshall College continues to aid and encourage my research. Literature Cited Bishop, C.D., M.J. Huggett, A. Heyland, J.Hodin, and B.P. Brandhorst. 2006. Interspecific variation in metamorphic competence in marine invertebrates: The significance for comparative investigations into the timing of metamorphosis. Integrative and Comparative Biology 46:662–682. 2009 J.J. McDermott 645 Butman, C.A. 1987. Larval metamorphosis of soft sediment invertebrates: The spatial scales of pattern explained by active habitat selection and the emerging role of hydrodynamical processes. Oceanography and Marine Biology Annual Review 25:113–165. Cowles, R.P. 1908. I. Habits, reactions, and associations in Ocypoda arenaria. Papers from the Tortugas Laboratory of the Carnegie Institution of Washington No. 3, 2:1–41. Crane, J. 1940. Eastern Pacific Expedition of the New York Zoological Society. XVIII. On the post-embryonic development of brachyuran crabs of the genus Ocypode. Zoologica 25:65–82. Diaz, H., and J.D. Costlow. 1972. Larval development of Ocypode quadrata (Brachyura: Crustacea) under laboratory conditions. Marine Biology 15:120–131. Haley, S.R. 1969. Relative growth and sexual maturity of the Texas Ghost Crab, Ocypode quadrata (Fabr.) (Brachyura, Ocypodidae). Crustaceana 17:285–297. Haley, S.R. 1972. Reproductive cycling in the ghost crab, Ocypode quadrata (Fabr.) (Brachyura, Ocypodidae). Crustaceana 23:1–11. Hines, A.H. 1986. Larval patterns in the life histories of brachyuran crabs (Crustacea, Decapoda, Brachyura). Bulletin of Marine Science 39:444–466. McDermott, J.J. 1983. Food web in the surf zone of an exposed sandy beach along the mid-Atlantic coast of the United States. Pp. 529–538, In A. McLachlan and T. Erasmus (Eds.). Sandy Beaches as Ecosystems. Dr. W. Junk, The Hague, The Netherlands. 757 pp. McDermott, J.J. 2001. Biology of Chiridotea caeca (Say, 1818) (Isopoda: Idoteidae) in the surf zone of exposed sandy beaches along the coast of southern NewJersey, USA. Ophelia 55:123–135. Milne, L.J., and M.J. Milne. 1946. Notes on the behavior of the ghost crab. American Naturalist 80:362–380. Monod, T. 1956. Hippidea et Brachyura ouest-africains. Mémoires de L’Institut Français D’Afrique Noire No. 45:1–674. Pechenik, J.A. 1990. Delayed metamorphosis by larvae of benthic marine invertebrates: does it occur? Is there a price to pay? Ophelia 32:63–95. Poore, G.C.B. 2004. Marine Decapod Crustacea of Southern Australia: A Guide to Identification. CSIRO Publishing, Collingwood, Victoria, Australia. 574 pp., 32 pls. Raja Bai Naidu, K.G. 1951. Some stages in the development and bionomics of Ocypode platytarsis. Proceedings of the Indian Journal of Sciences 33:32–40, 3 pls. Raja Bai Naidu, K.G. 1954. The post-larval development of the shore crab Ocypode platytarsis (M. Edwards) and Ocypode cardimana (Demarest). Proceedings of the Indian Journal of Sciences (Section B) 40:89–101. Say, T. 1817. An account of the Crustacea of the United States. Journal of the Academy of Natural Sciences of Philadelphia 1:155–160 Smith, S.I. 1873a. III. Zoology and botany. 1. The megalops stage of Ocypoda. American Journal of Science 3:67–68. Smith, S.I. 1873b. The metamorphoses of the lobster, and other Crustacea. Pp. 522–537, In A.E. Verrill (Ed.). Report Upon the Invertebrate Animals of Vineyard Sound and the Adjacent Waters, with an Account of the Physical Characters of the Region. In S.F. Baird (Ed.). Report on the Conditions of the Sea Fisheries of the South Coast of New England in 1871 and 1872. United States Commission of Fish and Fisheries, Washington, DC. 646 Northeastern Naturalist Vol. 16, No. 4 Smith, S.I. 1880. Occasional occurrence of tropical and subtropical species of decapod Crustacea on the coast of New England. Transactions of the Connecticut Academy of Arts and Sciences 4:254–267. Steinberg, M.K., C.E. Epifanio, and A.U. Andon. 2007. A highly specific chemical cue for metamorphosis of the Asian Shore Crab, Hemigrapsus sanguineus. Journal of Experimental Marine Biology and Ecology 347:1–7. Steinberg, M.K., L.S. Krimsky, and C.E. Epifanio. 2008. Induction of metamorphosis in the Asian Shore Crab Hemigrapsus sanguineus: Effects of biofilms and substratum texture. Estuaries and Coasts 31:738–744. Williams, A.B. 1980. A new crab family from the vicinity of submarine thermal vents on the Galapagos Rift (Crustacea: Decapoda: Brachyura). Proceedings of the Biological Society of Washington 93:443–472. Williams, A.B. 1984. Shrimps, Lobsters, and Crabs of the Atlantic Coast of the Eastern United States, Maine to Florida. Smithsonian Institution Press, Washington, DC. 550 pp.
