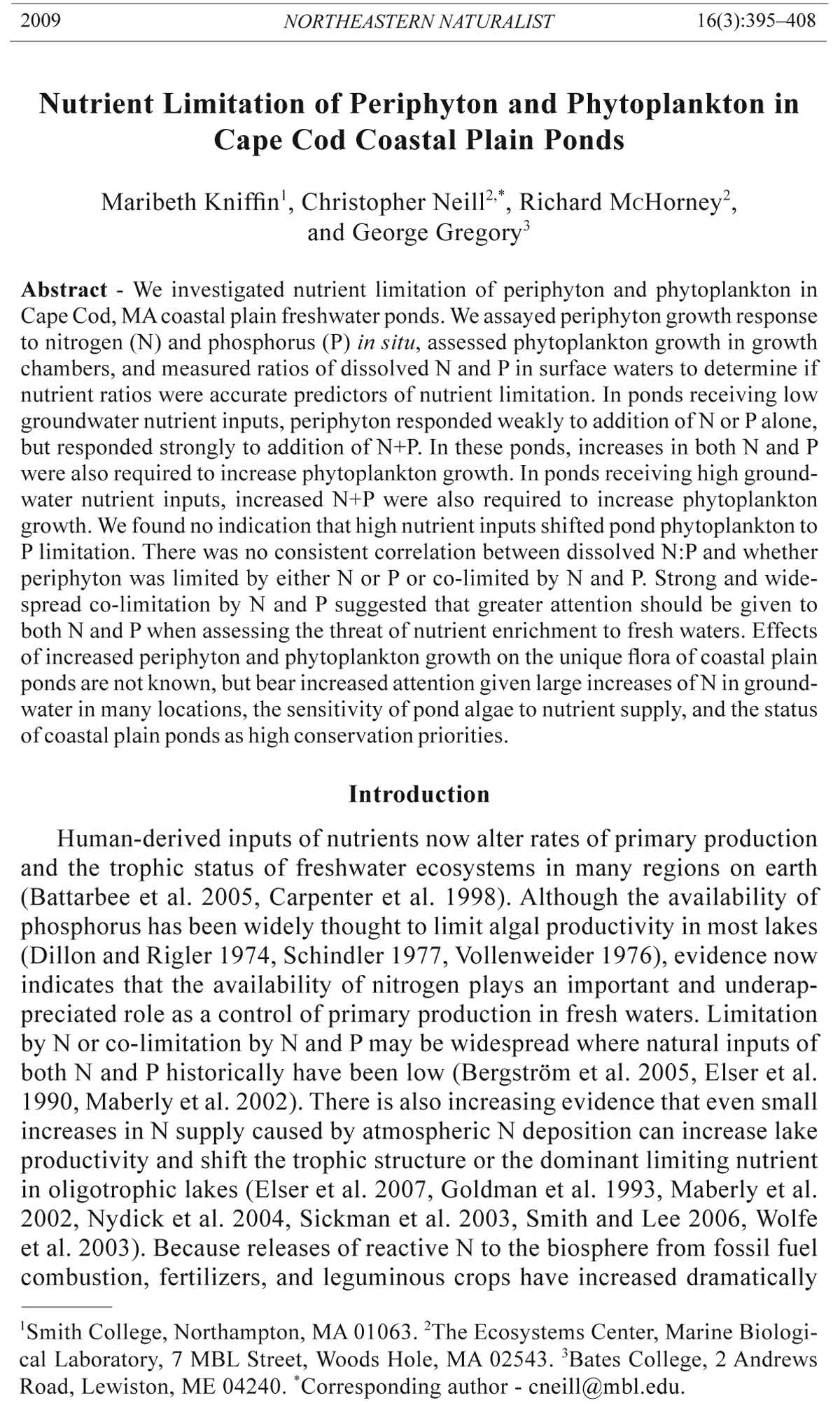

2009 NORTHEASTERN NATURALIST 16(3):395–408
Nutrient Limitation of Periphyton and Phytoplankton in
Cape Cod Coastal Plain Ponds
Maribeth Kniffin1, Christopher Neill2,*, Richard MCHorney2,
and George Gregory3
Abstract - We investigated nutrient limitation of periphyton and phytoplankton in
Cape Cod, MA coastal plain freshwater ponds. We assayed periphyton growth response
to nitrogen (N) and phosphorus (P) in situ, assessed phytoplankton growth in growth
chambers, and measured ratios of dissolved N and P in surface waters to determine if
nutrient ratios were accurate predictors of nutrient limitation. In ponds receiving low
groundwater nutrient inputs, periphyton responded weakly to addition of N or P alone,
but responded strongly to addition of N+P. In these ponds, increases in both N and P
were also required to increase phytoplankton growth. In ponds receiving high groundwater
nutrient inputs, increased N+P were also required to increase phytoplankton
growth. We found no indication that high nutrient inputs shifted pond phytoplankton to
P limitation. There was no consistent correlation between dissolved N:P and whether
periphyton was limited by either N or P or co-limited by N and P. Strong and widespread
co-limitation by N and P suggested that greater attention should be given to
both N and P when assessing the threat of nutrient enrichment to fresh waters. Effects
of increased periphyton and phytoplankton growth on the unique flora of coastal plain
ponds are not known, but bear increased attention given large increases of N in groundwater
in many locations, the sensitivity of pond algae to nutrient supply, and the status
of coastal plain ponds as high conservation priorities.
Introduction
Human-derived inputs of nutrients now alter rates of primary production
and the trophic status of freshwater ecosystems in many regions on earth
(Battarbee et al. 2005, Carpenter et al. 1998). Although the availability of
phosphorus has been widely thought to limit algal productivity in most lakes
(Dillon and Rigler 1974, Schindler 1977, Vollenweider 1976), evidence now
indicates that the availability of nitrogen plays an important and underappreciated
role as a control of primary production in fresh waters. Limitation
by N or co-limitation by N and P may be widespread where natural inputs of
both N and P historically have been low (Bergström et al. 2005, Elser et al.
1990, Maberly et al. 2002). There is also increasing evidence that even small
increases in N supply caused by atmospheric N deposition can increase lake
productivity and shift the trophic structure or the dominant limiting nutrient
in oligotrophic lakes (Elser et al. 2007, Goldman et al. 1993, Maberly et al.
2002, Nydick et al. 2004, Sickman et al. 2003, Smith and Lee 2006, Wolfe
et al. 2003). Because releases of reactive N to the biosphere from fossil fuel
combustion, fertilizers, and leguminous crops have increased dramatically
1Smith College, Northampton, MA 01063. 2The Ecosystems Center, Marine Biological
Laboratory, 7 MBL Street, Woods Hole, MA 02543. 3Bates College, 2 Andrews
Road, Lewiston, ME 04240. *Corresponding author - cneill@mbl.edu.
396 Northeastern Naturalist Vol. 16, No. 3
in recent decades (Galloway 2002, Vitousek et al. 1997), it is likely that the
effects of increased N supply on the trophic status of lakes and ponds in
many regions have been underestimated.
Cape Cod and the coastal plain of southeastern Massachusetts contain
naturally oligotrophic ponds and lakes which lie on nutrient-poor outwash
deposits (LeBlanc et al. 1986). Many of these water bodies are kettle holes
that have no inlet or outlet and undergo seasonal and inter-annual variations
in water level of up to 3 m (McHorney and Neill 2007). Because periodic
flooding of shoreline habitats maintains a diverse shoreline herbaceous flora
(Keddy and Reznicek 1986, Sorrie 1994), coastal plain pond shorelines are
one of the most restricted and imperiled plant communities in the northeastern
US and Canada and are high priorities for conservation (Wisheu and
Keddy 1989, Zaremba and Lamont 1993).
Cape Cod and the coastal plain of southeastern Massachusetts are regions
where residential development has expanded dramatically since the 1970s
(Breunig 2003). Higher density of residences with on-site septic systems
has increased the dissolved N concentrations of regional groundwater, increased
the dissolved N and P concentrations of pond waters, and increased
the number of ponds now classified as eutrophic (Cape Cod Commission
2003). Transport of N in groundwater occurs because the coastal plain lies
over coarse-textured sediments that make up a single aquifer (LeBlanc et al.
1986, Oldale and Barlow 1986). Nitrate concentrations in groundwater in
heavily residential watersheds now commonly exceed 300 μM and are 1 to 2
orders of magnitude greater than concentrations in undeveloped woodlands
(Cape Cod Commission 2003, Kroeger et al. 2006, Portnoy et al. 1998).
Caraco et al. (1987) found that phytoplankton in one Cape Cod freshwater
pond was primarily P limited. However, Smith and Lee (2006) recently
showed that periphyton in 12 ponds in the Cape Cod National Seashore were
predominantly limited either by N or co-limited by N and P.
The ratio of dissolved N to P and its deviation from an average value in
algae of 16 (Redfield et al. 1963) has been used as a general indicator of the
relative availability of N and P in surface waters, and the likelihood that N or
P limits algal growth. The ability to predict N or P limitation from dissolved
concentrations of N and P would have considerable utility for managing
nutrient inputs to lakes and ponds. However, correlations between dissolved
N:P and N or P limitation determined by bioassays are often variable, and
the predictive ability of the ratio of the easily measured dissolved inorganic
N (NH4
+ + NO3
-) to soluble reactive P (SRP) is often poor (Dodds 2003).
We examined the relative importance of N and P as the proximate controls
on the growth of periphyton and phytoplankton in several Cape Cod
coastal plain ponds. We addressed the following questions: 1) does N or P
limit periphyton and phytoplankton growth? 2) does enrichment by chronic
nutrient inputs from groundwater shift limitation of phytoplankton growth
from N to P? and 3) do ratios of dissolved inorganic and organic N and P
predict N or P limitation of periphyton? We tested periphyton response by
measuring chlorophyll-a in growth in situ on diffusing disk bioassays that
contained added N, P, or N+P. We tested phytoplankton responses to the
2009 M. Kniffin, C. Neill, R. MCHorney, and G. Gregory 397
same factors by incubating pond water in mesocosms placed in controlled
environment chambers in the laboratory and measuring chlorophyll-a in particulate
organic matter (POM) filtered from the mesocosms. We conducted
two phytoplankton enrichment experiments. One compared responses to different
treatments in 2 ponds with unimpaired water quality that receive low
nutrient inputs. The other compared responses in 3 ponds that receive
low nutrient inputs with 3 ponds that receive high nutrient inputs. We also
measured NH4
+, NO3
-, SRP, total dissolved N (TDN), and total dissolved P
(TDP) and used these concentrations to examine relationships among nutrient
ratios and periphyton production measured in the bioassays.
Methods
Study ponds
Periphyton nutrient enrichment bioassays and water chemistry sampling
were conducted during June–July, 2006 in 6 ponds with low nutrient inputs
(Israel Pond, Lamson Pond, Mary Dunn Pond, Shallow Pond, Crooked Pond,
and Long Pondlet, Table 1). At the same time, phytoplankton bioassays were
conducted in water collected from Mary Dunn and Crooked ponds. All ponds
were in outwash deposits (Oldale and Barlow 1981). These ponds were
chosen because they represent excellent examples of coastal plain ponds in
locations where surrounding residential development was low. Long Pondlet
dried during occasional years with low ground water levels. Israel and Lamson
ponds dried during years of particularly low water. Mary Dunn Pond,
Crooked Pond, and Shallow Pond retained water in all years.
Phytoplankton nutrient enrichment bioassays were also conducted in
November 2007 in 3 ponds with low nutrient inputs (Mary Dunn, Pine, and
Slough ponds) and 3 ponds with high nutrient inputs (Aunt Betty’s, Cedar,
and Emery ponds) (Table 1). Low-nutrient ponds had low numbers of houses
in their watersheds and had low concentrations of chlorophyll-a (mean =
0.5 μg/L), total N (mean = 0.2 mg/L), and total P (mean = 7 μg/L) (Cape Cod
Commission 2003). High-nutrient ponds had a high density of houses in their
watersheds and high concentrations of chlorophyll-a (mean = 38.8 μg/L), total
N (mean = 0.9 mg/L), and total P (mean = 35 μg/L) (Cape Cod Commission
Table 1. Location and characteristics of study ponds on Cape Cod.
Pond Location Area (ha) Nutrient class Latitude Longitude
Israel Barnstable 3.4 Low 41o40'54" 70o16'45"
Lamson Barnstable 5.2 Low 41o40'58" 70o16'05"
Mary Dunn Barnstable 7.2 Low 41o40'30" 70o16'43"
Shallow Falmouth 4.9 Low 41o36'31" 70o35'12"
Crooked Falmouth 14.3 Low 41o35'54" 70o35'07"
Long Pondlet Falmouth 1.0 Low 41o33'24" 70o36'27"
Aunt Betty’s Barnstable 3.0 High 41o38'51" 70o17'49"
Cedar Falmouth 8.5 High 41o38'55" 70o37'29"
Emery Chatham 5.9 High 41o42'10" 69o58'51"
Pine Brewster 10.0 Low 41o43'15" 70o07'57"
Slough Brewster 13.1 Low 41o43'31" 70o08'14"
398 Northeastern Naturalist Vol. 16, No. 3
2003). These ponds retained water in all years. All ponds had no inlet or outlet,
and pond water levels fluctuated with seasonal and inter-annual variations in
groundwater level. Ponds ranged in size from 1 to 14 ha. Water levels in all
ponds were above their long-term averages during this study.
Periphyton nutrient-enrichment bioassays
The in situ periphyton samplers were constructed by removing the ends
of 50-mL centrifuge tubes and recapping them with disks (2.5 cm diameter,
0.31 cm thick, 70-μm pore size) made of porous polyethylene (Smith and
Lee 2006). A mixture of 2% agar and either N (0.5 M NaNO3), P (0.05 M
Na2HPO4), N+P (0.5 M NaNO3 and 0.05 M Na2HPO4), or no nutrient addition
(control) were added to the centrifuge tubes and then topped with the
porous lids. This allowed nutrients to diffuse from an area of high nutrient
concentration in the tube to an area of low nutrient concentration in the
water surrounding the surface of the polyethylene disk. The nutrient concentrations
added to the agar were equivalent to those of other studies in
freshwater ecosystems (Biggs and Lowe 1994, Fairchild et al. 1985, Higley
et al. 2001, Pillsbury et al. 2002) and allowed for continuous diffusion of
nutrients through the disk. Twelve 50-mL centrifuge tubes (3 replicates for
each treatment) were randomly placed into holes drilled 5 cm apart on 1 m
segments of 8.5-cm diameter PVC pipe. The pipes were attached to a float,
anchored by a cement block, and submerged to a depth of 25 cm below the
surface of the water, keeping all of the treatments at equal depth. Two pipes
were placed in all 6 ponds, approximately 5 m from the shoreline in 1 to 4 m
water depth and 2 to 4 m from each other.
The periphyton nutrient enrichment bioassays were deployed in the
field in 2006 for 22 days beginning on June 23 (Falmouth ponds) and June
26 (Barnstable ponds). After 22 days, the disks were removed from ponds,
wrapped in aluminum foil, and transported on ice to the laboratory where
they were stored at 4 °C in the dark. We analyzed chlorophyll-a on the disks
after extraction with acetone (EPA method 445.0). Each disk was placed in
a 50-mL centrifuge tube with 25 mL of 90% acetone in which chlorophyll-a
was extracted overnight at 4 °C. The disk and acetone were sonicated, and
chlorophyll was quantified on a Turner Designs 111 fluorometer calibrated
with standards of known chlorophyll-a concentrations. Concentrations were
calculated as μg of pigment/100 cm2 of substrate.
Phytoplankton nutrient-enrichment bioassays
The first phytoplankton nutrient enrichment bioassay was conducted
in June–July 2006 in Mary Dunn and Crooked ponds in conjunction with
the periphyton bioassays. Twelve 3.7-L plastic bottles were rinsed twice,
filled with pond water, and transported to the laboratory. Pond water was
then filtered through a 200-μm mesh to remove zooplankton. Two liters of
the filtered water were placed in 3.7-L open-top plastic containers. Each
container received one of four treatments, N (500 μM NaNO3), P (50 μM
Na2HPO4), N+P (500 μM NaNO3 and 50 μM Na2HPO4), or a control with
no nutrient addition (n = 3) (Caraco et al. 1987). The containers were
placed randomly in a growth chamber that simulated daily temperature and
2009 M. Kniffin, C. Neill, R. MCHorney, and G. Gregory 399
light fluctuations of July days at the latitude of Cape Cod. Containers were
bubbled with aquarium airstones to insure they were well mixed. A 200-ml
water sample was collected from each container on days 0, 3, 6, 9, 12, 15,
and 18. Water was filtered through GFF filters and stored in the dark at 4
°C. The filters were then placed in centrifuge tubes, and chlorophyll-a was
extracted as described above.
The second phytoplankton enrichment bioassay was conducted on water
collected November 12, 2007 from Mary Dunn, Pine, Slough, Aunt Betty’s,
Cedar, and Emery Ponds. Two 2-L samples of water from each pond were
assigned control, N, P, and N+P treatments and incubated on a rotary shaker
in a laboratory growth chamber (as above). Controls received no nutrient
addition. The N treatments received 200 μM N as KNO3, the P treatments
received 18 μM P as KH2PO4, and the N+P treatment was enriched in both N
and P. After 14 d, water was filtered through GFF filters, and chlorophyll-a
was extracted as described above.
Water chemistry
We examined the N-to-P ratios in the ponds sampled in 2006 to determine
if the ratios of dissolved N and P could be used to predict periphyton nutrient
limitation measured in the field. Our hypotheses were that ratios that included
total dissolved P (TDP) would be better predictors of algal growth response
than ratios that included just SRP (Dodds 2003, Smith and Lee 2006). We
calculated the ratio of total dissolved N to total dissolved P (TDN:TDP),
dissolved inorganic N (DIN) to total dissolved P (DIN:TDP), and dissolved
inorganic N to dissolved inorganic P (DIN:SRP). Two replicate surface water
samples were collected from Israel, Lamson, and Mary Dunn ponds on June
23 and July 19, 2006; from Shallow Pond, Crooked Pond, and Long Pondlet
on June 26 and July 17, 2006; and from Cedar, Aunt Betty’s, Emery, Pine,
and Slough ponds on November 14, 2007. Samples were filtered in the field
through GFF filters into acid-washed 60-mL plastic bottles, placed on ice,
and stored at 4 °C in the laboratory. Two additional 2-L samples of unfiltered
water were collected for analysis of chlorophyll-a on the same dates.
We measured NH4
+ colorimetrically using the phenol-hypochlorite method
(Strickland and Parsons 1972). Absorbance was read on a Cary 50 Scan
UV-visible spectrophotometer. Nitrate was measured colorimetrically by
Cd reduction on a Lachat flow injection analyzer (Method 31-107-04-1-C).
SRP was determined colorimetrically by the method of Murphy and Riley
(1962). Samples for TDN and TDP were digested with persulfate oxidizing
reagent at 12 to15 psi for 1 h in an autoclave at 240 to250 °C (D’Elia et al.
1977, Koroleff 1983). In the digests, NO3
- was measured on a Lachat flow
injection analyzer (Method 10-107-04-2B), and SRP was measured colorimetrically
as described above. We calculated dissolved organic N (DON) as
TDN - (NH4
+ + NO3
-).
Statistical analysis
In the periphyton bioassay, we used a one-way analysis of variance
(ANOVA) in SAS (Ver. 9.1) to test the effect of nutrient treatment in each
400 Northeastern Naturalist Vol. 16, No. 3
pond. When significant treatment effects were found, we used SAS REGWQ
to determine significant differences among individual treatment means. We
also conducted a three-way ANOVA with pond, treatment, and block (PVC
rack) as main effects. Because the effect of block was never significant,
blocks were subsequently pooled, and a two-way analysis of variance conducted
with pond and treatment as main effects. For the 2006 phytoplankton
bioassay, we tested the effect of nutrient treatment within each pond with a
repeated-measures ANOVA using replicate containers as separate subjects.
We also conducted a two-way ANOVA using the final chlorophyll-a concentration
on day 18 as the dependent variable and pond and nutrient treatment
as the main effects. For the 2007 phytoplankton assays, we tested the effect
of nutrient treatment within each pond using one-way ANOVAs. We then
performed a two-way ANOVA with pond nutrient input class and nutrient
treatment as main effects.
Results
The pH of pond water ranged from 4.4 in Long Pondlet to 6.9 in Mary
Dunn, Crooked, Shallow, Cedar, and Emery ponds. Conductivities ranged
from 27 μS/cm in Long Pondlet to 100 μS/cm in Israel Pond.
In the periphyton bioassay, nutrient treatment had a significant effect
on chlorophyll-a concentration (df = 3,120; F = 40.7; P < 0.0001), but the
effects of pond and pond-by-nutrient interactions were not significant. The
N+P treatment increased periphyton chlorophyll-a in 5 of 6 ponds (Fig. 1),
and chlorophyll-a in the N+P treatment was significantly greater than the
control in all but Crooked Pond (Fig. 1). Periphyton chlorophyll in the Nonly
treatments was higher than the control in all ponds and significantly
greater in two ponds (Long Pondlet and Israel Pond). Periphyton chlorophyll
in the P-only treatment was greater than the control in all ponds and signifi-
cantly greater in one pond (Israel Pond).
In the first phytoplankton bioassay, nutrient treatment increased chlorophyll-
a in both Crooked Pond (df = 3, 8; F = 1332; P < 0.0001) and Mary
Dunn Pond (df = 3, 8; F = 35.9; P < 0.0001). Chlorophyll-a in both ponds
increased in the N+P treatment and responded only slightly to the P-only
treatment in Mary Dunn Pond (Fig. 2). On day 18 of the experiment, there
were significant effects of nutrient treatment (df = 3, 16; F = 59.1; P <
0.0001), pond (df = 1, 16; F = 25.8; P < 0.0001), and pond-by-treatment
interaction (df = 3, 16; F = 25.8; P < 0.0001). The pond-by-treatment interaction
reflected primarily a greater growth response to the N+P treatment in
Mary Dunn Pond compared with Crooked Pond.
In the second phytoplankton bioassay experiment, there was a significant
effect of nutrient treatment on phytoplankton chlorophyll-a (df = 3, 40; F =
163.6; P < 0.0001). Phytoplankton growth also increased in the N+P treatment,
but not in the P-only or N-only treatments (Fig. 3). There was a significant effect of pond nutrient class on phytoplankton response (df = 1, 40;
F = 289.2; P < 0.0001) and a significant interaction between pond nutrient
input class and nutrient treatment (df = 3, 40; F = 73.5; P < 0.0001). The
2009 M. Kniffin, C. Neill, R. MCHorney, and G. Gregory 401
interaction was caused by a greater growth response in the pond receiving
high nutrient inputs (Fig. 3). There was no evidence that increased nutrient
inputs shifted ponds toward P limitation.
Concentrations of NH4
+ were ≤1.4 μM for all ponds (Table 2), and NO3
-
concentrations were <1.0 μM, except for Shallow Pond, which had a
NO3
- concentration of 2.8 μM. DON represented 87 to 99% of TDN in all
ponds (Table 2). Concentrations of SRP were generally similar among ponds
and ranged from 0.04 μM in Slough Pond to 0.22 μM in Long Pondlet and
Pine Pond, except in Emery Pond, where SRP was 3.22 μM. (Table 2). SRP
constituted a minimum of 22% of TDP in Lamson Pond to a maximum of
46% in Mary Dunn Pond.
The ratio of TDN:TDP in surface waters ranged from 73 in Crooked Pond
to 108 in Lamson Pond (Table 2), and all incorrectly suggested P limitation.
Figure 1. Concentrations of chlorophyll-a measured in periphyton bioassays in Cape
Cod coastal plain ponds. F and P values are for one-way analysis of variance (df = 3,
20) of the effect of nutrient treatment within each pond. Error bars are ± 1 standard
error. Treatments with the same letters within each pond were not significantly different
(PROC REGWQ in SAS).
402 Northeastern Naturalist Vol. 16, No. 3
The ratio of DIN:TDP ranged from 1.2 in Lamson Pond to 9.3 in Shallow
Pond (Table 2). Based on the assumption that DIN:TP of <0.5 predicts N
limitation, DIN:TP of >4.0 predicts P limitation, and intermediate ratios are
associated with co-limitation by N and P (Lafrancois et al. 2003), DIN:TDP
predicted periphyton response in only 3 of 6 ponds (Israel, Lamson, and
Mary Dunn). DIN:SRP ranged from 4.9 in Mary Dunn Pond to 35.4 in Shallow
Pond, and based on the Redfield ratio of 16:1, came close to predicting
limitation only in Crooked Pond, where N and P were co-limiting and
DIN:DIP was 11.9.
Discussion
Modest responses to N or P alone, coupled with large responses to N and
P in combination, indicated that N and P were generally strongly co-limiting
to both periphyton and phytoplankton in most ponds. This result implies an
important role for N in the control of periphyton and phytoplankton in Cape
Cod coastal plain ponds, and supports recent work that also found co-limitation
of periphyton by N and P to be the dominant pattern in other ponds in
the Cape Cod region (Smith and Lee 2006). Similar responses of periphyton
Figure 2. Concentrations
of
w a t e r- c o l u m n
c h l o r o p h y l l - a
in 2006 growthchamber
bioassays
in two low
nutrient input
ponds. Error bars
are ± 1 standard
error. Treatments
with the same letters
within each
pond were not
significantly different
on day 18
(PROC REGWQ
in SAS).
2009 M. Kniffin, C. Neill, R. MCHorney, and G. Gregory 403
and phytoplankton to N and P in Crooked and Mary Dunn ponds, where assays
of both types of algae were measured, also suggested that periphyton and
phytoplankton responded similarly to N and P. Our finding of strong N and P
co-limitation differed from previous work on Cape Cod that examined N and
P limitation along salinity gradients from fresh water to estuaries and concluded
that P limitation predominated in fresh water (Caraco et al. 1987).
Although DIN:TDP was the best predictor of periphyton response to
nutrient enrichment, we found that no ratios consistently predicted periphyton
nutrient limitation. This finding indicated that nutrient ratios should be
Figure 3. Concentrations of water column chlorophyll-a in growth chamber bioassays.
Aunt Betty’s, Cedar, and Emery ponds receive high nutrient inputs, Mary
Dunn, Pine, and Slough ponds receive low nutrient inputs. F and P values are for
one-way analysis of variance (df = 3, 7) of the effect of nutrient treatment within each
pond. Error bars are ±1 standard error. Treatments with the same letters within each
pond were not significantly different (PROC REGWQ in SAS).
Table 2. Water chemistry variables (in μM) and molar N:P ratios for surface water samples taken
in the six ponds during June and July 2006.
Pond NO3
- NH4
+ DON TDN SRP TDP TDN:TDP DIN:TDP DIN:SRP
Israel 0.06 0.58 30.72 31.36 0.12 0.36 86.7 1.8 5.5
Lamson 0.16 0.30 40.01 40.47 0.08 0.37 108.4 1.2 6.0
Mary Dunn 0.01 0.79 19.67 20.47 0.16 0.35 58.2 2.3 4.9
Shallow 2.79 1.40 29.02 33.21 0.12 0.45 73.7 9.3 35.4
Crooked 0.97 0.39 17.15 18.51 0.11 0.25 73.3 5.4 11.9
Long Pondlet 0.74 0.88 60.86 62.48 0.22 0.58 107.9 2.8 7.4
Aunt Betty’s 11.33 0.06 0.13 87.6
Cedar 6.26 0.04 0.15 42.0
Emery 8.14 0.28 3.22 2.6
Pine 2.62 0.04 0.22 12.1
Slough 2.60 0.04 0.04 66.0
404 Northeastern Naturalist Vol. 16, No. 3
used with caution to predict the relative importance of N versus P limitation
of periphyton growth. We lacked a complete set of ratios to assess their effectiveness
in predicting phytoplankton growth. In contrast to our results,
Smith and Lee (2006) found that the ratio of DIN:total P generally predicted
N or P limitation of periphyton in ponds in the Cape Cod National Seashore.
Maberly et al. (2002) found the same for English lakes. We did not measure
total P on unfiltered water that would have allowed a direct comparison
with these studies. We did, however, also find that TDN:TDP and DIN:SRP
were poor predictors of the results of periphyton bioassays. The failure of
DIN:SRP ratios to predict periphyton nutrient limitation was consistent with
Dodds’ (2003) argument that DIN:SRP is not a reliable predictor of nutrient
limitation or trophic status, especially when SRP concentrations are low.
Our results support a growing body of evidence that co-limitation of lake
algae by N and P occur frequently and that co-limitation of N and P predominates
over P limitation. Elser et al. (1990) found that across a survey of 62
lakes, the frequency and degree of algal response did not differ for N or P
enrichment and that N and P together were required to produce a substantial
algal response. Other evidence for the importance of N limitation or strong
N and P co-limitation comes from a range of lakes in Sweden (Bergström et
al. 2005), the Rocky Mountains (Lafrancois et al. 2003, Nydick et al. 2004,
Wolfe et al. 2003) and the Sierra Nevada (Goldman et al. 1993, Sickman et
al. 2003) of North America, upland English lakes (Maberly et al. 2002), and
Spanish lakes (Camacho et al. 2003).
There is also growing evidence that 1) low levels of chronic inputs of
atmospheric N deposition have shifted algal species composition in lakes in
regions that historically received relatively little N deposition, and 2) most
of the changes have taken place during the last 40 years (Baron et al. 2000,
Saros et al. 2003, Sickman et al. 2003, Wolfe et al. 2001). Over time, even
these low levels of annual anthropogenic N inputs can shift lakes from N
limitation to P limitation (Bergström et al. 2005, Goldman et al. 1993). We
found no evidence that chronic N inputs have shifted phytoplankton to P
limitation in Cape Cod ponds. In fact, we found greater total phytoplankton
growth in response to the N+P treatment in the high-nutrient ponds,
although, relative to the control, growth in the N+P treatment was similar in
both low-nutrient and high-nutrient ponds.
High-nutrient ponds apparently receive inputs of P from their watersheds
even though the area of farmland in all pond watersheds was negligible and
all sewage treatment was by on-site septic systems that efficiently remove
P (Valiela et al. 1997). The high-nutrient ponds had higher total P (Cape
Cod Commission 2003), and we measured higher mean SRP in the highnutrient
ponds (1.17 ± 0.13 μM) compared with the low-nutrient ponds
(0.13 ± 0.02 μM). Together, these pieces of evidence indicate that greater
attention should be given to N and to N and P in combination when assessing
the controls and threats to nutrient enrichment of fresh waters in the Cape
Cod region.
The common co-limitation of periphyton and phytoplankton by N and P
has important implications for the ecological function and conservation of
2009 M. Kniffin, C. Neill, R. MCHorney, and G. Gregory 405
the roughly 1000 freshwater ponds and more than 300 coastal plain ponds that
occur on Cape Cod and in southeastern New England (Cape Cod Commission
2003, Corcoran 2002). First, because periphyton in all ponds responded modestly
to additions of N alone, it is likely that increased delivery of dissolved
N to ponds from the regional groundwater increases periphyton growth. The
same general pattern of co-limitation by N and P was reported by Smith and
Lee (2006). Second, N from atmospheric deposition and septic systems are
the dominant sources of N to groundwater on Cape Cod because N deposition
and residential development are relatively high, but land area in agriculture is
very low. This deposition and land use, together with sandy soils that result in
rapid soil water infiltration, minimal surficial runoff, and high retention of P
relative to N in iron-rich soils, typically lead to relatively high N loading but
low P loading via regional groundwater (Valiela et al. 1997). The combination
of both high N loading and the sensitivity of periphyton to increased N supply
indicate that regional increases in watershed N loads constitute an important
and underappreciated influence on the trophic status of coastal plain ponds.
Strong co-limitation of both periphyton and phytoplankton by N and P suggests
that the overall magnitude of the effects of increased N loading to ponds
will be limited by the supply of P. Because periodic water-level fluctuations
in wetlands can lead to P release from recently flooded sediments (DeLaune
et al. 1976, Kadlec 1986), the natural re-flooding of coastal plain pond shorelines
may lead to greater stimulation of periphyton and phytoplankton if it is
now accompanied by higher N supply caused by N enrichment of the regional
ground-water. While algae blooms in Cape Cod ponds are now common (Cape
Cod Commission 2003), changes in the magnitude or frequency of blooms and
their relationship to water-level fluctuations have not been documented.
Whether increased periphyton or phytoplankton growth in coastal plain
ponds constitutes a threat to the diverse assemblage of shoreline and submersed
species of conservation concern is not known. However, increased
N supply is associated with lower species diversity in many ecosystems
(Bobbink et al. 1998, Gross et al. 2005, Tilman 1987). Greater periphyton or
phytoplankton production could interact in a number of ways with the life history
of shoreline or submersed species to reduce species cover or diversity.
These potential effects include increased seed mortality, decreased seedling
survival caused by greater algal cover, or competitive exclusion during the
seedling stage caused by higher growth of a small number of fast-growing species.
These interactions deserve increased attention as specific mechanisms
that link plant diversity and N loading in coastal plain ponds and in other fresh
water bodies that harbor significant reservoirs of plant diversity and where increased
N and P loading may result in substantial changes to algal growth and
trophic status.
Acknowledgments
Financial support was provided by the Massachusetts Environmental Trust,
the National Science Foundation Research Experience for Undergraduates, and
the MBL’s Semester in Environmental Science. We thank Ivan Valiela, Anne Giblin,
406 Northeastern Naturalist Vol. 16, No. 3
Paulette Peckol, and Ken Foreman for assistance and comments on earlier drafts of
this manuscript.
Literature Cited
Baron, J.S., H.M. Rueth, A.M. Wolfe, K.R. Nydick, E.J. Allstott, J.T. Minear, and
B. Moraska. 2000. Ecosystem responses to nitrogen deposition in the Colorado
Front Range. Ecosystems 3:352–368.
Battarbee, R.W., C.J. Curtis, and H.A. Binney. 2005. The future of Britain’s upland
waters. Environmental Change Research Centre, University College, London, UK.
Bergström, A.-K., P. Blomqvist, and M. Jansson M. 2005. Effects of atmospheric
nitrogen deposition on nutrient limitation and phytoplankton biomass in unproductive
Swedish lakes. Limnology and Oceanography 50:987–994.
Biggs, B.J., and R.L. Lowe. 1994. Responses of two trophic levels to patch enrichment
along a New Zealand stream continuum. New Zealand Journal of Marine
and Freshwater Research 28:119–134.
Bobbink, R., M. Hornung, and J.G.M. Roelofs. 1998. The effects of air-borne nitrogen
pollutants on species diversity in natural and semi-natural European vegetation.
Journal of Ecology 86:717–738.
Breunig, K. 2003. Losing ground: At what cost? Changes in land use and their impact
on habitat, diversity, and ecosystem services in Massachusetts. Massachusetts
Audubon Society, Lincoln, MA.
Camacho, A. W.A. Wurtsbaugh, M.R. Miracle, X. Armengol, and E. Vicente. 2003.
Nitrogen limitation of phytoplankton in a Spanish karst lake with a deep chlorophyll
maximum: A nutrient enrichment bioassay approach. Journal of Plankton
Research 25:397–404.
Cape Cod Commission. 2003. Cape Cod pond and lake atlas. Cape Cod Commission,
Barnstable, MA.
Caraco, N., A. Tamse, O. Boutros, and I. Valiela. 1987. Nutrient limitation of phytoplankton
growth in brackish coastal ponds. Canadian Journal of Fisheries and
Aquatic Sciences 44:473–476.
Carpenter, S.R., N.F. Caraco, D.L. Correll, R.W. Howarth, A.N. Sharpley, and V.H.
Smith. 1998. Nonpoint pollution of surface water with nitrogen and phosphorus.
Ecological Applications 8:559–568.
Corcoran, C. 2002. Coastal plain pondshore project final report. Massachusetts Natural
Heritage and Endangered Species Program, Westborough, MA.
DeLaune, R.D., W.H. Patrick, Jr., and J.M. Brannon. 1976. Nutrient transformations
in Louisiana salt marsh soils. Sea Grant Publication No. LSU-T-76-009. Center
for Wetland Resources, Louisiana State University, Baton Rouge, LA.
D’Elia, C.F., P.A. Steudler, and N. Corwin. 1977. Determination of total nitrogen in
aqueous sample using persulfate digestion. Limnology and Oceanography 22:
760–764.
Dilon, P.J., and F.H. Rigler. 1974. The phosphorus-chlorophyll relationship in lakes.
Limnology and Oceanography 19:767–773.
Dodds, W.K. 2003. Misuse of inorganic N and soluble reactive P concentrations to
indicate nutrient status of surface waters. Journal of the North American Benthological
Society 22:171–181.
Elser, J.J., E.R. Marzolf, and C.R. Goldman. 1990. Phosphorus and nitrogen limitation
of phytoplankton growth in freshwaters of North America: A review and
critique of experimental enrichments. Canadian Journal of Fisheries and Aquatic
Sciences 47:1468–1477.
2009 M. Kniffin, C. Neill, R. MCHorney, and G. Gregory 407
Elser, J.J., M.E.S. Bracken, E.E. Lleland, D.S. Gruner, W.S. Harpole, H. Hildenbrand,
J.T. Ngai, W.E. Seabloom, J.B.Shurin, and J.E. Smith. 2007. Global analysis of
nitrogen and phosphorus limitation of primary producers in freshwater, marine,
and terrestrial ecosystems. Ecology Letters 10:1135–1142.
Fairchild, G.W., R.L. Lowe, and W.B. Richardson. 1985. Algal periphyton growth on
nutrient-diffusing substrates: An in situ bioassay. Ecology 66:465–472.
Galloway, J.N. 2002. Reactive nitrogen: Too much of a good thing? Ambio 31:60–63.
Goldman, C.R., A.D. Jassby, and S.H. Hackley. 1993. Decadal, interannual, and
seasonal variability in enrichment bioassays at Lake Tahoe, California-Nevada,
USA. Canadian Journal of Fisheries and Aquatic Sciences 50:1489–1496.
Gross, K.L., G.G. Mittlebach, and H.L. Reynolds. 2005. Grassland invasibility
and diversity: Responses to nutrients, seed inputs, and disturbance. Ecology
86:476–486.
Higley, B., H.J. Carrick, M.T. Brett, C. Luecke, and C.R. Goldman. 2001. The effects
of ultraviolet radiation and nutrient additions on periphyton biomass and
composition in a sub-alpine lake (Castle Lake, USA). International Review of
Hydrobiology 86:147–163.
Kadlec, J.A. 1986. Effects of flooding on dissolved and suspended nutrients in
small diked marshes. Canadian Journal of Fisheries and Aquatic Sciences
43:1999–2008.
Keddy, P.A., and A.A. Reznicek. 1986. Great Lakes vegetation dynamics: The role
of fluctuating water levels and buried seeds. Journal of Great Lakes Research
12:25–36.
Koroleff, F. 1983. Determination of total phosphorus by acid persulphate oxidation.
Pp. 134–136, In K. Grasshoff, M. Erhardt, and K. Kremling (Eds.). Methods of
Seawater Anaylsis. Verlag Chemie, Weinheim, Germany.
Kroeger, K.D., M.L. Cole, J.K. York, and I. Valiela. 2006. Nitrogen loads to estuaries
from wastewater plumes: Modeling and isotopic approaches. Groundwater
44:188–200
Lafrancois, B.M., K.R. Nydick, and B. Caruso. 2003. Influence of nitrogen on phytoplankton
biomass and community composition in fifteen Snowy Range Lakes
(Wyoming, USA). Arctic Antarctic and Alpine Research 35:499–508.
LeBlanc, D.R., J.H. Guswa, M.H. Grimpter, and C.J. Londquist. 1986. Groundwater
resources of Cape Cod, Massachusetts. US Geological Survey Hydrological Investigations
Atlas HA-692. US Geological Survey, Reston, VA.
Maberly, S.C., L. King, M. Dent, R.I. Jones, and C.E. Gibson. 2002. Nutrient limitation
of phytoplankton and periphyton growth in upland lakes. Freshwater Biology
47:2136–2152.
McHorney, R., and C. Neill. 2007. Alteration of water levels in a Massachusetts
coastal plain pond subject to municipal groundwater withdrawals. Wetlands
27:366–380.
Murphy, J.H., and J.P. Riley. 1962. A modified single-solution method for determination
of phosphate in natural waters. Analytica Chemica Acta 27:31–36.
Nydick, K.R., B. M. Lafrancois, J.S. Baron, and B.M. Johnson. 2004. Nitrogen
regulation of algal biomass, productivity, and composition in shallow mountain
lakes, Snowy Range, Wyoming, USA. Canadian Journal of Fisheries and Aquatic
Sciences 61:1256–1268.
Oldale, R.N., and R.A. Barlow. 1986. Geologic map of Cape Cod and the Islands,
Massachusetts. US Geological Survey, Reston, VA. Miscellaneous Investigations
Series Map I-1763, 1 plate, scale 1:100,000.
408 Northeastern Naturalist Vol. 16, No. 3
Pillsbury, R.W., R.L. Lowe, Y. Pan, and J.L. Greenwood. 2002. Changes in the benthic
algal community and nutrient limitation in Saginaw Bay, Lake Huron during
the invasion of the Zebra Mussel (Dreissena polymorpha). Journal of the North
American Benthological Society 21:238–252.
Portnoy, J.W., B.L. Nowicki, C.T. Roman, and D.W. Urish. 1998. The discharge of
nitrate-contaminated groundwater from developed shoreline to marsh-fringed
estuary. Water Resources Research 34:3095–3014.
Redfield, A.C., B.H. Ketchum and F.A. Richards. 1963. The influence of organisms
on the composition of seawater. Pp. 26–77, In M.N. Hill (Ed.). The Sea. Wiley
Interscience, NY.
Saros, J.E., S.J. Interlandi, A.P. Woolfe, and D.R. Engstrom. 2003. Recent changes in
the diatom community structure of lakes in the Beartooth Mountain Range, USA.
Arctic, Antarctic, and Alpine Research 35:18–23.
Schindler, D.W. 1977. Evolution of phosphorus limitation in lakes. Science
195:260–262.
Sickman, J.O., J.M. Melack, and D.W. Clow. 2003. Evidence for nutrient enrichment
of high-elevation lakes in the Sierra Nevada, California. Limnology and Oceanography
48:1885–1892.
Smith, S., and K. Lee. 2006. Responses of periphyton to artificial nutrient enrichment
in freshwater kettle ponds of Cape Cod National Seashore. Hydrobiology
571:201–211.
Sorrie, B.A. 1994. Coastal plain ponds in New England. Biological Conservation
68:225–233.
Strickland, J.D.H., and T.R. Parsons. 1972. A Practical Handbook of Seawater
Analysis. Fisheries Research Board of Canada Bulletin 167 (Second Edition),
Ottawa, ON, Canada.
Tilman, D. 1987. Secondary succession and the pattern of plant dominance along
experimental nitrogen gradients. Ecological Monographs 57:189–214.
Valiela, I., J. Kremer, K. Lajtha, M. Geist, B. Seely, J. Brawley, and C.H. Sham.
1997. Nitrogen loading from coastal watersheds to receiving estuaries: A new
method and application. Ecological Applications 7:358–380.
Vitousek, P.M., J.D. Aber, R.W. Howarth, G.E. Likens, P.A. Matson, D.W. Schindler,
W.H. Schlesinger, and D.G. Tilman. 1997. Human alteration of the global nitrogen
cycle: Sources and consequences. Ecological Applications 7:737–750.
Vollenweider, R.A. 1976. Advances in defining critical loading levels for phosphorus
in lake eutrophication. Memorie dell'Istituto Italiano di Idrobiologia 33:53–83.
Wisheu, I.C., and P.A. Keddy. 1989. The conservation and management of a threatened
coastal plain plant community in eastern North America (Nova Scotia,
Canada). Biological Conservation 48:229–238.
Wolfe, A.P., J.S. Baron, and R.J. Cornett. 2001. Anthropogenic nitrogen deposition
induces rapid ecological changes in alpine lakes of the Colorado Front Range
(USA). Journal of Paleolimnology 25:1–7.
Wolfe, A.P., A.C. Van Gorp, and J.S. Baron. 2003. Recent ecological and biogeochemical
changes in alpine lakes of Rocky Mountain National Park (Colorado, USA): A
response to anthropogenic nitrogen deposition. Geobiology 3:153–168.
Zaremba, R.E., and E.E. Lamont. 1993. The coastal plain pondshore community in
New York. Bulletin of the Torrey Botanical Club 120:180–187.
