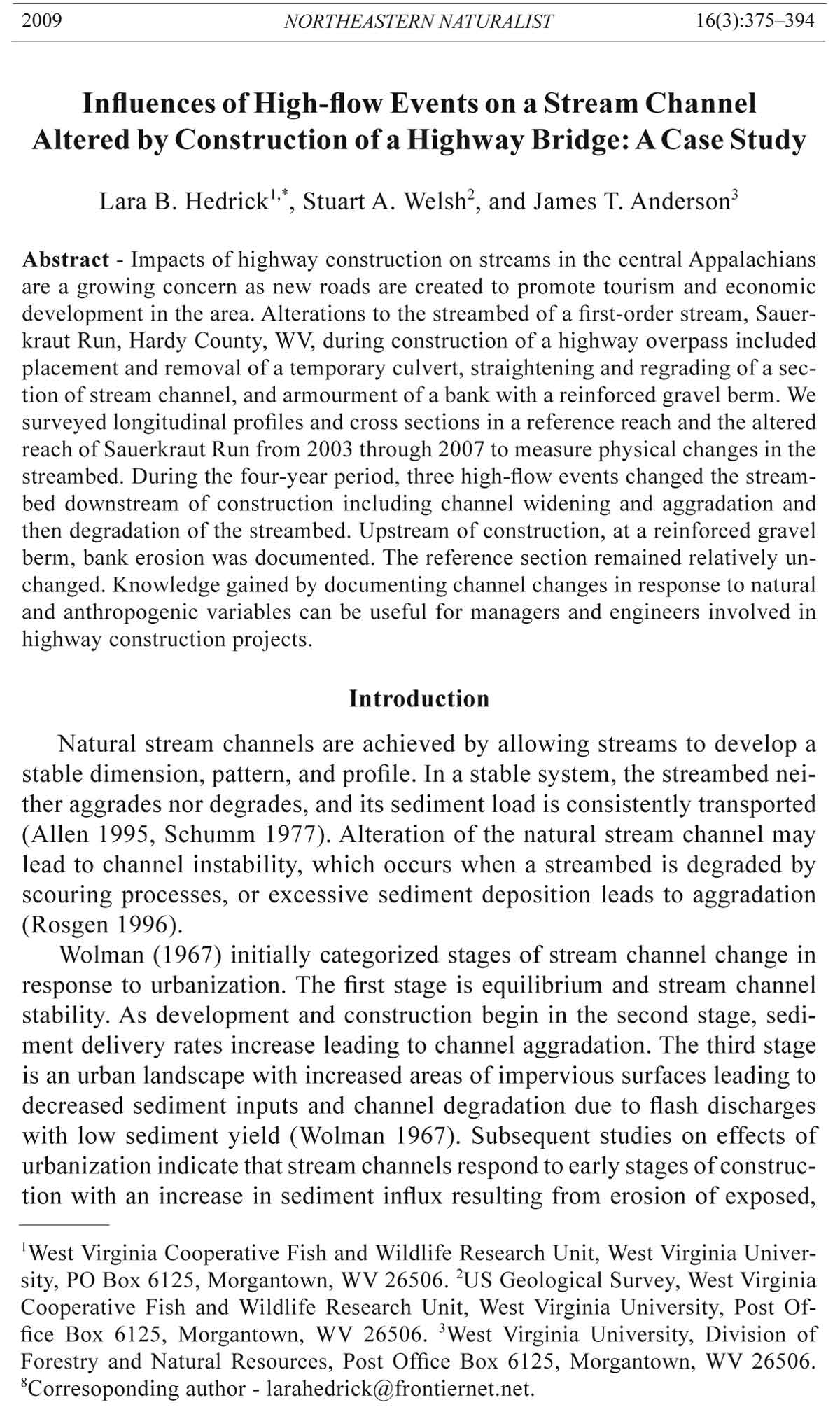

2009 NORTHEASTERN NATURALIST 16(3):375–394
Influences of High-flow Events on a Stream Channel
Altered by Construction of a Highway Bridge: A Case Study
Lara B. Hedrick1,*, Stuart A. Welsh2, and James T. Anderson3
Abstract - Impacts of highway construction on streams in the central Appalachians
are a growing concern as new roads are created to promote tourism and economic
development in the area. Alterations to the streambed of a first-order stream, Sauerkraut
Run, Hardy County, WV, during construction of a highway overpass included
placement and removal of a temporary culvert, straightening and regrading of a section
of stream channel, and armourment of a bank with a reinforced gravel berm. We
surveyed longitudinal profiles and cross sections in a reference reach and the altered
reach of Sauerkraut Run from 2003 through 2007 to measure physical changes in the
streambed. During the four-year period, three high-flow events changed the streambed
downstream of construction including channel widening and aggradation and
then degradation of the streambed. Upstream of construction, at a reinforced gravel
berm, bank erosion was documented. The reference section remained relatively unchanged.
Knowledge gained by documenting channel changes in response to natural
and anthropogenic variables can be useful for managers and engineers involved in
highway construction projects.
Introduction
Natural stream channels are achieved by allowing streams to develop a
stable dimension, pattern, and profile. In a stable system, the streambed neither
aggrades nor degrades, and its sediment load is consistently transported
(Allen 1995, Schumm 1977). Alteration of the natural stream channel may
lead to channel instability, which occurs when a streambed is degraded by
scouring processes, or excessive sediment deposition leads to aggradation
(Rosgen 1996).
Wolman (1967) initially categorized stages of stream channel change in
response to urbanization. The first stage is equilibrium and stream channel
stability. As development and construction begin in the second stage, sediment
delivery rates increase leading to channel aggradation. The third stage
is an urban landscape with increased areas of impervious surfaces leading to
decreased sediment inputs and channel degradation due to flash discharges
with low sediment yield (Wolman 1967). Subsequent studies on effects of
urbanization indicate that stream channels respond to early stages of construction
with an increase in sediment influx resulting from erosion of exposed,
1West Virginia Cooperative Fish and Wildlife Research Unit, West Virginia University,
PO Box 6125, Morgantown, WV 26506. 2US Geological Survey, West Virginia
Cooperative Fish and Wildlife Research Unit, West Virginia University, Post Office Box 6125, Morgantown, WV 26506. 3West Virginia University, Division of
Forestry and Natural Resources, Post Office Box 6125, Morgantown, WV 26506.
8Corresoponding author - larahedrick@frontiernet.net.
376 Northeastern Naturalist Vol. 16, No. 3
unvegetated channel banks (Urbana and Rhoads 2003) and the land surface
due to recontouring and leveling (Wohl 2000). Enlargement of the floodplain
can occur as sediment material the stream cannot carry is deposited as floodplain
alluvium (Graf 1975). Additional responses to increased urbanization
include channel widening (Colosimo and Wilcock 2007, Grabel and Harden
2006, Hammer 1972), channel incision (Booth 1990, Doyle et al. 2000), erosion
of unarmoured banks, and aggradation of the streambed (Colosimo and
Wilcock 2007, Grabel and Harden 2006, Hess and Johnson 2001).
Road construction along stream corridors, including road crossing
and stream channel alteration, changes the structure, function, and stability
of stream channels (Albanese and Matlack 1998, King and Ball 1965). Road
crossings such as bridges and culverts can influence stream hydraulics and
sediment transport (Duck 1985; Johnson 2002, 2006). Bridges and culverts
often restrict flow across the floodplain due to high embankments or approaches
to the bridge or culvert. Bridges can either be single span, with no
pillars in the stream, or multiple span, with one or more pillars in the stream.
Pillars in the stream alter the natural flow regime and cause scouring upstream,
and deposition downstream. A stream channel that was straightened
and constricted with steep banks may not allow flow to intercept the floodplain.
The importance of the floodplain is to dissipate the energy of flows
exceeding the effective discharge (Ward et al. 2002). If a culvert is present,
water can back-up upstream creating localized channel widening. If the flow
is forced to remain in the channel instead of intercepting the floodplain, it
will increase the sheer stress and velocity, resulting in bank erosion and failure,
and streambed degradation (Graf 1975, Johnson 2002, Richardson and
Davis 2001).
Roads that cross a stream at mid-slope and bridge spans built on cut-andfill material can be sources for debris flows. Debris flows are rapid movements
of soil, sediment, and organic matter down steep stream channels. Heavy
rains can trigger landslides of the fill material and, if near a stream, can result
in a debris flow. Debris flows can move downstream, encounter a road or
culvert, and either continue movement of fill downstream or deposit it. The
major impact of debris flows is movement and rearrangement of sediment.
Debris flows mainly occur during floods and are most severe on small, steep
stream segments (Jones et al. 2000). If the stream cannot carry the sediment
load, it may be deposited on the floodplain, creating new sediment bars, and
enlarging current ones by vertical accretion (Graf 1975).
The stability of a stream is associated with a balance between variables
such as width, depth, velocity, slope, sediment volumes, and sediment sizes.
Changes in a stream’s dimension, pattern, and profile due to changes in
these variables can result in deteriorated water quality (Trimble 1997, US
EPA 1994), reduction in quality and diversity of habitat, negative impacts on
aquatic communities (Jones et al. 1999, Rabeni and Smale 1995), and land
loss through erosion (Hammer 1972, Rosgen 1996). Monitoring a stream
over time can be used to determine if the stream is aggrading, degrading, or
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 377
laterally eroding, and can provide information on stream response to alteration.
This article presents a case study of a first-order stream that was altered
by channelization, placement and then removal of a culvert, and creation
of a reinforced gravel berm in association with construction of a highway
overpass. During construction of a highway overpass across the stream,
four periods of high flows were documented. We predicted that changes to
the streambed associated with road construction would cause a decrease in
stream stability that we would be able to document through measurements of
longitudinal profile and stream cross-sectional area. Our objectives were to
collect data from a reference reach upstream of the construction zone and an
altered reach within and downstream of the construction zone, and compare
these to determine if construction activity and channel alteration affected
streambed response to high-flow events.
Site Description
Sauerkraut Run, a tributary to the Lost River, is located in the eastern
panhandle of West Virginia (Fig. 1). The average bankfull width of the
stream is 7.20 m (± 1.45 m), average water depth is 0.20 m (± 0.13 m), and
stream slope is approximately 2%. This first-order stream is paralleled by
a rural road and is culverted in several locations. Sauerkraut Road was included
into the state highway system by legislative action in the 1930s. Prior
to that, it was maintained by the county as a dirt and gravel road. In 1999,
it was surface-treated with asphalt, and the downstream-most section of the
stream was channelized.
Construction over Sauerkraut Run began in April 2002, and a new temporary
culvert was placed across the stream in the construction zone for access
by heavy machinery and construction crews. Streamside vegetation was
cleared along a 100-m stretch within the construction zone, and a reinforced
gravel berm was created to direct the stream flow through this channelized
reach (Fig. 2).
During this study, Sauerkraut Run experienced four high-flow events.
Flow measurements were obtained from a USGS gauge located on Waites
Run, a neighboring tributary of the Lost River. There was a high correlation
(r2 = 0.98) between flow data collected on site and data obtained from the
USGS gauge. High flows during November 2002 scoured the streambed
downstream of the temporary culvert, changing the morphology of the
streambed. A second high-flow event occurred as a result of Hurricane Isabel’s
influence in September 2003. The eastern panhandle of West Virginia
received 7.5 to 10 cm of total precipitation between September 19 and 21,
2003 (Southeast Regional Climate Center, www.sercc.com). In December
2003, a third period of high flow was recorded. During the first week of
September 2004, heavy rains and high flows resulting from the effects of
Hurricane Frances caused Sauerkraut Run to reach flood stage. The stream
washed out many of the state crossings and pre-existing culverts, and ran
over the road in several places. The West Virginia Department of Highways
378 Northeastern Naturalist Vol. 16, No. 3
repaired the road and stabilized pre-existing culverts during the week of
September 6–10, 2004. They also removed the temporary culvert within the
construction zone.
Methods
Longitudinal profile
We surveyed a longitudinal profile of Sauerkraut Run during July 2004,
October 2004, November 2005, and March 2007. The survey covered 670 m
of stream length, beginning one channel unit upstream from the most-upstream
cross section, at the head of a pool, and continuing to the State Route
55 bridge located downstream from highway construction (Fig. 2). Channel
units are homogeneous areas in a channel that differ in depth and velocity
from adjoining areas. The term is generally used for small to midsize streams
and refers to pools and riffles (Bisson et al. 2006). The longitudinal profile
Figure 1. Location
of the
Lost River
watershed and
S a u e r k r a u t
Run, a first
order tributary
of the Lost
River, Hardy
County, WV.
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 379
consisted of a reference reach (approximately 330 m) and an altered reach
(approximately 337 m) (Fig. 2). We surveyed the longitudinal profile with an
engineering level (Transit Level by David White, Universal LT8-300P model
8871) and survey (stadia) rod and established permanent benchmarks where
necessary along the stream to enable the surveyor to view the rod throughout
the length of the profile. Elevations were referenced to the local benchmark
with an assigned an elevation of 30.5 m. At the beginning of each channel
Figure 2. Locations of cross-sectional surveys along the longitudinal-profile survey
of Sauerkraut Run.
380 Northeastern Naturalist Vol. 16, No. 3
unit (head of riffle, head of run, head of pool), features including left bankfull,
left edge of water, thalweg, water surface, right edge of water, and right
bankfull, were surveyed.
Cross-sectional surveys
We established four cross sections on Sauerkraut Run, two in each of the
reaches: a reference reach upstream of construction, and an altered reach
downstream of construction (Fig. 2). Reference Reach 1 cross section was
located 7.5 m upstream from a permanent culvert on Sauerkraut Run; Reference
Reach 2 cross section was located 78 m upstream of the construction
site and had unaltered banks of native vegetation and a riparian zone width
of 45 m; Altered Reach 1 cross section was located 108 m upstream from
the site of a temporary culvert (removed in September 2004) at a reinforced
gravel stream bank; and Altered Reach 2 cross section was located downstream
from the temporary culvert, and 23 m upstream from the State Route
55 bridge crossing. We originally surveyed cross sections in 2003, and
resurveyed them in 2004, 2005, and 2007. We took distance and elevation
readings at 0.305-m intervals, at obvious breaks in the slope, and at major
features associated with the stream, including bankfull, edge of water, thalweg,
and any bar formations. At each cross section, a permanent benchmark
(a piece of 1.25-cm diameter rebar driven into the ground) was established
on a stable site above the bankfull channel, and elevations were referenced
to the local benchmark.
Changes over time in cross sections determine vertical stability of the
streambed, and differences over time in the longitudinal profile document
changes in stream length, gradient, riffle frequency, and maximum pool
depth. We determined the change in cross-sectional area (ΔA) as scour or
degradation (a negative value) or as fill or aggradation (a positive value).
We also used four indices described by Olson-Rutz and Marlow (1992) to
assess changes in stream cross sections: net percent change in area, absolute
percent change in area, width/depth ratio, and Gini coefficient.
Net percent change in area (ΔA%) quantifies the net change in crosssectional
area of a transect. It can be a positive or negative value depending
on whether the channel is experiencing aggradation and degradation. However,
if erosion in one part of the channel equals the amount of deposition in
another, the value could approach zero, indicating little change in the stream
channel. The absolute percent change in area (|ΔA%|) quantifies cumulative
channel change ((|ΔA%|) = erosion + deposition), and represents the total
amount of streambed material movement between two surveying dates.
The width/depth ratio (w/d) is a relative index of channel shape. Width is
the total distance across the channel, and depth is the mean depth of the
channel. Channels with high w/d ratios tend to be shallow and wide, and
those with low w/d ratios tend to be narrow and deep. The Gini coefficient
(G) describes changes to channel cross-sectional shape. The direction and
magnitude of change in the Gini coefficient over time describes whether a
channel is becoming wider and shallower or narrower and deeper in response
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 381
to management or natural events. Wide, flat channels have low G values,
and deep, narrow channels have G values near 1. When the Gini coeffi-
cient is calculated from pre- and post-treatment scenarios, the difference
(diff) in G (Gdiff = Gpost - Gpre) describes the direction of channel change.
Positive differences indicate the channel is becoming deeper and narrower.
Negative differences indicate the channel is becoming shallower and wider.
(Olson-Rutz and Marlow 1992).
Measurements were taken at identical points along the transect to compare
different dates. Data collected were aligned at 0.305-m intervals, and
any points missing were extrapolated using distance and depth from closest
known points on either side. Data may have become misaligned in the field
when important features, such as gravel bars, were surveyed in at smaller
increments than 0.305 m.
Stream cross-section measurement dates were given a designation of post
high-flow or normal flow. Post high-flow designation meant that a high-flow
event occurred during the time period between the two sampling events, otherwise
a designation of normal flow was used. Flow data were obtained from
a USGS gauge located on Waites Run, a neighboring tributary of the Lost
River. We compared stream cross-sectional area, and other indices (ΔA%
and |ΔA%|) for post high-flow and normal-flow cross sections at reference
and altered locations using analysis of variance (ANOVA).
At three of the cross sections (Reference Reach 1, Reference Reach 2, and
Altered Reach 2), three metal-link scour chains were established across the
stream (Laronne et al. 1994, Lisle and Eads 1991). The chains were installed
vertically in the streambed and included a duckbill anchor attached to a 0.6-m
long section of galvanized chain driven into the streambed with a drive rod.
We removed extra exposed chain with a pair of metal cutters so that only two
links remain exposed. One scour chain was placed near the right edge, one
near the center of the stream, and one near the left edge of the stream. Locations
of the scour chains were surveyed in as features in the cross sections.
Scour was monitored by counting the number of chain links exposed after a
high-flow event. We measured fill by determining the thickness of the sediment
layer deposited on top of the originally exposed links. Scour chains also
can be used to detect scour-before-fill. When a streambed is first scoured it will
expose some links that will lie horizontally. If the streambed is then subjected
to sediment deposition, those links will be buried.
Results
Longitudinal profile
Within the 330-m reference reach there was a braided section approximately
61 meters in length and located at 223 m (Figure 3A). This section
had three channels: a right, left, and mid-channel. During the first two surveys
in August and September 2004, most water flowed down the middle
channel. In November 2005, most of the flow was down the channel on river
right. The reaches upstream and downstream of the braided channel had
382 Northeastern Naturalist Vol. 16, No. 3
Figure 3. Longitudinal profile of Sauerkraut Run showing (A) the thalweg on the
entire reach surveyed; (B) the thalweg of the reference reach; and (C) the thalweg of
the altered reach from 2004 through 2007. Elevations were referenced to the local
benchmark with an assigned elevation of 30.5 m.
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 383
degraded approximately 0.1 to 0.3 m, and the middle channel was closed
due to a debris jam. The channel on river right was approximately 0.3 to
0.6 m lower in elevation than the middle channel. In March 2007, we surveyed
the center channel again. A gravel bar and snag pile had closed off
the right channel, and most of the stream flow was traveling back down the
center channel. The length of the middle channel was classified as a long
riffle in August 2004. When it was surveyed again in September 2004, we
noted several small pools. In 2007, the middle channel was again classified
as one continuous riffle, and the channel thalweg had aggraded approximately
0.6 m (Fig. 3B).
The altered reach of Sauerkraut Run from the reinforced gravel stream
bank (Altered Reach 1) downstream to the State Route 55 bridge (330 to
677 m) went through several changes during the 4 years of the study (Fig. 3C).
The temporary culvert was removed in September 2004. Upstream of the
temporary culvert was a long, straight channelized riffle section. Once the culvert
was removed, the riffle section upstream remained at the same elevation;
however, the thalweg aggraded (Fig. 3C) downstream, as a result of artifical
regrading of the stream channel with removal of the culvert. The scour pool located
below the culvert was filled. Our survey in November 2005 indicated the
long riffle section was forming several small pools, and the entire altered reach
degraded between 0.3 to 0.6 m. A small pool was formed at the bend in the
stream below the removed culvert. More degradation (about 0.3 m) occurred
upstream of the culvert location between 2005 and 2007, and a deep pool was
scoured out at the bend downstream of the removed culvert, similar to the pool
surveyed in July 2004.
Cross-sectional surveys
Three cross-sectional surveys were taken at Reference Reach 1 and
Altered Reach 1, and five were taken at Reference Reach 2 and Altered
Reach 2. Two survey periods were designated as high flow: the period
between October 18, 2003 and February 22, 2004 and the period between
June 11, 2004 and September 26, 2004. The discharge on Waites Run was
4.90 m3 per second (173 cfs) on 11 December 2003. The average for December
2003 was 1.03 m3 per second (36.5 cfs). Discharge on Waites Run
was 7.05 m3 per second (249 cfs) on September 9, 2004, 2.89 m3 per second
(102 cfs) on September 9, 2004, and 4.16 m3 per second (147 cfs) on
September 18, 2004. Average for September 2004 was 1.12 m3 per second
(39.5 cfs). Reference 2 and Altered 2 were measured on February 22, 2004,
and all cross sections were surveyed on September 26, 2004. Data from
cross-section measurements were separated into four categories: reference
normal flow (n = 5), reference post high-flow (n = 3), altered normal flow
(n = 5), and altered post high-flow (n = 3; Table 1).
There was little change in cross-sectional area post high-flow events at
Reference Reach 1 and 2 (Fig. 4) with slight aggradation taking place. There
was little to no change in w/d or in channel shape (Gdiff). Cross-section surveys
taken post high-flow in the altered reach indicated more cross-sectional
384 Northeastern Naturalist Vol. 16, No. 3
Table 1. Stream cross-sectional measurements associated with the reference reach and altered
reach on Sauerkraut Run, Hardy County, West Virginia. ΔA is the measured change in area,
ΔA% is the change is percent of stream cross sectional area, |ΔA%| is the absolute value of the
percent change in stream cross sectional area. Values with different letters within a column are
significantly different (P < 0.05).
Number of
cross sections
measured Δ area (m) ΔA% |ΔA%|
Reference normal flow 5 0.86 (0.23)A 1.76 (0.47)A 3.91 (0.45)A
Reference post high-flow 3 0.53 (0.31)A 1.05 (0.61)A 4.88 (0.76)A
Altered normal flow 5 0.97 (0.41)A 1.99 (1.02)A 5.18 (0.94)A
Altered post high-flow 3 5.98 (1.98)B 12.42 (4.45)B 24.14 (7.08)B
area change. Altered Reach 1 had a moderate amount of net percent change
(ΔA%); however, the absolute amount of aggradation and degradation was
greatest at this site (Fig. 5). Altered Reach 2 experienced degradation during
each high-flow event (Fig. 5). Despite changes in area, w/d and channel form
(G) did not change a lot over time. Reference Reach 1 and Altered Reach 1
were characterized by deeper, narrower channels and higher G coefficients.
Reference Reach 2 and Altered Reach 2 were more shallow and wide (Figs.
4 and 5). The altered post high-flow cross sections had a significantly greater
change in area, ΔA% and |ΔA%| (Table 1; df = 15; P ≤ 0.05), all other treatments
(reference normal flow, reference post high-flow, and altered normal
flow) were similar regardless of flow events.
Scour chains
Scour chains were only relocated at the reference cross section in September
2004. Of the three chains placed across the stream, only two were
located. The chains were buried under 1 cm of gravel. However, when uncovered,
three links were exposed indicating scour before deposition. The
third had been buried under a gravel bar, and could not be found. Scour
chains at other cross sections were buried by gravel bars, or in the case of the
downstream cross section, were located under very large boulder substrate.
We attempted to find scour chains that had been buried under gravel bars
with a metal detector, yet were unsuccessful.
Discussion
Construction of the highway over Sauerkraut Run began in 2002. Initial
stream disturbance included placement of a temporary culvert, and
straightening of the stream reach between Altered Reach 1 and the temporary
culvert. Removal of streamside vegetation and re-grading of the
mountain slopes in the construction zone increased runoff into Sauerkraut
Run during beginning stages of construction. Although we did not begin
morphological surveys of Sauerkraut Run until October 2003, monitoring
of sedimentation began in July 2002 (Hedrick et al. 2007). Altered Reach 2,
downstream of the temporary culvert, accumulated significantly greater
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 385
Figure 4. Stream cross-sectional profiles of the reference reach before and after highflow events on Sauerkraut Run, Hardy County, WV. ΔA% is the change in percent
of stream cross sectional area, |ΔA%| is the absolute value of the percent change in
stream cross sectional area, w/dpre is the width to depth ratio before high flow, w/ddiff
is the difference in the width to depth ratio before and after high flow, and Gpre, Gpost,
and Gdiff relate to the Gini coefficient.
386 Northeastern Naturalist Vol. 16, No. 3
amounts of sediment prior to installation of sediment fencing than sites
located in the reference reach in 2003 (Hedrick et al. 2007). This stream
reach also incurred slight channel aggradation. Channel aggradation is a
Figure 5. Stream cross-sectional profiles of the altered reach before and after high-flow
events on Sauerkraut Run, Hardy County, WV. Notation is as defined in Figure 4.
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 387
common scenario in early stages of road construction and urbanization
(Graf 1975, Gregory et al 1992, Hammer 1972). Urban and Rhoades (2003)
compared channelized to natural stream reaches of the Embarrass River in
Illinois. The greatest influence on the change in channel location throughout
the Embarrass watershed was straightening of the channel, and main
channel response was characterized by a slight net aggradation. This result
was attributed to an increase in sediment influx resulting from erosion of
exposed, unvegetated channel bank.
We also photo-documented changes to the streambed downstream of
the temporary culvert in 2002 and 2003. The streambed was dominated by
cobble and boulder substrate in spring 2002. High flows in November 2002
moved the large alluvial material and degraded the streambed (Fig. 6). In
September 2003, heavy rain related to effects of a hurricane created flows
that aggraded the streambed in Altered Reach 2 and deposited a gravel bar
on river right (Fig. 6). This gravel bar was surveyed in the first cross section
conducted in October 2003.
Sauerkraut Run responded to effects of road construction, including
channelization and disruption of the floodplain, with changes varying from
aggradation, entrenchment, channel widening, and bed degradation. Channel
Figure 6. Photos of Altered Reach 2 on Sauerkraut Run indicating changes in streambed.
The white dot indicates the same tree in each photo. Photo 7-5-02 shows large
alluvial material; photo 4-5-03 shows removal of that material following high flow;
photo 10-12-03 shows deposition of gravel bed; and photo 12-21-03 shows removal
of gravel bed following high flow.
388 Northeastern Naturalist Vol. 16, No. 3
adjustment due to human activity may be of different kinds and spatially
discontinuous, and variability can occur along the length of the channel that
is changing as a result of urbanization (Gregory et al. 1992). Even small
changes in imperviousness of the surrounding land associated with construction
can cause severe increases in stream channel instability (Bledsoe and
Watson 2001). Changes such as increases in width and bed degradation in the
downstream altered reach of Sauerkraut Run were similar to changes found
in other studies involving road construction.
Channel widening has been documented by studies conducted in a variety
of areas and levels of urbanization. Hammer (1972) found an initial increase
in sediment followed by an increase in discharge, downcutting, and channel
widening in an urbanizing watershed in eastern Pennsylvania. Pizzuto
et al. (2000) also studied streams in Pennsylvania. Their study of paired
urban and rural catchments did not differ in slope of bed or mean bankfull
depth. However, bankfull width was larger for urban channels. Similar results
were found by Hollis and Luckett (1976) in southeast England, Neller
(1988) in New South Wales in Australia, and Henshaw and Booth (2000) in
Puget Sound in Washington. Grabel and Harden (2006) studied the impacts
of human-induced changes to the channel of Second Creek in Knoxville,
TN. Changes included deliberate channel realignment and channelization
of some reaches. Cross sections indicated a downstream trend of increasing
width and area. Channel widening resulting from bank erosion was the
dominant accommodation to higher volume peak flows in Second Creek.
Most channel changes in Sauerkraut Run were related to peak flow
events. Major degradation of the downstream channel and increased bankfull
depth occurred between 18 October 2003 and 20 February 2004, following
a period of high flow in December 2003. Between 11 June 2004 and 26
September 2004, the stream bank on the left of Altered Reach 1 located at
the reinforced gravel bank was severely eroded. This erosion should have
widened the stream channel; however, deposition of a gravel bar on the
right side actually caused the streambed to become entrenched. The armored
bank on the right side of the Altered Reach 2 cross section also was eroded,
causing channel widening. Stream channel changes resulted from high flows
due to the effects of Hurricane Frances. Little change was documented at
Reference Reach 1 cross section (a small amount of deposition was noted),
and no change occurred at Reference Reach 2 cross section. In the reference
reach of Sauerkraut Run, the stream is connected to its flood plain and not
constricted by artificial stream banks. Entrenchment continued at the Altered
Reach 1 cross section site, and thalweg depth increased between September
2004 and November 2005.
Similar results to high flows were found by Robinson and Barry
(2001), who conducted a series of cross-sectional surveys on streams on
the Wenatchee National Forest before and after flooding, and by Gaeumen
et al. (2005), who documented channel widening and bed aggradation of
gravel bed channels in the Duechesne River, UT during a period of flooding
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 389
between 1981 and 1987. In a study in the central Appalachians, Hicks et al.
(2005) found that a brief flash flood produced significant channel change in
the small catchment of Saul’s Run, WV.
Nelson et al (2006) described changes to urban stream channels located
in the piedmont region of Pennsylvania and Maryland following high flow
from Hurricane Agnes in 1972. In the Patuxent River basin in Maryland,
channel widening, removal of all but the coarsest material in the streambed,
and destruction of the floodplain vegetation took place. In other areas, dominated
by bedrock outcrops and coarse bed and bank material, such as the
Conestoga basin in southeastern Pennsylvania and Dead Run in Baltimore
County, MD, little change to stream cross sections was noted (Nelson et al.
2006). Western Run, in north-central Baltimore, also experienced channel
widening during Hurricane Agnes. However, within one year of the flood,
channel cross-sections were rapidly recovering back to pre-flood dimensions
(Costa 1974).
Changes in the streambed can impact the health and habitat available
for fish and benthic maroinvertebrates. Aggradation and excessive stream
sedimentation can alter community composition and abundance of aquatic
biota (Jones et al. 1999, Rabeni and Smale 1995), decreases reproductive
success and survival of fishes (O’Conner and Andrew 1998, Scrivener and
Brownlee 1989), decreases survival of benthic macroinvertebrates due to
deposition of silt on the gills (Lemly 1982), and impacts feeding performance
of fishes (Sweka and Hartman 2001). Degradation of streambeds
may eliminate existing habitat and change stream substrate composition.
Benthic macroinvertebrate abundance generally increases across the particle
series of sand–gravel–pebble–cobble. However, a more functional relation
can be made between invertebrate abundance and substrate heterogeneity.
Abundances are least in homogeneous sand or silt, or in large boulders and
bedrock. A mixture of gravel, pebbles, and cobble provide the best habitat
for benthic macroinvertebrate abundance (Brusven and Prather 1974, Minshall
1984).
Hedrick et al. (2007) calculated the West Virginia Stream Condition
Index (WV-SCI) scores for benthic macroinvertebrate samples collected on
Sauerkraut Run. The WV-SCI is a multi-metric index developed specifically
for West Virginia wadeable streams (US EPA 2000), and includes six normalized
metrics using family level data ⎯ EPT (Ephemeroptera, Plecoptera,
Trichoptera) taxa, total taxa, % EPT, % Chironomidae, % of the top two
dominant taxa, and HBI (Hilsenhoff Family Biotic Index). The normalized
metric scores range from 0 to 100 and are categorized as >78–100 = very
good, >68–78 = good, >45–68 = fair, >22–45 = poor, and 0–22 = very poor.
The WV-SCI scores from samples collected downstream of construction in
July and October 2002 indicated benthic macroinvertebrate communities
in “fair” biotic condition. These samples were collected prior to sediment
fencing at the construction site and during a time period when sediment accumulation
was significantly greater at the downstream site (Hedrick et al
390 Northeastern Naturalist Vol. 16, No. 3
2007). The WV-SCI scores increased to “good” following implementation of
sediment control; however, scores of “fair” were recorded again in December
2003 following the episode of high flow and scouring of the stream bed.
The WV-SCI scores from samples collected upstream remained good to very
good throughout the study.
Unlike other studies involving streams impacted by road construction
and urbanization, Sauerkraut Run has not been affected by many of the
factors associated with urbanization that follow post construction. With
the exception of the stream reach within the construction zone, which was
straightened and had streamside vegetation removed (Fig. 7), riparian areas
were relatively unharmed. There was no increase in impervious surfaces
and currently no increase in the residential homes along the stream. Streams
altered by incision and channelization tend to degrade until the critical bank
height is exceeded and the bank fails. This failure increases channel width
and sediment load. However, over time, streams will move toward a new
equilibrium, and incision will cease (Fischenich and Morrow 2000, Henshaw
and Booth 2000). Most stable reaches are associated with colonization
of natural vegetation or when degradation halts because substrates become
Figure 7. Photos of the temporary culvert placed in Sauerkraut Run in April 2002 and
removed in September 2004. Arrows indicate location of culvert; black dot indicates
the same rock in the photos. Photo 7-5-02 shows area upstream of culvert prior to
vegetation removal; photo 10-18-03 shows area upstream of culvert after vegetation
has been removed; photo 6-18-04 shows plunge pool downstream of culvert; and
photo 9-26-04 shows regarded section of stream following removal of culvert with
plunge pool removed.
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 391
coarse enough to prevent further incision. Henshaw and Booth (2000) found
that streams in developed and developing watersheds in the Puget Sound
area, WA, stabilized within 10 years. Some streams stabilized in as little as
three years if land use remained constant.
Without further impacts, the streambed in the altered reach of Sauerkraut
Run may continue to stabilize, and habitat in the form of pool and
riffle complexes may form. However, bank armourment and disconnection
of Sauerkraut Run with the floodplain could continue to create a sediment
imbalance, forcing the stream to erode still-exposed banks during periods of
high flow. Although the reference section upstream of construction showed
little change in morphology in response to high flows, cross-sectional profiles of the altered reach indicated changes including channel widening,
aggradation, and then degradation of the stream bed. The upstream reference
reach is connected to the floodplain and has a healthy riparian buffer of
mature trees and vegetation along both banks. This study demonstrates the
importance of the flood plain and riparian buffer to stream channel stability.
When the culvert was removed in September 2004, the streambed was
regraded with gravel material, the elevation was increased by 0.3 m, and a
long riffle section was created. Over the next year, as the stream channel adjusted,
elevation degraded and several small pools were created. The altered
reach would benefit from natural channel design, including the addition of
meanders and riffle/pool complexes, and improvement of the riparian zone
by planting of trees along the channelized section that passes under the
overpass. Riparian vegetation will help prevent the stream from widening
and will protect the banks from future erosion. Bernard et al. (2007) provide
a comprehensive guide on stream restoration and channel design that could
be useful in developing a stream channel and riparian area that would be
less likely to become unstable, erode, and cause further sedimentation. Little
data has been collected on response of streams in the Appalachian area to
highway construction. This study will be useful to managers and engineers
throughout the remainder of the highway project currently underway as well
as other construction projects in the future.
Acknowledgments
We thank the West Virginia Division of Highways for providing partial support
for this research, and Jim Hedrick and Will Ravenscroft for help in collecting data.
Reference to trade names does not imply endorsement of commercial products by
the US government. This paper is scientific article number 3020 of the West Virginia
University Agriculture and Forestry Experimental Station.
Literature Cited
Albanese, B., and G. Matlack. 1998. Environmental auditing: Utilization of parking
lots in Hattiesburg, Mississippi, USA, and impacts on local streams. Environmental
Management 24:265–271.
392 Northeastern Naturalist Vol. 16, No. 3
Allen, J.D. 1995. Stream Ecology: Structure and function of running waters. Chapman
and Hall, Oxford, UK.
Bernard, J., J.F. Fripp, and K.R. Robinson (Eds.). 2007. Part 654 Stream Restoration
Design National Engineering Handbook (210–VH-NEH). USDA Natural
Resources Conservation Service, Washington, DC.
Bisson, P.A., J.M. Buffington, and D.A. Montgomery. 2006. Valley segments, stream
reaches, and channel units. Pp. 23–49, In R. Hauer and G.A. Lamberit (Eds.).
Methods in Stream Ecology, 2nd Edition. Academic Press, Burlington, MA.
Bledsoe, B.P., and C.C. Watson. 2001. Effects of urbanization on channel instability.
Journal of the American Water Resources Association 37:255–270.
Booth, D.B. 1990. Stream-channel incision following drainage-basin urbanization.
Water Resources Bulletin 26(3):407–417.
Brusven, M.A., and K.V. Prather. 1974. Influence of stream sediment on distribution
of macrobenthos. Journal of the Entomological Society of British Colombia
71:25–32.
Colosimo, M.F., and P.R. Wilcock. 2007. Alluvial sedimentation and erosion in an
urbanizing watershed, Gwynns Falls, Maryland. Journal of the American Water
Resources 43:499–521.
Costa, J.E. 1974. Response and recovery of a Piedmont watershed from Tropical
Storm Agnes, June 1972. Water Resources Research 10:106–112.
Doyle M.W., J.M. Harbor, C.F. Rich, and A. Spacie. 2000. Examining the effects
of urbanization on streams using indicators of geomorphic stability. Physical
Geography 21(2):155–181.
Duck, R.W. 1985. The effect of road construction on sediment deposition in Loch
Earn, Scotland. Earth Surface Processes and Landforms 10:401–406.
Fischenich, J.C., and J.V. Morrow. 2000. Reconnection of floodplains with incised
channels, EMRRP Technical Notes Collection (ERDC TN-EMRRP-SR-09), US
Army Engineer Research and Development Center, Vicksburg, MS.
Gaeuman, D., J.C. Schmidt, and P.R. Wilcock. 2005. Complex channel responses to
change in stream flow and sediment supply on the lower Duchesne River, Utah.
Geomorphology 64:185–206.
Grabel, J.L., and C.P. Harden. 2006. Geomorphic response of an Appalachian valley
and ridge stream to urbanization. Earth Surface Processes and Landforms
31:1707–1720.
Graf, W.L. 1975. The impact of suburbanization on fluvial geomorphology. Water
Resources Research 11:690–692.
Gregory, K.J., R.J. Davis, and P.W. Downs. 1992. Identification of river channel
change due to urbanization. Applied Geography 12:299–318.
Hammer, T.R. 1972. Stream channel enlargement due to urbanization. Water Resources
Research 8:1530–1540.
Hedrick, L.B., S.A. Welsh, and J.T. Anderson. 2007. Effects of highway construction
on sediment and benthic macroinvertebrates in two tributaries of the Lost River,
West Virginia. Journal of Freshwater Ecology 22:561–569.
Henshaw, P.C., and D.B. Booth. 2000. Natural restabilization of stream channels
in urban watersheds. Journal of the American Water Resources Association
36:1219–1236.
Hess, A.J., and P.A. Johnson. 2001. A systematic analysis of the constraints to urban
stream enhancements. Journal of the American Water Resources Association
37:213–221.
2009 L.B. Hedrick, S.A. Welsh, and J.T. Anderson 393
Hicks, N.S., J.A. Smith, A.J. Miller, and P.A. Nelson. 2005. Catastrophic flooding
from an orographic thunderstorm in the central Appalachians. Water Resources
Research 41. DOI:10.1029/2005WR004129.
Hollis, G.E., and J.K. Luckett. 1976. The response of natural river channels to
urbanization: Two case studies from southeast England. Journal of Hydrology
30:351–363.
Johnson, P.A. 2002. Incorporating road crossings into stream and river restoration
projects. Ecological Restoration 20:272–277.
Johnson, P.A. 2006. Physiographic characteristics of bridge-stream interactions.
River Research and Applications 22:617–630.
Jones III, E.B.D., G.S. Helfman, J.O. Harper, and P.V. Bolstad. 1999. Effects of
riparian forest removal on fish assemblages in southern Appalachia streams.
Conservation Biology 13:1454–1465.
Jones, J.A., F.J. Swanson, B.C. Wemple, and K.U. Snyder. 2000. Effects of roads on
hydrology, geomorphology, and disturbance patches in stream networks. Conservation
Biology 14:76–85.
King, D.L., and R.C. Ball. 1965. The influence of highway construction on a stream.
Michigan State University, Agriculture Experiment Station, East Lansing, MI.
Research Report No. 19. 4 pp.
Laronne, J.B., D.N. Outhet, P.A. Carling, and T.J. McCabe. 1994. Scour-chain deployment
in gravel-bed rivers. Catena 22:299–306.
Lemly, D.A. 1982. Modification of benthic insect communities in polluted streams:
Combined effects of sedimentation and nutrient enrichment. Hydrobiologia
87:229–245.
Lisle, T.E., and R.E. Eads. 1991. Methods to measure sedimentation of spawning
gravels. United States Department of Agriculture, Forest Service, Pacific Southwest
Research Station Berkley, CA. Research Note PSW-411.
Minshall, G.A. 1984. Aquatic insect-substratum relationships. Pp. 358–400, In V.H.
Resh and D.M. Rosenberg (Eds.). 1984. The Ecology of Aquatic Insects. Praeger
Publishers, New York, NY.
Neller, R.J. 1988. A comparison of channel erosion in small urban and rural catchments,
Armidale, New South Wales. Earth Surface Processes and Landforms
13:1–7.
Nelson, P.A., J.A. Smith, and A.J. Miller. 2006. Evolution of channel morphology
and hydrologic response in an urbanizing drainage basin. Earth Surface Processes
and Landform 31:1063–1079.
O’Conner, W.C.K., and T.E. Andrew. 1998. The effects of siltation on Atlantic
salmon, Salmo salar L., embryos in the River Bush. Fisheries Management and
Ecology 5:393–401.
Olson-Rutz, K.M., and C.B. Marlow. 1992. Analysis and interpretation of stream
channel cross-sectional data. North American Journal of Fisheries Management
12:22–61.
Pizzuto, J.E., W.C. Hession, and M. McBride. 2000. Comparing gravel-bed rivers in
paired and rural catchments of southeastern Pennsylvania. Geology 28:79–82.
Rabeni, C.F., and M.A. Smale. 1995. Effects of siltation on stream fish and the potential
mitigating role of the buffering zone. Hydrobiologia 303:211–219.
Richardson, E.V., and S.R. Davis. 2001. Evaluating scour at bridges. Fourth edition.
Federal Highway Administration, Fort Collins, CO. Hydraulic Engineering Circular
No. 18, FHWA-IP-90-017.
394 Northeastern Naturalist Vol. 16, No. 3
Robinson, T.A., and J. Barry. 2001. Geomorphic survey of eastern Cascade streams before
and after 1995–1996 floods. Forest Ecology and Management 143:57–64.
Rosgen, D.L. 1996. Applied River Morphology. Wildland Hydrology Books, Pagosa
Springs, CO.
Schumm, S.A. 1977. The Fluvial System. John Wiley and Sons, New York, NY.
Scrivener, J.C., and M.J. Brownlee. 1989. Effects of forest harvesting on spawning
gravel and incubation of Chum (Oncorhynchus keta) and Coho Salmon (O.
kisutch) in Carnation Creek, British Columbia. Canadian Journal of Aquatic Sciences
46:681–696.
Sweka, J.A., and K.J. Hartman. 2001. Influence of turbidity on Brook Trout reactive
distance and foraging success. Transactions of the American Fisheries Society
130:138–146.
Trimble, S.W. 1997. Contribution of stream channel erosion to sediment yield from
an urbanizing watershed. Science 278:1442–1444.
United States Environmental Protection Agency (US EPA). 1994. National water quality
inventory: 1992 report to Congress. EPA Report 841R94001, Washington, DC.
US EPA. 2000. A stream condition index for West Virginia wadeable streams, Region
3 Environmental Services Division. Prepared by Tetra Tech, Inc. July 21, 2000.
Owings Mills, MD.
Urbana, M.A., and B.L. Rhoads. 2003. Catastrophic human-induced change in
stream-channel planeform and geometry in an agricultural watershed, Illinois,
USA. Annals of the Association of American Geographers 93:783–796.
Ward, A., D. Mecklenburg, J. Mathews, and D. Farver. 2002. Sizing stream setbacks
to help maintain stream stability. American Society of Agricultural Engineers
Meeting Paper No. 022239. St. Joseph, MI.
Wohl, E.E. 2000. Mountain Rivers. American Geophysical Union, Washington, DC.
320 pp.
Wolman, M.G. 1967. Cycle of sedimentation and erosion in urban river channels.
Geografiska Annaler 49(A):385–395.
