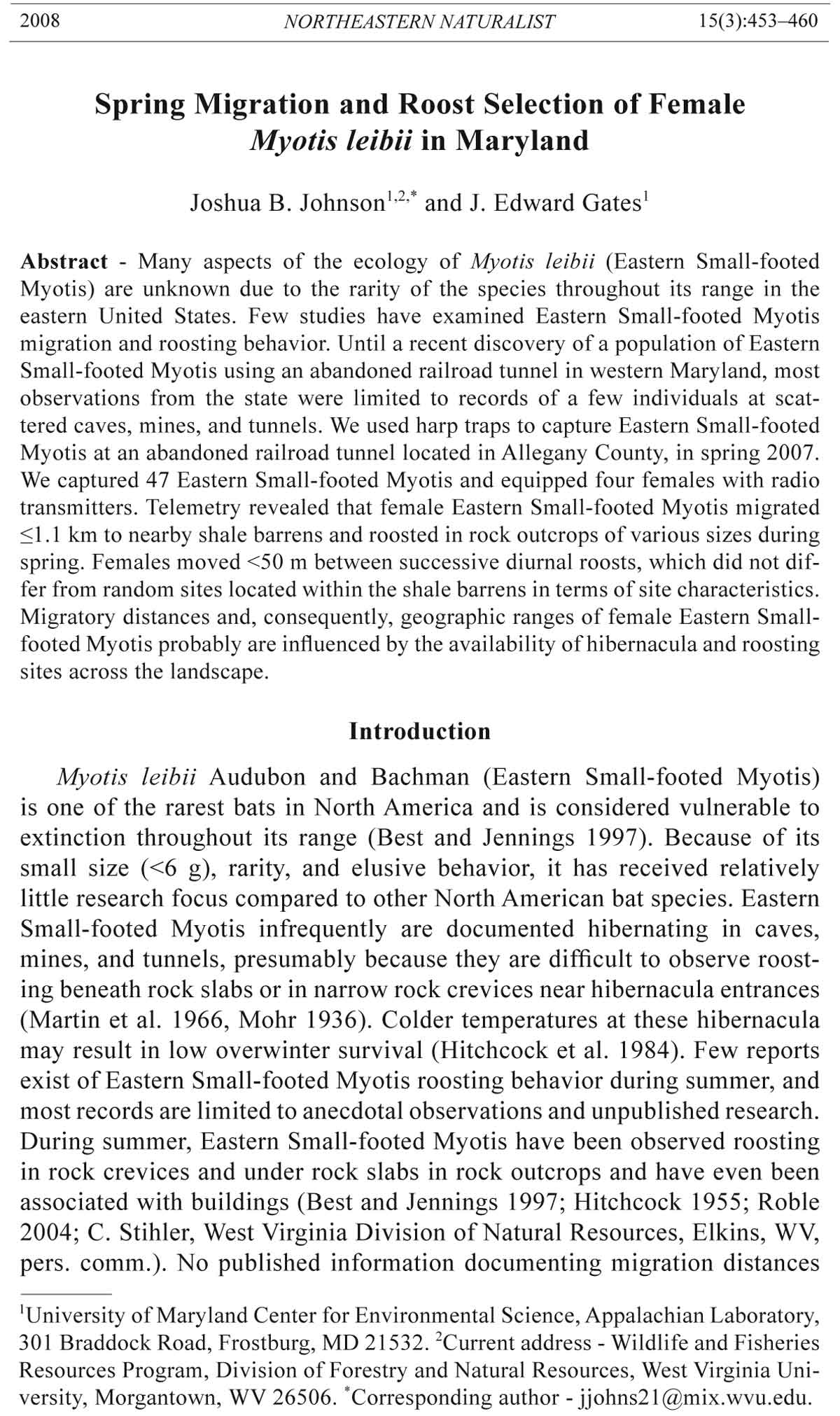

2008 NORTHEASTERN NATURALIST 15(3):453–460
Spring Migration and Roost Selection of Female
Myotis leibii in Maryland
Joshua B. Johnson1,2,* and J. Edward Gates1
Abstract - Many aspects of the ecology of Myotis leibii (Eastern Small-footed
Myotis) are unknown due to the rarity of the species throughout its range in the
eastern United States. Few studies have examined Eastern Small-footed Myotis
migration and roosting behavior. Until a recent discovery of a population of Eastern
Small-footed Myotis using an abandoned railroad tunnel in western Maryland, most
observations from the state were limited to records of a few individuals at scattered
caves, mines, and tunnels. We used harp traps to capture Eastern Small-footed
Myotis at an abandoned railroad tunnel located in Allegany County, in spring 2007.
We captured 47 Eastern Small-footed Myotis and equipped four females with radio
transmitters. Telemetry revealed that female Eastern Small-footed Myotis migrated
≤1.1 km to nearby shale barrens and roosted in rock outcrops of various sizes during
spring. Females moved <50 m between successive diurnal roosts, which did not differ
from random sites located within the shale barrens in terms of site characteristics.
Migratory distances and, consequently, geographic ranges of female Eastern Smallfooted
Myotis probably are influenced by the availability of hibernacula and roosting
sites across the landscape.
Introduction
Myotis leibii Audubon and Bachman (Eastern Small-footed Myotis)
is one of the rarest bats in North America and is considered vulnerable to
extinction throughout its range (Best and Jennings 1997). Because of its
small size (<6 g), rarity, and elusive behavior, it has received relatively
little research focus compared to other North American bat species. Eastern
Small-footed Myotis infrequently are documented hibernating in caves,
mines, and tunnels, presumably because they are difficult to observe roosting
beneath rock slabs or in narrow rock crevices near hibernacula entrances
(Martin et al. 1966, Mohr 1936). Colder temperatures at these hibernacula
may result in low overwinter survival (Hitchcock et al. 1984). Few reports
exist of Eastern Small-footed Myotis roosting behavior during summer, and
most records are limited to anecdotal observations and unpublished research.
During summer, Eastern Small-footed Myotis have been observed roosting
in rock crevices and under rock slabs in rock outcrops and have even been
associated with buildings (Best and Jennings 1997; Hitchcock 1955; Roble
2004; C. Stihler, West Virginia Division of Natural Resources, Elkins, WV,
pers. comm.). No published information documenting migration distances
1University of Maryland Center for Environmental Science, Appalachian Laboratory,
301 Braddock Road, Frostburg, MD 21532. 2Current address - Wildlife and Fisheries
Resources Program, Division of Forestry and Natural Resources, West Virginia University,
Morgantown, WV 26506. *Corresponding author - jjohns21@mix.wvu.edu.
454 Northeastern Naturalist Vol. 15, No. 3
between winter and summer ranges exists, with the exception of an observation
of two Eastern Small-footed Myotis in Ontario, Canada that migrated
<20 km (Hitchcock 1955). In Garrett County, MD, there is a historical record
of a maternity colony of Eastern Small-footed Myotis roosting in rock outcrops
<6 km from a known hibernaculum (D. Feller, Maryland Department
of Natural Resources, Frostburg, MD, pers. comm.).
In Maryland, the Eastern Small-footed Myotis is listed as state-endangered
because of its limited range and few records within the state (J. McCann,
Maryland Department of Natural Resources, Frostburg, MD, pers. comm.).
Records mostly are restricted to the western third of the state, with exception
of one account near Washington, DC. (D. Feller, pers. comm.; Gates et al.
1984; Marsh 1998; Nelson 1913; Paradiso 1969). The majority of accounts
are from surveys conducted during autumn, winter, and spring at caves,
mines, and tunnels in the karst and shale-barren areas of the Ridge and Valley
and Appalachian Plateau provinces (D. Feller, pers. comm.; Gates et al.
1984, Johnson and Gates 2005, Marsh 1998). There is only one record of an
Eastern Small-footed Myotis maternity colony roost: an account in the Appalachian
Plateau physiographic province (D. Feller, pers. comm.). Relatively
few Eastern Small-footed Myotis have been documented at any single hibernaculum
(Gates et al. 1984, Marsh 1998). However, a population of Eastern
Small-footed Myotis was recently discovered at an abandoned railroad tunnel
in Allegany County, MD. Capture rates of Eastern Small-footed Myotis at the
tunnel were higher than at any other hibernacula in Maryland (J.E. Gates, unpubl.
data). Our objective was to determine movements and roost selection of
female Eastern Small-footed Myotis following emergence from hibernation.
Study Area and Methods
The abandoned railroad tunnel is located within the Chesapeake and
Ohio Canal National Historical Park (CHOH) in Allegany County, MD. Still
largely intact, the tunnel was constructed in 1904 and used until 1975. The
tunnel is oriented in a northeast–southwest direction and is approximately
1.3 km in length between entrances. The tunnel wall surfaces are exposed
bedrock and the ceiling is deteriorated brick. Wooden cribbing, supported
by vertical creosoted timbers spaced approximately 1.2 m apart, contains
the ceiling. Historically, most surveys conducted at the tunnel have been
of hibernating bats during winter. Prior to this study, only Eptesicus fuscus
Beauvois (Big Brown Bat), Myotis lucifugus LeConte (Little Brown Myotis),
and Pipistrellus subflavus Cuvier (Eastern Pipistrelles) have been documented
hibernating in the tunnel (D. Feller, pers. comm.; Gates et al. 1984).
However, in recent years, bat species other than the aforementioned have
been reported during spring emergence and autumn swarming, including
Lasionycteris noctivagans LeConte (Silver-haired Bat), Lasiurus borealis
Müller (Eastern Red Bat), Eastern Small-footed Myotis, Myotis septentrionalis
Trouessart (Northern Myotis), and Myotis sodalis Miller and Allen
(Indiana Myotis) (J.E. Gates, unpubl. data).
2008 J.B. Johnson and J.E. Gates 455
The tunnel is <200 m from the Potomac River in an area of the Ridge and
Valley province characterized by shale-barren communities consisting of
steep talus slopes and rock outcrops sparsely vegetated by Pinus virginiana
Mill. (Virginia pine), Quercus ilicifolia Wang. (Scrub Oak), and Juniperus
virginiana Linnaeus (Eastern Red Cedar). The talus slopes and rock outcrops
in the area largely are concentrated along the Potomac River gorge in the
Hampshire and Foreknobs formations, which mostly consist of shale and
sandstone (Schmidt 1993). Upland forests are dominated by Quercus spp.
(oak) and Carya spp. (hickory). Some small areas of pasture and row crops
exist on the hilltops. Liriodendron tulipifera Linnaeus (Yellow-poplar), Platanus
occidentalis Linnaeus (American Sycamore), Acer spp. (maples), and
Betula nigra Linnaeus (River Birch) occur along the Potomac River banks
and adjacent CHOH. Ephemeral standing water occurs in some sections of
the canal. Elevation at the tunnel is approximately 150 m, whereas the immediate
area ranges from approximately 130 m on the Potomac River to
approximately 275 m on the hilltops.
We used harp traps to capture bats at the tunnel during spring (mid-
March–mid-May) 2007. We placed 2 harp traps (1.8 m × 2.3 m; Bat
Conservation and Management, Carlisle, PA) side by side in the east and
west entrances to capture bats entering or exiting the tunnel. Our harp traps
were completely surrounded with tarpaulin and/or bird netting to prevent
bats from bypassing traps. Sampling was conducted 3 nights/week for 4
hours following sunset. Each captured bat was identified to species, and
weight (g), forearm length (mm), sex, and age were determined before release
(Menzel et al. 2002, Racey 1988). Bat capture and handling protocols
were approved by the Institutional Animal Care and Use Committee of the
University of Maryland Center for Environmental Science (Protocol Number
F-AL-05-06) and followed the guidelines of the American Society of
Mammalogists (Gannon et al. 2007). We marked bats with non-toxic paint
pens to facilitate identification of recaptures. We also wing-banded Eastern
Small-footed Myotis for long-term monitoring of their activity (48.5 mg;
Porzana Ltd., Icklesham, East Sussex, UK). Males and females were banded
on their right and left forearms, respectively. We did not band females that
were part of the radio-telemetry study.
We examined spring migration and roost selection of female Eastern
Small-footed Myotis using radio-telemetry methods. We used surgical cement
(Torbot Group, Cranston, RI) to affix a 0.35-g radio transmitter (Model
LB-2N; Holohil Systems Ltd., Carp, ON, Canada) between the scapulae of
captured females. Transmitter weight to animal body weight ratio (mean =
8.0% ± 0.2%) was similar to ratios in other bat studies, including eastern
pipistrelles, which are similar in body weight to Eastern Small-footed Myotis
(Best and Jennings 1997, Carter et al. 1999, Leput 2004, Perry and Thill
2007, Veilleux et al. 2003). We used radio receivers and 3-element Yagi
antennae (Advanced Telemetry Systems, Inc., Isanti, MN) to locate diurnal
roosts three times per week until the transmitter failed. Migration distance
456 Northeastern Naturalist Vol. 15, No. 3
for each bat was calculated as the mean distance from its roosts to the tunnel
entrance at which it was captured.
Within a 10-m radius centered on the roost, we determined degree of
slope using a clinometer, slope aspect using a compass, percent canopy cover
using a densiometer, width of rock outcrop as measured parallel with the
contour, height of rock outcrop as measured perpendicular to the contour and
parallel with the slope, distance to nearest potential roost rock outcrop, tree
species diversity (Simpson’s 1-D), tree species evenness (Simpson’s E 1/D),
tree species richness (number of tree species), number of trees, number of
snags, and mean diameter at breast height of all trees within the plot. We
located one random site (i.e., rock outcrop) approximately 100 m from each
known roost in a random direction. A distance of 100 m, as measured parallel
with the slope, bounded the maximum distance any individual bat moved
between successive known roosts. We examined random sites for roosting
bats. We measured the same variables in random plots as in roost plots. We
used Wilcoxon tests to compare ranked means of variables between known
roosts and random sites (SAS Institute, Inc. 2004; PROC NPAR1WAY).
To determine if spatial arrangement of roost sites was similar to rock
outcrops distributed across the area, we established five 100-m transects
aligned parallel with the contour. We measured the width of each rock outcrop
encountered and distances between each rock outcrop. We compared these
rock outcrop widths and distances to nearest rock outcrops to known roost
rock outcrop widths and distances to nearest rock outcrops using a Wilcoxon
test. Statistical significance for all analyses was set at P ≤ 0.05.
Results
We conducted surveys at the tunnel for 31 nights from 12 March through
16 May 2007, spanning 248 hours. We captured 47 Eastern Small-footed
Myotis (33 males, 13 females, and 1 escaped). We banded 41 Eastern Smallfooted
Myotis, and recaptured eight of them within 64 days after initial
banding; no females were recaptured.
We conducted radio telemetry on four female Eastern Small-footed Myotis
from 13 March to 4 April. We were able to maintain contact with all but
one of the tagged bats until the transmitters failed or detached from the bats
(mean = 8 days). We were unable to acquire a signal from one bat after it
crossed the Potomac River during its 7th night of activity. Transmittered females
migrated 0.1–1.1 km (0.4 ± 0.2; n = 4) from the tunnel to south-facing
slopes where they day-roosted in crevices in small (less than 3 m x 3 m) to
large (greater than 10 m x 10 m) rock outcrops within the shale barrens. We
only observed bats roosting singly in crevices of rock outcrops, and did not
observe any bats roosting in rock outcrops that were chosen as random sites.
Telemetered females moved <50 m between successive diurnal roosts and
typically switched roosts every day unless inclement weather prevented foraging
(Table 1). Characteristics of roost sites were similar to those of random
sites (P > 0.178). Rock outcrops in which females roosted and those sampled
2008 J.B. Johnson and J.E. Gates 457
along transects in the area were similar in terms of their widths (P = 0.135),
and distances between rock outcrops (P = 0.629) (Table 2).
Discussion
The prevalence of Eastern Small-footed Myotis at the tunnel, relative to
other hibernacula in Maryland, may indicate that this site contains the largest
known hibernating population of the species in the state (Gates et al. 1984,
Johnson and Gates 2005). Eastern Small-footed Myotis have been captured
at other abandoned railroad tunnels in the area during spring 2007, but in
fewer numbers than at the tunnel we surveyed (J.E. Gates, unpubl. data). Recaptures
of banded males and the short distances travelled by radio-tagged
females indicate that at least some Eastern Small-footed Myotis remain in
the vicinity of the tunnel during spring. The short migration distances we
recorded for Eastern Small-footed Myotis may result from the proximity
of the tunnel to shale barrens and other rock outcrop types. Migration distances
may have been greater if the tunnel was located farther from the shale
barrens. It is unknown if, before the tunnel was constructed, Eastern Smallfooted
Myotis occurred at the shale barrens year-round (hibernating in the
Table 1. Distance (m) between successive diurnal roosts of telemetered female Myotis leibii
captured at an abandoned railroad tunnel in Allegany County, MD, March–April 2007.
Number of roosts Mean SE Range
4 41.8 5.0 32.6–49.8
2 22.2 - -
2 37.0 - -
2 8.2 - -
Table 2. Characteristics of diurnal roosts (n = 10) used by female Myotis leibii (n = 4) captured
at an abandoned railroad tunnel in Allegany County, MD, March–April 2007.
RoostC Random
Variable Mean SE Mean SE U P
Elevation (m) 182.1 7.4 195.9 6.7 87.5 0.213
Slope (°) 37.7 1.4 33.0 2.7 117.0 0.393
Aspect (°) 175.8 11.9 182.9 11.8 98.0 0.629
Canopy cover (%) 85.4 2.0 83.3 4.7 104.5 1.000
Rock outcrop width (m)A 85.8 68.4 84.1 69.0 112.5 0.603
Rock outcrop height (m)B 7.1 2.5 6.9 2.1 43.0 0.949
Distance to nearest rock outcrop (m) 9.1 2.2 10.9 2.0 99.5 0.709
Tree species diversity 0.7 0.1 0.6 0.1 121.0 0.256
Tree species evenness 0.6 0.1 0.5 0.1 120.0 0.287
Tree species richness 5.2 0.4 5.3 0.4 103.0 0.909
Number of trees/ha 779.8 102.8 967.6 64.2 86.0 0.178
Mean diameter at breast height (cm) 12.4 0.5 12.6 0.5 106.0 0.970
Number of snags/ha 70.0 16.3 127.3 33.6 92.5 0.367
AWidth of rock outcrop, measured parallel with contour.
BHeight of rock outcrop, measured perpendicular to contour and parallel with slope.
CDifferences were analyzed with ranked data, but actual means are presented.
458 Northeastern Naturalist Vol. 15, No. 3
rock outcrops), or migrated to the shale barrens from more distant natural
hibernacula, or did not occur in the area because of relatively long distances
to natural hibernacula. A historical summer record of an Eastern Smallfooted
Myotis on a Potomac River island near the fall line and Washington,
DC, indicates that this bat either migrated a relatively long distance from a
natural cave or hibernated in the cliffs adjacent to the river (Nelson 1913).
It is unknown if the summer distribution of Eastern Small-footed Myotis
in Maryland is limited to areas within some unknown maximum migrating
distance to hibernacula, i.e., caves, mines, or tunnels, within the Ridge and
Valley and Appalachian Plateau provinces, or if they are able to use rock outcrops
year-round in the Blue Ridge and Piedmont, where caves occur more
sparsely. Although landscape-scale distributions of Eastern Small-footed
Myotis in Maryland remain to be determined, we hypothesize that they may
concentrate in areas with favorable geology, i.e., talus slopes or limestone
outcrops, such as those that occur in the Ridge and Valley and Appalachian
Plateau provinces where the majority of hibernacula in Maryland occur
(Franz and Slifer 1976). If they are able to use the same rock outcrops as
hibernacula and summer roost sites, then their distribution in Maryland may
extend to the fall line, but their densities probably would be lower in areas
farther east due to a rarity of favorable geology in the area (Schmidt 1993).
The short migration distances we documented also may be a consequence
of few hibernating bats within the tunnel and abundant rock outcrops in the
vicinity, which may result in reduced intraspecific competition for resources,
e.g., roosts in rock outcrops, when bats emerge from hibernation and migrate
to their summer ranges. Wing morphology also may dictate migration
behavior in part. The low wing loading of Eastern Small-footed Myotis is
consistent with other bat species considered sedentary in migration distance
(Farney and Fleharty 1969, Fleming and Eby 2003). However, we suggest
caution in applying our results elsewhere because the bat with which we lost
radio contact may have migrated out of the area, therefore making migration
distances minima for our sample population.
All Eastern Small-footed Myotis roosted in rock outcrops similar to those
that have been observed in other parts of their range (Roble 2004; C. Stihler,
pers. comm.), and did not exhibit selection for specific roost sites, i.e., rock
outcrops within talus slopes in the shale barrens. The sparsely forested shale
barrens likely were selected over adjacent, densely forested hilltops, because
of increased solar exposure and abundance of rock outcrops, i.e., potential
roost sites. We conducted our study before leaf-out in spring. As leaf-out
progresses, some rock outcrops may receive less solar exposure than others.
Eastern Small-footed Myotis may select certain rock outcrops within
the shale barrens during the summer maternity season when rock outcrops
with higher solar exposure may be less plentiful, if indeed this is a selected
attribute of summer roost sites. In the George Washington National Forest
in western Virginia, an Eastern Small-footed Myotis was observed roosting
in a crevice between two rocks in a boulder field with partially open forest
2008 J.B. Johnson and J.E. Gates 459
canopy (Roble 2004). Similarly, most Eastern Small-footed Myotis roosts on
North Fork Mountain, WV, were in talus slopes that received full or nearly
full solar exposure (C. Stihler, pers. comm.). Although these observations
and our assessment of Eastern Small-footed Myotis roost selection provide
insight into an important component of their ecology, additional research on
roosting and foraging habits of this rare species in other parts of its range is
warranted and will facilitate informed conservation efforts.
Acknowledgments
We thank S. Carr, K. Lott, J. MacDougall, and J. Saville for assisting us in the field
during our survey efforts. We thank J. Churchill and K. Lott for assistance with geographic
information systems. Two anonymous reviewers provided helpful comments
on this manuscript. The Maryland Department of Natural Resources, Engineering and
Construction Division, Land and Water Conservation provided funding. This article is
Scientific Contribution Number 4152 of the University of Maryland Center for Environmental
Science, Appalachian Laboratory.
Literature Cited
Best, T.L., and J.B. Jennings. 1997. Myotis leibii. Mammalian Species 547:1–6.
Carter, T.C., M.A. Menzel, B.R. Chapman, and K.V. Miller. 1999. Summer foraging
and roosting behavior of an Eastern Pipistrelle Pipistrellus subflavus. Bat
Research News 40:5–6.
Farney, J., and E.D. Fleharty. 1969. Aspect ratio, loading, wing span, and membrane
areas of bats. Journal of Mammalogy 50:362–367.
Fleming, T.H., and P. Eby. 2003. Ecology of bat migration. Pp. 156–208, In T.H.
Kunz and M.B. Fenton (Eds.). Bat Ecology. University of Chicago Press, Chicago,
IL. 779 pp.
Franz, R., and D. Slifer. 1976. Caves of Maryland. Maryland Geological Survey,
Baltimore, MD. Education Series, Number 3. 121 pp.
Gannon, W.L., R.S. Sikes, and the Animal Care and Use Committee of the American
Society of Mammalogists. 2007. Guidelines of the American Society of
Mammalogists for the use of wild animals in research. Journal of Mammalogy
88:809–823.
Gates, J.E., G.A. Feldhamer, L.A. Griffith, and R.L. Raesly. 1984. Status of cavedwelling
bats in Maryland: Importance of marginal habitats. Wildlife Society
Bulletin 12:162–169.
Hitchcock, H.B. 1955. A summer colony of the Least Bat, Myotis subulatus leibii
(Audubon and Bachman). Canadian Field-Naturalist 69:31.
Hitchcock, H.B., R. Keen, and A. Kurta. 1984. Survival rates of Myotis leibii and
Eptesicus fuscus in southeastern Ontario. Journal of Mammalogy 65:126–130.
Johnson, J.B., and J.E. Gates. 2005. Bat emergence and swarming surveys at 4 western
Maryland caves. Maryland Naturalist 47:1–13.
Leput, D. W. 2004. Eastern Red Bat (Lasiurus borealis) and Eastern Pipistrelle (Pipistrellus
subflavus) maternal roost selection: Implications for forest management.
M.Sc. Thesis. Clemson University, Clemson, SC.
Marsh, B.D. 1998. Prehibernal weight gain and activity of temperate cavern-dwelling
bats in western Maryland and southwestern Pennsylvania. M.Sc. Thesis.
Frostburg State University, Frostburg, MD. 237 pp.
460 Northeastern Naturalist Vol. 15, No. 3
Martin, R.L., J.T. Pawluk, and T.B Clancy. 1966. Observations on hibernation of
Myotis subulatus. Journal of Mammalogy 47:348–349.
Menzel, M.A., J.M. Menzel, S.B. Castleberry, J. Ozier, W.M. Ford, and J.W. Edwards.
2002. Illustrated key to skins and skulls of bats in the Southeastern and
Mid-Atlantic States. Research Note NE-376. USDA Forest Service, Northeastern
Research Station, Newtown Square, PA. 9 pp.
Mohr, C.E. 1936. Notes on the least brown bat Myotis subulatus leibii. Proceedings
of the Pennsylvania Academy of Science 10:62–65.
Nelson, E.W. 1913. A new bat from the eastern United States. Proceedings of the
Biological Society of Washington 26:183–184.
Paradiso, J.L. 1969. Mammals of Maryland. United States Department of the Interior,
Bureau of Sport Fisheries and Wildlife, Washington, DC. North American
Fauna, Number 66. 193 pp.
Perry, R.W., and R.E. Thill. 2007. Tree roosting by male and female Eastern Pipistrelles
in a forested landscape. Journal of Mammalogy 88:974–981.
Racey, P. 1988. Reproductive assessment in bats. Pp. 31–45, In T.H. Kunz (Ed.).
Ecological and Behavioral Methods in the Study of Bats. Smithsonian Institution
Press, Washington, DC. 533 pp.
Roble, S.M. 2004. Notes on an autumn roost of an Eastern Small-footed bat (Myotis
leibii). Banisteria 23:42–44.
SAS Institute, Inc. 2004. SAS/STAT 9.1 users guide. Version 9.1. SAS Institute, Inc.,
Cary, NC. 5121 pp.
Schmidt, M.F., Jr. 1993. Maryland’s Geology. Tidewater Publishers, Centreville,
MD. 164 pp.
Veilleux, J.P., J.O. Whitaker, Jr., and S.L. Veilleux. 2003. Tree-roosting ecology of
reproductive female Eastern Pipsitrelles, Pipistrellus subflavus, in Indiana. Journal
of Mammalogy 84:1068–1075.
