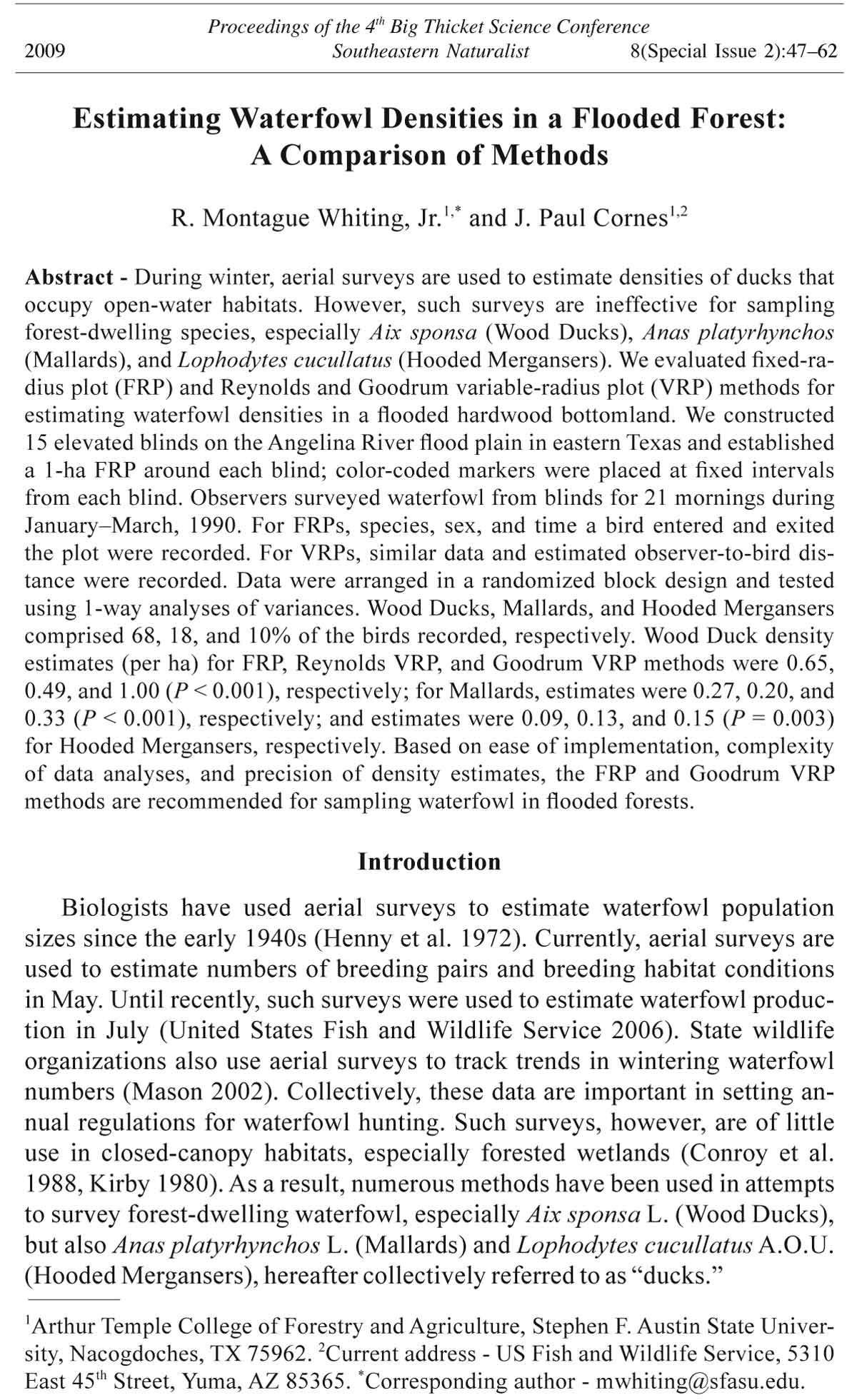

Proceedings of the 4th Big Thicket Science Conference
2009 Southeastern Naturalist 8(Special Issue 2):47–62
Estimating Waterfowl Densities in a Flooded Forest:
A Comparison of Methods
R. Montague Whiting, Jr.1,* and J. Paul Cornes1,2
Abstract - During winter, aerial surveys are used to estimate densities of ducks that
occupy open-water habitats. However, such surveys are ineffective for sampling
forest-dwelling species, especially Aix sponsa (Wood Ducks), Anas platyrhynchos
(Mallards), and Lophodytes cucullatus (Hooded Mergansers). We evaluated fixed-radius
plot (FRP) and Reynolds and Goodrum variable-radius plot (VRP) methods for
estimating waterfowl densities in a fl ooded hardwood bottomland. We constructed
15 elevated blinds on the Angelina River fl ood plain in eastern Texas and established
a 1-ha FRP around each blind; color-coded markers were placed at fixed intervals
from each blind. Observers surveyed waterfowl from blinds for 21 mornings during
January–March, 1990. For FRPs, species, sex, and time a bird entered and exited
the plot were recorded. For VRPs, similar data and estimated observer-to-bird distance
were recorded. Data were arranged in a randomized block design and tested
using 1-way analyses of variances. Wood Ducks, Mallards, and Hooded Mergansers
comprised 68, 18, and 10% of the birds recorded, respectively. Wood Duck density
estimates (per ha) for FRP, Reynolds VRP, and Goodrum VRP methods were 0.65,
0.49, and 1.00 (P < 0.001), respectively; for Mallards, estimates were 0.27, 0.20, and
0.33 (P < 0.001), respectively; and estimates were 0.09, 0.13, and 0.15 (P = 0.003)
for Hooded Mergansers, respectively. Based on ease of implementation, complexity
of data analyses, and precision of density estimates, the FRP and Goodrum VRP
methods are recommended for sampling waterfowl in fl ooded forests.
Introduction
Biologists have used aerial surveys to estimate waterfowl population
sizes since the early 1940s (Henny et al. 1972). Currently, aerial surveys are
used to estimate numbers of breeding pairs and breeding habitat conditions
in May. Until recently, such surveys were used to estimate waterfowl production
in July (United States Fish and Wildlife Service 2006). State wildlife
organizations also use aerial surveys to track trends in wintering waterfowl
numbers (Mason 2002). Collectively, these data are important in setting annual
regulations for waterfowl hunting. Such surveys, however, are of little
use in closed-canopy habitats, especially forested wetlands (Conroy et al.
1988, Kirby 1980). As a result, numerous methods have been used in attempts
to survey forest-dwelling waterfowl, especially Aix sponsa L. (Wood Ducks),
but also Anas platyrhynchos L. (Mallards) and Lophodytes cucullatus A.O.U.
(Hooded Mergansers), hereafter collectively referred to as “ducks.”
1Arthur Temple College of Forestry and Agriculture, Stephen F. Austin State University,
Nacogdoches, TX 75962. 2Current address - US Fish and Wildlife Service, 5310
East 45th Street, Yuma, AZ 85365. *Corresponding author - mwhiting@sfasu.edu.
48 Southeastern Naturalist Vol. 8, Special Issue 2
Biologists have fl oated streams and rivers counting Wood Duck broods
and brood sizes in attempts to estimate annual production (Cottrell and
Prince 1990, Minser and Dabney 1973). Most studies suggest that such
counts have low potential for predicting production indices (Kirby 1980,
Moser and Graber 1990). Such counts are less precise and have higher variation
than nesting-season evening roost fl ight counts (Hein 1966). However,
during fall and winter, roost fl ight counts may yield information on local
population abundances (Hester and Quay 1961), but do not provide reliable
indices to overall Wood Duck populations or population trends (Hein and
Haugen 1966, Parr and Scott 1978).
Densities of wintering Wood Ducks and Mallards have been estimated
using plot (Heitmeyer and Fredrickson 1990) and strip-transect methods
(Bacon 1990, Sherman et al. 1995). Researchers walked boundaries of 2.02-
ha plots and recorded all ducks detected (Heitmeyer and Fredrickson 1990)
or walked/waded strip center lines and recorded data appropriate for using
the estimator TRANSECT II (Sherman et al. 1995). Although both methods
may have potential for estimating waterfowl densities, both are restricted
to water depths that can be waded. In fact, there is no satisfactory universal
method for estimating densities of Wood Ducks (Bellrose and Holm 1994,
Brakhage 1990) and other forest-dwelling ducks (Conroy et al. 1988).
Densities of terrestrial species in forested habitats have been estimated
using a variety of methods. Goodrum (1940) developed a variable-radius
plot (VRP) method to estimate Sciurus carolinensis Gmelin (Gray Squirrel)
numbers whereby an observer sits still for a given period of time and notes
the location of each squirrel seen. After the specified time, the observer-tosquirrel
distances are measured, and the mean of these values is used as a
radius to calculate mean uncorrected plot size. The uncorrected plot size
is reduced by 25% to compensate for the area that the observer cannot see
without moving (Goodrum 1940).
Songbird densities have been estimated using fixed-width (Conner and
Dickson 1980) and variable-width (Emlen 1971) transect and fixed-radius
plot (FRP) (Fowler and McGinnes 1973, Whiting and Baggett 1988) and
VRP methods (Reynolds et al. 1980). The Reynolds method was developed
for estimating bird numbers in tall, structurally complex vegetation. Density
of a species at a particular blind is determined by constructing a histogram of
the number of individuals per unit area in concentric 10.00-m bands around
the blind, then determining the radius where density begins to decline. The
number of individuals within the circle of that radius is then divided by the
area of the circle. Several studies have indicated that this method produces
reasonably good density estimates of terrestrial birds in forested habitats
(Anderson and Ohmart 1981, DeSante 1981, Edwards et al. 1981).
To date, no known study has used either FRP or VRP methods to estimate
densities of Wood Ducks, Mallards, or Hooded Mergansers in fl ooded
forests. Therefore, our objectives were to evaluate FRP and Goodrum and
Reynolds VRP sampling methods to estimate densities of these species in
2009 R.M. Whiting, Jr. and J.P. Cornes 49
such a forest. We also examined changes in estimated densities and sex ratios
by species throughout the winter season.
Study Area Description
This study was conducted in the Stephen F. Austin Experimental Forest
(SFAEF) in Nacogdoches County, TX. The study area was a 135-ha portion
of the 728-ha mature bottomland hardwood forest along the Angelina River
within the SFAEF. In the study area, major community types and primary plant
species were the Quercus phellos L. (Willow Oak) - Q. nigra L. (Water Oak)
- Liquidambar styracifl ua L. (American Sweetgum) type on higher fl ats and
lower ridges and the Q. lyrata Walt (Overcup Oak) - Carya aquatica (Michx.
f.) Nutt. (Water Hickory) - Planera aquatica J.F. Gmel. (Water Elm) type on
lower fl ats and back swamps (US Fish and Wildlife Service 1985, 1989). A
detailed description of the bottomland hardwood forest at the SFAEF can be
found in Jones (1987). Soils in the study area are fl uvaquents dominated by
frequently fl ooded Mantachie clay loams (fine-loamy, siliceous, acid, thermic
fl uveric endoaquepts) (Dolezel 1980). A high growth potential for numerous
mast-producing hardwood species in combination with seasonal fl ooding of
these soils provides excellent conditions for wintering Mallards and wintering
and resident Wood Ducks and Hooded Mergansers.
Methods
We constructed 3 blinds along each of 5 systematically located transects
in the study area. The parallel transects were 300 m apart and traversed the
study area from north to south; blinds were established at 300-m intervals.
Transects were marked with fl orescent plastic fl agging and refl ectant tacks
for ease of location during predawn hours. Each blind was 2.0 m above the
ground in order to be above the normal winter water level. Color-coded
markers were placed above the high water line at 30.00-m, 56.42-m, and
90.00-m intervals from each blind; 8 such markers were placed at each interval
around each blind. The markers were used to indicate the boundary of
the FRP and to aid in estimating observer-to-duck distances (O-D-D) for the
VRPs. For the FRP method, each blind was the center of a circular plot with
a fixed-radius of 56.42 m and a nominal sampling area of 1.00 ha. For the
VRP methods, each blind was the center of 2 variable-size sampling areas.
Sampling waterfowl
Fifty-three observers participated in the study. Before the study began,
38 individuals received training on sampling procedures and bird identification.
The 15 individuals that did not receive training prior to the study
were given training before conducting sample counts. Five experienced
waterfowl observers who agreed to be available for all sample days were
appointed as team leaders. On each sample day, 2 observers were assigned
to each team leader. During the first 3 sample days, members of
each team rotated through the 3 blinds on a line. Thereafter, teams were
50 Southeastern Naturalist Vol. 8, Special Issue 2
systematically rotated through all 5 lines such that individuals that participated
every sample day conducted counts in every blind once and 6 blinds
twice. Counts were conducted under a variety of weather conditions and
water levels. Weather conditions ranged from clear and calm to overcast
with light rain; counts were not conducted when thunderstorms or heavy
rain was predicted. Water levels ranged from flood stage to 1.5 m above
flood stage. Usually observers were able to wade to the blinds. When this
was not possible, canoes were used and were sunk at or near the blinds. Exposed
portions of canoes were covered with camouflage burlap.
Each observation period was 1.5 hours long. The period began 30 minutes
before sunrise and ended 1 hour thereafter. Observers remained seated
throughout the observation period, but turned to face a different cardinal
direction every 12–15 minutes. Data for the FRP and VRP methods were
collected simultaneously and recorded on a standardized data sheet (Cornes
1991). Detailed instructions regarding sampling procedures were printed
on the back of each data sheet. On each data sheet, the observer’s name,
observation day (1–21), blind number (1–15), Julian date, and official time
of sunrise were recorded. Only ducks on water, on land, or perched in trees
were recorded. For each duck, species, sex, and group size were recorded.
Binoculars were not used to search for birds; they were used to determine
species, numbers, and sex.
For the FRP method, data recorded were time-in and time-out. The
time at which a duck was first seen in the fixed sampling area was
recorded as time-in, and the time when the duck left the sampling area,
could no longer be seen, or the observation period ended was time-out.
When there was more than 1 duck in a group, time-in was when the first
duck was seen in the fixed sampling area, and time-out was when the last
bird of the group left the sampling area, could no longer be seen, or the
observation period ended.
For the VRP methods, data recorded were the estimated O-D-Ds (in 5-m
increments), direction of the duck from the observation blind, the time the
duck was first observed (time-in), and the time the duck was last observed
(time-out). Distance and direction were estimated from the blind to the point
where the duck was first seen. When there was more than 1 duck in a group,
time-in was when the first bird was seen, and the time-out when the last bird
of the group could no longer be seen, or the observation period ended. Due
to screening vegetation, it was not uncommon for time-in and/or time-out for
a duck to be the same for the FRP and VRP sampling methods.
If an individual or group became concealed from view for a brief period
(<2 minutes) and then reappeared, time-out was not recorded. However,
if the individual or group became concealed for an extended period (>2
minutes) or moved out of the area, then time-out was recorded. Thereafter,
ducks that may have re-entered the field of view were treated as a new sighting.
Additionally, if several ducks entered a plot as an apparent group and
separated while in view, a separate time-out was recorded for each duck or
2009 R.M. Whiting, Jr. and J.P. Cornes 51
subgroup. If the observation period ended while birds were in view, time-out
was recorded as the scheduled ending time of the observation period. Finally,
at the end of the observation period, each observer estimated the percent of
the FRP effectively seen and the percent of the visible VRP area that was
covered by water.
Data analyses
The numbers of ducks recorded on the FRPs and the borderless VRPs
were summarized by species and sex within a species for each blind and
each sample day. These data were used to contrast and compare the numbers
of birds recorded using the FRP and VRP sampling methods. Throughout
these analyses, data were analyzed separately for Wood Ducks, Mallards,
and Hooded Mergansers.
In order to estimate density, it was necessary to first determine an effective
plot size for each method. For the FRP method, the estimated visibility
percentages were averaged across all sample days for each blind. The value
for each blind then became the proportion of the nominal 1-ha FRP that was
the effective sampling area around that blind (Cornes 1991). Values for the
15 blinds were averaged to attain an overall effective sampling area; this
value did not differ among species.
For the Reynolds method, the O-D-Ds were used to construct histograms
of ducks per ha in 10-m concentric bands around each blind for each species.
The outer radius (basal radius) of the band where density began to decline
(i.e., infl ection point) was then used to calculate the effective circular sampling
area around each blind for each species (Cornes 1991); the overall
effective sampling area for each species was attained by averaging across
blinds. Finally, a weighted effective sampling area was determined for all
species combine.
For the Goodrum method, the O-D-Ds for each species were averaged by
blind across sample days. The values for each blind were then used as the
radii for calculating the effective circular sampling areas around that blind
(Cornes 1991). As with the Reynolds method, overall effective sampling areas
were calculated by averaging among blinds. Also, as with that method, a
weighted effective sampling area was determined with all species combined.
Goodrum (1940) recommended a correction factor for unseen portions of the
sampling area behind the observer. In this study, observers were well hidden
and were able to turn freely in any direction, therefore no correction factor
was applied.
In surveying birds using plots, various authors (Bollinger et al. 1988,
DeSante 1981, Edwards et al. 1981, Reynolds et al. 1980) used different
methods to develop standardized time intervals during which to estimate
density. In this study, the standardized time interval was based on the average
length of time ducks were in view. For each duck, the difference between
time-in and time-out on the FRP and/or the VRP was calculated; values for
the 2 VRP methods were identical. For each species and method, the values
were averaged by sample day, and then across the entire study period.
52 Southeastern Naturalist Vol. 8, Special Issue 2
The number of time intervals during which to estimate density was determined
by dividing the length of the interval into the length of the observation
period. Then, using sunrise as a starting point, density estimates were made
for each complete time interval prior to and after sunrise. Incomplete time
intervals at the beginning and end of the observation period and individuals
recorded during those intervals were excluded from analyses.
For each species and method, the mean density for each time interval
during each sample day was determined by dividing the number of birds recorded
at all blinds during the interval by the product of the overall effective
sampling area and the number of blinds occupied. Mean time-interval densities
per sample day were determined by averaging time intervals. Finally,
mean time-interval densities for the entire study period were determined by
averaging across sample days. Coefficients of variation and standard errors
were computed for each density estimate. Community density estimates
were also determined for each method by combining overall mean density
estimates among species.
Nine of the 53 observers participated in 13 or more sample-counts. Data
collected by those 9 observers were used to evaluate observer differences
in mean: 1) numbers of ducks recorded per day using each method; 2) estimated
O-D-Ds on the VRPs; and, 3) estimated visibility percentages on the
FRPs. For the first 2 comparisons, the data were pooled for the 3 species.
Additionally, mean estimated O-D-Ds were compared among species using
data collected by all 53 observers. Likewise, mean FRP visibility estimates
were compared among all observers. Finally, changes in average visibility
across sample days were evaluated using data from all blinds.
Statistical analyses
For each method, data were tested to determine if differences in numbers
of ducks, effective sampling areas, lengths of times ducks were in view,
and densities existed among species. Within a species, the same differences
were evaluated among methods. Data were also tested to determine if differences
existed in densities among time intervals, numbers of ducks recorded
among selected observers, sex ratios among 10-m concentric bands around
the blinds, and sex ratios and densities among sample days.
For comparisons among methods, species, and time intervals, data were
arranged in a randomized block design and examined using 1-way analysis
of variance tests (SAS Institute, Cary, NC 1982). Sample days were blocks,
and methods, species, observers, and time intervals were treatments in these
analyses. For comparisons among sample days and selected observers, data
were arranged in a completely randomized design and tested using analysis
of variance techniques. For comparisons among sample days, sample
day was the grouping variable and sex ratios, densities, and FRP visibility
percentages were dependent variables. For comparisons among observers,
observer was the grouping variable and duck numbers, FRP visibility percentages,
and O-D-Ds were the dependent variables. For comparisons of sex
ratios among 10-m bands, data were evaluated using the chi-square test of
2009 R.M. Whiting, Jr. and J.P. Cornes 53
homogeneity with Pearson’s likelihood ratio. Finally, simple linear regression
was used to determine if FRP visibility percentages exhibited a linear
trend across sample days.
For all comparisons, the null hypothesis was that no differences existed
among treatments or grouping variables (α = 0.05). When the null hypothesis
was rejected, the Tukey W-procedure was used to determine which
treatment means were different.
Results
Sample counts
During the 27 January–22 March 1990 study period, 295 sample counts
(i.e., observers in blinds) were conducted on 21 sample days. Twenty scheduled
counts were not conducted due to observer absence. Blinds not occupied
because of observer absence usually were those in close proximity to water
edge. Two counts were not used because of observer error, thus the 293 valid
counts averaged slightly less than 14 sample counts per sample day.
During the sample counts, 1127 ducks comprising 6 species were recorded
within the borders of the FRP (Cornes 1991). Wood Ducks were the most
common species, comprising over 68% of the individuals recorded. Mallards
(18%) and Hooded Merganser (10%) ranked second and third, respectively.
The remaining 4% was made up of individuals classified as unknown or other
(4 Mergus merganser L. [Common Mergansers]; 2 Anas acuta L. [Northern
Pintails]; 2 A. crecca L. [Green-winged Teal]). For Wood Ducks, Mallards,
and Hooded Mergansers, males exceeded females by 47% (478:252, P <
0.001), 64% (127:46, P = 0.001), and 27% (63:46, P = 0.003), respectively
(Cornes 1991). However, there were no differences in the proportions of males
to females among sample days (Wood Ducks, P = 0.673; Mallards, P = 0.539;
Hooded Mergansers, P = 0.416).
Within the borderless VRPs, 1375 individuals of the same 6 species
were recorded. Higher numbers of Wood Ducks (P < 0.001), Mallards (P <
0.001), and Hooded Mergansers (P = 0.009) were recorded on the VRPs
(Wood Ducks: mean ± SE = 43.52/day ± 4.91; Mallards: 12.95/day ± 1.30;
Hooded Mergansers: 6.28/day ± 1.21) than on the FRPs (Wood Ducks:
36.43/day ± 3.88; Mallards: 9.86/day ± 1.08; Hooded Mergansers: 5.28/
day ± 1.15). Again, Wood Ducks were most common (66%), followed by
Mallards (20%) and Hooded Mergansers (10%); the remaining 4% were
classified as other or unknown. As with the FRPs, male Wood Ducks exceeded
females by 47% (563:298; P < 0.001); however, male Mallards
exceeded females by only 43% (168:98, P < 0.001) whereas male Hooded
Merganser exceeded females by 33% (78:52, P = 0.001). As with the FRPs,
the proportions of males to females among sample days were not different
(Wood Ducks, P = 0.100; Mallards, P = 0.183; Hooded Mergansers, P =
0.604). Likewise, there were no differences in sex ratios among 10-m concentric
bands around blinds (Wood Ducks, P = 0.541; Mallards, P = 0.641;
Hooded Mergansers, P = 0.719).
54 Southeastern Naturalist Vol. 8, Special Issue 2
Density
For the FRP method, visibility values ranged from 20–100% among
observers and from 42–87% among blinds. Among blinds, the mean was
60.0%, thus, the overall effective sampling area used to estimate density for
each species was 0.60 ha. For the Reynolds method, basal radii for Wood
Ducks, Mallards, and Hooded Mergansers ranged from 20–85 m (mean =
56.3 m), 30–90 m (mean = 58.2 m), and 15–60 m (mean = 40.7 m), respectively,
among blinds (Cornes 1991). The resulting effective sampling areas
of Wood Ducks and Mallards were larger than that of Hooded Mergansers
(Table 1). Mean O-D-Ds by blind for the Goodrum method ranged from
28–55 m (mean = 40.8 m) for Wood Ducks, 35–77 m (mean = 45.4 m) for
Mallards, and 10–53 m (mean = 38.2 m) for Hooded Mergansers; effective
sampling areas did not differ among species (Table 1). The Reynolds
method provided larger sampling areas than the FRP and Goodrum methods
for Wood Ducks and Mallards, but not Hooded Mergansers. With species
pooled, weighted means for the Reynolds and Goodrum methods were 0.93
ha and 0.57 ha; differences in these values were not examined.
Average lengths of times that Wood Ducks, Mallards, and Hooded Mergansers
were visible on the FRPs were shorter than those on the VRPs by 20, 5, and
7%, respectively. Within a species, the greatest difference between the FRP
and VRP methods was slightly over 1.50 minutes (i.e., Wood Ducks), while the
smallest difference was slightly over 0.50 minutes (i.e., Hooded Mergansers).
Mean visible times did not differ between methods for any species.
Mallards were visible for longer periods of time than were the other 2
species. Visible times for Mallards on FRPs and VRPs exceeded those of
Wood Ducks and Hooded Mergansers by 83% and 93%, respectively, and
by 55% and 89%, respectively. Although Wood Ducks were visible 5% and
22% longer than Hooded Mergansers on the FRPs and the VRPs, respectively,
visible times did not differ. After rounding, 3 of the 6 mean times
Table 1. The effective sampling areas (ha) for Wood Ducks, Mallards, and Hooded Mergansers
as estimated using the fixed radius plot (FRP) and the Reynolds et al. (1980) and the Goodrum
(1940) variable radius plot (VRP) methods. Also included are the mean time that each species
was visible (minutes) on the plots. Within rows, means followed by different superscript letter
are significantly different at α = 0.05. Within columns, means followed by a different superscript
numeral are significantly different at α = 0.05.
Area Time
Species Fixed Reynolds Goodrum P - value FRP VRP P - value
Wood Duck Mean 0.60A 1.09B1 0.53A <0.001 7.271 9.091 0.05
SD 0.19 0.61 0.81 7.06 10.31
Mallard Mean 0.60A 1.14B1 0.69A 0.001 13.342 14.092 0.72
SD 0.19 0.32 0.40 16.35 16.34
Hooded Merganser Mean 0.60 0.572 0.50 0.46 6.901 7.431 0.16
SD 0.19 0.32 0.27 6.88 6.96
Weighted mean 0.60 0.93 0.57
P - value 0.002 0.177 0.01 0.01
2009 R.M. Whiting, Jr. and J.P. Cornes 55
were 7 minutes, thus, 7 minutes was used as the standardized time interval.
This standardization provided 12 complete time intervals per sample-day, 4
before sunrise and 8 after sunrise.
For the FRP, Reynolds, and Goodrum methods, 1039, 1023, and 1251
individuals were used in density estimates, respectively. Excluded from each
method were 44 ducks classified as other or unknown and 44 individuals recorded
during incomplete time intervals. Additionally, for the VRP methods,
13 unknown ducks and 23 with incomplete time intervals were excluded.
For the Reynolds method, 228 individuals outside the designated basal radii
were excluded. Wood Duck, Mallard, and Hooded Merganser species compositions
were 736, 195, and 108, respectively, for the FRP method, 703,
213, and 107, respectively, for the Reynolds method, and 860, 261, and 130,
respectively, for the Goodrum method.
For Wood Ducks and Mallards, density estimates differed among
methods, with the Goodrum method providing the highest values and the
Reynolds method the lowest (range: Wood Ducks, 0.49–1.00 birds/ha;
Mallards, 0.20–0.33 birds/ha; Table 2). For Hooded Merganser, density estimates
ranged from 0.09–0.15 birds per ha. In contrast to Wood Ducks and
Mallards, the Goodrum estimate for Hooded Mergansers was similar to that
of the Reynolds method, and both estimates were higher than that of the FRP
method. For all 3 sampling methods, estimated densities of Wood Ducks
Table 2. Mean densities (per ha), sampling errors (SE), coefficient of variation percentages
(CV%), and sampling error percentages (SE%) of Wood Ducks, Mallards, and Hooded Mergansers
as estimated using fixed radius plot (FRP) and Reynolds et al. (1980) and Goodrum
(1940) variable radius plot (VRP) methods, Nacogdoches County, TX, winter 1990. Within
rows, means followed by a different superscript letter were significantly different at α = 0.05.
Within columns, means followed by a different superscript numeral are significantly different
at α = 0.05
VRP
Variable FRP Reynolds Goodrum P - value
Wood Ducks
Density 0.65A1 0.49B1 1.00C1 <0.001
SE 0.13 0.10 0.20 -
CV % 73.23 72.32 70.34 -
SE % 20.00 21.74 20.00 -
Mallards
Density 0.27A2 0.20B2 0.33C2 <0.001
SE 0.14 0.04 0.07 -
CV % 98.03 81.29 82.76 -
SE % 51.85 30.77 21.21 -
Hooded Mergansers
Density 0.09A2 0.13B2 0.15B2 0.003
SE 0.03 0.05 0.05 -
CV % 112.63 103.64 102.16 -
SE % 33.33 30.77 33.33 -
All Species
Density 1.01 0.79 1.48 -
P - value <0.001 <0.001 <0.001 -
56 Southeastern Naturalist Vol. 8, Special Issue 2
were higher than those of Mallards or Hooded Mergansers. Although Mallards
density estimates were >50% higher than those of Hooded Mergansers,
they were not significantly different.
Mean time-interval densities were generally lower for intervals prior to
sunrise than thereafter, and were significantly lower for the first interval in
every case (Cornes 1991). Likewise, mean time-interval densities differed
among sample-days, and ranged from 0.14–2.00, 0.00–0.66, and 0.00–0.49
for Wood Ducks, Mallards, and Hooded Mergansers, respectively. Sampledays
in March consistently ranked in the lower 1/3 of the density estimates
(Cornes 1991).
Average numbers of ducks recorded on FRPs by the 9 selected observers
ranged from 2.65–8.00 per day (P = 0.021; Cornes 1991). On VRPs, average
numbers ranged from 2.52–8.29 ducks per day (P = 0.076; Cornes 1991). For
the selected observers, mean O-D-Ds on the VRPs were similar (P = 0.166,
range = 34.1–47.7 m). For all observers, mean O-D-Ds were 42.7 m, 46.3 m,
and 41.6 m for Wood Ducks, Mallards, and Hooded Mergansers, respectively
(P = 0.108). On FRPs, average estimated visibilities by selected observers
did not differ significantly (P = 0.055), and ranged from 47.8–67.1% (Cornes
1991). For all observers, mean visibility estimates ranged from 53.0–70.0%
(P = 0.364). Finally, regression of percent visible estimates across sampledays
indicated that estimates decreased as the study progressed (P < 0.001,
R = 0.882; Cornes 1991).
Discussion
Assumptions
Validity of our density estimates was based on 5 assumptions (Reynolds et
al. 1980, Roeder et al. 1987). First, all ducks had an equal likelihood of occurring
anywhere in the habitat. Due to interspecific differences in habitat
selection and variation in the extent and duration of overbank fl ooding in the
728-ha SFAEF bottomland, this assumption may not have been met and our
density estimates may not be applicable for the entire area. However, in
our 135-ha study area, blinds were located systematically across topography
in order to provide a representative sample of areas of varying vegetative densities
and water depths, and we are confident that the assumption was met.
Second, length of sample-count interval was long enough to record all
visible ducks and short enough that duck locations were essentially fixed.
This assumption could have been violated if ducks were counted at 2 blinds
or more than once from the same blind during the same time interval. Our
blinds were spaced sufficiently far enough apart (300 m) and time intervals
were short enough (7 minutes) that the probability of recording a duck
at more than 1 blind during a time interval was minimal. Although large
numbers of ducks in the vicinity of the blinds could have resulted in the
same duck being counted more than once, the average number of ducks per
observer per sample-day was low (less than 8.3). A duck that exited a plot and later
reappeared had to be out of sight for at least 2 minutes to be considered a
2009 R.M. Whiting, Jr. and J.P. Cornes 57
new sighting. Thus, the window for counting such a duck twice was less than
5 minutes. For these reasons, it is unlikely that this assumption was violated
and that multiple counting occurred.
Third, all observers were equal in their ability to see and identify birds,
and fourth no distance estimation errors were made. Our data suggest that
these assumptions may not have been met. For them to be valid, physical
factors (e.g., visual acuity, peripheral vision, color sensitivity), psychological
factors (e.g., concentration, motivation, alertness), and ability must be
equal among observers (Kepler and Scott 1981). Due to unforeseen circumstances,
we had to use many more observers than originally planned. While
the original 38 observers were trained in duck identification and distance
estimation, the other 15 received only cursory training. More importantly,
some observers were dedicated waterfowl hunters whereas others had spent
little time in wetland habitats. Undoubtedly, observers differed in their ability
as well as their physical and psychological characteristics. Violations of
these assumptions probably resulted in density estimates that were lower
than the true values. These problems could be minimized if observers were
well trained and experienced in the methodology (Kepler and Scott 1981).
Fifth, there were no observer effects (Bollinger et al. 1988). Observers
entered blinds 15–30 minutes prior to the beginning of the observation
period, and most ducks roosted elsewhere and fl ew into the study area after
daylight. Likewise, there was no evidence that observers in blinds or sunken
canoes disturbed the ducks. Numerous ducks of each species were recorded
within 10 m of a blind, and on several occasions, ducks swam under an occupied
blind or across a sunken canoe. Therefore, bias due to observer effects
should have been minimal.
Density
The Goodrum method resulted in the smallest plot sizes and the highest
numbers of ducks, thus the highest density estimates. Goodrum mean
O-D-Ds were shorter than either the FRP effective radius or the Reynolds
basal radii, thus Goodrum sampling areas were smallest. Likewise, with that
method, all identified ducks were used in density calculations whereas ducks
outside the FRPs and the basal radii of the Reynolds VRPs were excluded.
For Wood Ducks and Mallards, Reynolds density estimates were lower
than FRP or Goodrum estimates. Reynolds et al. (1980) established basal
radii around each blind for each species; we did likewise. However, we recorded
so few ducks around some blinds on some sample days (range: Wood
Ducks 0–25, mean = 2.90; Mallards 0–10, mean = 0.86; Hooded Mergansers
0–8, mean = 0.42; Cornes 1991) that determining the infl ection point was
difficult at best. In retrospect, we should have pooled among blinds and used
a single basal radius for each species.
Studies of songbirds in forested habitats have suggested that the FRP
method may fail to account for detectability differences among species
(Reynolds et al. 1980), and VRP methods may produce underestimates of
density (Conner et al. 1983, DeSante 1981) due to bird inconspicuousness
58 Southeastern Naturalist Vol. 8, Special Issue 2
(Bollinger 1998). In our study, proportions of Wood Ducks, Mallards, and
Hooded Mergansers recorded using the FRP method were similar to those
recorded using VRP methods. Likewise, although females of each species
are less colorful than males, sex ratios of Wood Ducks and Hooded Mergansers
were similar between plot types, and higher proportions of female
than male Mallards were recorded on the borderless VRPs than on the FRPs.
These results suggest that adjusting the sampling areas of the FRPs based
on the percentages of the plots visible compensated for detectability differences
among species and that population characteristics of the 3 species can
be satisfactorily determined using either FRP or VRP methods.
Disregarding the percent of dry land on the FRPs and VRPs may have led
to density underestimates using all 3 methods. The mean percent of dry land
in the visible sampling area of the VRPs averaged 18%. Since no ducks were
recorded on dry land, it is likely that the effective sampling areas were overestimated,
thus density was underestimated. To improve density estimates, dry
land area should be excluded when calculating effective sampling areas.
Variation in densities among sample-days was probably a result of waterfowl
emigration and immigration and vegetation changes (i.e., increased
foliage). After sample-day 16 (2 March 1990), densities of Wood Ducks
and Hooded Mergansers were dramatically reduced; Mallard densities remained
relatively high throughout the study period, however (Cornes 1991).
Although changes in vegetation associated with spring leaf-out reduced
visibility, factors such as breeding activity, migration, and increased proportions
of dry land area may have also contributed to lower densities of Wood
Ducks and Hooded Mergansers during the late winter.
Our coefficients of variation and sampling errors were much higher than
those of other authors. As suggested by Conroy et al. (1988), Heitmeyer and
Fredrickson (1990) used a coefficient of variation of ≤0.13 as a desirable
level of precision. In our study, the lowest coefficient of variation was 0.70,
considerably higher than the suggested level. Sampling errors that were
considered acceptable in the Heitmeyer and Fredrickson (1990) study ranged
from 3 to 15%. Again, the lowest estimate in our study (20%) was higher
than their suggested level. Reasons for our high coefficients of variation and
sampling errors are probably related to a number of factors, including differences
in observer ability and water depth in the study area, which fl uctuated
by as much as 1.5 m during the study, and the extended sampling period.
Also, total numbers of ducks recorded per blind varied widely (range: 7–184,
mean = 91.7) as did numbers per sample day (range: 15–107, mean = 53.6).
The coefficients of variation and sampling errors could probably be greatly
reduced by using well-trained observers, a sampling period much shorter
than ours, and sample days without rain or fog.
Sex ratios
Bellrose (1976) reported that the male to female ratios of wintering Wood
Ducks and Mallards were relatively balanced with 12–15% more males.
Heitmeyer and Fredrickson (1990) reported similar proportions for Wood
2009 R.M. Whiting, Jr. and J.P. Cornes 59
Ducks. In our study, the proportions of males to females for both species
were considerably higher. Some researchers attribute such differences to
weather factors. Alford and Bolen (1977) found that the percentage of male
Northern Pintails increased as ambient temperature decreased. They stated
that similar trends may be true for other waterfowl species that lack lifelong
pair bonds. It is possible that extreme cold prior to this study may have
driven females further south.
Better visibility during fair weather could have increased the detectability
of males, thus increasing the proportion of males counted.
However, since there was no difference in the proportions of males across
sample-days, weather-related visibility was probably not a problem. The
drab plumage of females could have decreased their detectability, resulting
in undercounting of this segment of the population. The higher proportion
of female Mallards recorded on the VRPs than on the FRPs (Table 1) and
the fact that we found no differences in sex ratios among bands on the
VRPs suggests that the detectability of females was not a problem. In fact,
the proportions of male and female Wood Ducks and Mallards could be
characteristic of wintering populations in eastern Texas. This study and a
subsequent time-budget study that utilized the same blinds the following
year had similar proportions (Clark and Whiting 1994). Variation between
sexes may be characteristic of the region and not a result of the abovementioned
factors.
Bellrose (1976) reported that Hooded Mergansers have 30% more males
than females. In this study, the proportions of male Hooded Mergansers recorded
on the FRPs and the VRPs (Table 1) were similar to that of Bellrose
(1976). This result suggests that the gender differences we recorded are
characteristic for this species.
Recommendations
Our results indicate that the FRP and VRP methods can be used to sample
waterfowl in fl ooded bottomland hardwood forests. Observation blinds are
required for all 3 sampling methods. In relatively small areas, blinds should
be placed systematically across topography to provide a representative
sample of areas of varying vegetation density and water depth. In large areas,
it may be necessary to place blinds at random locations. Blinds should
be far enough apart and the time intervals short enough that it is unlikely
that ducks would be recorded at more than 1 blind during an interval. Blinds
could be placed at intervals greater than 300 m, but probably no closer. Our
7-minute time interval seemed to work well for estimation of densities using
all 3 methods. Even with a relatively large number of ducks within the
visible sampling area, keeping track of which duck had been counted was
not a problem. Increasing the length of the interval would increase the probability
of counting individuals more than once at a blind during an interval.
Shortening the interval may result in undercounting of visible ducks. Counts
should be restricted to the winter season prior to spring leaf-out and during
periods of suitable weather and water conditions.
60 Southeastern Naturalist Vol. 8, Special Issue 2
For both the FRP and VRP methods, establishing distance markers are
essential. However, VRP methods require more markers and markers farther
from the blind than the FRP method; markers may be difficult to place in areas
of dense vegetation. For the FRP method, data collection does not require
estimating O-D-Ds, and thus is easier (Reynolds et al. 1980). Calculating
density estimates for the FRP and Goodrum methods are both relatively
simple procedures. Conversely, calculating such estimates for the Reynolds
method is relatively complex. Also, to be appropriate for surveying ducks in
fl ooded forests, basal radii calculations would need to be modified. For these
reasons, we believe that the FRP and Goodrum VRP methods are best suited
for estimating duck numbers in fl ooded forests.
Acknowledgments
This study would not have been possible without the help of numerous Stephen F.
Austin State University forestry and biology students. R.N. Conner, R.R. Fleet, and
R.L. Rayburn provided suggestions and help with statistical analyses. M.S. Fountain,
J.A. Neal, W.V. Robertson, K.G. Watterston, M.C. Green, and 2 anonymous
reviewers provided comments on the manuscript. S.E. Richardson edited and typed
early drafts, and J. Flynn helped with the final draft. The US Forest Service allowed
us to construct blinds on the Stephen F. Austin Experimental Forest, and the study
was funded by the US Fish and Wildlife Service and the Arthur Temple College of
Forestry and Agriculture at Stephen F. Austin State University.
Literature Cited
Alford, J.R., III, and E.G. Bolen. 1977. Infl uence of winter temperatures on Pintail
sex ratios in Texas. Southwestern Naturalist 21:554–556.
Anderson, B.W., and R.D. Ohmart. 1981. Comparisons of avian census results using
variable distance transects and variable circular plot techniques. Pp. 186–192,
In C.J. Ralph and J.M. Scott (Eds.). Estimating Numbers of Terrestrial Birds.
Studies in Avian Biology Number 6, Cooper Ornithological Society, Lawrence,
KS. 630 pp.
Bacon, B.R. 1990. Ground count transects as an index to Wood Duck numbers in
Wisconsin. Pp. 213–217, In L.H. Fredrickson, G.V. Burger, S.P. Havera, D.A.
Graber, R.E. Kirby, and T.S. Taylor (Eds.). Proceedings of the 1988 North American
Wood Duck Symposium, St. Louis, MO. 390 pp.
Bellrose, F.C. 1976. Ducks, Geese, and Swans of North America. Stackpole Books,
Harrisburg, PA. 544 pp.
Bellrose, F.C., and D.J. Holm. 1994. Ecology and Management of the Wood Duck.
Stackpole Books, Mechanicsburg, PA. 588 pp.
Bollinger, E.K., T.A. Gavin, and D.C. McIntyre. 1988. Comparison of transects and
circular-plots for estimating Bobolink densities. Journal of Wildlife Management
52:777–786.
Brakhage, D.H. 1990. Techniques currently used for monitoring Wood Duck populations.
Pp. 201–203, In L.H. Fredrickson, G.V. Burger, S.P. Havera, D.A. Graber,
R.E. Kirby, and T.S. Taylor (Eds.). Proceedings of the 1988 North American
Wood Duck Symposium, St. Louis, MO. 390 pp.
2009 R.M. Whiting, Jr. and J.P. Cornes 61
Clark, H.B., and R.M. Whiting, Jr. 1994. Time budgets of Mallards and Wood Ducks
wintering in a fl ooded bottomland hardwood forest. Proceedings of the Annual
Conference of the Southeastern Association of Fish and Wildlife Agencies
48:22–30.
Conner, R.N., and J.G. Dickson. 1980. Strip-transect sampling and analysis for avian
habitat studies. Wildlife Society Bulletin 8:4–10.
Conner, R.N., J.G. Dickson, and J.H. Williamson. 1983. A comparison of breedingbird
census techniques with mist-netting results. Wilson Bulletin 95:276–280.
Conroy, M.L., J.R. Goldsberry, J.E. Hines, and D.B. Stotts. 1988. Evaluation of
aerial transect surveys for wintering American Black Ducks. Journal of Wildlife
Management 52:694–703.
Cornes, J.P. 1991. Sampling waterfowl in an east Texas bottomland hardwood forest:
A comparison of methods. M.Sc. Thesis. Stephen F. Austin State University,
Nacogdoches, TX. 120 pp.
Cottrell, S.D., and H.H. Prince. 1990. Comparison of Wood Duck survey techniques
on the Holston River in east Tennessee. Pp. 219–224, In L.H. Fredrickson, G.V.
Burger, S.P. Havera, D.A. Graber, R.E. Kirby, and T.S. Taylor (Eds.). Proceedings
of the 1988 North American Wood Duck Symposium, St. Louis, MO. 390 pp.
DeSante, D.F. 1981. A field test of the variable circular plot censusing technique in
a California coastal scrub breeding-bird community. Pp 177–185, In C.J. Ralph
and J.M. Scott (Eds.). Estimating Numbers of Terrestrial Birds. Studies in Avian
Biology Number 6, Cooper Ornithological Society, Lawrence, KS. 630 pp.
Dolezel, R. 1980. Soil Survey of Nacogdoches County, Texas. United States Department
of Agriculture, Soil Conservation Service, Nacogdoches, TX. 146 pp.
Edwards, D.K., G.L. Dorsey, and J.A. Crawford. 1981. A comparison of three avian
census methods. Pp. 170–176, In C.J. Ralph and J.M. Scott (Eds.). Estimating
Numbers of Terrestrial Birds. Studies in Avian Biology Number 6, Cooper Ornithological
Society, Lawrence, KS. 630 pp.
Emlen, J.T. 1971. Population densities of birds derived from transect counts. Auk
88:323–342.
Fowler, D.K., and B.S. McGinnes. 1973. A circular plot method of censusing postbreeding
bird populations. Proceedings of the Southeastern Association of Game
and Fish Commissioners 27:237–243.
Goodrum, P.D. 1940. A population study of the Gray Squirrel in eastern Texas. Texas
Agricultural Experiment Station Bulletin 591, Texas A&M University, College
Station, TX. 34 pp.
Hein, D. 1966. Float counts versus fl ight counts as indices to abundance of nesting
Wood Ducks. Journal of Wildlife Management 30:13–16.
Hein, D., and A.O. Haugen. 1966. Autumn roosting fl ight counts as an index to Wood
Duck abundance. Journal of Wildlife Management 30:657–668.
Heitmeyer, M.E., and L.H. Fredrickson. 1990. Abundance and habitat use of Wood
Ducks in the Mingo Swamp of southeastern Missouri. Pp. 141–151, In L.H.
Fredrickson, G.V. Burger, S.P. Havera, D.A. Graber, R.E. Kirby, and T.S. Taylor
(Eds.). Proceedings of the 1988 North American Wood Duck Symposium, St.
Louis, MO. 390 pp.
Henny, C.J., D.R. Anderson, and R.S. Pospahala. 1972. Aerial surveys of waterfowl
production in North America, 1955–1971. Special Scientific Report - Wildlife
Number 160, United States Fish and Wildlife Service, Washington, DC. 48 pp.
Hester, F.E., and T.L. Quay. 1961. A three-year study of fall migration and roosting
habits of the Wood Duck in east-central North Carolina. Proceedings of the
Southeastern Association of the Game and Fish Commissioners 15:55–60.
62 Southeastern Naturalist Vol. 8, Special Issue 2
Jones, S.D. 1987. Woodpecker selection of foraging snags in a bottomland forest
community of east Texas. M.Sc. Thesis. Stephen F. Austin State University, Nacogdoches,
TX. 69 pp.
Kepler, C.B., and J.M. Scott. 1981. Reducing bird count variability by training observers.
Pp. 366–371, In C.J. Ralph and J.M. Scott (Eds.). Estimating Numbers
of Terrestrial Birds. Studies of Avian Biology Number 6, Cooper Ornithological
Society, Lawrence, KS. 630 pp.
Kirby, R.E. 1980. Waterfowl production estimates on forest wetlands from pair and
brood counts. Wildlife Society Bulletin 8:273–278.
Mason, C.D. 2002. Diurnal time budgets of Mallards and Gadwalls wintering on
livestock ponds in northeast Texas. M.Sc. Thesis. Stephen F. Austin State University,
Nacogdoches, TX. 62 pp.
Minser, W.G., and J.M. Dabney. 1973. A comparison of day and night fl oat counts
for Wood Duck broods on the Holston River in east Tennessee. Proceedings of
the Annual Conference of the Southeastern Association of Game and Fish Commissioners
27:311–315.
Moser, T.J., and D.A. Graber. 1990. Stream brood surveys as indicators of Wood
Duck production. Pp. 205–208, In L.H. Fredrickson, G.V. Burger, S.P. Havera,
D.A. Graber, R.E. Kirby, and T.S. Taylor (Eds.). Proceedings of the 1988 North
American Wood Duck Symposium, St. Louis, MO. 390 pp.
Parr, D.E., and M.D. Scott. 1978. Analysis of roosting counts as an index to Wood
Duck population size. Wilson Bulletin 90:432–437.
Reynolds, R.T., J.M. Scott, and R.A. Nussbaum. 1980. A variable circular plot
method for estimating bird numbers. Condor 82:309–313.
Roeder, K., B. Dennis, and E.O. Garton. 1987. Estimating density from variable
circular plot censuses. Journal of Wildlife Management 51:224–230.
SAS Institute. 1982. SAS User’s Guide: Statistics, 1982 Edition. SAS Institute Incorporated,
Cary, NC. 584 pp.
Sherman, D.E., R.M. Kaminski, and B.D. Leopold. 1995. Winter line-transect surveys
of Wood Ducks and Mallards in Mississippi greentree reservoirs. Wildlife
Society Bulletin 23:155–163.
US Fish and Wildlife Service. 1985. Texas Bottomland Hardwood Preservation Program,
Category 3. US Department of the Interior, Albuquerque, NM. 378 pp.
US Fish and Wildlife Service. 1989. Angelina National Wildlife Refuge draft environmental
assessment. US Department of the Interior, Albuquerque, NM. 70 pp.
US Fish and Wildlife Service. 2006. Waterfowl population status, 2006. United
States Department of the Interior, Washington, DC. 61 pp.
Whiting, R.M., Jr., and S.C. Baggett. 1988. Sampling forest birds: Strip transects
versus time-area counts. Proceedings of the Annual Conference of the Southeastern
Association of Fish and Wildlife Agencies 42:358–367.
